OVERVIEW

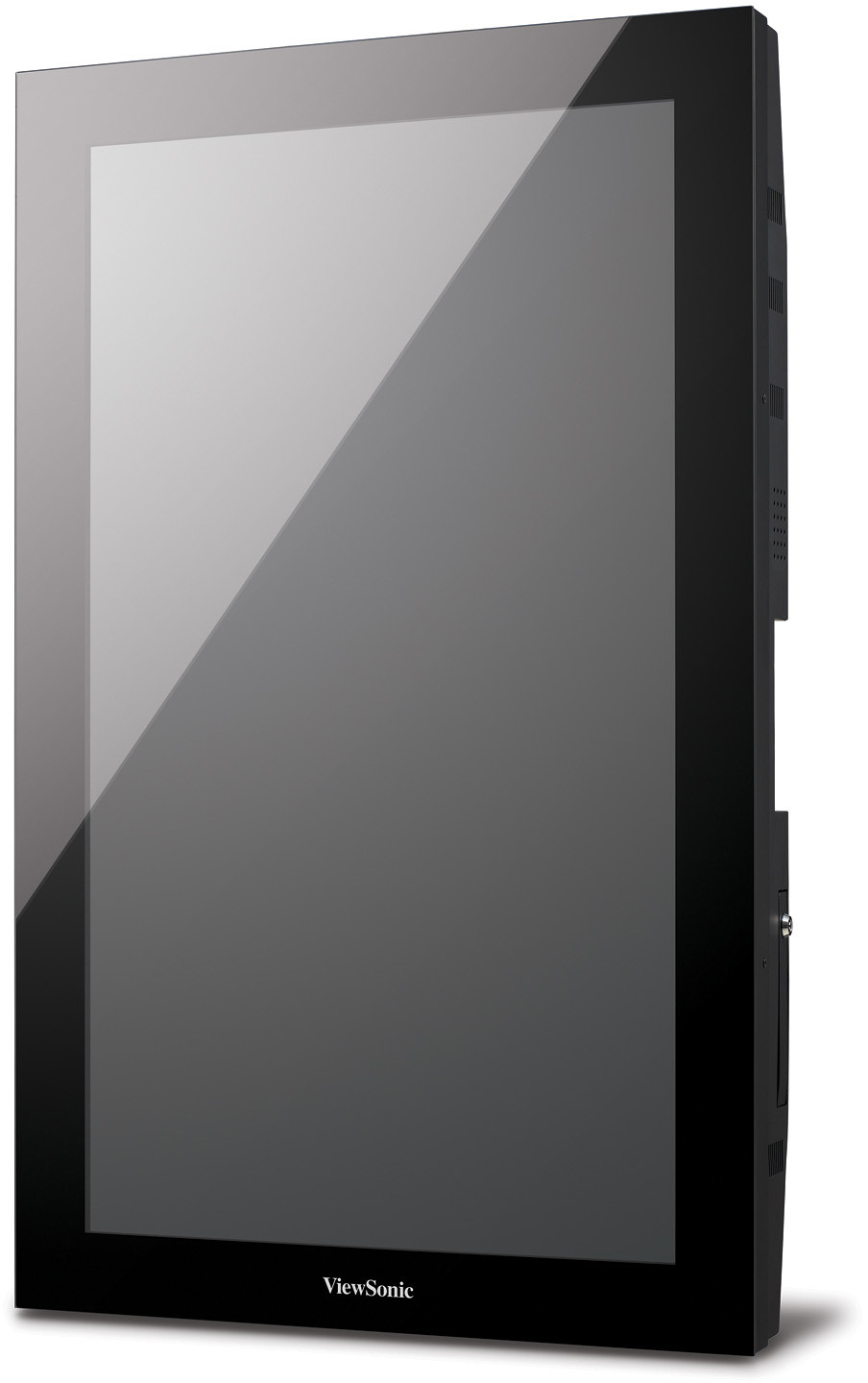

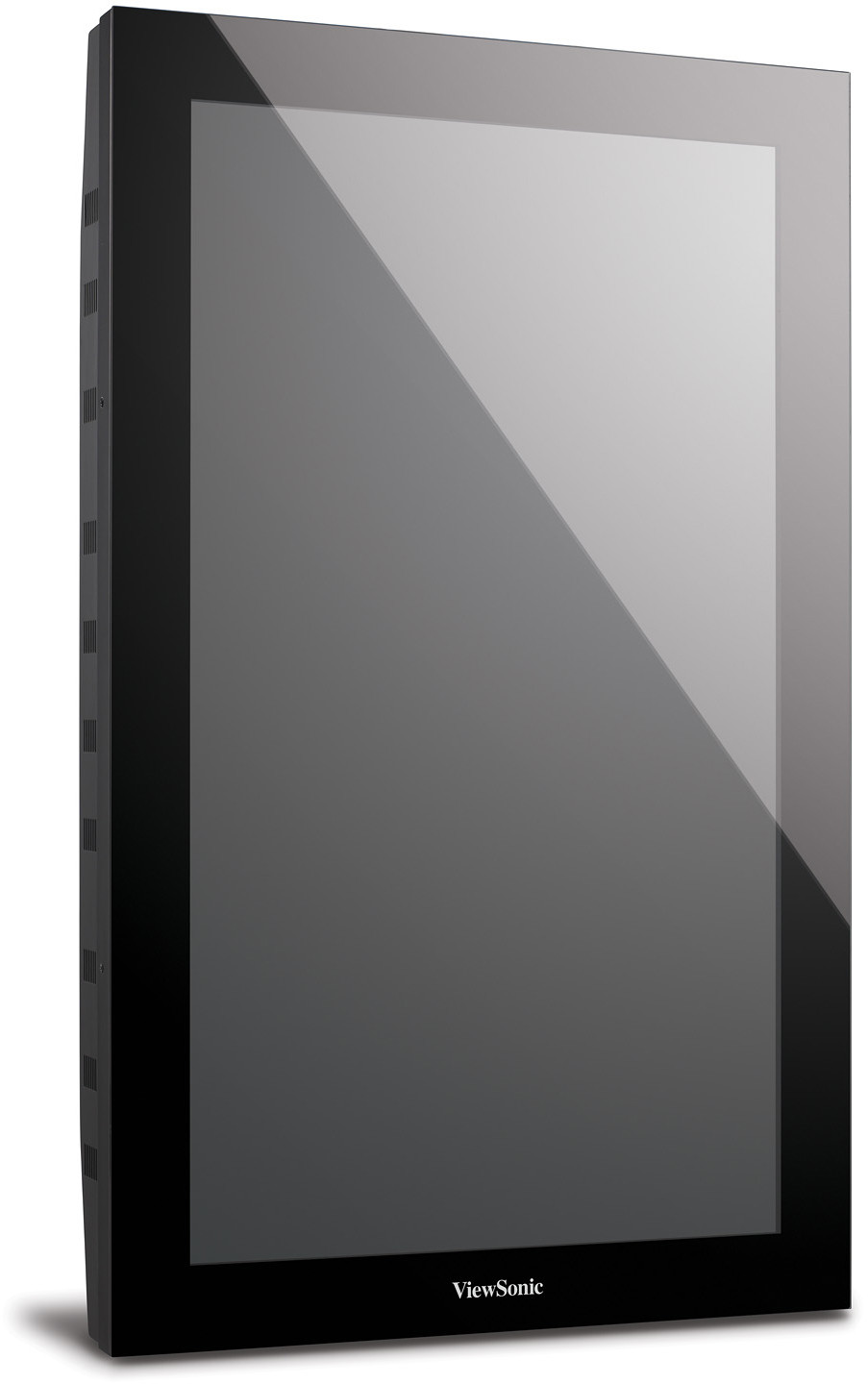

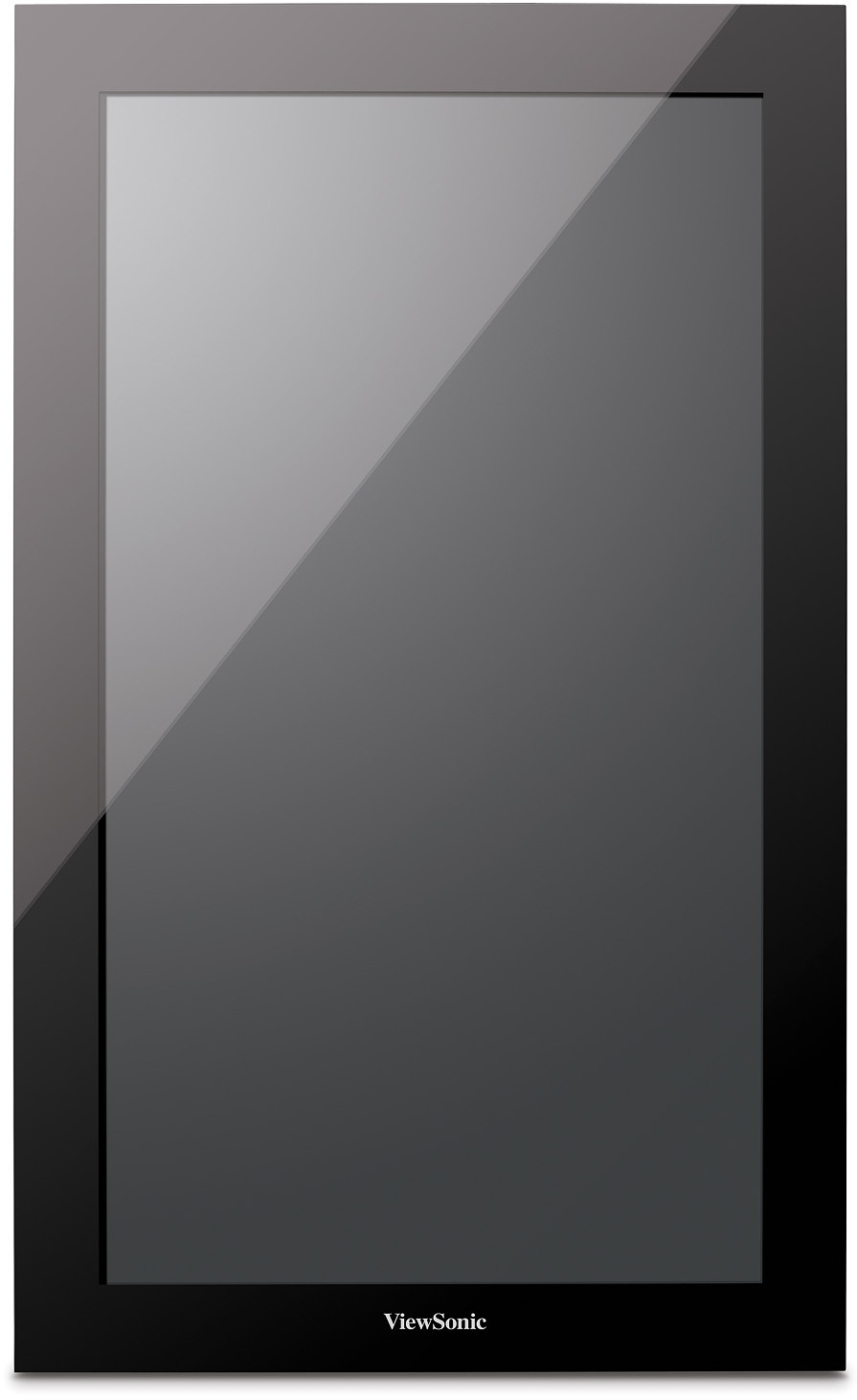

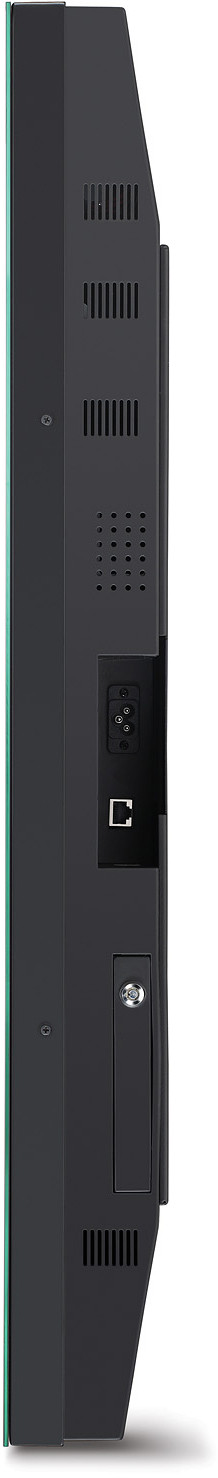

ViewSonic’s new ePoster products make it easy to replace those old backlit printed signs with new impactful high-definition digital posters. These sleek new displays feature built-in memory for storing high impact graphics as well as a powerful management tool featuring a content scheduler, duration timer and special effects editor for image transitions. Retail messaging is easy with ViewSonic’s new ePoster family of retail displays. Information is disseminated through the ePoster’s internal network connection or locally via the USB port. ViewSonic’s new ePoster products are available in various sizes and models and can be free standing or wall mounted. Great for announcing special promotions, computer-generated information or communicating multimedia with photos, audio, signage, and video.SPECIFICATIONS
- COLORSBlack
- COMPATIBILITYCard Reader: 2GB Compact Flash
Photo Formats: JPEG baseline 5120x3840, progressive 2048x1536 BMP
Audio Formats: LPCM, sampling rate: 32–48KHZ/16–24 bit
MPEG1 Layer 3, sampling rate: 32–48KHZ, bit rate: 32–320Kbps - DIMENSIONSPhysical (WxHxD): 15.0" x 26.4" x 1.2" (380mm x 670mm x 31mm)
- REGULATIONSFCC, ICES 003, CE
- PACKAGE CONTENTSePoster, power cord, remote control with batteries, key, wall mount
bracket, Quick Start Guide, User Manual and Software on CD - AUDIOSpeaker: 2W (x2)
- CONNECTORUSB: 2.0 (x1)
Ethernet: RJ45 (10/100M) - POWERConsumption: Max 60W
Save Mode (W): Off < 1W
Supply: 3.2–1.38 A @ 100–240VAC, 50/60Hz - DISPLAYContrast Ratio : 2500:1 (typ)
Display size: 22" (21.6"/54.9cm viewable)
Resolution: 1366x768
Color Depth: Over 16.7M color (depending on video card used)
Response Time: 8ms (typ gray-to-gray)
Viewing Angles: Up and down 178º, left and right 178º (typ) @ CR>10

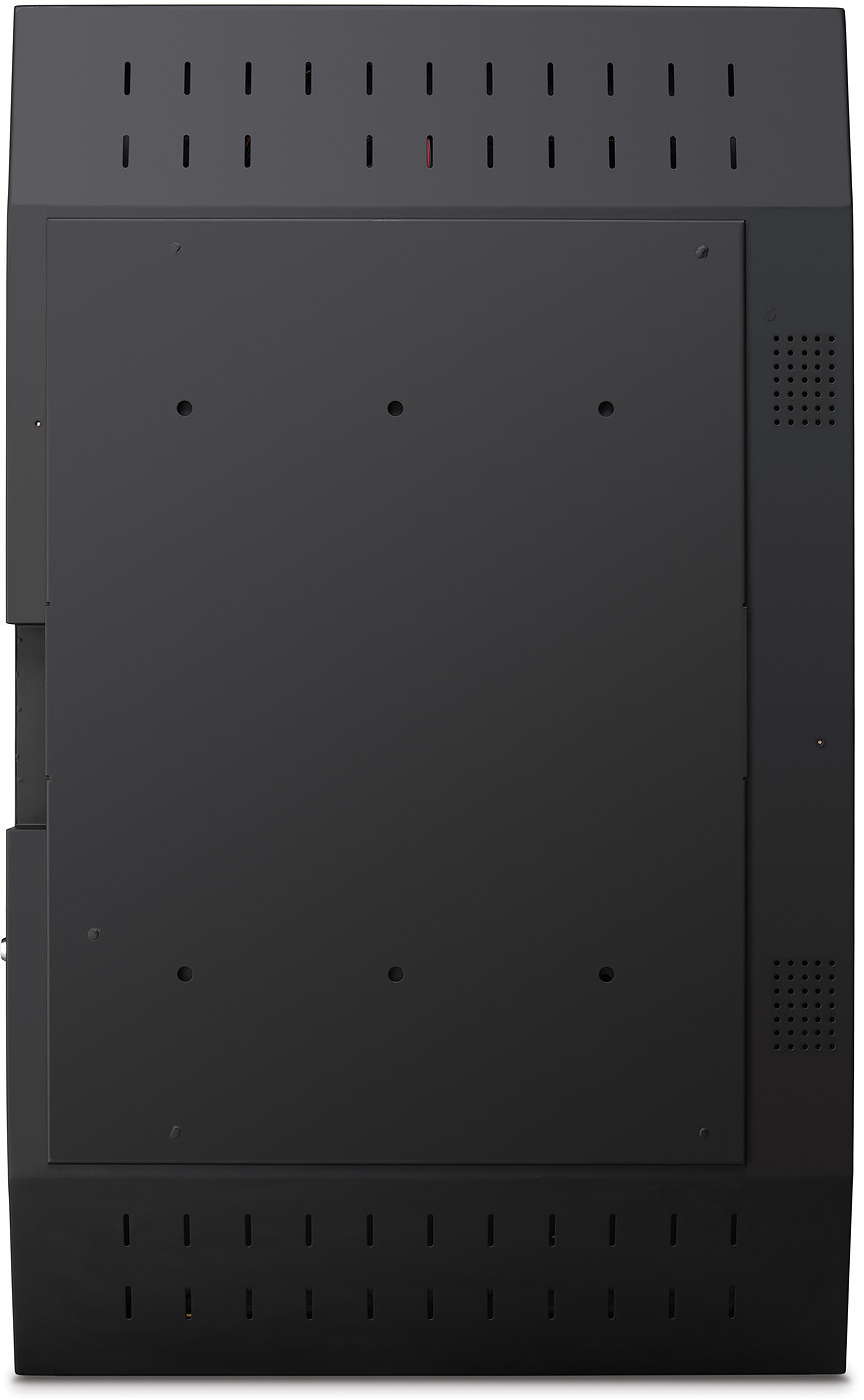

Brightness: 300 cd/m2 (typ) - VESA MOUNT COMPLIANT360mm x 350mm
- WEIGHTGross: 35.3 lbs. (16.0 kg)
Net: 28.7 lbs. (13.0 kg) - OPERATING CONDITIONSHumidity: 20–90% (non-condensing)
Temperature: 32–122º F (0–50º C) - CONTENT MANAGEMENTOperating System: MS Windows
Software: ePoster Manager Express
