OVERVIEW

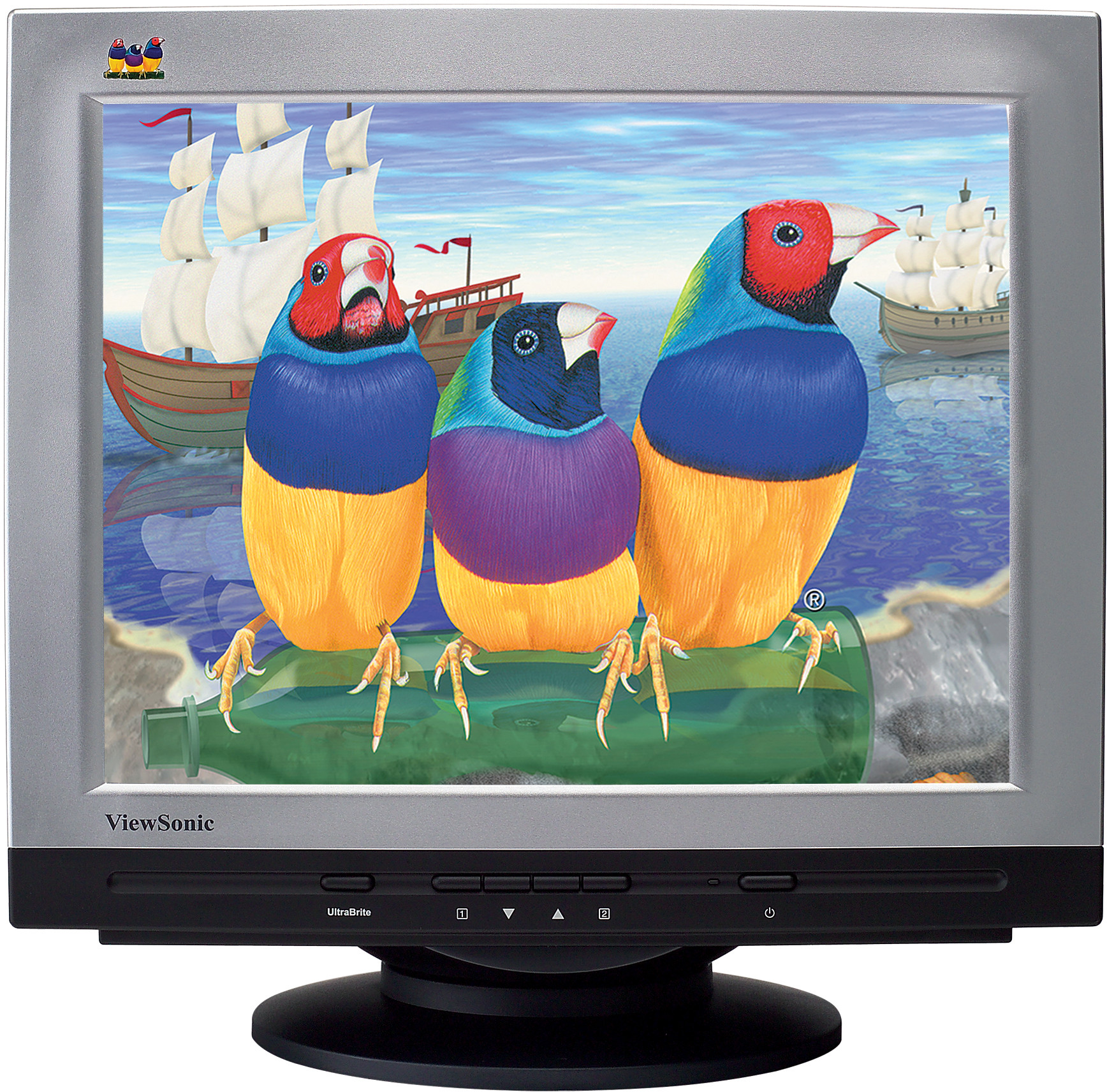

The 19” E92f+SB monitor, with an attractive metallic-on-black design, isequipped with a fine 0.25 mm shadow mask and achieves a maximumresolution of 2048 x 1536. Thanks to UltraBrite technology, this modelprovides perfect brightness and contrast for varying applications. Forexample, users can invoke the extra-rich colours that makes viewingvideos, DVDs, TV or playing games a real treat at the touch of a button.A further press is all it takes to return to normal colour and brightnesslevels for everyday applications. This feature offers professionals excellentcolour saturation for video editing as well as graphic and web design.The portrayals are accurate right to the periphery of the screen andmake a remarkably life-like impression. Due to the flat screen surface,the E92f+SB minimises annoying reflections while also ensuring thatimage proportions remain precise.SPECIFICATIONS
- COMPATIBILITYPC: IBM compatible (from VGA up to 1792 x 1344)
Mac®: Power Mac™ (G3/G4 from 640 x 480 to 1152 x864) - DIMENSIONSPhysical (WxHxD): 449mm (W) x 451mm (H) x 453.4mm (D)
- REGULATIONSTCO ’03, TÜV/GS, TÜV/ERGO, CE, ISO 9241-3,
ISO 9241-7, ISO 9241-8, MPR-II, CB, UL, FCC-B, CSA,
NOM, BSMI, VCCI, PSB, C-TICK, SASO, CCIB, NEMKO,
SEMKO, DEMKO, FIMKO, Gost-R, PCBC, PC ’2001
- INPUT SIGNALFrequency: fh: 30-97kHz; fv: 50-180Hz
Video: RGB analogue (75 ohms, 0.7 Vp-p)
Sync: H/V separated (TTL), Composite - CONNECTORSignal: 15-pin mini D-sub (high density)
Power: 3-pin plug (IEC320) - POWERVoltage: AC 90-264VAC, 50–60Hz (+/-2)Hz
Consumption: 90W (typ), 110W (max) - CONTROLSBasic: Power on/off, 1, Down, Up, 2, UltraBrite
OSD: Contrast, Brightness, Degauss, Horizontal Size, Horizontal
Position, Vertical Size, Vertical Position, Pincushion,
Pincushion Balance, Trapezoid, Parallelogram, Tilt, CORNER,
Horizontal Moire, Vertical Moire, ViewMatch (9300K,
6500K, 5000K, User), ViewMeter, OSD Position,
Languages, Memory Recall, Zoom, OSD lock/unlock - OPERATING CONDITIONSTemperature: 0–40º C (32–104º F)
Humidity: 5–95% (non-condensing) - WEIGHTNet: 21.9kg
- VIDEO INPUTBandwidth: 240MHz
- POWER MANAGEMENTMeets TCO’03
- CRTType: 48cm / 19" (18.0" viewable), 90º deflection, PerfectFlat
Dot Pitch: 0.21mm Hor., 0.14mm Ver., 0.25mm Diagonal dot pitch
Phosphor: RGB B22 medium/short persistence
Glass Surface: Tint (TM = 53%), Anti-Reflection and Anti-Static - MISCONVERGENCE0.25mm (max) at centre
0.35mm (max) at corners - DISPLAY AREAFactory Setting: 352mm x 264mm
Maximum Scan: 360mm x 270mm
