OVERVIEW

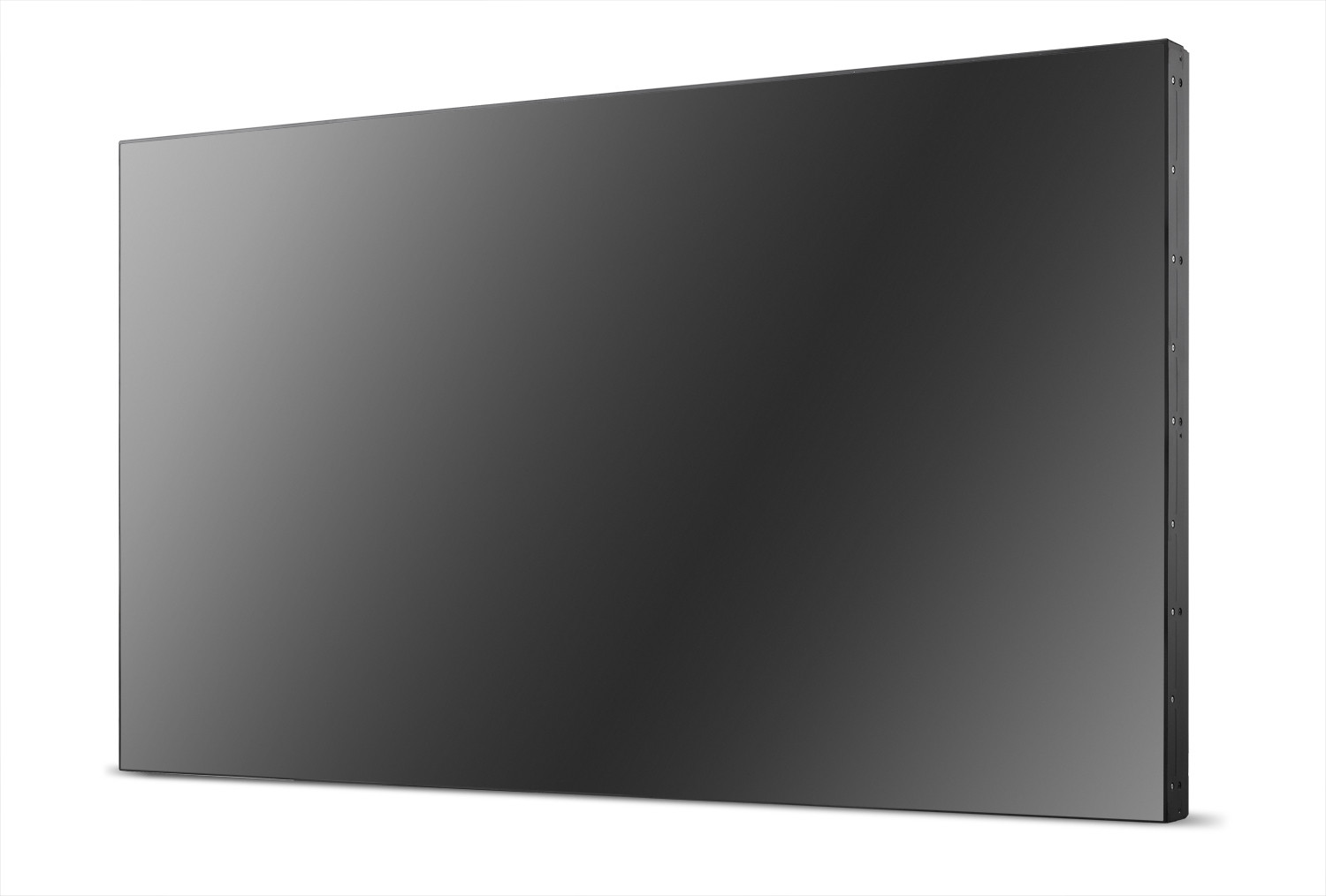

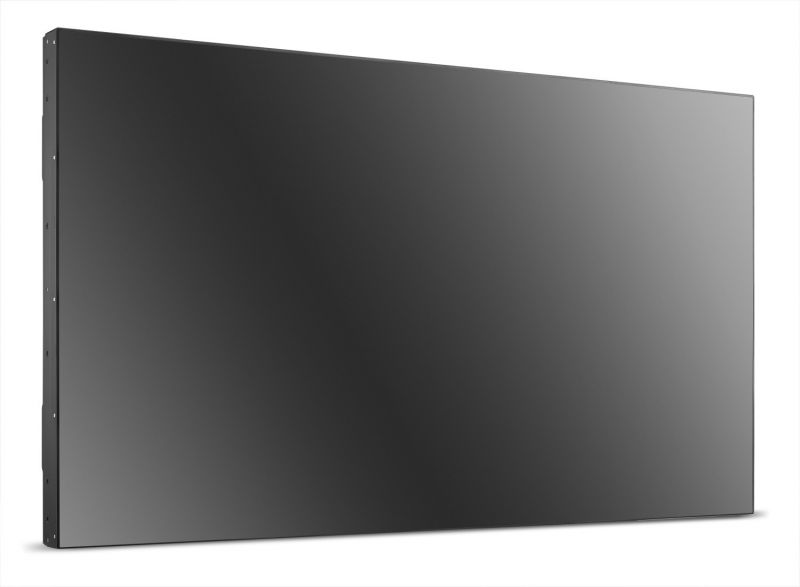

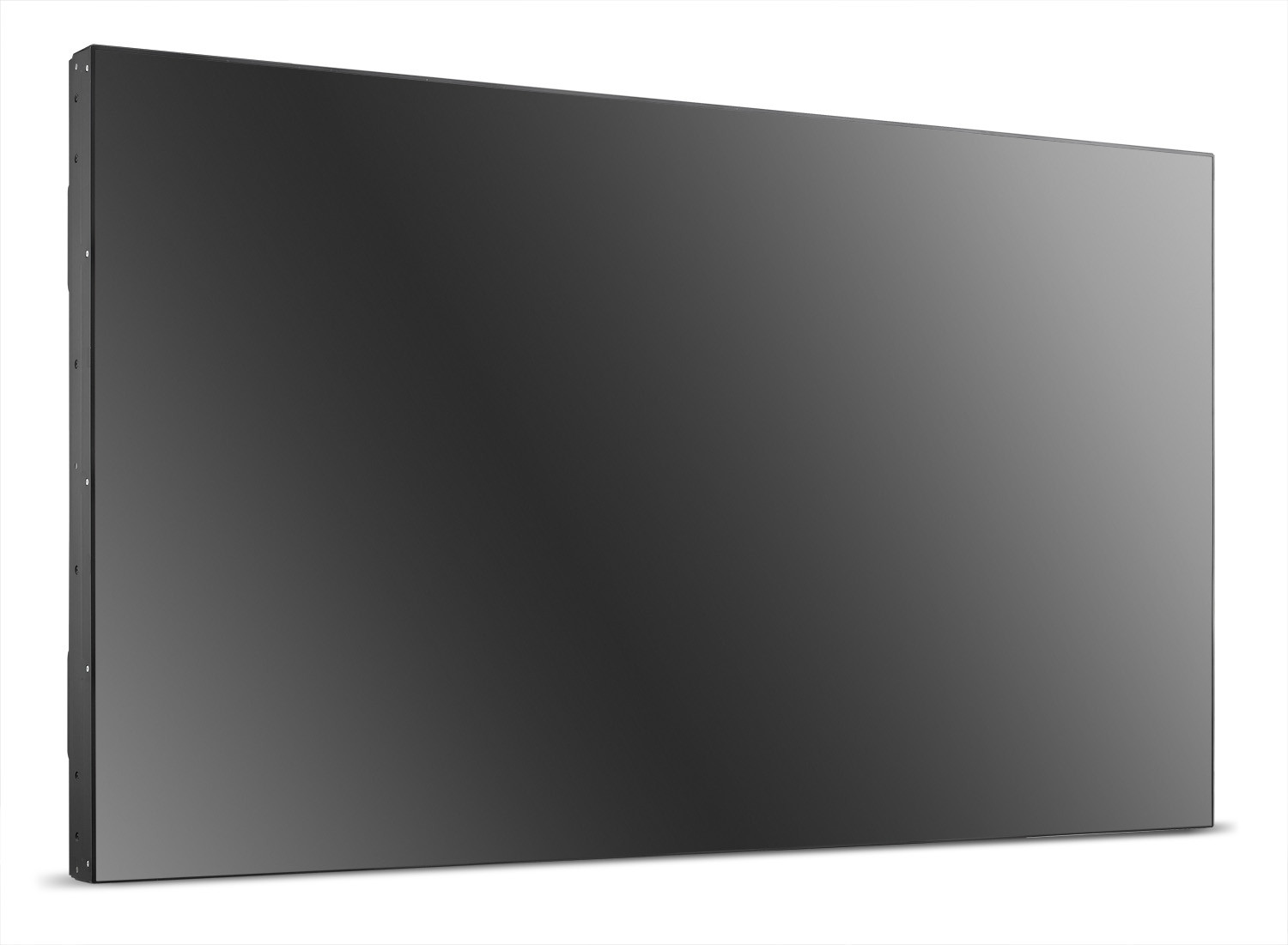

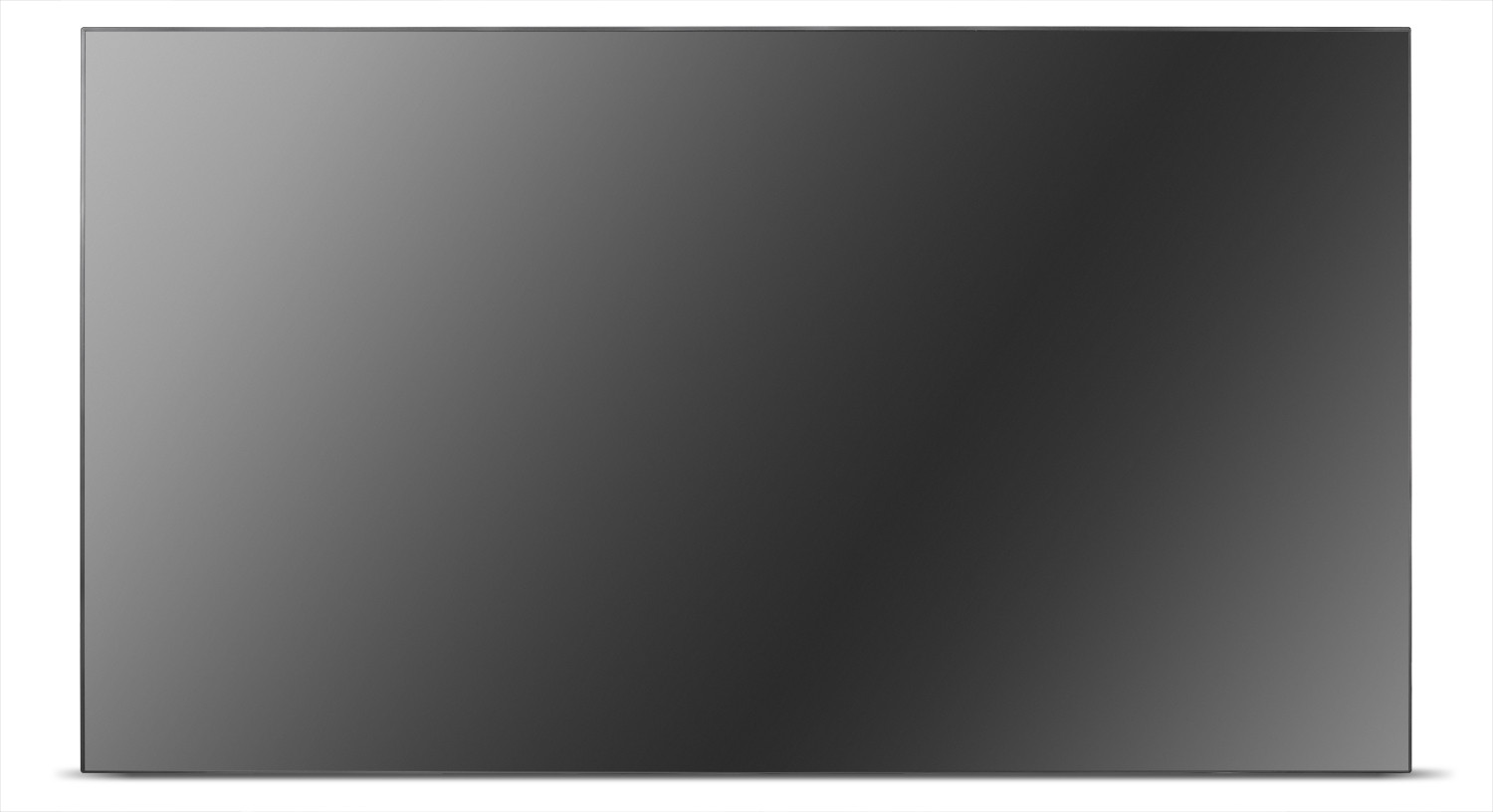

The ViewSonic® ultra narrow CDX5550-L Full HD LED commercial display is engineered for commercial video wall installations. This energy-saving LED backlight display delivers stunning brightness and contrast for a beautiful, crisp picture, with 8ms response time to ensure smooth video playback. One of the few displays this large with support for Intel OPS, the CDX5550-L offers convenient media player integration for scalable, modular solutions,plus multiple digital and analogue connectivity options. A slim bezel, 5x5 tiling and input loop-through make this the perfect display for video wall applications with even a single media player.55"" HD Display Optimized for Commercial Applications
The ViewSonic CDX5550-L is designed for use in public,retail and commercial signage installations.• 1080p 8ms LED panel for vibrant images using up to 35% less power* than standard CCFL displays
• Public display areas that need robust commercial displays

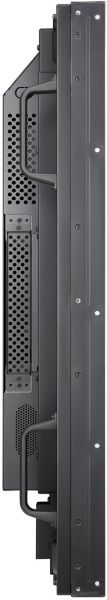

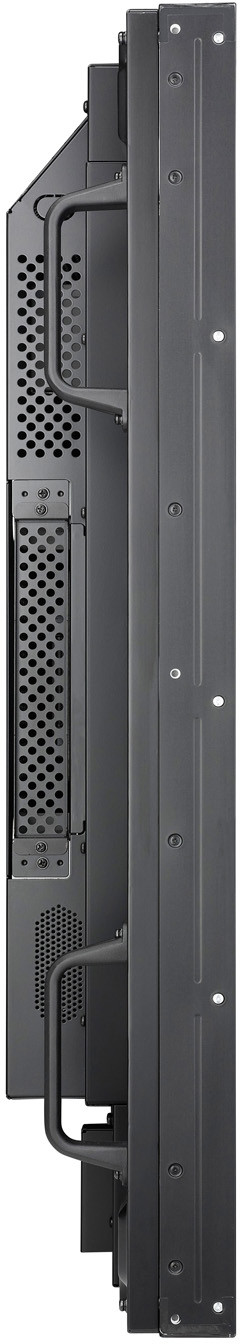

• Ultra slim 3.7mm bezel for nearly seamless video wall installations, up to 5x5 tile matrix
• Designed for 24/7 operation
• Ideal for transportation – arrival / departure display applications
• Remote control and panel control lock-out
• 10-watt x2 internal speakers plus 10-watt x2 output amplifier for multimedia applications
Versatile Connectivity for Any Environment
• Multiple digital and analogue inputs/outputs• RS-232 daisy chain capable
• Component BNC connections
• RJ45 LAN control
• Internal speakers
• External speaker connections
Resolutions Supported
640 x 480 at 60 Hz to 75 Hz800 x 600 at 60 Hz, 60 Hz to 75 Hz
1024 x 768 at 60 Hz, 60 Hz to 75 Hz
1280 x 768 at 60 Hz
1366 x 768 at 60 Hz
1280 x 1024 at 60 Hz
1600 x 1200 at 60 Hz
1920 x 1080 at 60 Hz (recommended)
NTSC, PAL, SECAM, 4.43 NTSC, PAL 60
Component: 480i, 480p, 720p, 1080i, 1080p
Optional Accessories
Stand.........................................STND-021Wall Mount....................................WMK-013
Wall Mount with Locking
Media Player Cradle...........................WMK-028
SPECIFICATIONS
- COLORSBlack
- LCDType: 55" (54.6" viewable) color TFT active matrix, wide LED
Contrast Ratio: 3500:1 (typ)
Viewing Angles: 178º horizontal, 178º vertical
Brightness: 700 cd/m2 (typ)
Display Area: 47.6" horizontal x 26.7" vertical; 54.6" diagonal
Optimum Resolution: 1920x1080, 0.485mm dot pitch
Response Time: 8ms
Light Source: Long life, 50,000 hrs. (typ)
Aspect Ratio: 16:9
Panel Surface: Anti-glare, hard coating (3H) - DIMENSIONSPhysical With Stand: 47.9 x 29.1 x 15.8 in. / 1259.3 x 737.8 x 400 mm
Physical Without Stand: 47.9 x 27.0 x 5.0 in. / 1259.3 x 686.1 x 128.1 mm
Packaging: 57.5 x 35.6 x 12.6 in. / 1461 x 904 x 320 mm
- REGULATIONSFCC, ICES003, UL, cUL, CE, CB, C-Tick, BSM
- PACKAGE CONTENTSCDX5550-L LED Display, power cable, remote control with batteries, User Guide, Quick Start Guide
- AUDIOSpeaker: Internal 10-watt (x2) / 8 ohm

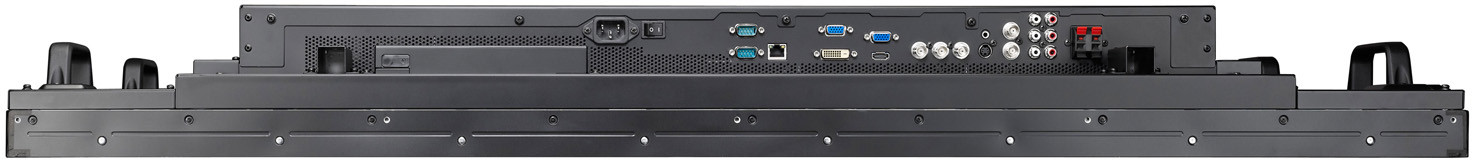

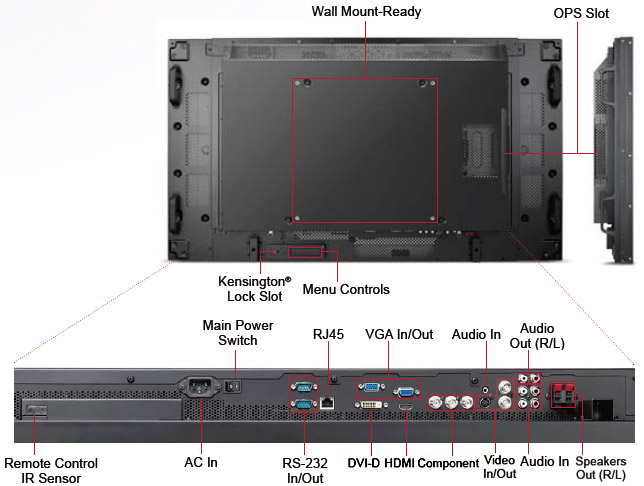

Amplifier: 10w / 8 ohm - INPUTVideo Input: HDMI, DVI, component, VGA, S-Video, CVBS (BNC)
Video Output: VGA, component, DVI (Loop Through)
Control Input/Output: RS-232 / RJ45 - INPUT SIGNALTV/Video comp.: 480i, 480p, 720p, 1080i, 1080p
- CONNECTORDigital: HDMI, DVI
Power: 3-pin plug
Analog: 9-pin mini D-sub (VGA) - POWERVoltage: AC 100–240V (universal), 50–60Hz
Consumption: 220W (typ) - CONTROLSPicture: Picture mode, contrast, brightness, color temperature,
temperature adjust, sharpness
Front Panel: Power, Exit, +, –, Menu/Enter
Special: Aspect ratio, over scan, power save, image retention,
auto adjustment, monitor ID, reset
Audio: Volume, mute, audio source
Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect
Input: VGA, DVI, HDMI, YPbPr
OSD Setting: Languages, OSD H. position, OSD V. position, OSD timer
VGA Setting: Auto adjustment, clock, phase, sharpness,
H. position, V. position - DISPLAYResolution: RESOLUTIONS SUPPORTED
640 x 480 at 60 Hz to 75 Hz
800 x 600 at 60 Hz, 60Hz to 75 Hz
1024 x 768 at 60 Hz, 60Hz to 75 Hz
1280 x 768 at 60 Hz, 60Hz to 75 Hz
1360 x 768 at 60 Hz, 60Hz to 75 Hz
1280 x 1024 at 60Hz
1600 x 1200 at 60 Hz
1920 x 1080 at 60Hz (recommended resolution)
NTSC, PAL, SECAM, 4.43 NTSC, PAL 60
Component: 480i,480p,720p,1080i,1080p - OPTIONAL ACCESSORIES AVAILABLEStand (STND-021), Wall Mount (WMK-013), Wall Mount with Locking Media Player Cradle (WMK-028)

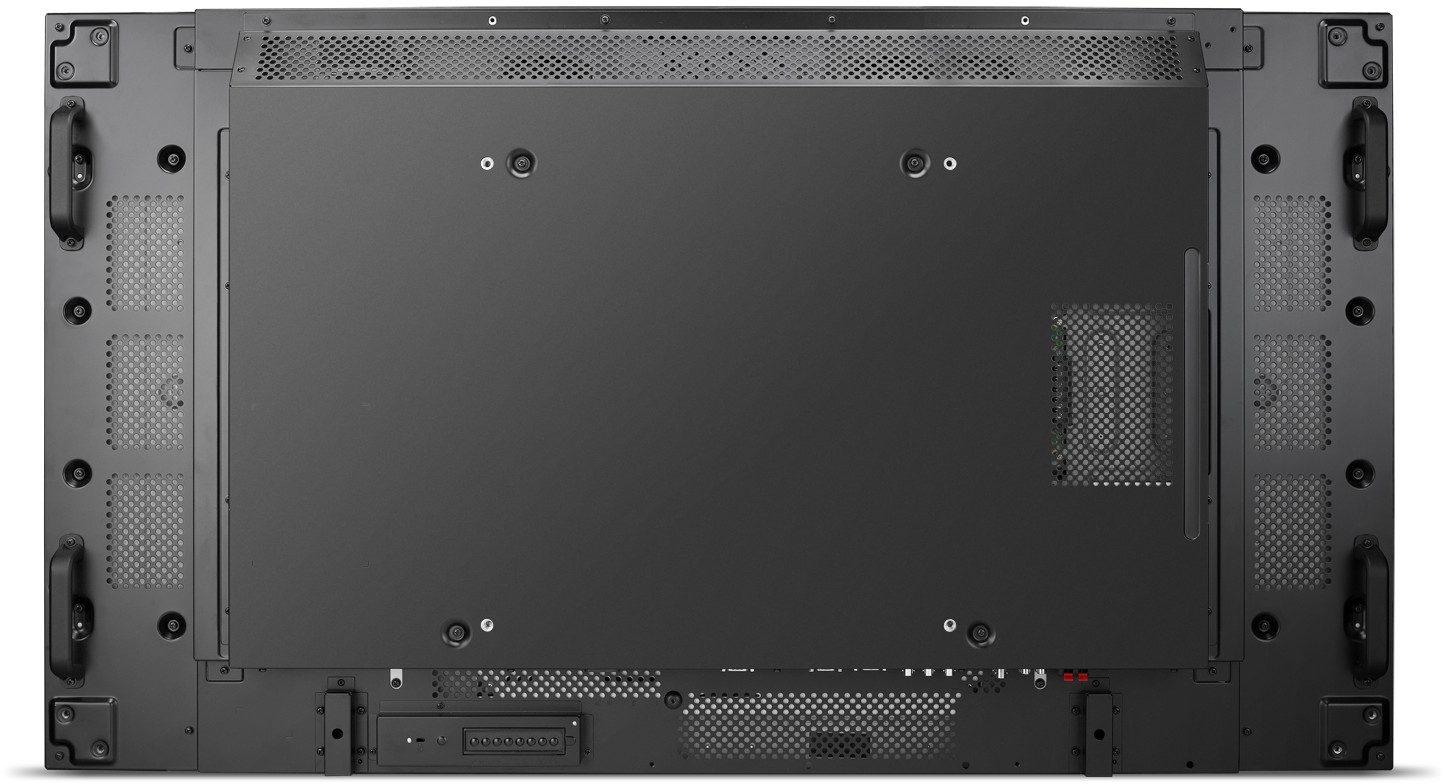

- VESA MOUNT COMPLIANTVESA 400mm x 400mm
- WEIGHTGross: 94.8 lb. / 43.0 kg
Net With Stand: 84.2 lb. / 38.2 kg
Net Without Stand: 79.4 lb. / 36.0 kg - OPERATING CONDITIONSHumidity: 10–90% (non-condensing)
Temperature (landscape): 32–104ºF (0–40ºC)
Temperature (portrait): 32–95ºF (0–35ºC) - RECYCLE/DISPOSALPlease dispose of in accordance with local, state, or federal laws.
