OVERVIEW

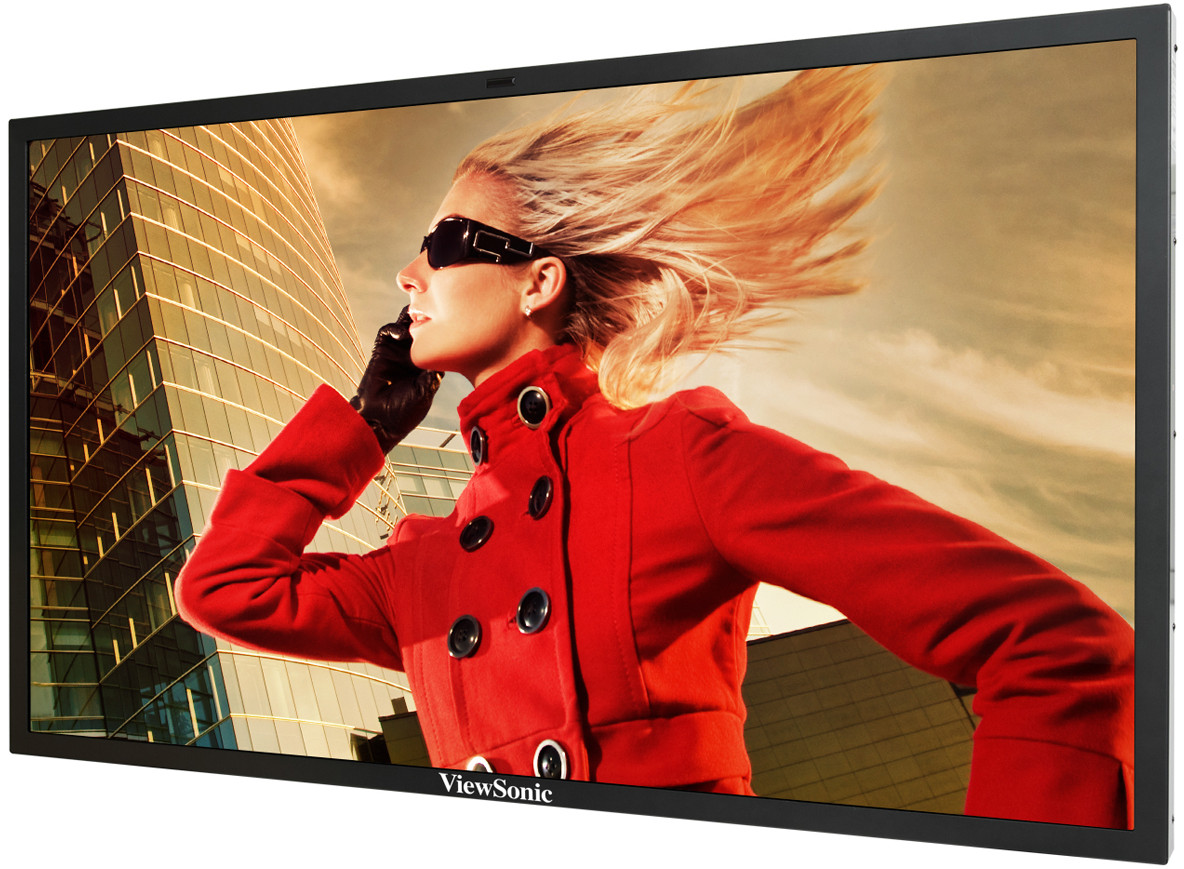

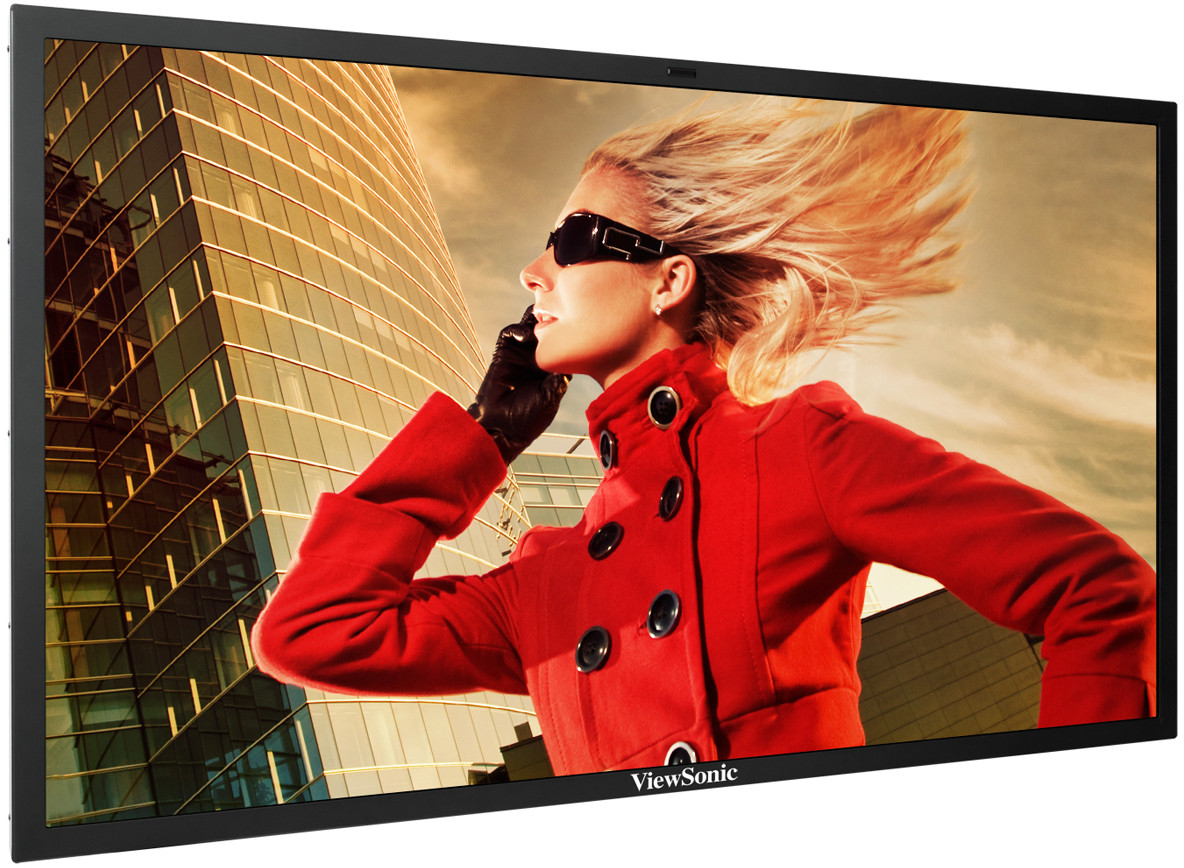

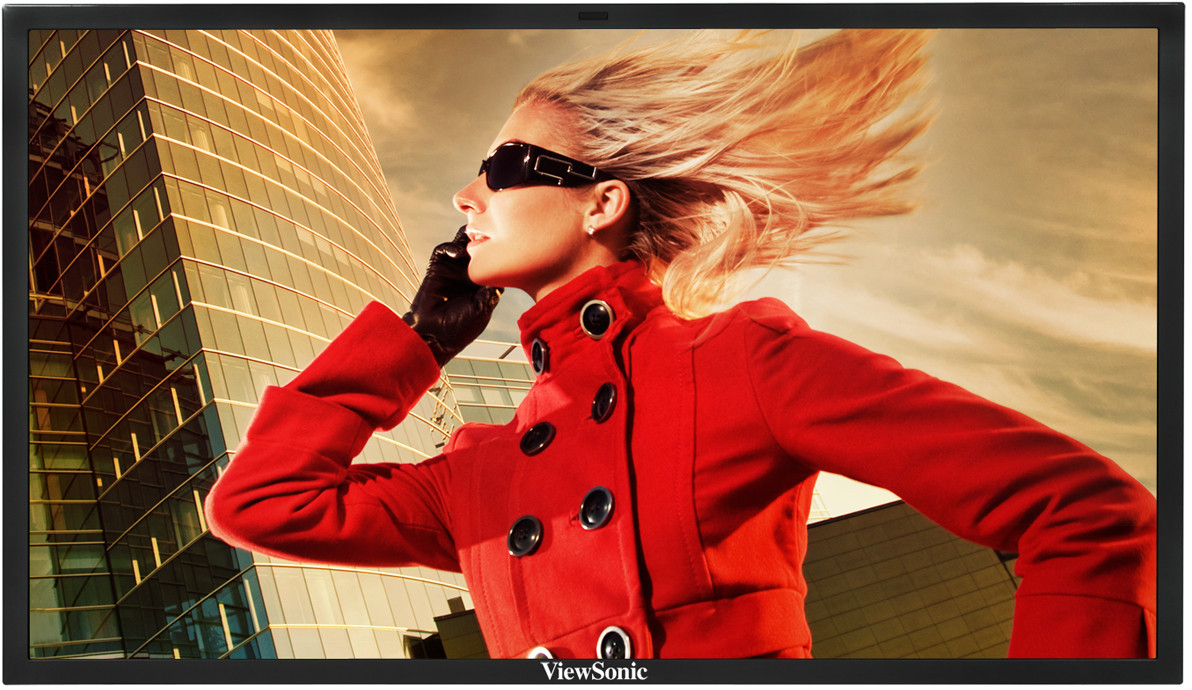

ViewSonic’s new CDP6530 full HD commercial display with 1920 x 1080p, 500 nits (typ) panel with 20,000:1 dynamic contrast ratio. Additional features include versatile inputs – HDMI, DVI, VGA, S-video and composite, YPbPr (BNC) with built in 12Wx2 speakers and 12Wx2 speaker output connections. The CDP6530 can be used to make up to a 10x10 display video wall applications and automatic scheduler. RS232 daisy chain and DDC/CI is also provided for remote control. VGA and composite video output is also provided for video loop through applications.Advanced ClearPicture™ – Clearer, Crisper, Sharper Images
Advanced ClearPicture™ image processing eliminates noise, increases contrast and detail and optimizes colour for rich, vibrant images. High-definition images look amazing and even standard television images are unbelievably smooth and sharp.Vivid Graphics, Clear Text
Ultra-high brightness of 500 nits (typ), contrast ratio of 20,000:1, and 1920 x 1080 full HD optimum resolution provide vibrant video and crisp data, all while using up to 35% less power* than standard CCFL displays.Special Features
- Remote and panel control lock out
- Built-in 12Wx2 speakers
- Installation options include stand or VESA® wall mount
- Internal Scheduler
- 10x10 display video wall capability
- Designed for 24/7 operation with 3-year limited warranty
Expand Your Options with Plug-and-Play Connectivity
Versatile inputs include – HDMI, DVI, VGA, YPbPr, CVBS (BNC) S-video and composite video. RS232 daisy-chain capable."
SPECIFICATIONS
- COLORSBlack
- LCDType: 65" (64.6" viewable) colour TFT active matrix, wide LCD
Contrast Ratio: 5000:1 (typ)
Viewing Angles: 178º horizontal, 178º vertical
Brightness: 500 cd/m2 (typ)
Display Area: 56.2" horizontal x 31.6" vertical; 64.6" diagonal
Optimum Resolution: 1920 x 1080, 600mm dot pitch
Response Time: 8ms
Light Source: Long life, 50,000 hrs. (typ)
Aspect Ratio: 16:9
Panel Surface: Anti-glare, hard coating (3H) - DIMENSIONSPhysical (WxHxD): 59.3" x 35.4" x 5.3" (W x H x D) (1500mm x 900mm x 136mm)
- REGULATIONSFCC, ICES003, UL, cUL, CE, CB, ENERGY STAR®, RoHS

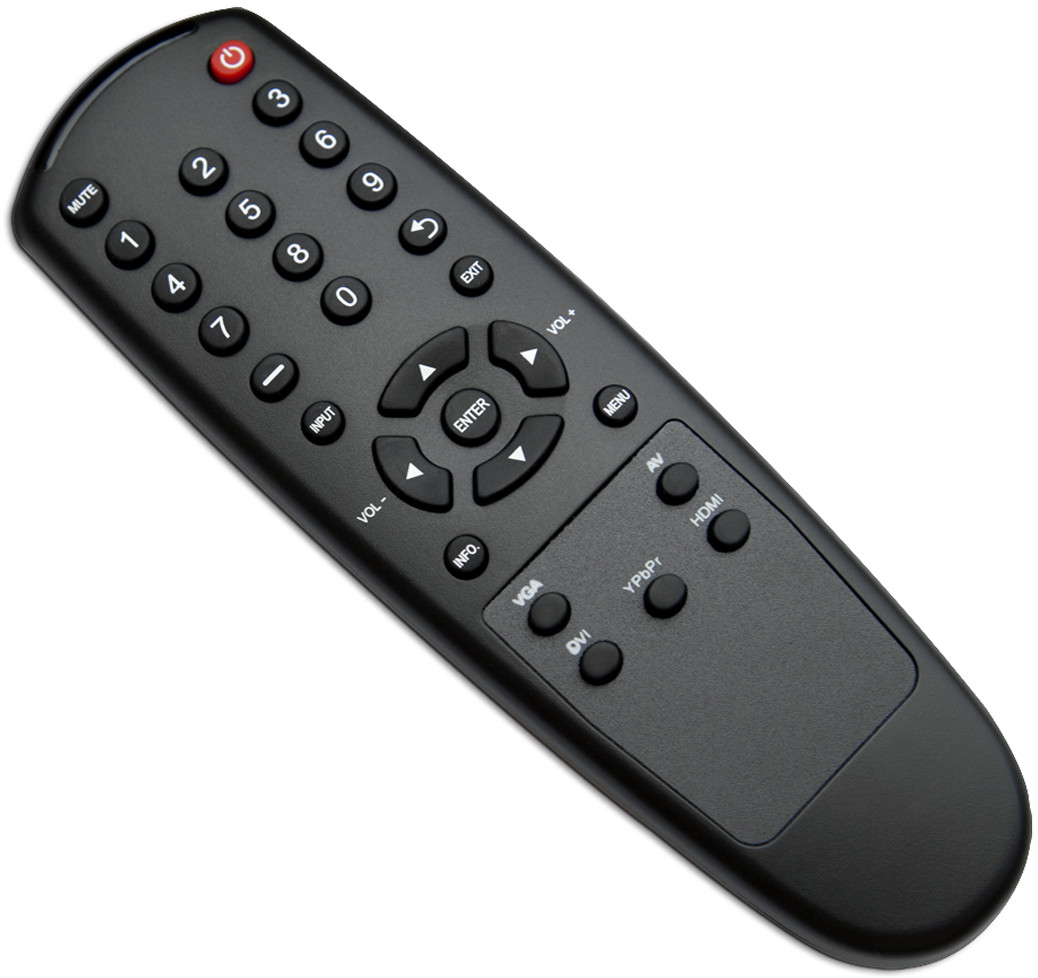

- PACKAGE CONTENTSLCD display, power cable, remote control with batteries,
User Guide CD - AUDIOAmplifier: 12-watt / 8 ohm

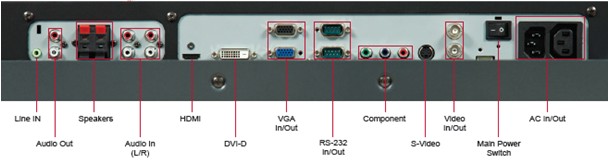

- INPUTVideo Input: HDMI, DVI, component, VGA, S-video, CVBS (BNC)
Video Output: VGA, component, DVI (Loop through)
Control Input/Output: RS-232 - INPUT SIGNALTV/Video comp.: 480i, 480p, 720p, 1080i, 1080p
- CONNECTORDigital: HDMI, DVI, S-video YPbPr, CVBS
Power: 3-pin plug
Analog: 15-pin mini D-sub (VGA) - POWERVoltage: AC 100–240V (universal), 50–60Hz
Consumption: 520W (typ) - CONTROLSPicture: Picture mode, contrast, brightness, colour temperature,
temperature adjust, sharpness
Front Panel: Power, Exit, +, –, Menu/Enter
Special: Aspect ratio, over scan, power save, image retention,
auto adjustment, monitor ID, reset
Audio: Volume, mute, audio source
Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect
OSD Setting: Languages, OSD H. position, OSD V. position, OSD timer
VGA Setting: Auto adjustment, clock, phase, sharpness,
H. position, V. position - OPTIONAL ACCESSORIES AVAILABLEStand (optional), Wall Mount (WMK-013),

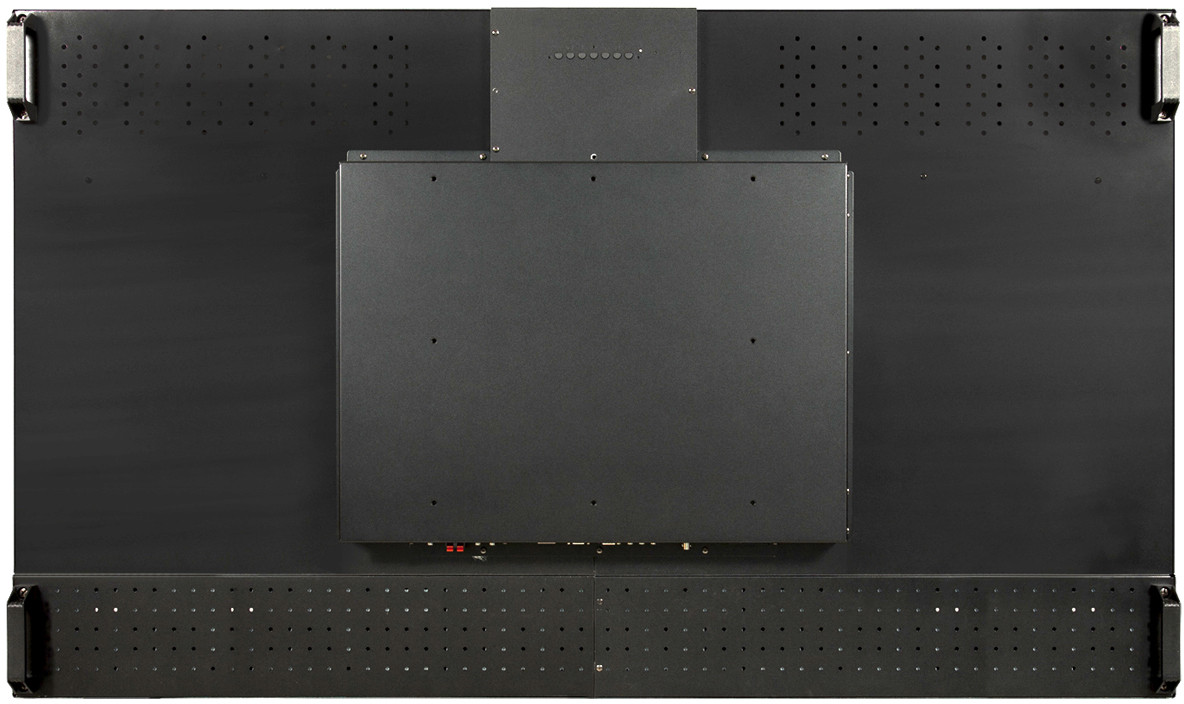

Wall Mount with Locking Media Player Cradle (WMK-028) - VESA MOUNT COMPLIANTVESA 200mm x 400mm, 400mm x 400mm
- WEIGHTGross: 176.4 lb. (80.0 kg)
Net: 154.3 lb. (70.0 kg) - OPERATING CONDITIONSHumidity: 20–90% (non-condensing)
Temperature (landscape): 32–104ºF (0–40ºC)
Temperature (portrait): 41–95ºF (5–35ºC) - RECYCLE/DISPOSALThe lamp in this product contains mercury. Please
dispose of in accordance with local, state or federal laws. - AUDIO OUTSpeakers: Internal 12-watt (x2)
- RESOLUTIONS640 x 480 at 60 Hz to 75 Hz
800 x 600 at 60 Hz, 60Hz to 75 Hz
1024 x 768 at 60 Hz, 60Hz to 75 Hz
1280 x 768 at 60 Hz, 60Hz to 75 Hz
1360 x 768 at 60 Hz, 60Hz to 75 Hz
1280 x 1024 at 60Hz
1600 x 1200 at 60 Hz
1920 x 1080 at 60Hz (recommended resolution)
NTSC, SECAM, 4.43 NTSC
Component: 480i,480p,720p,1080i,1080p - OPSOpen Pluggable Specification slot (OPS) ready
