OVERVIEW

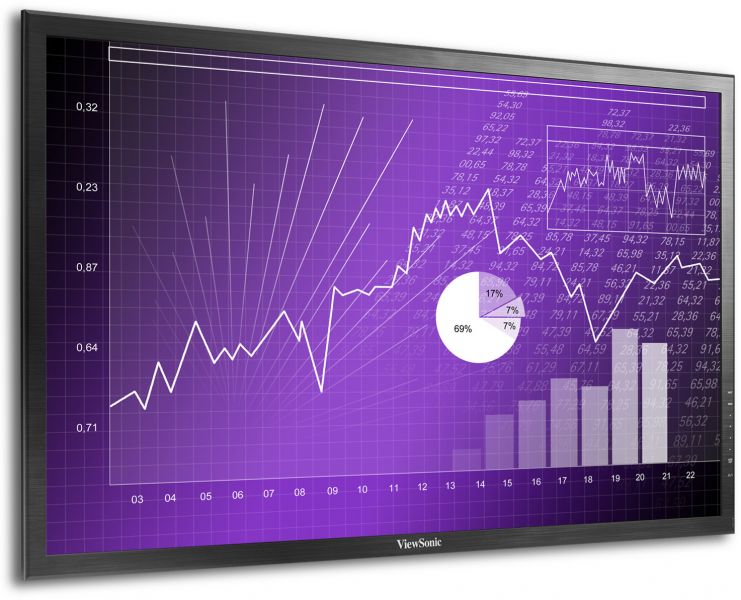

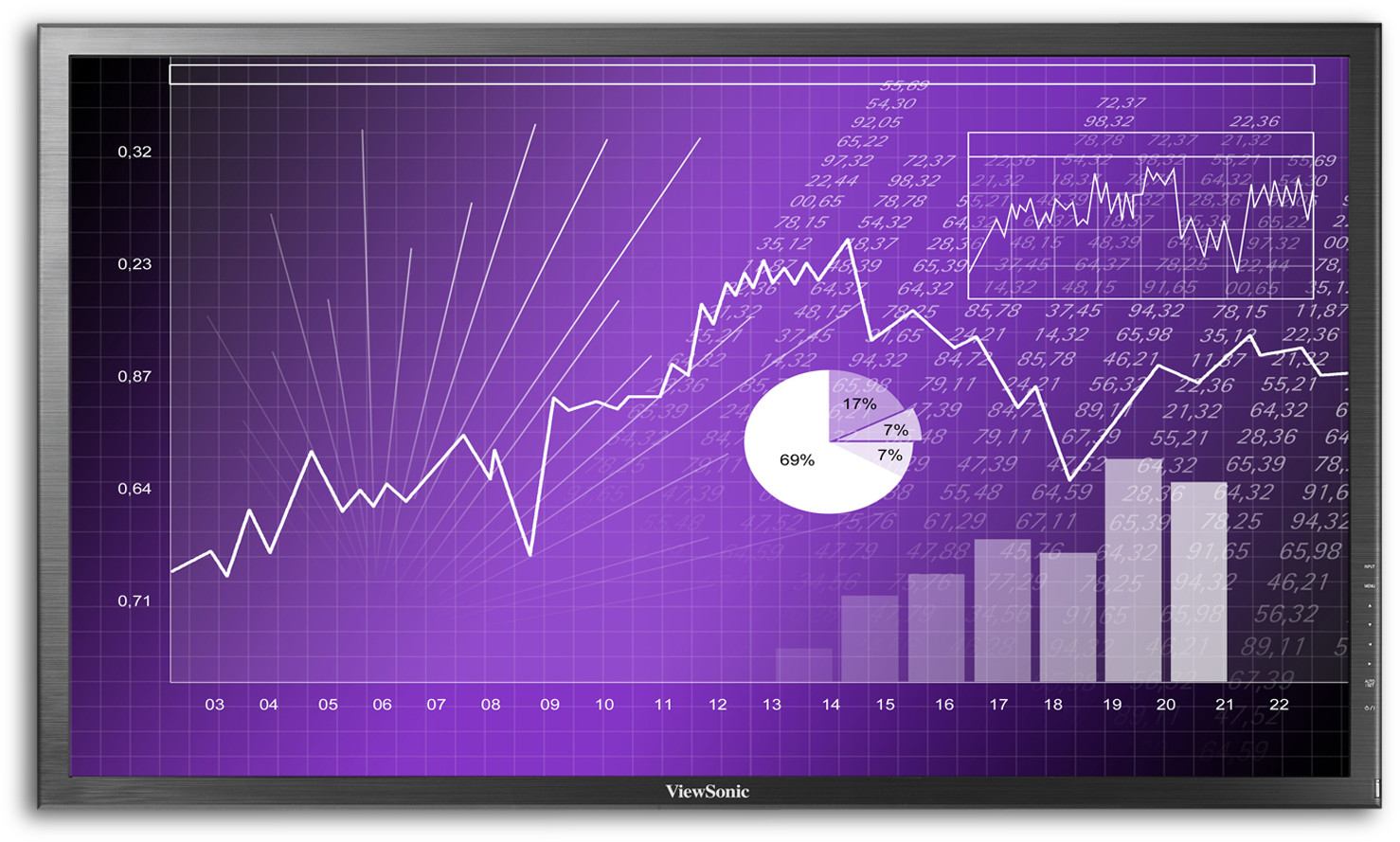

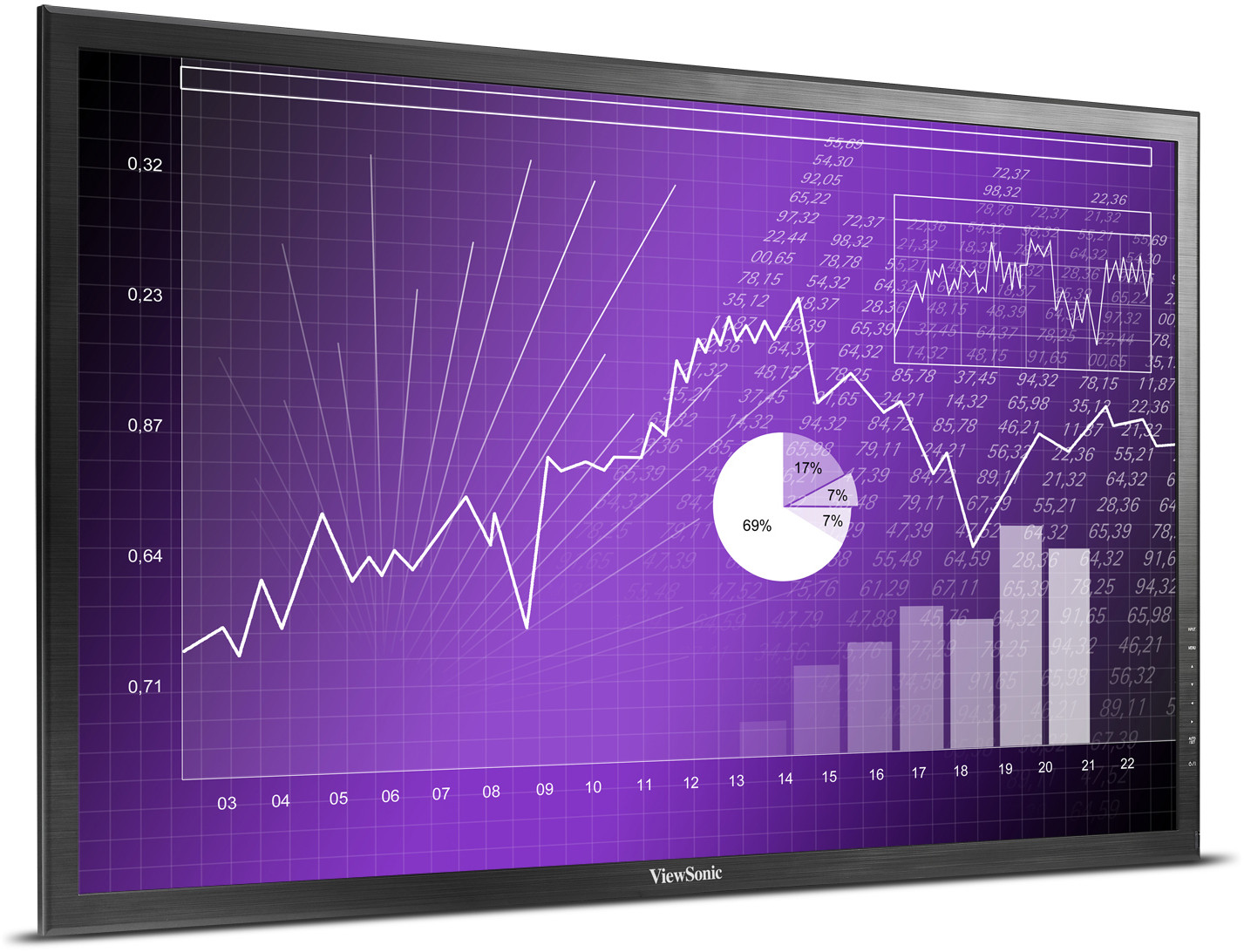

The ViewSonic® CDP5537-L commercial display features Full HD 1920 x 1080p IPS panel technology, fast 120Hz response time and 50,000:1 dynamic contrast ratio. Slim ID design, combined with 33.5mm bezel width makes the CDP5537-L an ideal large screen solution for your digital signage application. Additional features include versatile inputs – HDMI, DVI, VGA, YPbPr and built-in media player utilizing USB storage. Other key features include up to 5x5 tiling for video walls and VGA and DVI loop through support.1 - 1080p 12ms LED panel for vibrant images using up to 35% lesspower* than standard CCFL displays.

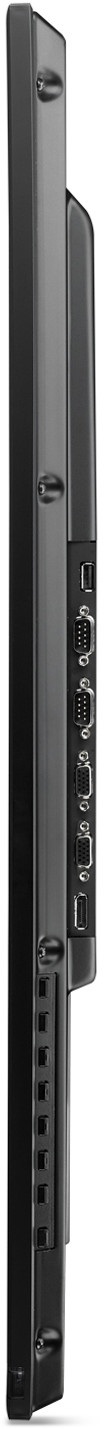

2 - 33.5mm slim bezel with 5x5 display video wall capability.
3 - Built-in Media Player / USB storage.
4 - Versatile inputs include – HDMI, DVI, VGA, DP (Display Port),YPbPr, and CVBS.
5 - Designed for 24/7 operation with 3-year limited warranty.
6 - 120Hz (MEMC) 450 nits brightness with 50,000:1 DCR.
7 - RS-232 daisy-chain capable.

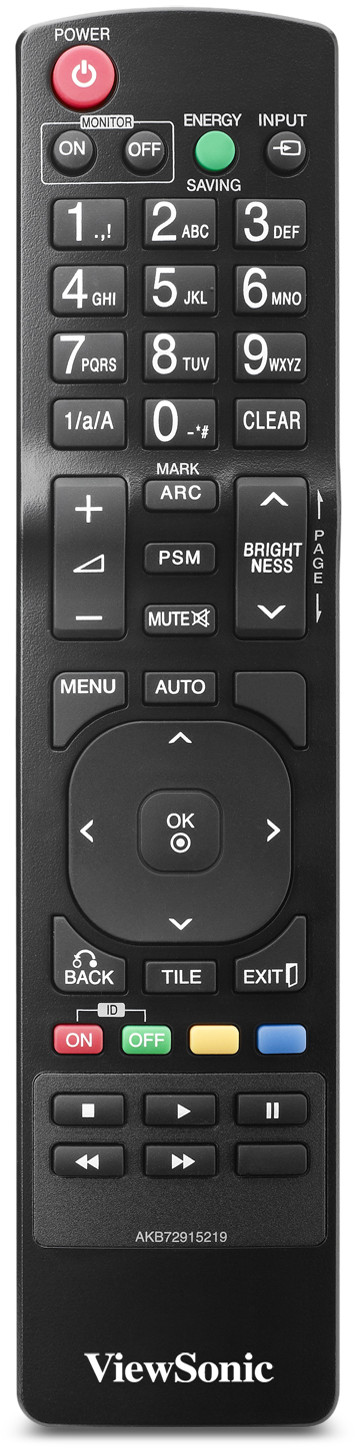

8 - Remote and panel control lock out.
9 - Installation options include stand or VESA® wall mount.
10 - TAA Compliant
11 - Applications
- Retail Advertising - DOOH
- Transportation - Arrival/Departure
- Hospitality / Sports Bars
- Educational Signage
- Video Walls
Resolutions Supported
640 x 480 at 60 Hz to 75 Hz800 x 600 at 60 Hz, 60 Hz to 75 Hz
1024 x 768 at 60 Hz, 60 Hz to 75 Hz
1280 x 960 at 60 Hz, 60 Hz to 75 Hz
1366 x 768 at 60 Hz
1280 x 1024 at 60 Hz
1680 x 1050 at 60 Hz
1920 x 1080 at 60 Hz
(recommended resolution)
NTSC, PAL, SECAM, 4.43 NTSC, PAL 60
Component: 480i, 480p, 720p, 1080i, 1080p
SPECIFICATIONS
- COLORSBlack
- LCDType: 55" (54.6" viewable) colour TFT active matrix, wide LED
Contrast Ratio: 1300:1 (typ)
Viewing Angles: 178º horizontal, 178º vertical
Brightness: 450 cd/m2 (typ)
Display Area: 47.6" horizontal x 26.7" vertical; 54.6" diagonal
Optimum Resolution: 1920x1080, .630mm dot pitch
Response Time: 12ms
Aspect Ratio: 16:9
Panel Surface: Anti-glare, hard coating (3H)
Dynamic Contrast Ratio: 50,000:1 - DIMENSIONSPhysical (WxHxD): 50.5" x 29.6" x 1.5" (1281.6mm x 752.4mm x 37.8mm)
- RECYCLE/DISPOSALPlease dispose of in accordance with local, state, or federal laws.

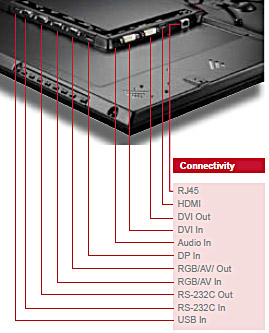

- INPUTVideo Input: HDMI, DVI, component, VGA, DP (Display Port)
Video Output: VGA, component, DVI (Loop through)
Control Input/Output: RS-232 - INPUT SIGNALTV/Video comp.: 480i, 480p, 720p, 1080i, 1080p
- CONNECTORAnalogue: 9-pin mini D-sub (VGA)
Digital: HDMI, DVI, DP, RGB, A/V, Component
Power: 3-pin plug - POWERVoltage: AC 100–240V (universal), 50–60Hz
Consumption: 140W (typ) - CONTROLSPicture: Picture mode, contrast, brightness, colour temperature, temperature adjust, sharpness
Front Panel: Power, Exit, +, –, Menu/Enter
Special: Aspect ratio, over scan, power save, image retention, auto adjustment, monitor ID, reset
Audio: Volume, mute, audio source
Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect
Input: ** VGA, DVI, HDMI, YPbPr, DP
OSD Setting: Languages, OSD H. position, OSD V. position, OSD timer
VGA Setting: Auto adjustment, clock, phase, sharpness, H. position, V. Position - OPTIONAL ACCESSORIESStand....................................................STND-019
Wall Mount.............................................WMK-013 - VESA MOUNT COMPLIANT400mm x 400mm
- WEIGHTGross: 51.2 lb. (45.0 kg)
Net: 48.1 lb. (21.8 kg) - OPERATING CONDITIONSHumidity: 10–80% (non-condensing)
Temperature (landscape): 32–104ºF (0–40ºC)
Temperature (portrait): 41–95ºF (5–35ºC) - Audio OutputAmplifier: 10-watt / 8 ohm x 2
- PACKAGE CONTENTSCDP5537-L display, power cable, remote control with batteries, User Guide CD
- REGULATIONSFCC, ICES003, UL, cUL, CE, CB, RoHS, PSB, C-tick, BSMI, GOST-R
