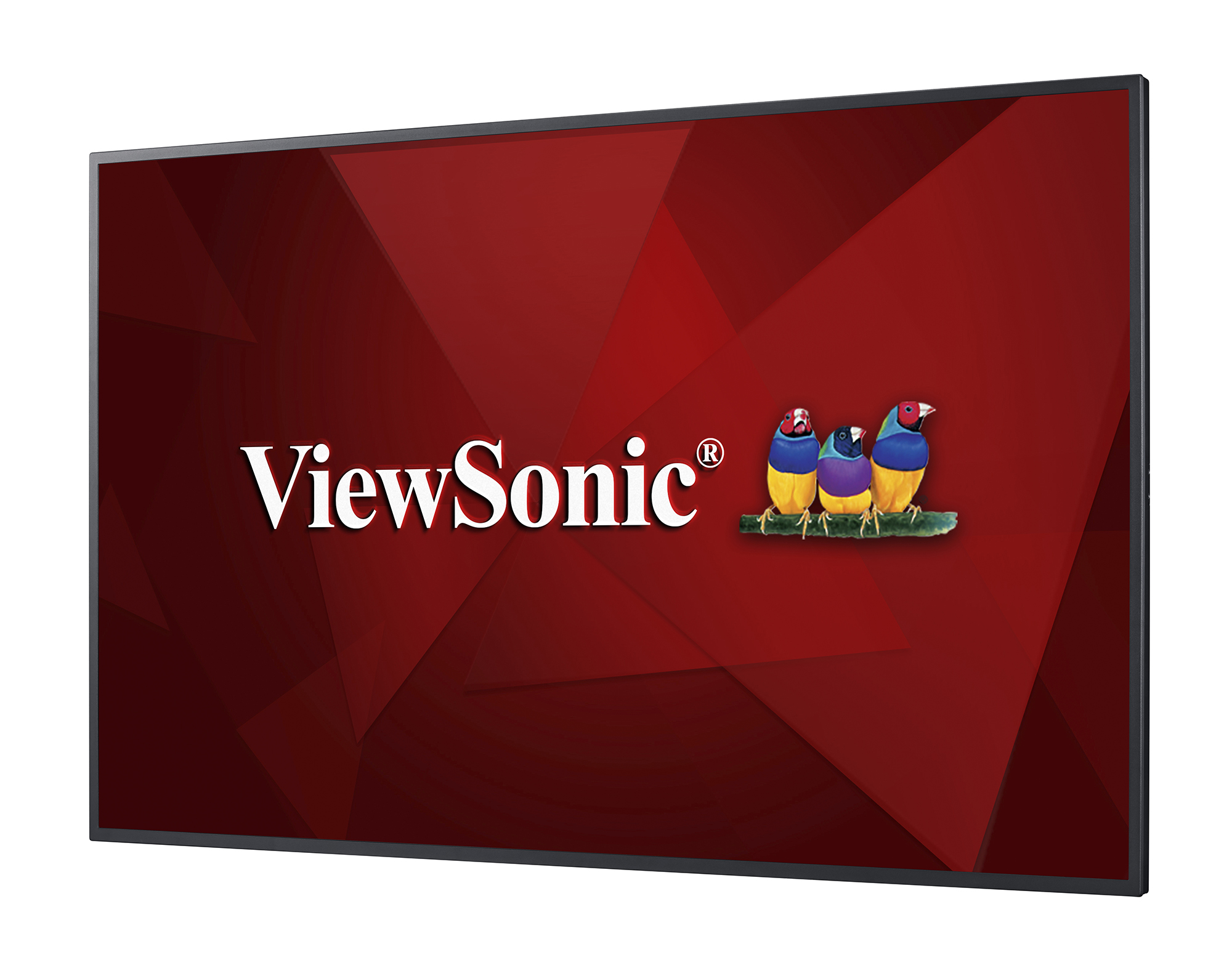

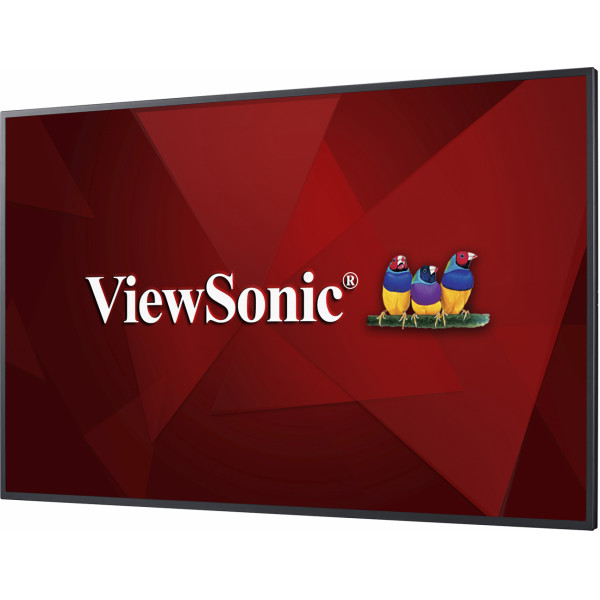

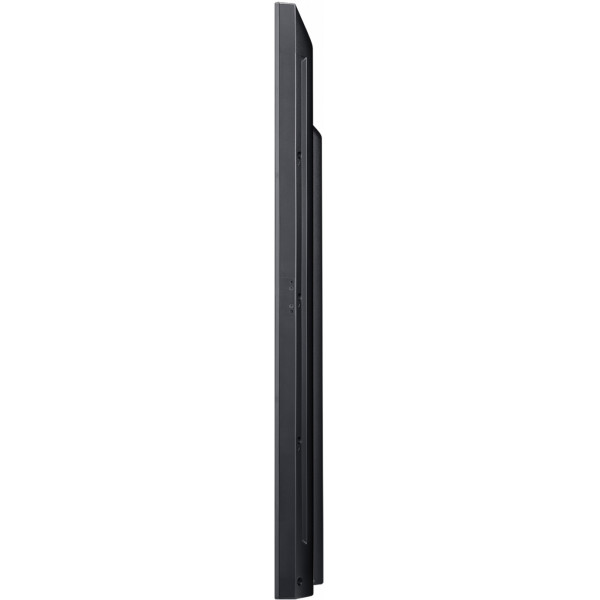

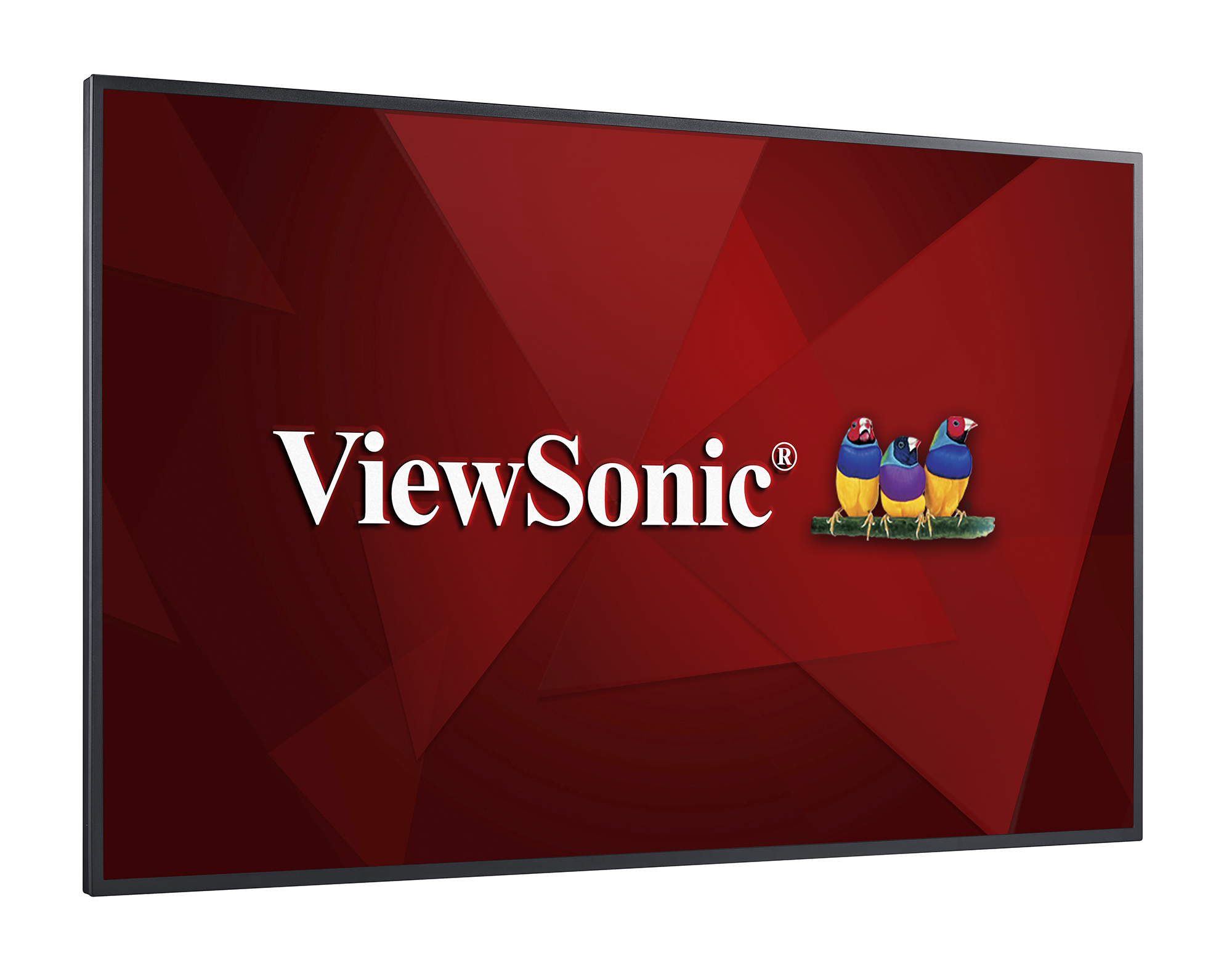

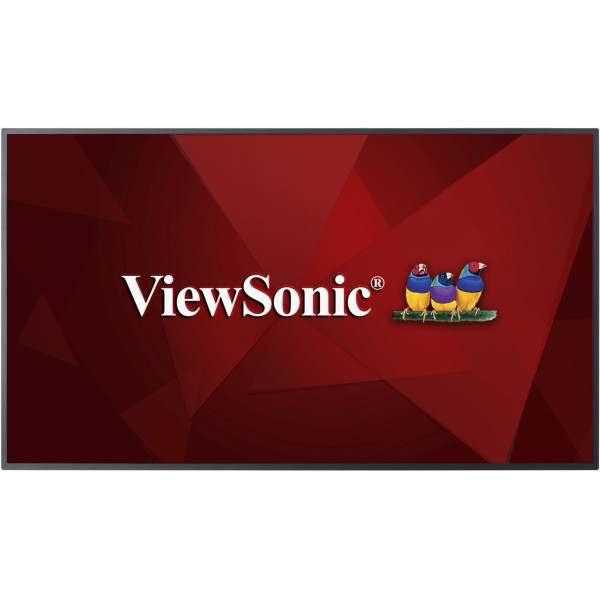

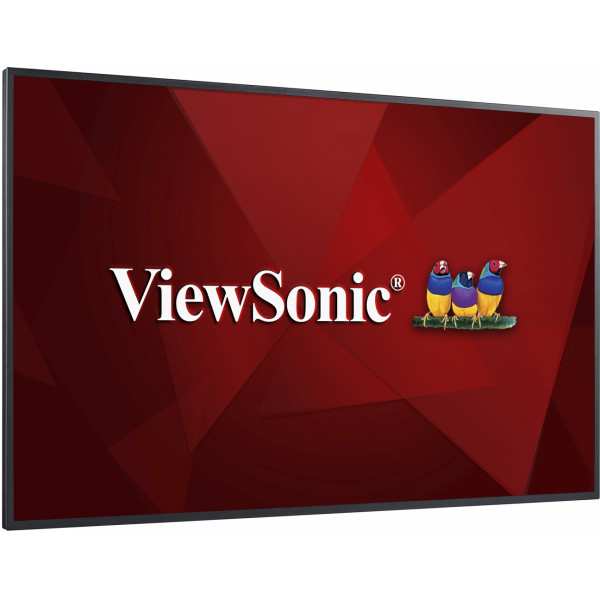

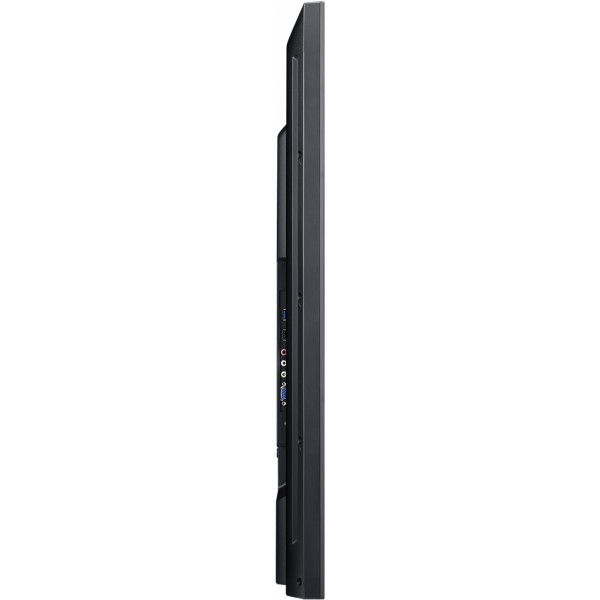

CDE5510

55" 4K Ultra HD Commercial Display

  • Embedded Android SOC supports Android apps
  • USB multimedia player
  • vController software
  • Supports HDMI CEC pass-through

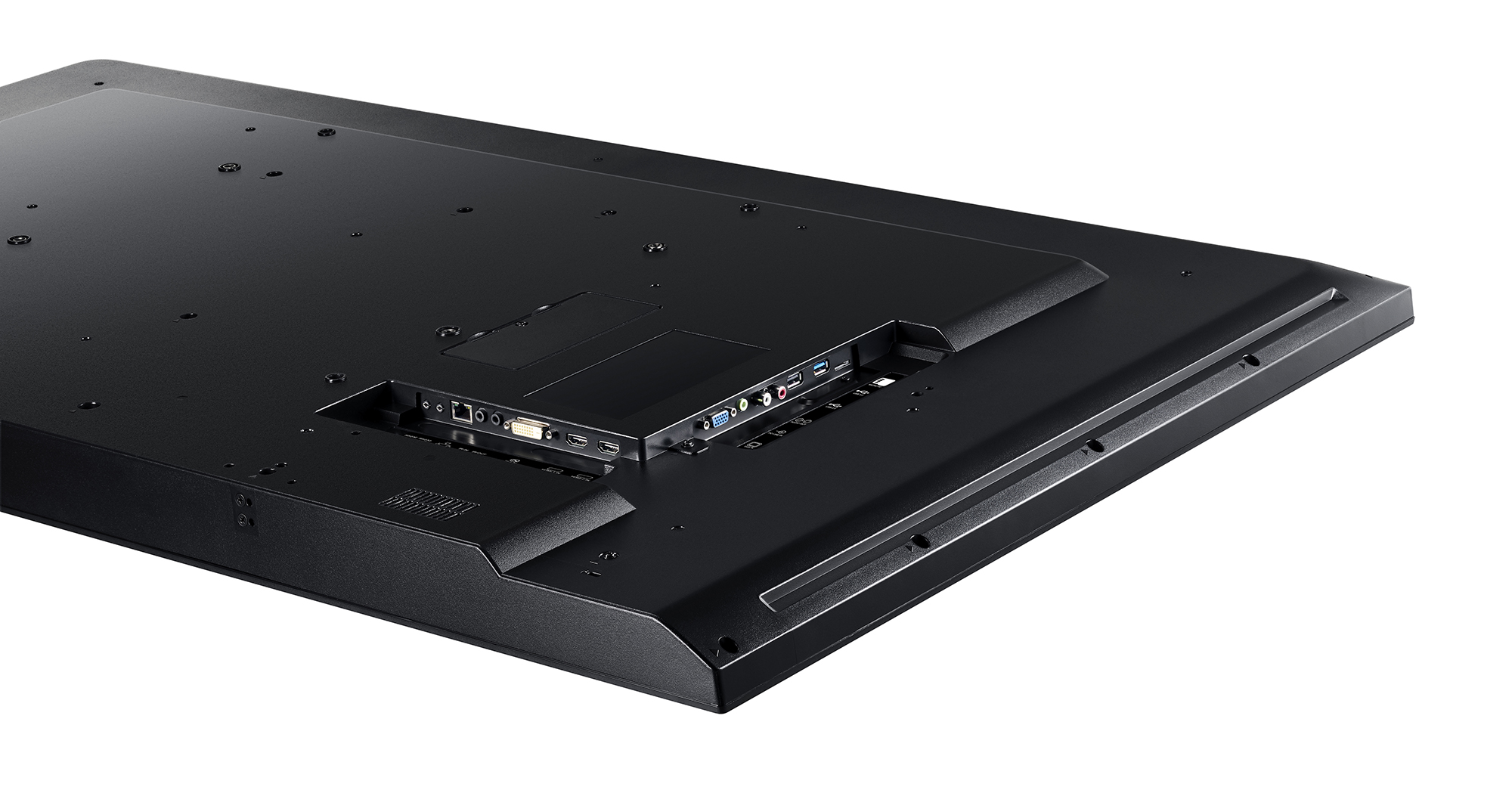

  • VGA, DVI, USB, IR, RJ45 input compatibility
Sales Enquiry

OVERVIEW

The ViewSonic CDE5510 is a great value 55’’ 4K LED commercial display with high-reliability 16 hours per day/7 days a week operating time. A built-in browser offers a convenient method for displaying internet content without a PC. In addition to versatile connectivity options, including HDMI, VGA, DVI, USB, IR, and RJ45, the display comes with a convenient USB multimedia playback function. With 3840 x 2160 resolution, 350-nit brightness with 178-degree wide viewing angles, and 2 x 10W stereo speakers, the slim-bezel CDE5510 delivers vivid images and remarkable sound for superior multimedia performance. The HDMI CEC pass-through support provides one control for multiple HDMI-connected devices while the free-bundled vController software makes remote display management easier via RSS232/RJ45 port. The display also comes equipped with Blue Light Filter technology to create a more comfortable viewing experience.

4K Ultra HD Resolution

With four-times the resolution of Full HD, this Ultra HD 3840 x 2160 display delivers a breathtaking viewing experience with immersive images that are vibrant, clear, and as large as life.

ViewBoard® Cast: Content Sharing Software

ViewBoard® Cast is a content sharing app for mobile devices that enables 1080p content to be streamed from a user’s device onto ViewBoard® wirelessly or over a cable network. This function will be available via online firmware upgrade when connecting to the internet.

Integrated USB Multimedia Player

This display features an integrated media player with a convenient USB playback function. Now photos, music, and 1080p video can be quickly displayed on-screen directly from a USB drive – without the need for a PC.

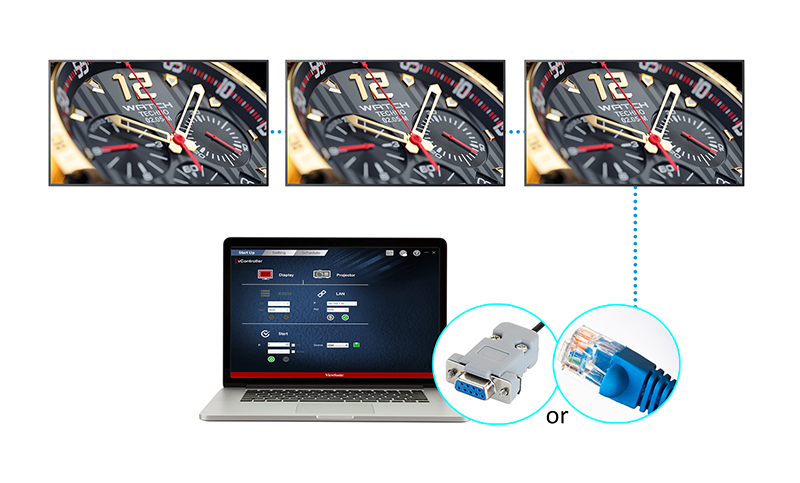

vController™ Software: Remote Display Management

Remote display management without needing to type in commands. By using an RS232 or RJ45 connection between a computer and digital signage, users can manage the signage’s OSD settings such as On/Off, display signal source, audio, and other general items.

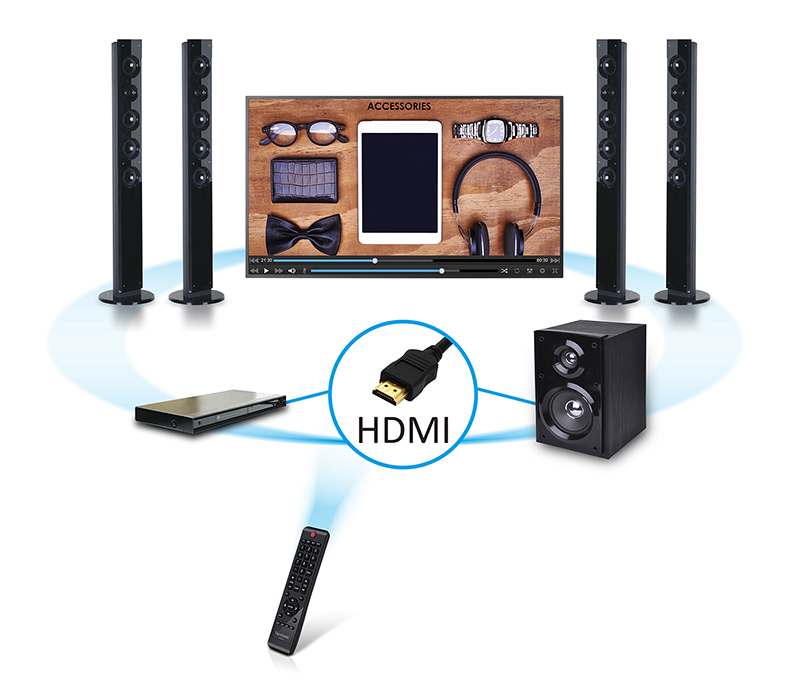

Control Multiple HDMI Devices

With HDMI CEC functionality, remote controller signals can be transmitted via HDMI cable to connected HDMI devices. This enables out-of-sight DVD players, sound systems, and other devices to be directly controlled with the display’s remote controller.

Broadcast Multimedia without External Speakers

Dual integrated speakers operate at a powerful 20 watts to compliment eye-catching multimedia content with incredible sound and creating a lasting audio-visual impression on your audience.

Enhanced Viewing Comfort

This display adopts exclusive Flicker-Free and Blue Light Filter eye-care technologies. The display’s constant LED light source and reduced blue light exposure allow you to enjoy longer viewing time with imperceptible screen flickering at all brightness levels.

SPECIFICATIONS


  • LCD PANEL
    Panel Size: 55"
    Type/ Tech: TFT LCD Module with LED Backlight
    Display Area (mm): 1209.6(H) x 680.4(V)
    Aspect Ratio: 16:09
    Resolution: 3840x2160 @60Hz
    Colors: 1.07B colors
    Brightness: 350 nits (typ.)
    Contrast Ratio: 4000:1 (typ.)
    Response Time: 8 ms
    Viewing Angles: H = 178, V = 178 (typ.)
    Backlight: DLED
    Backlight Life: 30,000 Hours Min.
    Hardness: 3H

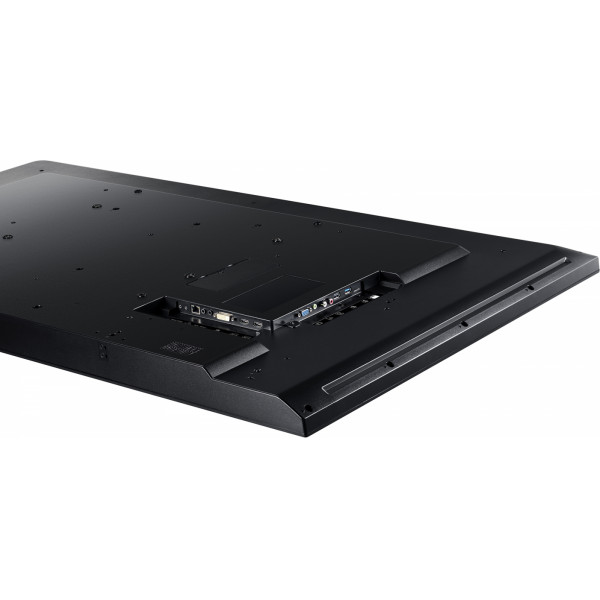

  • INPUT
    HDMI: x 2
    RGB / VGA: x 1
    DVI: x 1
    Audio: x1 PC audio (3.5 mm)
    YPbPr: x 1
    RS232: x 1
    SD/SDHC: x 1
    IR: x 1 (over audio port)
  • OUTPUT
    Audio: x 1 (RCA L/R)
    RS232: x 1
    IR: x 1 (over audio port)
