VG2409-MHDU-2

24” Full HD Ergonomic IPS Monitor with USB-C Hub

Integrated USB-C workstation offers audiovisual and data transfer, and power delivery up to 65W
USB 3.2 hub with 1 upstream, 2 downstream ports, HDMI, and DisplayPort inputs for easy connectivity
SuperClear® IPS panel with 100Hz variable refresh rate delivers fluid visuals
Ergonomic tilt, swivel, pivot and height adjustment capabilities
TCO, EnergyStar, EPEAT Silver certified for sustainability

Sales Enquiry

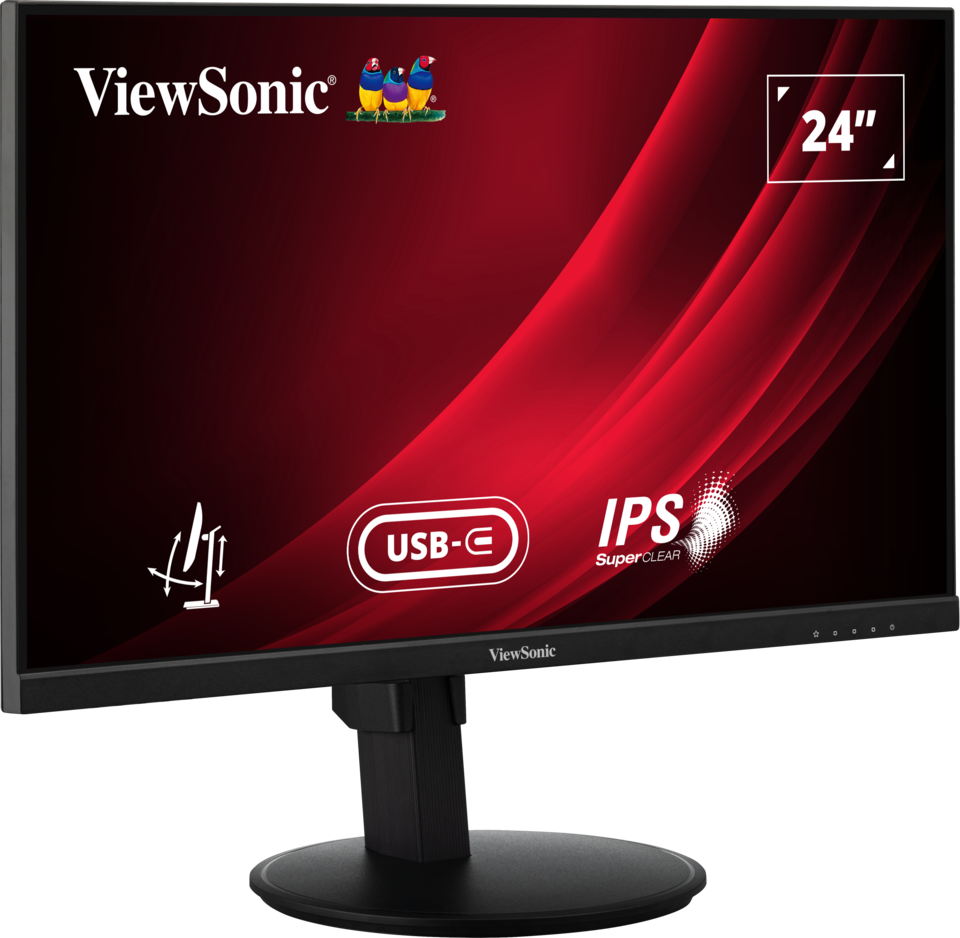

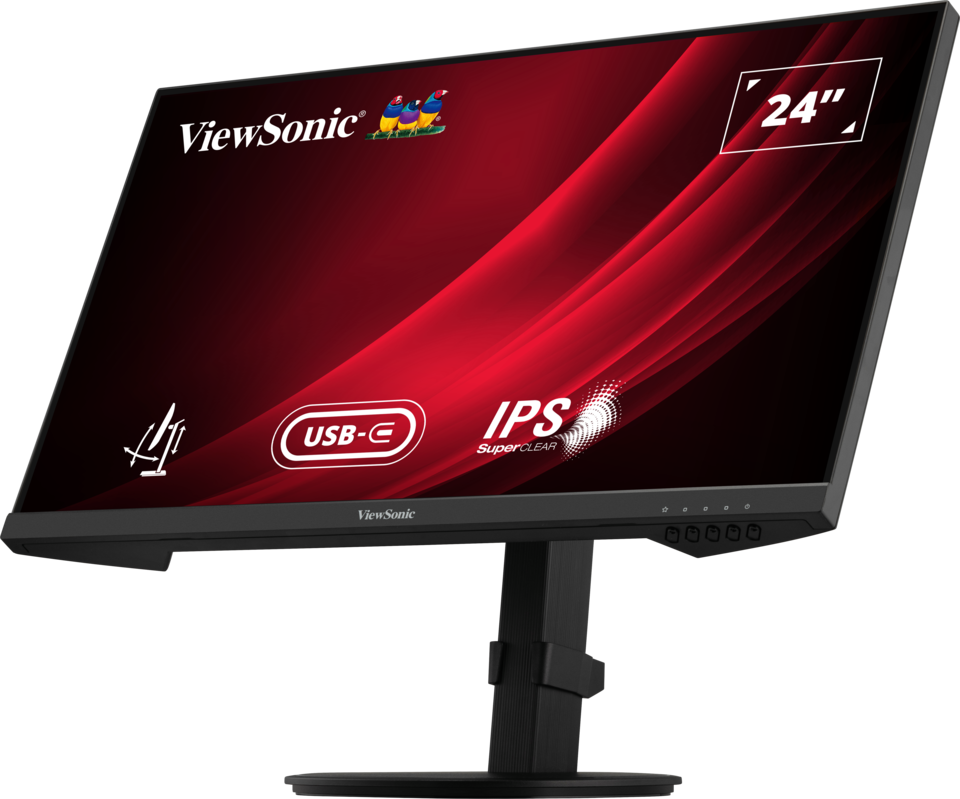

GALLERY

OVERVIEW

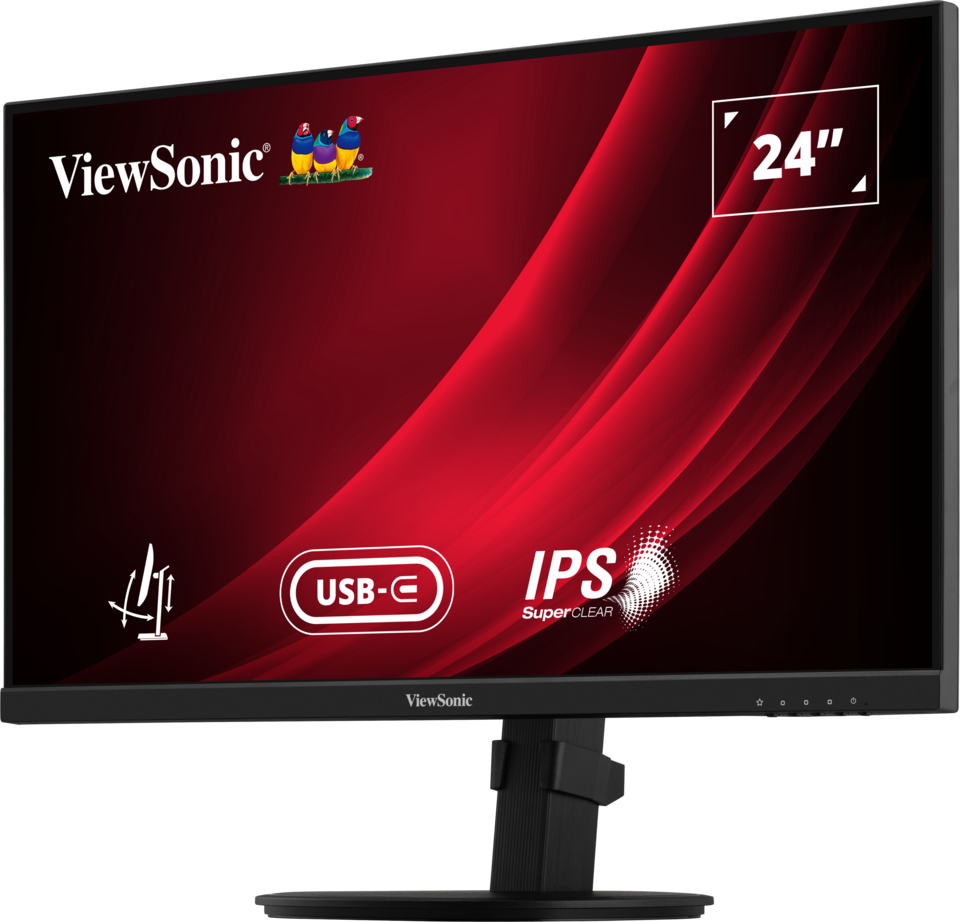

The ViewSonic VG2409-MHDU-2 is a 24” FHD monitor featuring USB 3.2 Hub with 1 upstream, 2 downstream ports, HDMI, and DisplayPort for business and home use. Simplify your work with just one cable that provides audiovisual, data and 65W power transfer. The 100hz variable refresh rate, Eye ProTech technology, and various ViewMode presets cater for optimal screen performance and comfortable viewing without tearing or stuttering. Expand your workspace and experience truly seamless, ergonomic multitasking on just one screen with a VESA-compatible mount at low energy consumption.

Ergonomic Workstation with One Cable Solution

Discover a monitor to simplify your work, boost your productivity, and provide comfort in your workspace thanks to one cable solution and ergonomic design

Simplify Your Work with Just One Cable

The VA2409-MHDU-2 allows for a streamlined workflow and eliminates the need for dongles and plug-in attachments. USB Type-C offers seamless video, audio, data and 65W power transfer.

USB-C, 65W Power Charge, Audiovisual and Data Transfer

Simplify Your Work with Just One Cable 1

Extraordinary Wide-angle Vision

Enjoy vivid colors with consistent brightness and amazing accuracy no matter the vantage point. SuperClear® IPS monitor features ultra-wide 178-degree vertical and horizontal viewing angles that deliver the same image quality with true color accuracy and consistency from screen to print.

SuperClear® IPS

Full HD 1080p

Full HD 1920x1080 resolution creates unbelievably clear pixel-by-pixel image performance. Experience mind-blowing clarity and detail while working, gaming, or enjoying the latest show premieres.

Full HD 1080P

Smooth Visuals With 100Hz Variable Refresh Rate

With a fast 100Hz screen variable refresh rate, you can experience a truly fluid visual display. This results in improved viewing clarity, reduced screen stutter during fast-moving action scenes, and benefits work-related tasks, reducing eye strain and increasing productivity.

100Hz Variable Refresh Rate

Connection Flexibility

HDMI, and DisplayPort(DP) inputs give you the freedom to connect your monitor to a wide range of devices. Simplify your workspace, expand your connectivity options, and streamline data transfer with our monitor's integrated USB hub.

Note: The USB-C port supports video, data transfer, and up to 65W power delivery; actual functionality depends on your device’s USB-C specifications. For proper operation, please ensure your device supports DisplayPort Alt Mode and USB Power Delivery (PD), and avoid using USB-C charging and DC power on the laptop at the same time.

HDMI / DisplayPort / USB-B upstream / USB-A downstream / USB-C

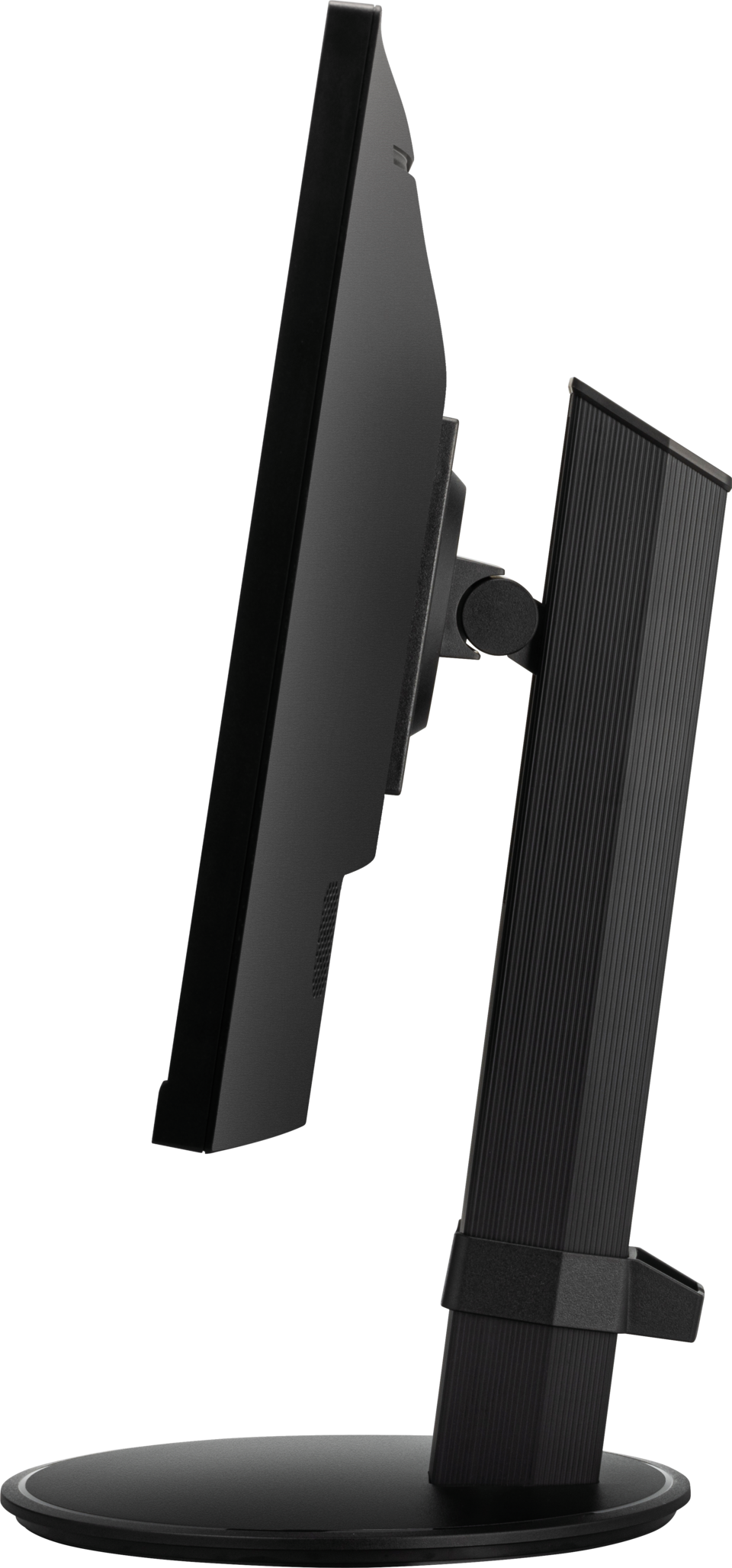

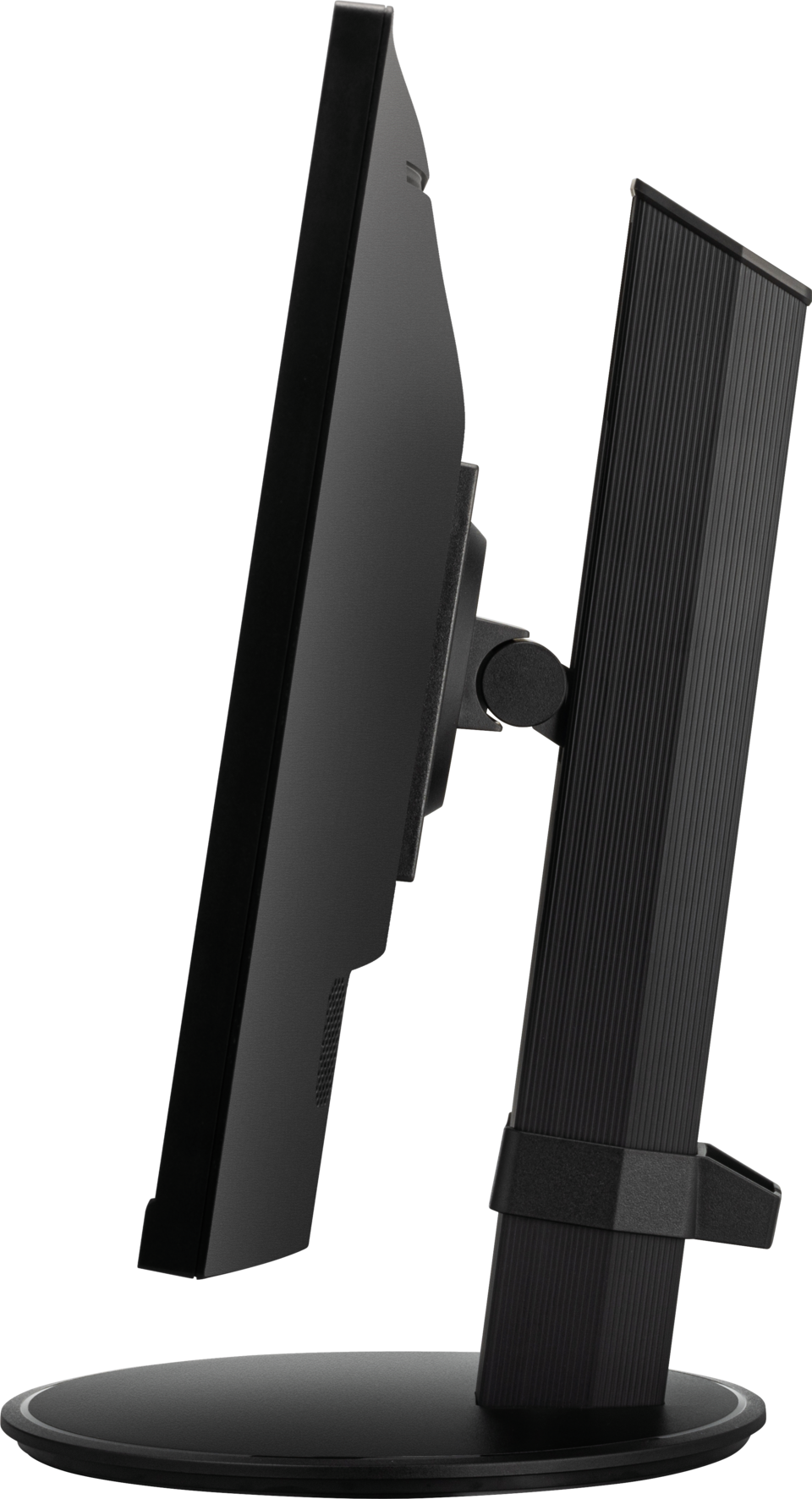

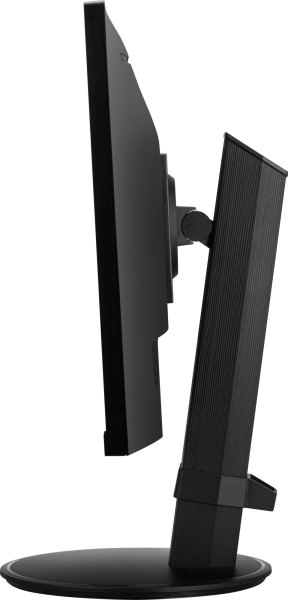

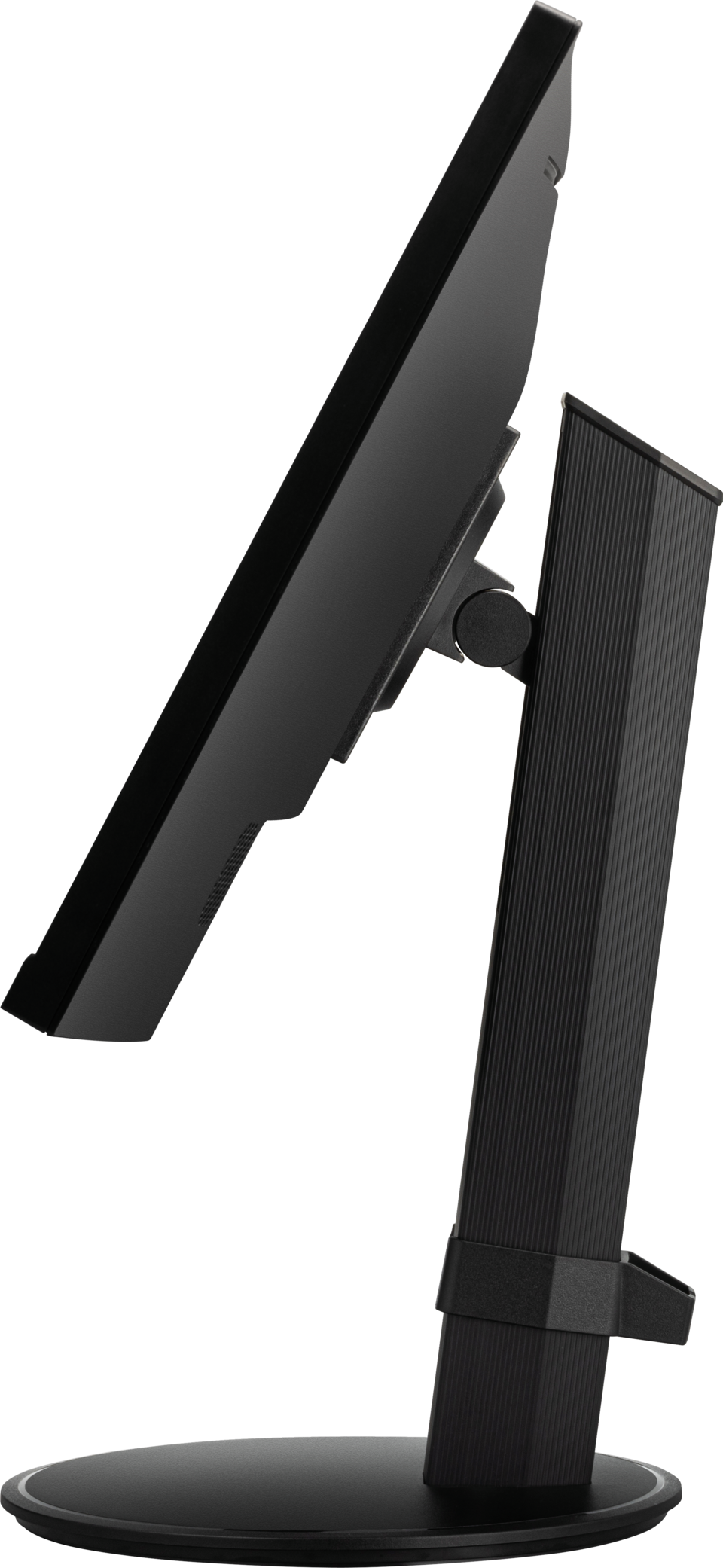

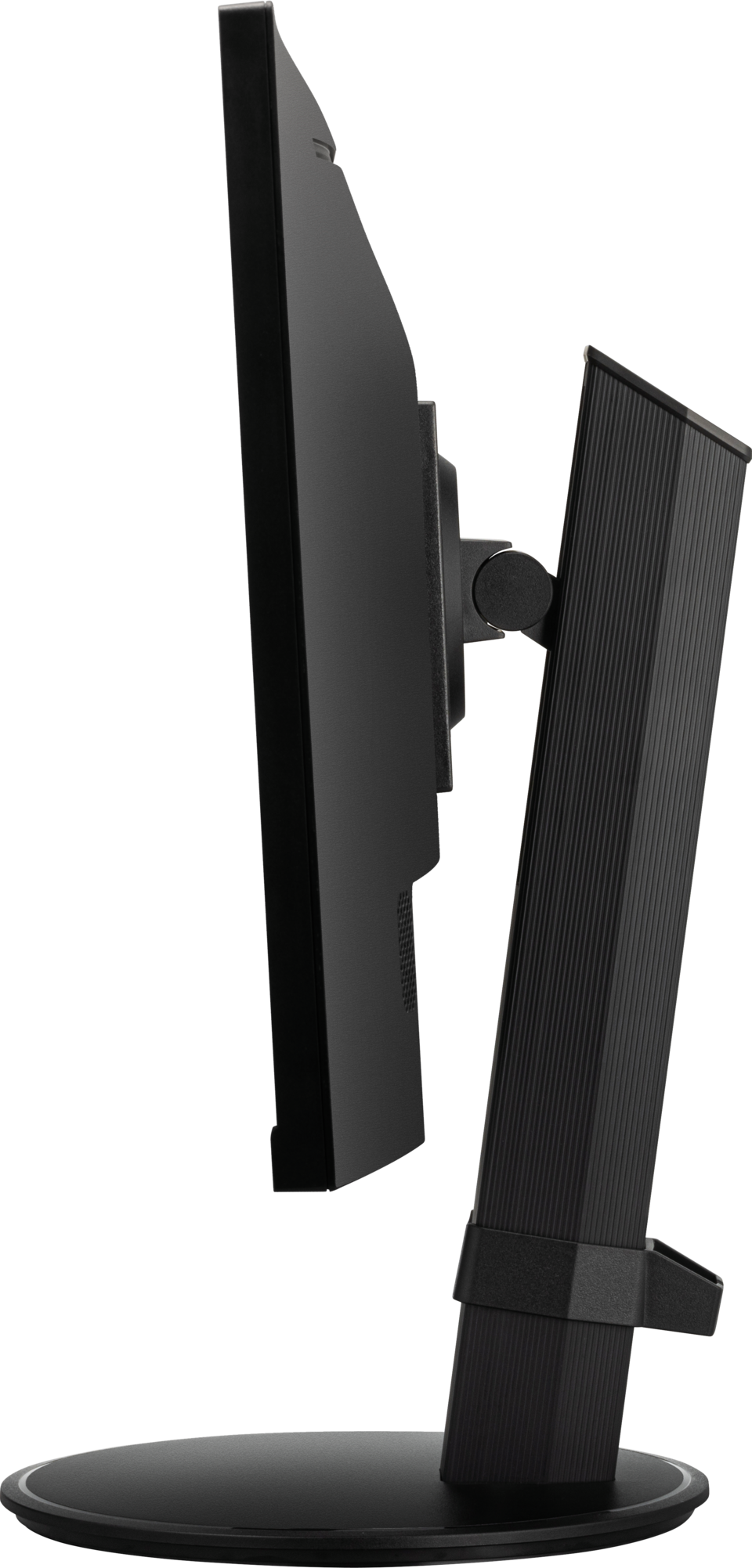

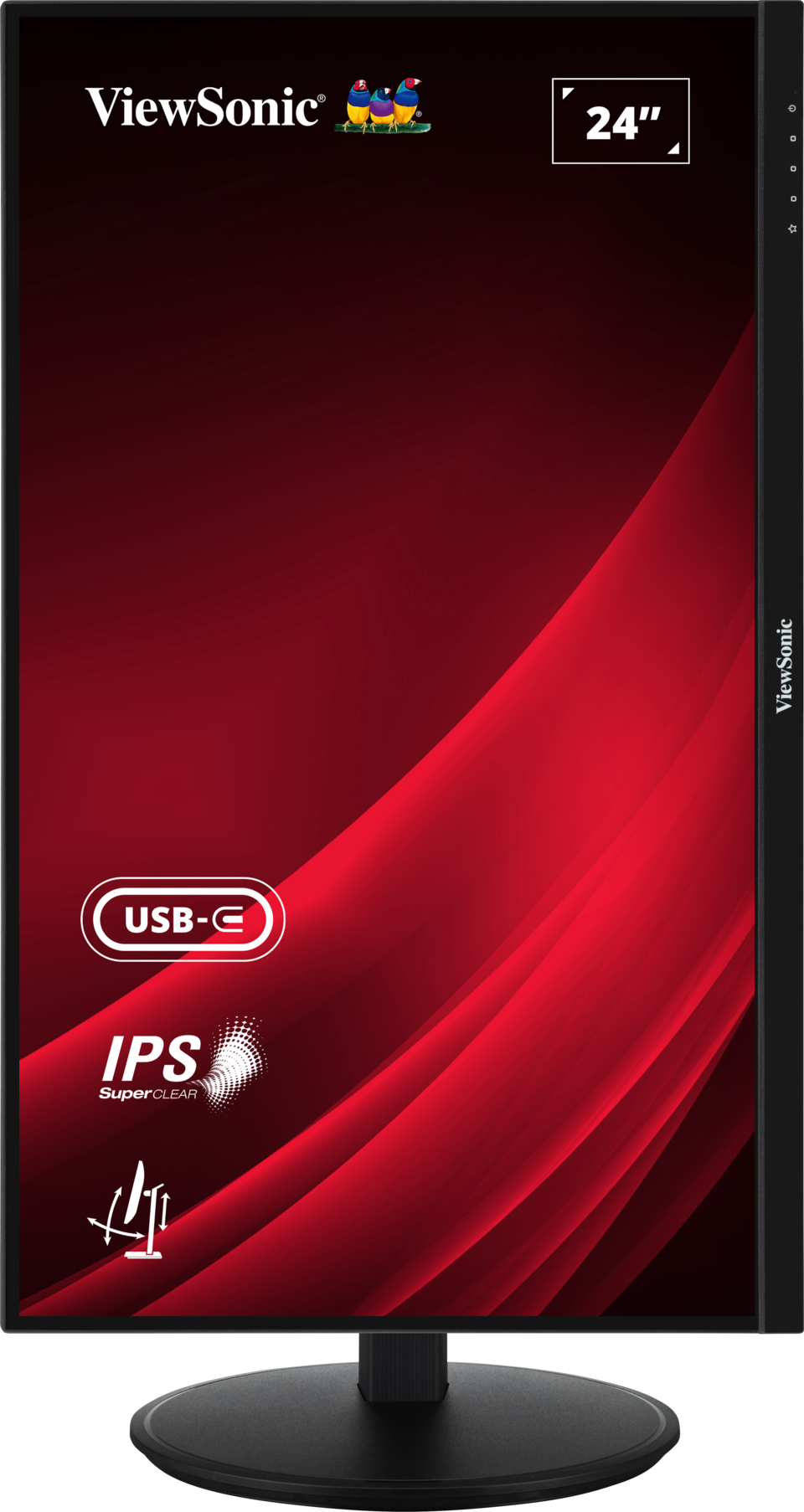

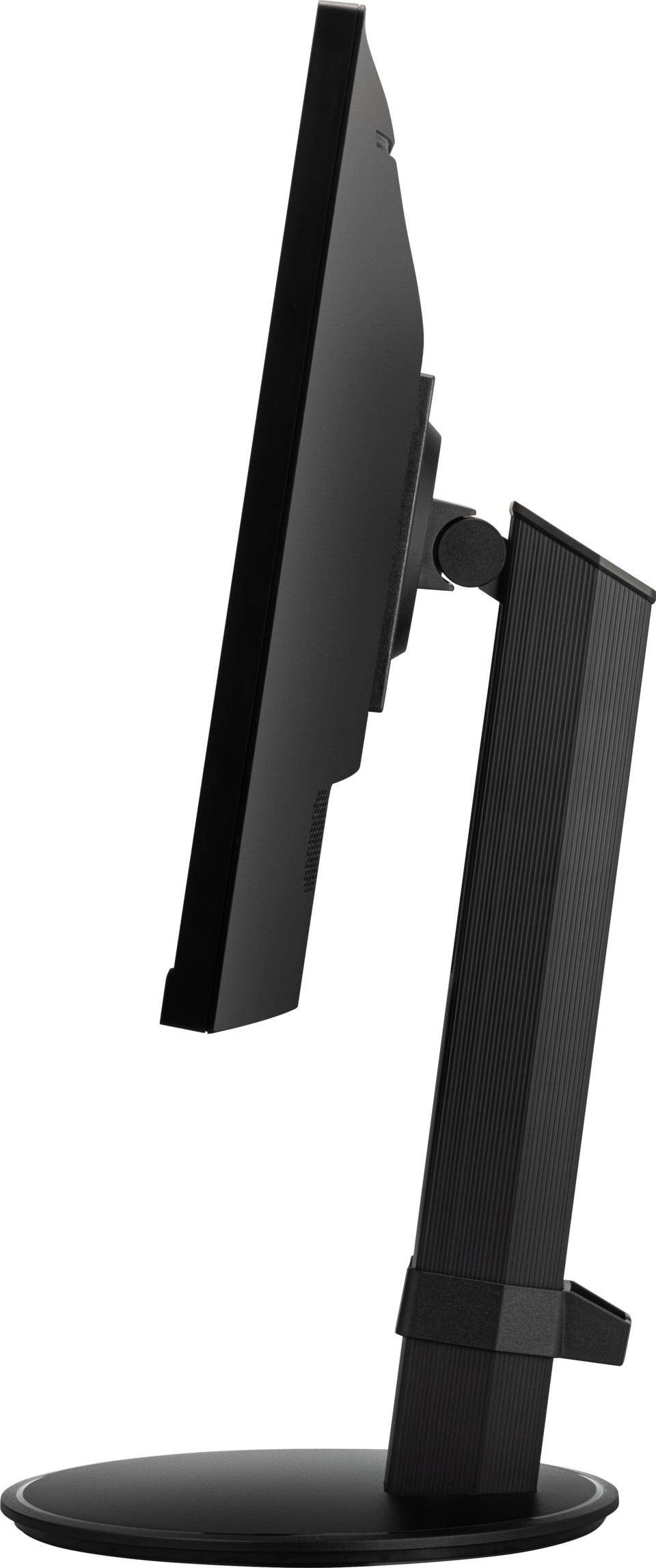

Complete Ergonomic Flexibility

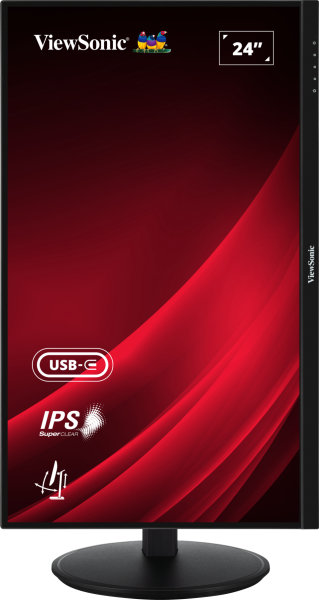

Effortlessly swivel the display up to 360° degrees, tilt up to -5°~28° degrees, raise up to 130 mm, and pivot up to 180° degrees for portrait viewing. The VG2409-MHDU-2 offers a full range of convenient flexibility for all tasks and workflows.

Swivel, Tilt, Pivot and Height Adjustment

Built-in Speakers

Integrated with dual 2.5-watt stereo speakers as well as incredible screen performance, this monitor provides complete multi-sensory immersion.

Eye ProTech for Comfortable Viewing

Reduce your eye strain and maintain fresh-feeling eyes with ViewSonic Eye ProTech. The Flicker-Free technology eliminates screen flickering, while the Blue Light Filter minimizes harmful blue light from extended viewing periods, ensuring comfortable screen viewing.

Flicker-Free & Blue Light Filter

Color Rendering Options

ViewSonic’s ViewMode offers “Game”, “Movie”, “Web”, “Text”, and “Mono” presets. These presets enhance gamma curve, color temperature, contrast, and brightness to deliver optimized, satisfactory viewing.

ViewMode: Game/Movie/Web/Text/Mono

Certified Environmental Sustainability

The VG2409-MHDU-2 is an ENERGY STAR-certified product that can save on energy costs while reducing greenhouse gases. The display is also TCO-certified for sustainability and registered as an EPEAT product.
*Energy savings may vary based on actual usage and other factors.
*Certifications and safety regulations dependent on the purchase area.

TCO, EPEAT, Energy Star

Certified Environmental Sustainability 1

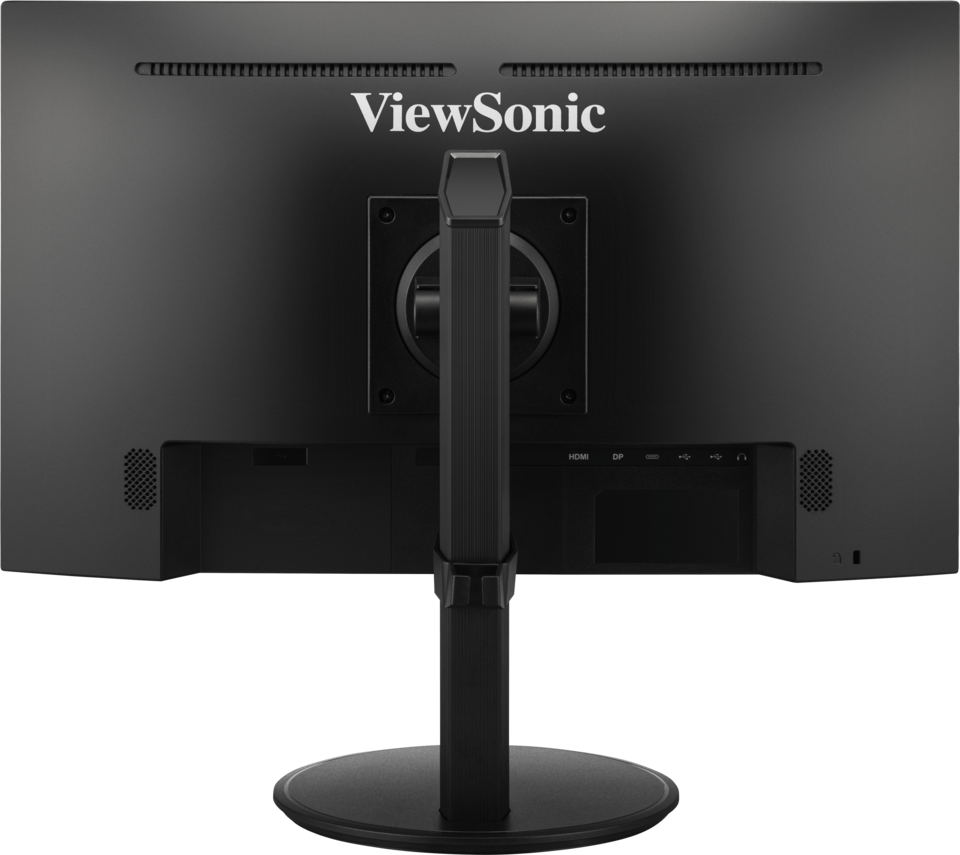

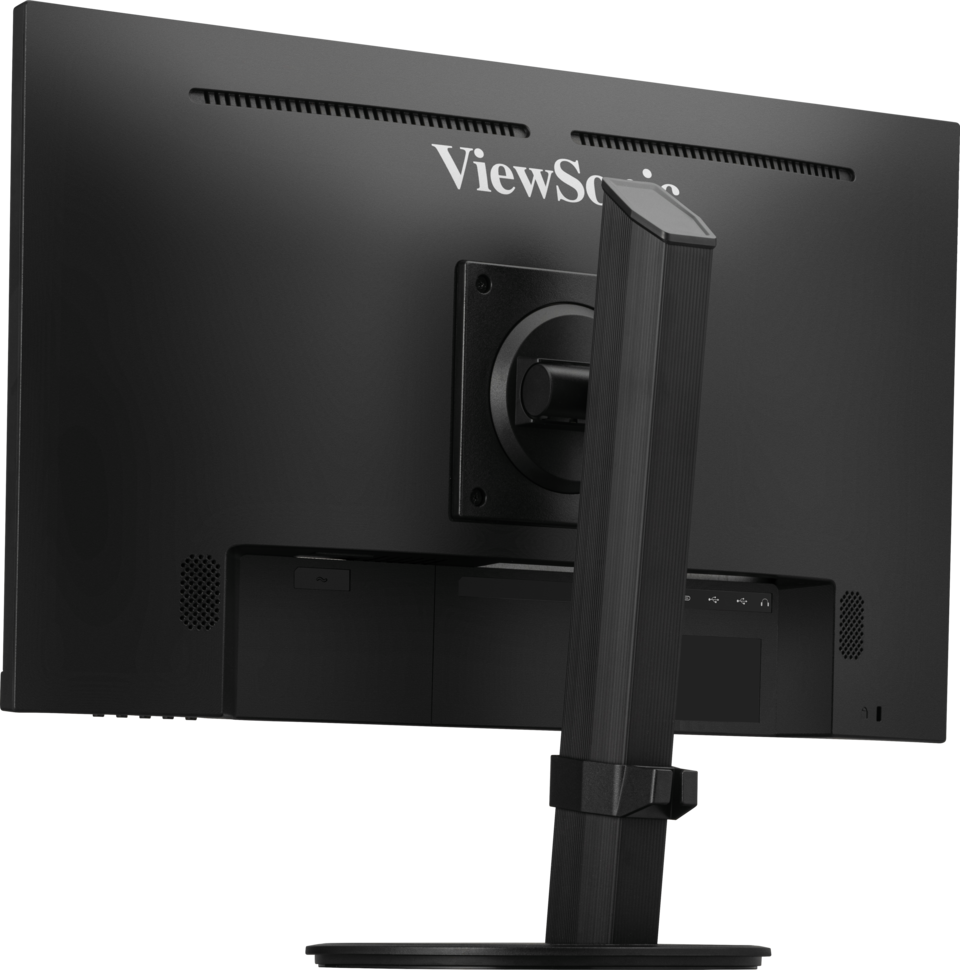

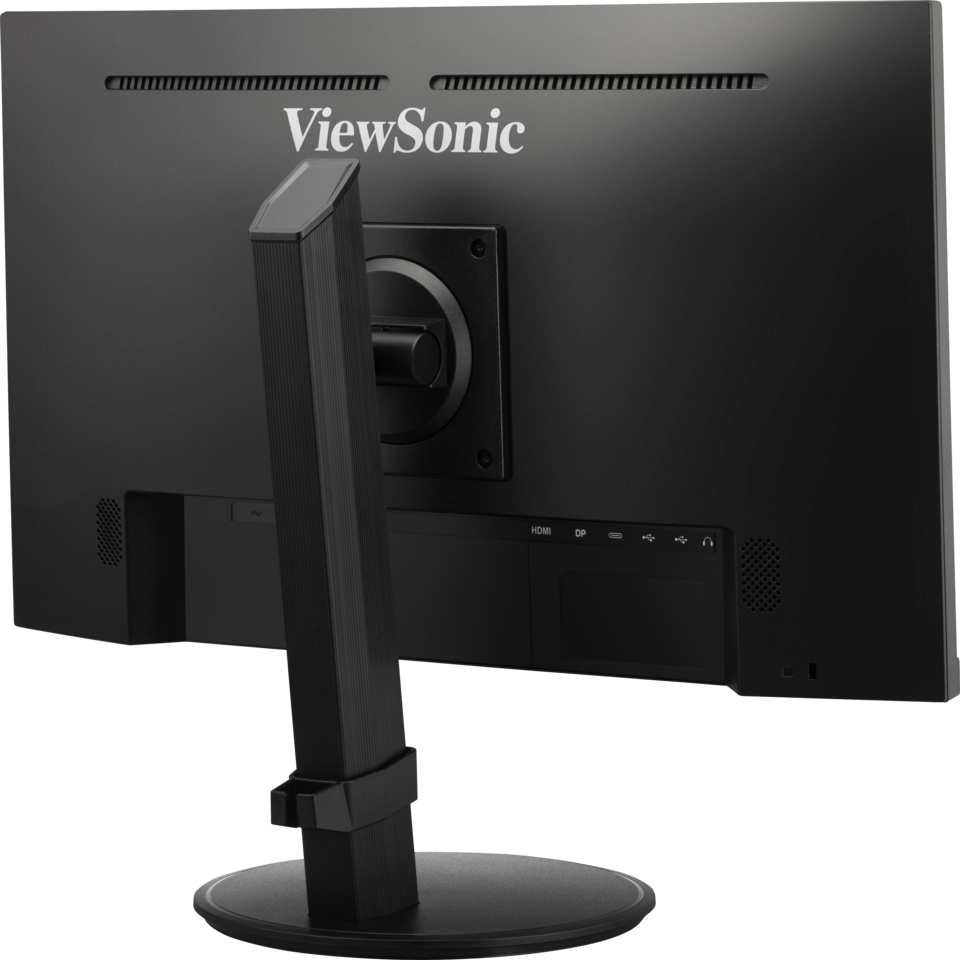

Dimension & I/O Ports

Conveniently mount the monitor to your preference by utilizing the 100mm x 100mm VESA-compatible mount design.

100mm x 100mm VESA mount

Menu Control Panel
Power In
VESA Compatible
(Wall Mount 100 x 100 mm)
HDMI
Display Port
USB Type-C
USB Type-B Upstream
USB Type-A Downstream*2
Audio Out
Speakers

SPECIFICATIONS

Display
Display Size (in.): 24
Viewable Area (in.): 23.8
Panel Type: IPS Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 1,300:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 350 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 4ms
Response Time (GTG w/OD): 4ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 100
Variable Refresh Rate Technology: Yes
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 104% size (Typ)
Pixel Size: 0.275 mm (H) x 0.275 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 10/11 certified; macOS tested
Mac® Resolution (min): 1920x1080
Connector
USB 3.2 Type A Down Stream: 2
USB 3.2 Type B Up Stream: 1
USB 3.2 Type C Up Stream; DisplayPort Alt mode : 1 (65W power charger)
3.5mm Audio Out: 1
HDMI 1.4: 1
DisplayPort: 1
Power in: 3-pin Socket (IEC C14 / CEE22)

Audio
Internal Speakers: 2.5Watts x2
Power
Eco Mode (Conserve): 18W
Eco Mode (optimized): 20W
Consumption (typical): 22W
Consumption (max): 24W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply
Additional Hardware
Kensington Lock Slot: 1
Cable Organization: Yes
Controls
Physical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Wall Mount
VESA Compatible: 100 x 100 mm
Input Signal
Frequency Horizontal: 30 ~ 125KHz
Frequency Vertical: 48 ~ 100Hz
Video Input
Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2), Micro-Packet - Type C
Ergonomics
Height Adjust (mm): 130
Swivel: 360º
Tilt (Forward/Back): -5º / 28º
Pivot (Right/Left): 90º / 90º
Weight (imperial)
Net (lbs): 12.3
Net Without Stand (lbs): 7.7
Gross (lbs): 15.9
Weight (metric)
Net (kg): 5.6
Net Without Stand (kg): 3.5
Gross (kg): 7.2
Dimensions (imperial) (wxhxd)
Packaging (in.): 24.5 x 20.5 x 5.7
Physical (in.): 21.25 x 15.35~20.47 x 9.18
Physical Without Stand (in.): 21.25 x 12.72 x 2
Dimensions (metric) (wxhxd)
Packaging (mm): 622 x 520 x 144
Physical (mm): 539.7 x 389.89~519.89 x 233.29
Physical Without Stand (mm): 539.7 x 323.18 x 50.9
General
Regulations: Energy Star, EPEAT, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, TCO 9.0, EAC, UkrSEPRO
PACKAGE CONTENTS: VG2409-MHDU-2 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB Type-C Cable (Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards, EPEAT
