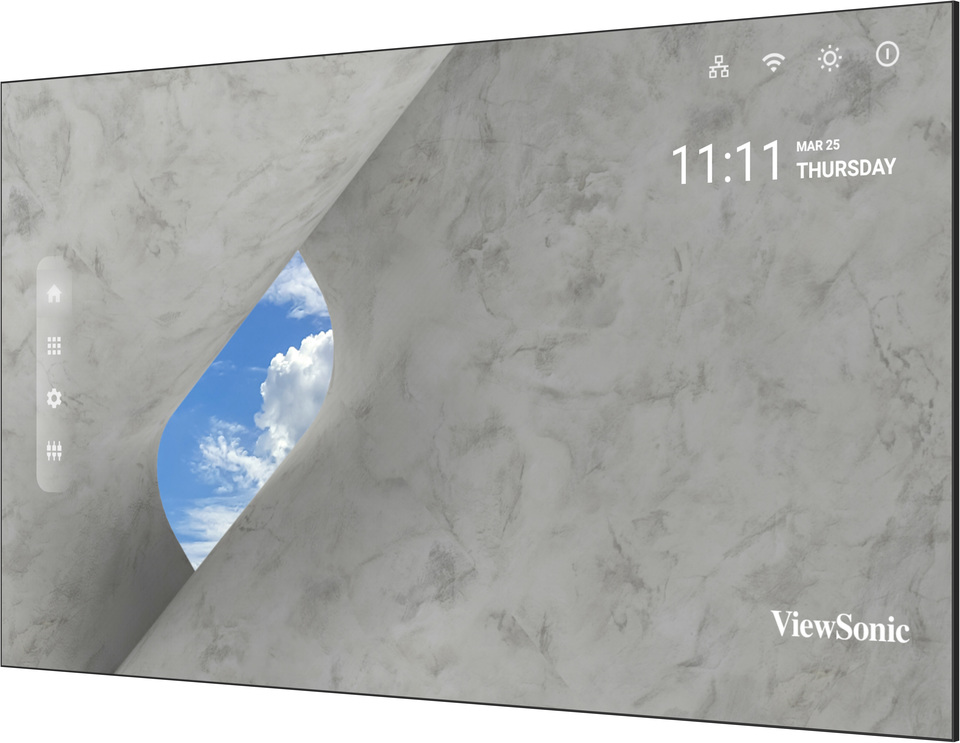

LDP136-151C

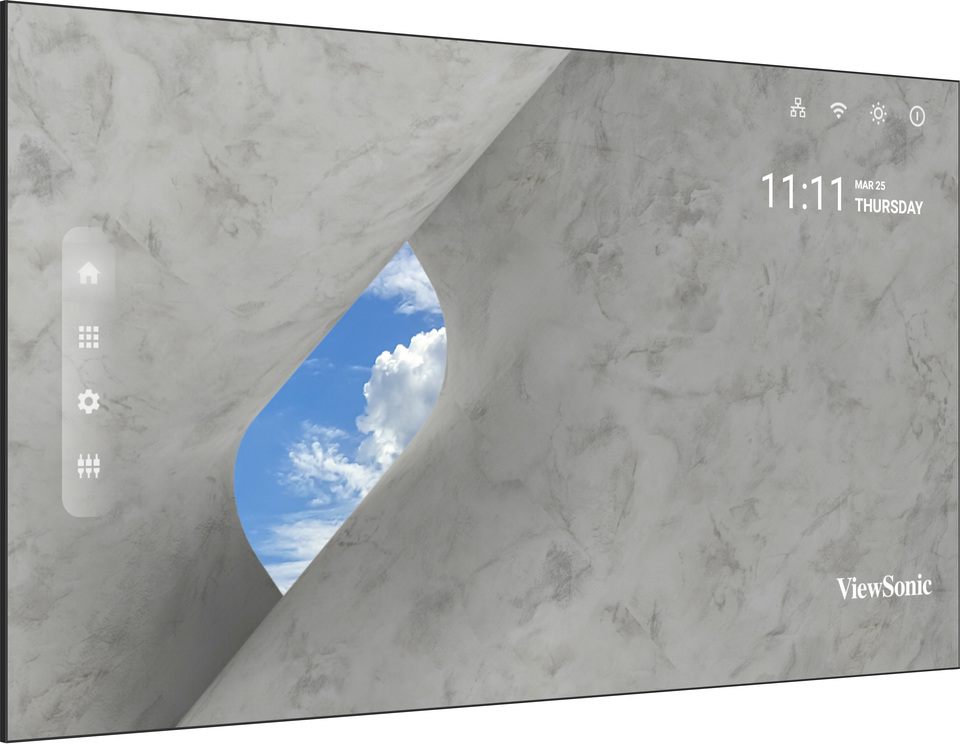

136” 1080p All-in-One Direct View LED Display

  • Expansive 136-inch display with 600 nits brightness and dual 30W speakers delivers vivid visuals and powerful sound for any space
  • Advanced COB technology ensures enhanced durability with water, dust, and impact resistance—ideal for high-traffic professional spaces
  • All-in-One integration simplifies installation by combining power, control, image stitching, and display
  • Energy-efficient design with common cathode LEDs and smart ICs reduces power consumption and supports sustainable operation
  • Smart collaboration tools include PIP/PBP screen-split modes, LAN control, and wireless content sharing via ViewShare and AirSync
Sales Enquiry

OVERVIEW

The ViewSonic LDP136-151C is a 136" enterprise-class All-in-One LED Display designed to elevate visual performance for business presentations, corporate communications, and collaborative environments. Featuring Full HD (1080p) resolution, 600 nits of brightness, a 10,000:1 contrast ratio, and dual 30W speakers, it delivers sharp visuals, vibrant color, and powerful sound for impactful presentations. Ideal for mid to large conference rooms, C-level boardrooms, and corporate lobbies, the display is built with Chip-on-Board (COB) technology for enhanced durability against impact, dust, and moisture, achieving IP54 and IK08 protection ratings. All-in-One integration simplifies installation by combining power, control, image stitching, and display, allowing two people to complete setup in under two hours. A 31mm ultra-slim profile and near bezel-free design create a premium aesthetic that complements any professional space. Powered by a common cathode LED design and smart driving ICs, the display reduces power consumption while supporting long-term energy efficiency. Designed for seamless collaboration, it features PIP/PBP screen-split modes, LAN control, and optional wireless content sharing via ViewShare (sold separately) and AirSync—making it a smart, future-ready LED video wall solution for corporate and educational environments.

Pixel-Perfect Displays, Simplified

LDP Series Pre-Configured All-in-One LED Displays

Stunning Visuals Across Business Spaces

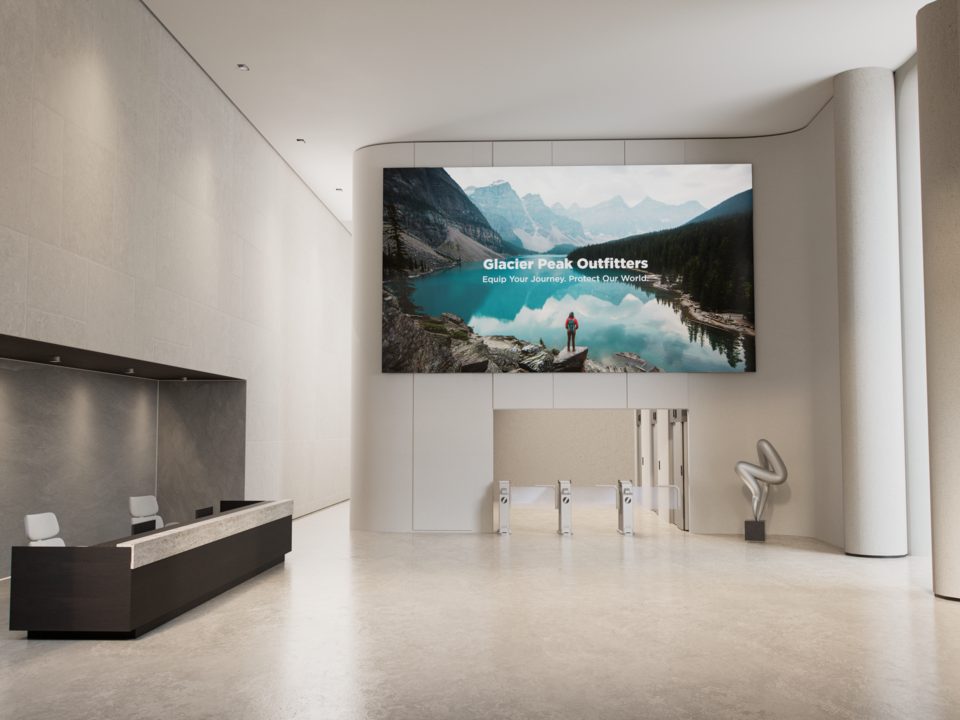

Lobby

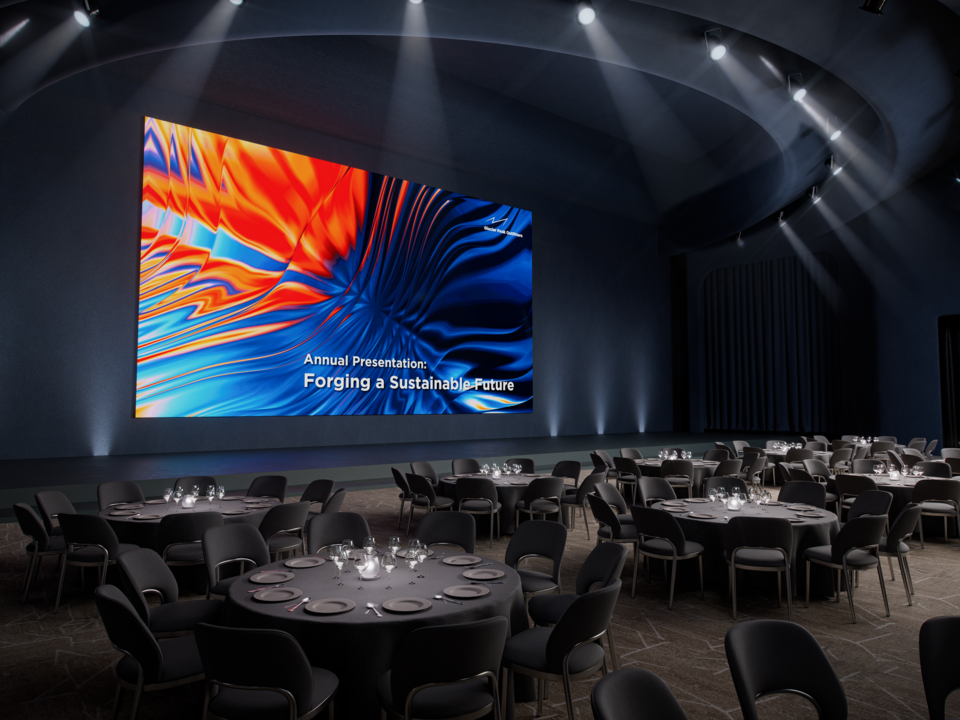

Event Venue
Command Center
Boardroom

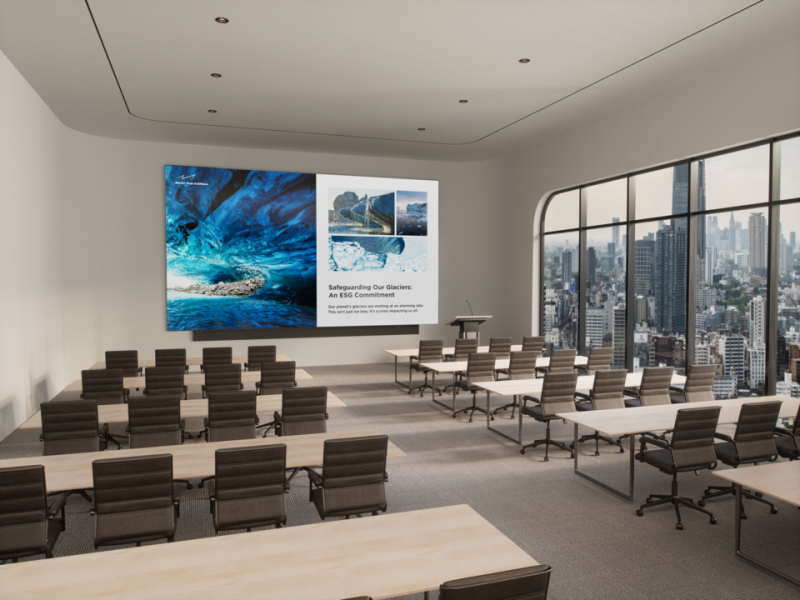

Training Room

Stunning Visuals. Powerful Sound.

600 nits Brightness & 10,000:1 Contrast Ratio

Consistent Visibility, Even in Challenging Lighting

With adjustable brightness up to 600 nits, the LDP Series ensures clear visibility in both high ambient light and low-light environments. Its 10,000:1 contrast ratio, powered by COB technology, delivers deep blacks and sharp detail that enhance readability in presentations, monitoring, and decision-making.

6.000:1 10.000:1

Slim Profile

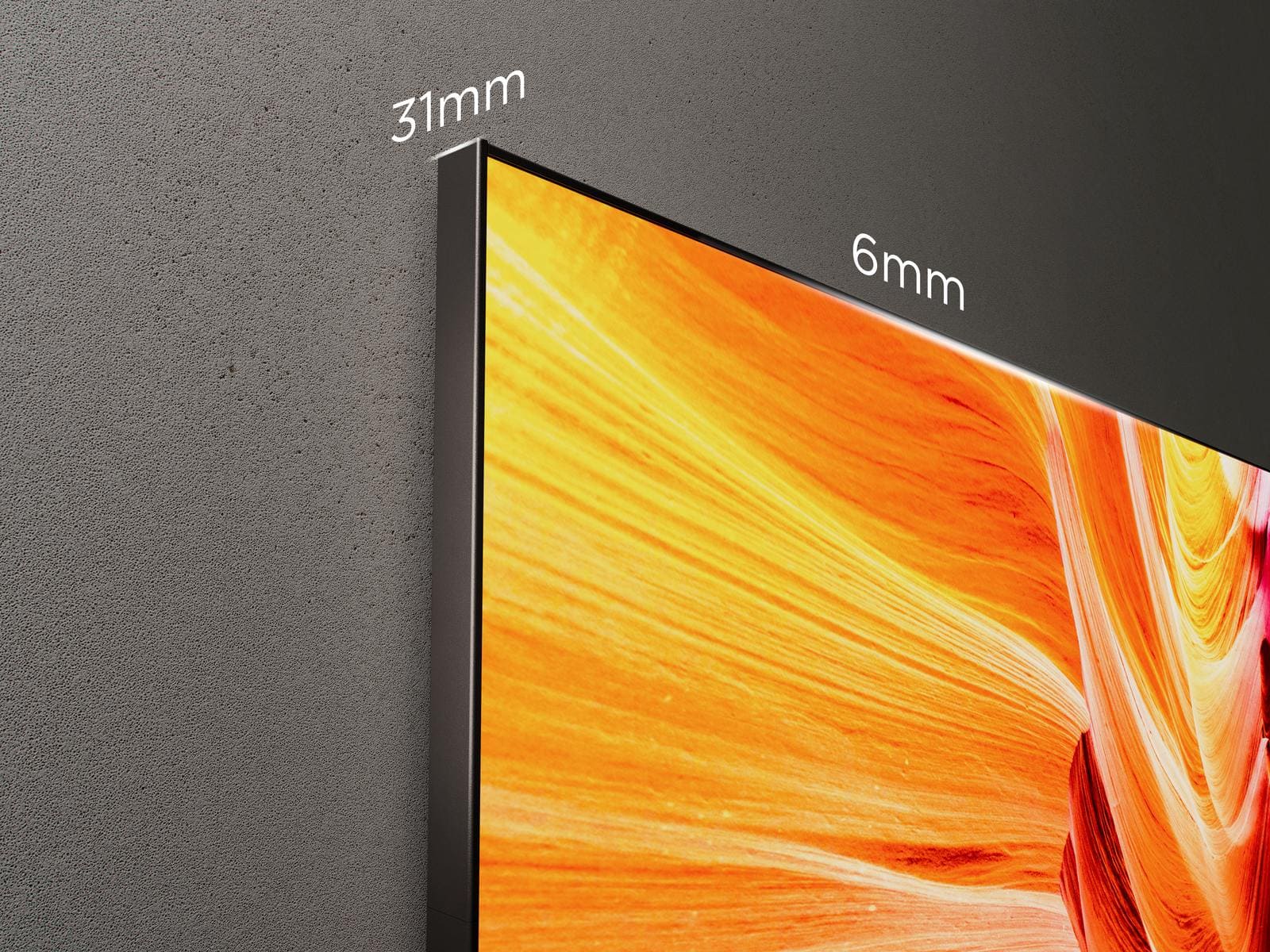

Premium Aesthetics with Ultra-Slim & Bezel-Free Design

Immerse yourself in stunning visuals with the premium, sleek, frameless display of the LDP Series. Featuring a 31mm ultra-slim design and 6mm ultra-thin bezels, it exudes sophistication while effortlessly complementing any interior style. Ideal for corporate lobbies, premium showrooms, and executive office suites, it’s designed to deliver strong visual impact in any modern business environment.

Premium Aesthetics with Ultra-Slim & Bezel-Free Design

30W Speakers

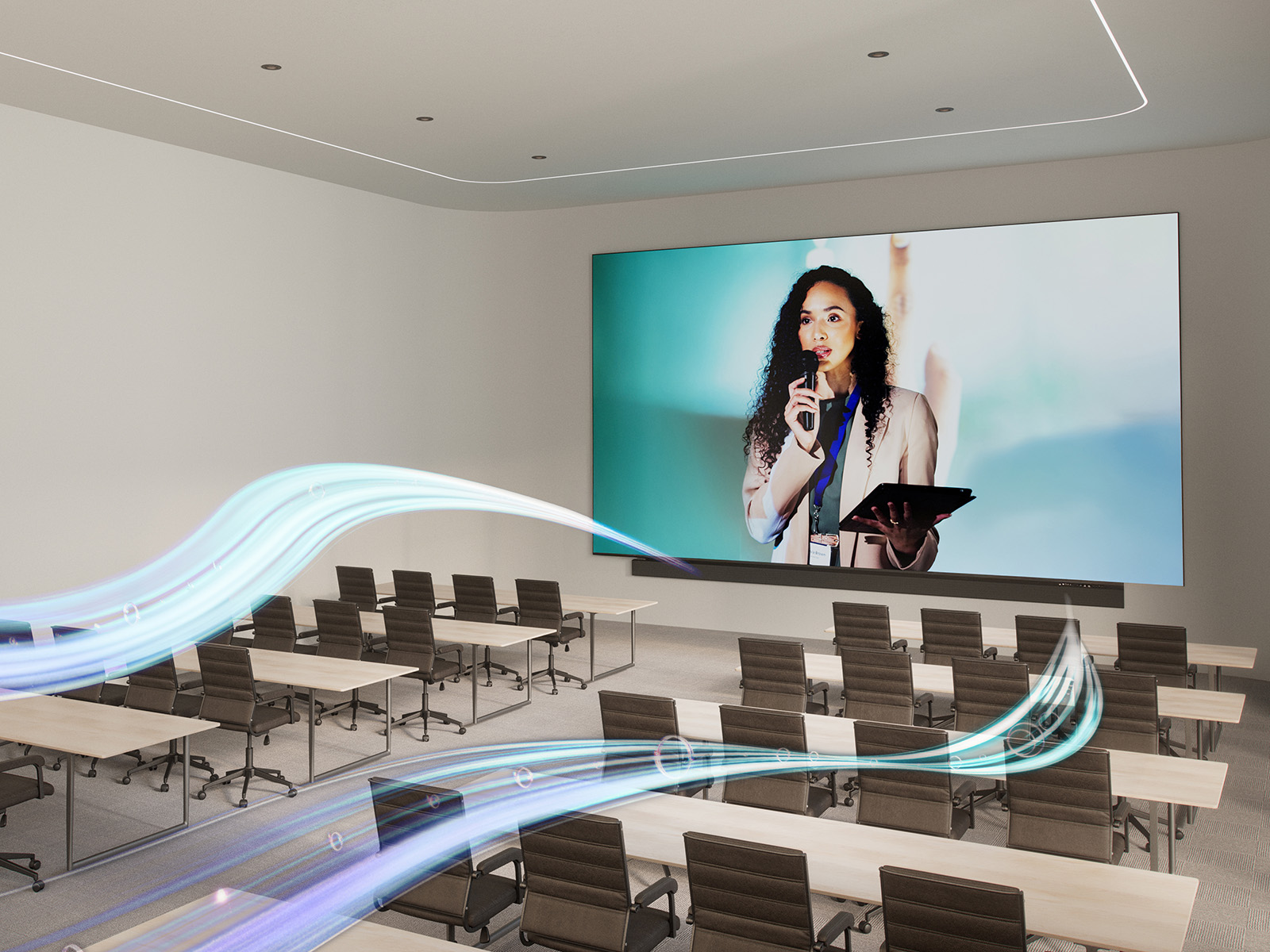

Engage Your Audience through Powerful Audio

Deliver compelling presentations that captivate your audience with the display's dual sets of 30W speakers, ensuring powerful and clear sound even in large venues.

Engage Your Audience through Powerful Audior

All-in-One Simplicity. Effortless Integration.

IP54 & IK08 Certified Protection

Reliable Protection with COB Technology

Engineered with advanced COB technology, this display eliminates bonding wires by mounting LED chips directly to the substrate, enhancing durability, stability, and thermal performance. The IP54-rated surface protects against dust and moisture, while IK08-certified impact resistance ensures dependable operation in high-traffic, professional environments. Designed for longevity and low maintenance, it’s a robust solution for mission-critical applications.

Common Cathode LED

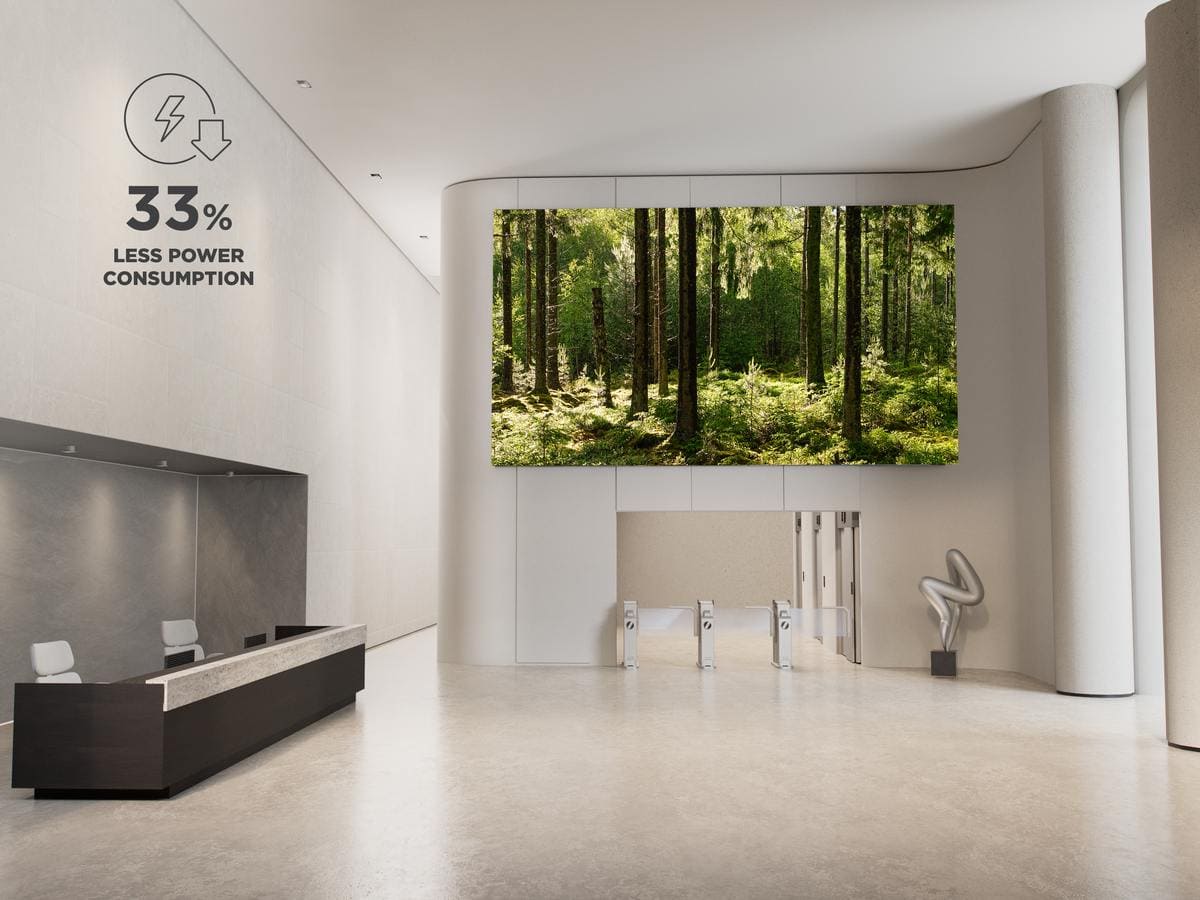

Reduced Power Consumption with Common Cathode Design

The LDP Series uses COB architecture with a common cathode LED design to reduce power consumption by up to 33% compared to conventional All-in-One LED displays with common anode configurations. This architecture improves energy efficiency, reduces heat generation, and contributes to lower operating costs over time. Combined with enhanced thermal performance and longer product lifespan, it offers a more sustainable and reliable solution for professional environments focused on long-term efficiency.

Reduced Power Consumption with Common Cathode Design

  1. LDP136-151C

  2. LDP163-091C

  3. LDP136-071C

  4. LDP217-121C

Power Consumption

1095W

Saved Annual Power Consumption (10Hours/day, 33%savings)

1969 kwh / year

Saved Annual Electricity Cost (US) ($0.168 per kWh)

$331 / year

Saved Annual Electricity Cost (EU) (€0.305 per kWh)

€600 / year

Power Consumption

1650W

Saved Annual Power Consumption (10Hours/day, 33%savings)

2966 kwh / year

Saved Annual Electricity Cost (US) ($0.168 per kWh)

$499 / year

Saved Annual Electricity Cost (EU) (€0.305 per kWh)

€904 / year

Power Consumption

2154W

Saved Annual Power Consumption (10Hours/day, 33%savings)

3872 kwh / year

Saved Annual Electricity Cost (US) ($0.168 per kWh)

$652 / year

Saved Annual Electricity Cost (EU) (€0.305 per kWh)

€1180 / year

Power Consumption

3850W

Saved Annual Power Consumption (10Hours/day, 33%savings)

6921 kwh / year

Saved Annual Electricity Cost (US) ($0.168 per kWh)

$1165 / year

Saved Annual Electricity Cost (EU) (€0.305 per kWh)

€2110 / year

Power Consumption

1095W

Saved Annual Power Consumption (10Hours/day, 33%savings)

1969 kwh / year

Saved Annual Electricity Cost (US) ($0.168 per kWh)

$331 / year

Saved Annual Electricity Cost (EU) (€0.305 per kWh)

€600 / year

Power Consumption

1650W

Saved Annual Power Consumption (10Hours/day, 33%savings)

2966 kwh / year

Saved Annual Electricity Cost (US) ($0.168 per kWh)

$499 / year

Saved Annual Electricity Cost (EU) (€0.305 per kWh)

€904 / year

Power Consumption

2154W

Saved Annual Power Consumption (10Hours/day, 33%savings)

3872 kwh / year

Saved Annual Electricity Cost (US) ($0.168 per kWh)

$652 / year

Saved Annual Electricity Cost (EU) (€0.305 per kWh)

€1180 / year

Power Consumption

3850W

Saved Annual Power Consumption (10Hours/day, 33%savings)

6921 kwh / year

Saved Annual Electricity Cost (US) ($0.168 per kWh)

$1165 / year

Saved Annual Electricity Cost (EU) (€0.305 per kWh)

€2110 / year

Fully Integrated System

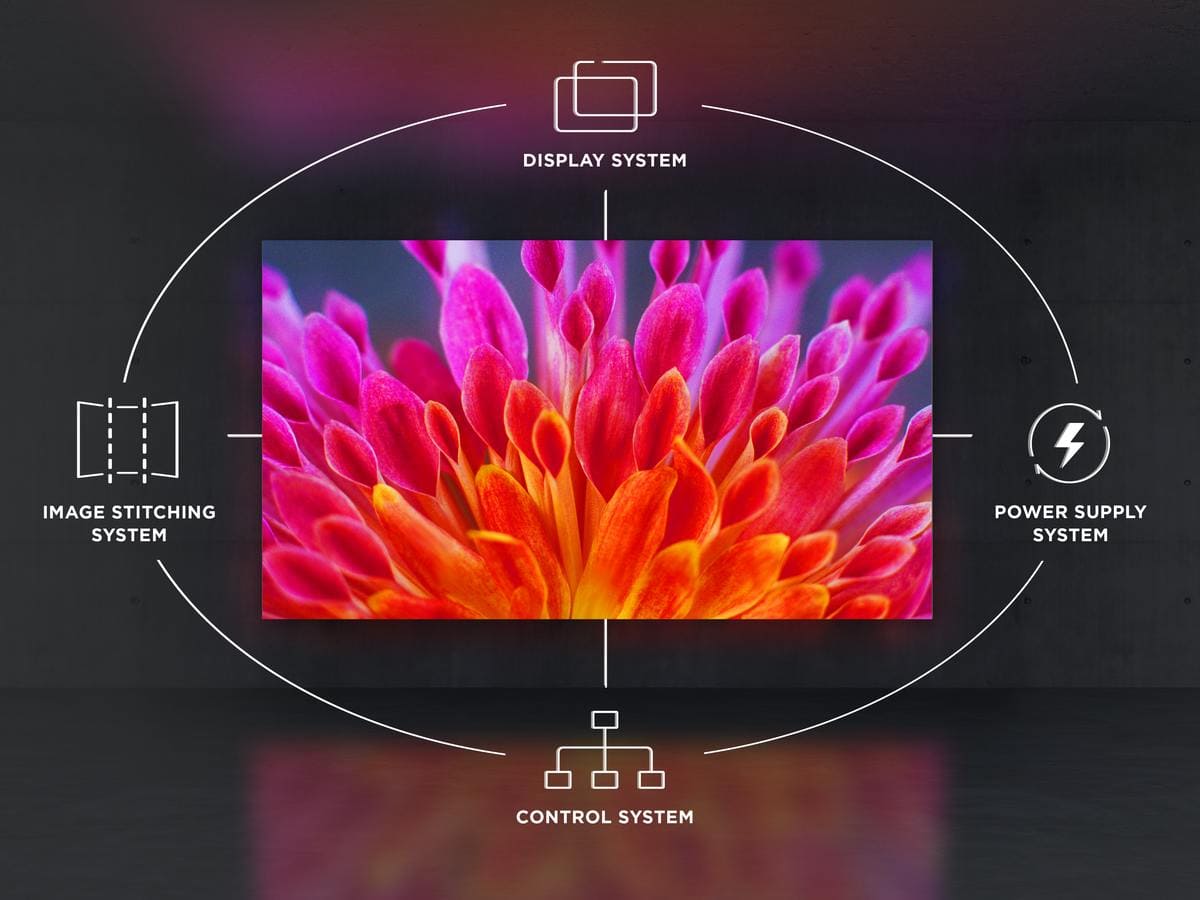

All-in-One Integration for Effortless Deployment

The LDP series enhances traditional LED displays by integrating power supply, control, image stitching, and display systems. This eliminates the complexity of configuring multiple systems and components, saving valuable time and effort. Simply switch on the display, and it's ready to use.

All-in-One Integration for Effortless Deployment
All-in-One Integration for Effortless Deployment

Installer-Friendly System Design

Modular Design for Easy Installation

This modular display features a user-friendly design that simplifies installation while reducing on-site complexity. Each LED module automatically configures and calibrates to its specific location and settings during setup, ensuring a smooth and efficient process.

Hot-Swappable LED Modules

Easy Full Front Maintenance

Enjoy maintenance convenience with hot-swappable front LED modules, enabling effortless replacement of defective parts without relocating the entire display. The user-friendly magnetic suction tool ensures a hassle-free process, accessible to all, regardless of technical expertise.

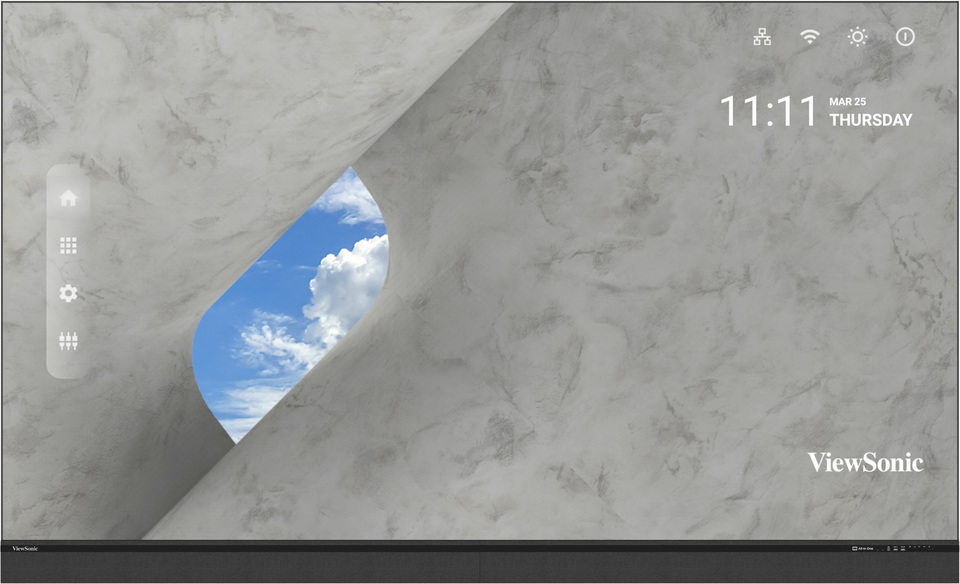

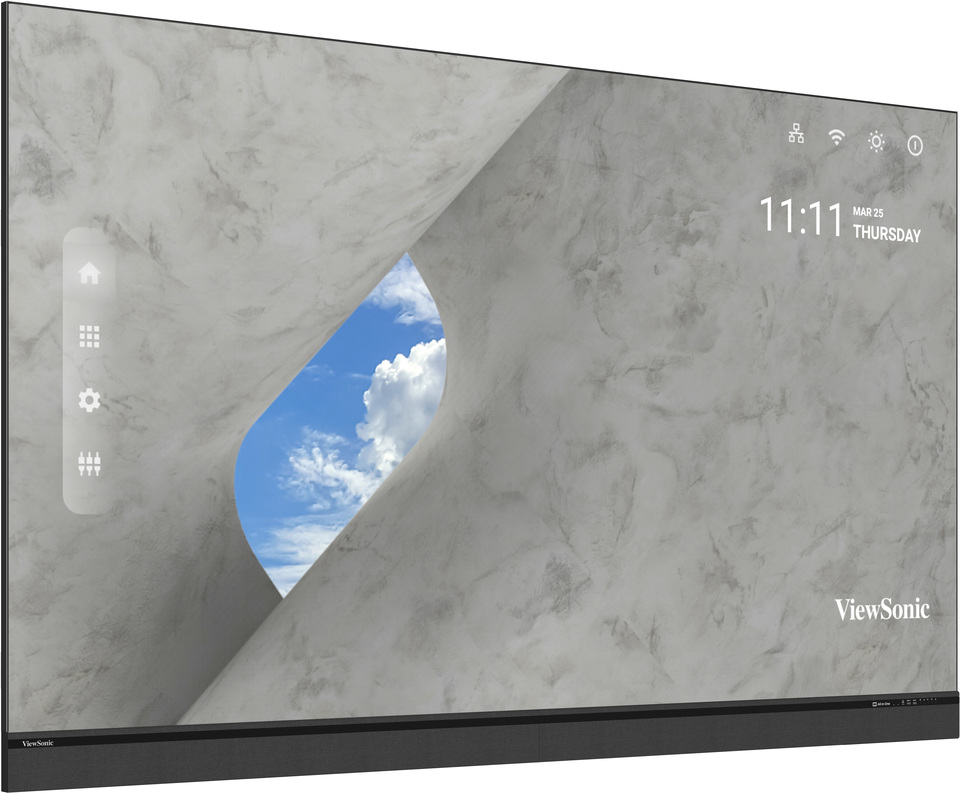

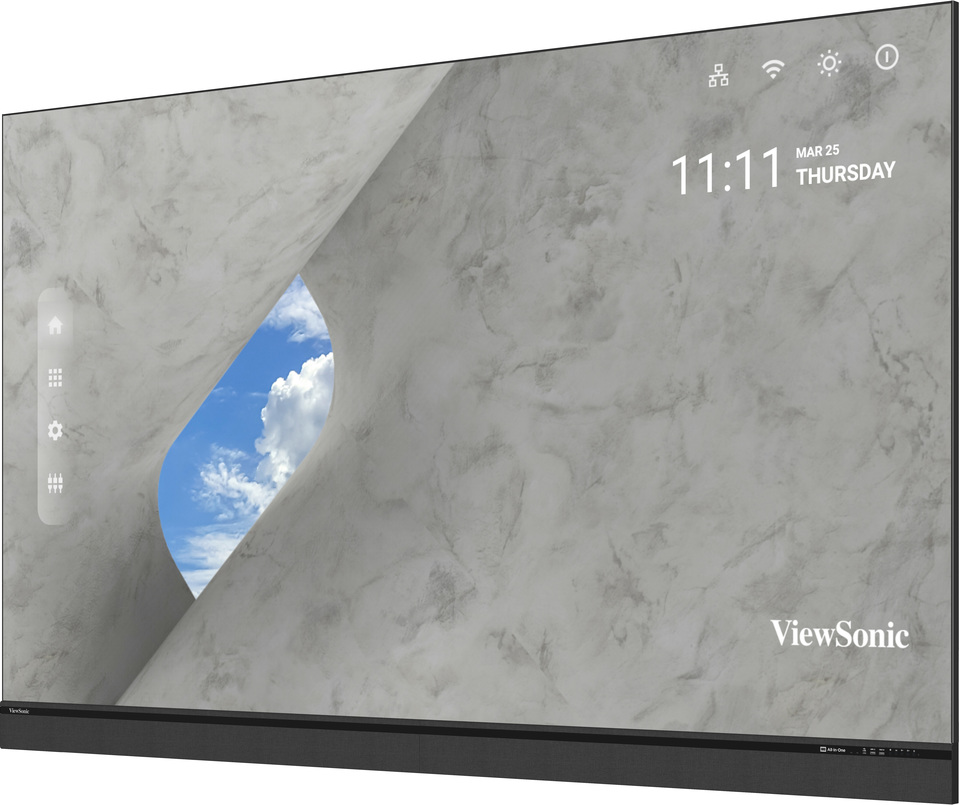

Detachable System Control Box

Flexible Control Box Placement for Streamlined Installation

The LDP Series features a detachable system control box, enabling a 99% screen-to-body ratio for a clean, minimalist appearance that integrates seamlessly into modern environments. Designed for meeting rooms, classrooms, and lecture halls, the control box includes built-in speakers, essential I/O ports, and a power control keypad. For added flexibility, it can be installed up to 10 meters from the display, providing easy access to controls even when the display is out of reach.

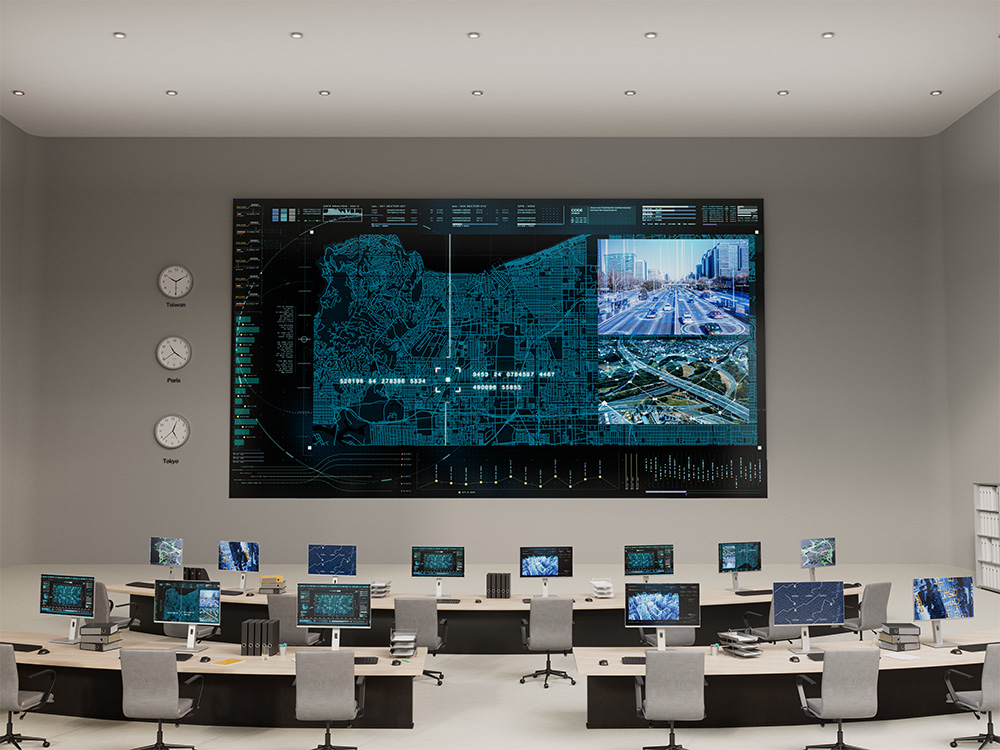

Without Control Box Without Control Box

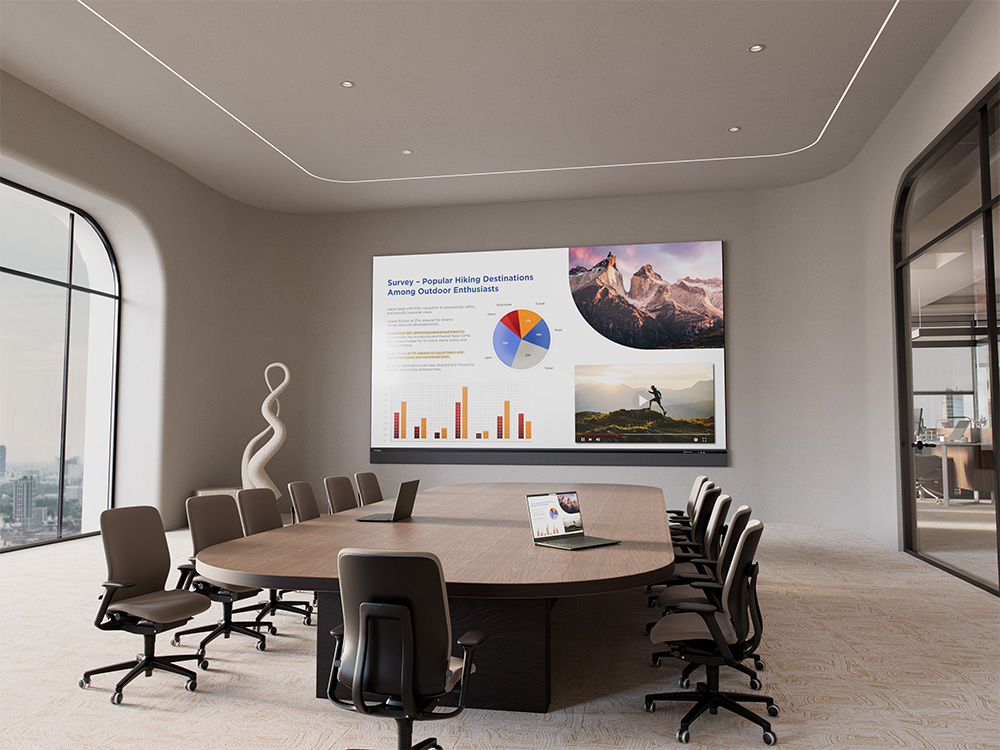

With Control Box With Control Box

Intuitive Collaboration. Seamless Control.

PBP/PIP Split-Screen Mode

Seamless Collaboration with Split-Screen Modes

Enhance collaborative content sharing with intuitive split-screen capabilities. This LED display seamlessly supports Picture-by-Picture (up to 4 different inputs) and Picture-in-Picture (a smaller screen within the main display) scenarios in real time, crafting a dynamic and versatile collaboration experience.

*Both scenarios only work with the HDMI input source

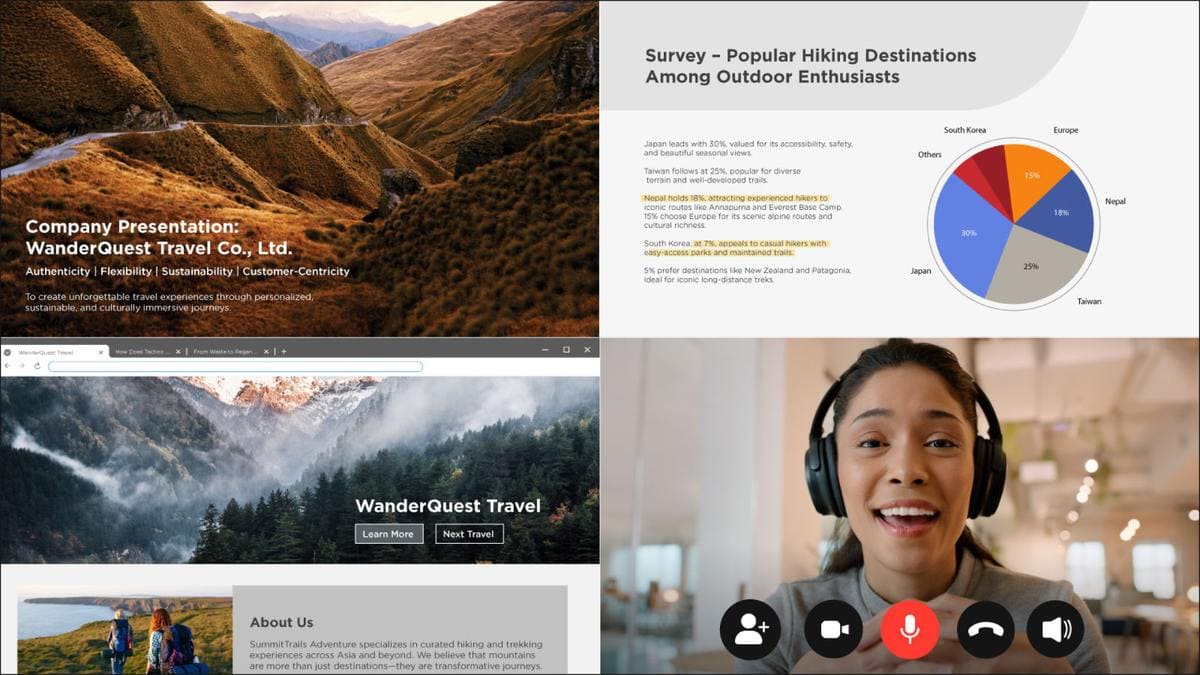

Picture-by-Picture Picture-by-Picture

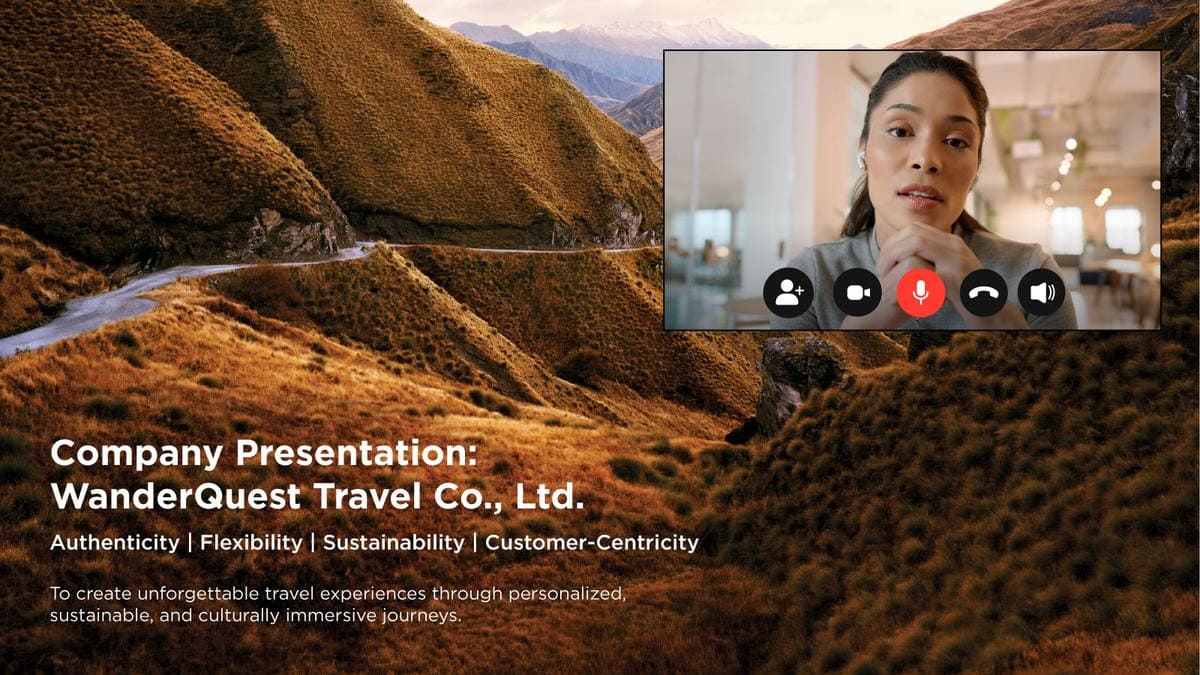

Picture-in-Picture Picture-in-Picture

AV Control System Integration

Centralized Management via LAN Control

This display is compatible with Q-SYS, Crestron and myViewBoard Manager, enabling easy and efficient management of multiple-display configurations from a PC via LAN connectivity.

Q-SYS

Native Device Casting

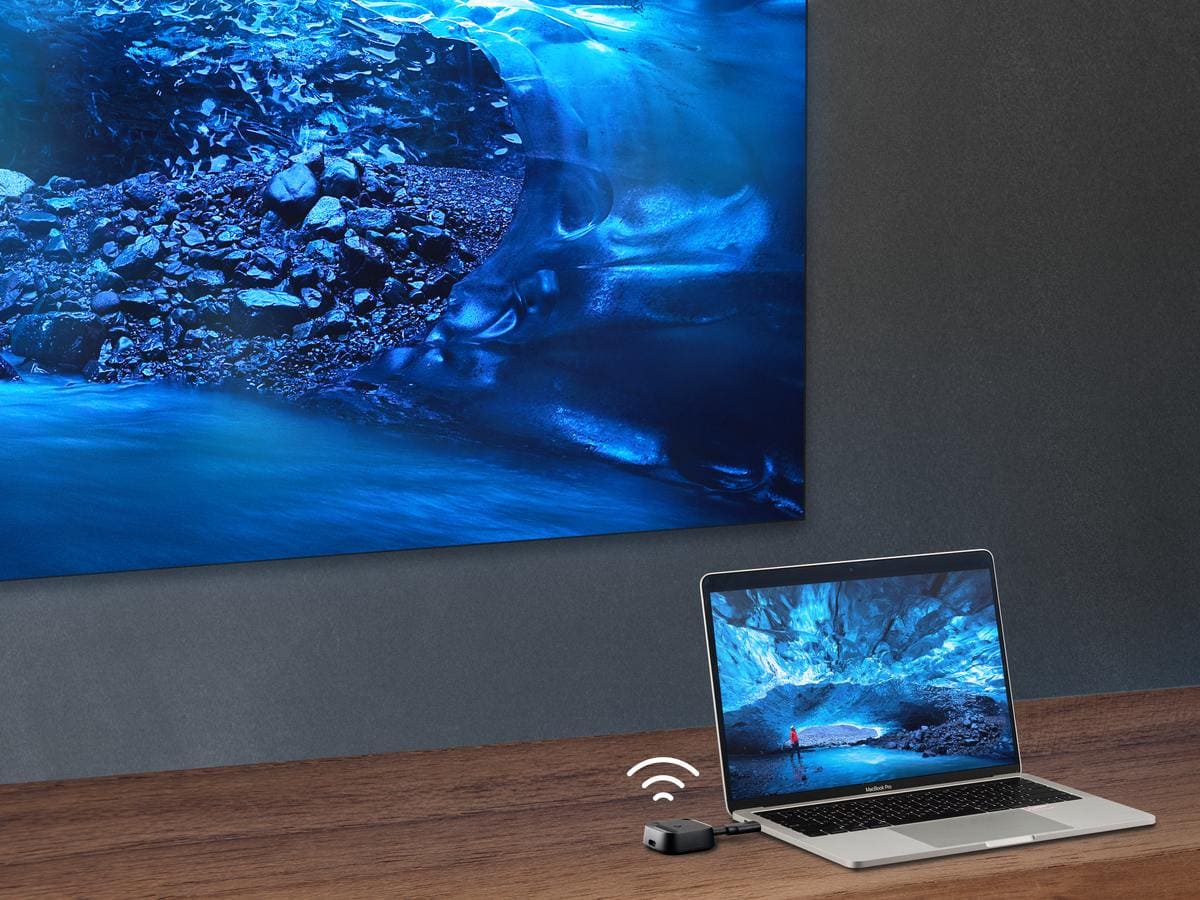

Easy Wireless Screen Sharing

The LDP Series supports wireless content sharing with built-in ViewSonic AirSync, enabling native screen casting via browser, AirPlay, Google Cast, and Miracast—no software or cables required. For added flexibility, the optional ViewShare Wireless Screen Casting Kit connects via the display’s USB-A and HDMI ports, delivering both power and data transmission to support simultaneous casting and device charging. This plug-and-play solution streamlines setup for meeting spaces, training rooms, and large venue presentations, making it easy for guests and team members to share their screens without hassle.

*ViewShare Wireless Screen Casting Kit sold separately.

Easy Wireless Screen Sharing

Dimensions & I/O Ports

  1. Speakers
  2. HDMI 2.0 x3
  3. RJ45 (Internet, Control) x2
  4. Audio Out x1
  5. IR Out x1
  6. USB-A (Power) x1
  7. HDMI 2.0 x1
  8. RS232 x1
  9. Audio Out x1
  10. Wireless/ Bluetooth Antenna
  11. USB-C (Data only) x1
  12. USB-A (2.0, 3.0) x2
  13. Keypad
  14. Power Button
  15. IR Receiver

SPECIFICATIONS


  • Specification
    Screen Size: 136"
    Display Area (mm): 3000 (H) x 1687.5(V)
    Native Resolution: 1920x1080
    Panel Technology: Direct view LED
    LED Package Type: Flip Chip COB
    Pixel Pitch (mm): 1.56
    Brightness (max.): 600 nits (100 levels adjustable)
    Contrast Ratio (typ.): 10000:1
    Color Temperature: 3000K -10000K
    Orientation: Landscape
    Viewing Angles (typ.): H = 170, V = 170
    LED Lifetime (typ.): 100,000 Hours
    Local Storage: Total 32GB
    (26GB available storage)
    Embedded OS: Android 9.0
    Resolution Support: VGA(640 x 480) to 4K(3840 x 2160@60hz)
    HDTV Compatibility: 480p, 576p, 720p, 1080p, 2160p
    Horizontal Frequency: 31K-94kHz
    Vertical Scan Rate: 56-85Hz
  • Input
    HDMI: 4
    (HDMI 2.0/HDCP 2.2)
    (internal x3, external x1)
    USB Type A: 3
    (USB3.0 x1, USB2.0 x2)
    RJ45 Input: 3
    (internet x2, control x1)
    IR in (3.5mm): 1
    Wi-Fi Input: 2.4G/5G Hz
    USB Type C: 1
    (data only)
  • Output
    HDMI out: 1
    (HDMI 2.0/HDCP 2.2)
    (internal x1)
    Speaker: 30Wx2
    Audio out (3.5mm): 2
    S/PDIF: 1
    USB Type A (Power): Shared with USB A input
    (USB 3.0 5V/0.9A x1, USB 2.0 5V/0.5A x1, USB 2.0 5V/2A x1)
    USB Type C (Power): Shared with USB Type C input
    (5V/1A x1)
