- REGULATIONS
CB, WEEE, RoHS, REACH SVHC List, EuP, Windows XP/ Vista premium, Windows 7, CE,
Nemko ERGO, GOST-R+Hygienic, UkrSEPRO, TCO, BSMI, PSB, C-TICK, SASO, Energy Star
- INPUT
Sync: Separate Sync
Analogue: RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p)
Frequency: 24–82kHz / 50–75Hz

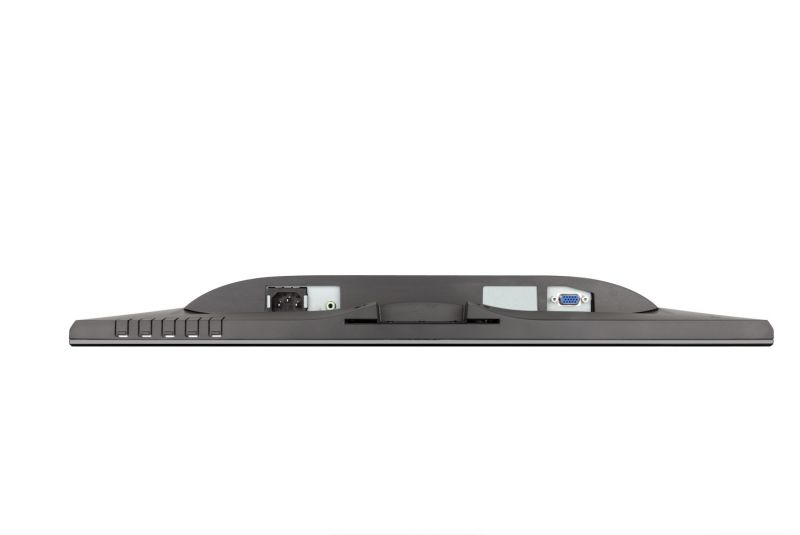

- CONNECTOR
Analogue: 1×15 pin mini D-sub
Power: Internal Power Adapter, 3-pin plug (CEE22)
Audio: 3.5mm Mini Phone Jack
- POWER
Voltage: AC 100-240V (Universal); 50/60Hz
Consumption: 18 W (typical) /20W (maximum)
Save mode: ≦0.3W
- CONTROLS
Basic: [1], [2], power button, Down[▼], Up[▲]
OnView / OSD: Auto Image Adjust, Contrast/Brightness, Audio Adjust, Colour Adjust, sRGB,
9300K, 7500K, 6500K, 5000K, User Colour [R, G, B], Information Manual, Image Adjust,
H/V Position, Horizontal Size, Fine Tune, Sharpness, Dynamic Contrast, Aspect ratio,
Eco mode, Setup Menu, Language Select, Resolution Notice, OSD Position,
OSD Time out, OSD Background, Auto Power Off, Memory Recall
- OPERATING CONDITIONS
Temperature: 0 - 40 (°C) / 32 - 104 (°F)
Humidity: 10 - 90 (%)
- VESA MOUNT COMPLIANT
100 × 100mm
- ERGONOMICS
Tilt: 22˚ ~ -5˚
- WEIGHT
Net With Stand: 2.84 Kg (6.26 lbs)
- AUDIO OUT
Speakers: 2W x 2 / Amplifier 2W
