CDE7520

75" Presentation Display

  • Easy cast function
  • Wireless presentation across devices and rooms
  • USB flash drive plug-and-play for photos, music & video
  • Multitasking with powerful embedded player & OPS PC slot
  • 4K slim bezel presentation display
Értékesítési kérdőív

ÁTTEKINTÉS

The ViewSonic® CDE7520 is a 75” 4K wireless presentation display. The built-in screen sharing software*, ViewBoard® Cast and Display, myViewBoard enable multiple users, whether on-site or on-line, to participate in conferences and share content with each other simultaneously, transforming the CDE7520 into a dynamic content hub. This reliable presentation display is equipped with a quad-core processor and internal memory, allowing constant multimedia play from internal storage or a USB flash drive. Supporting remote configuration and content management systems, the ViewSonic® CDE7520 is also suitable for diverse signage applications.

*Chrome, Android, Windows, Mac OS, and iOS compliant
*Miracast, Chromecast, and AirPlay support

Start an Easy Group Presentation

Instant Casting without Dongle or app Installation
Any laptop with a browser

No setup required, just open a Chrome, Chromium, or Edge browser to share your content.

*built-in myViewBoard Display app to support wireless casting

All Content on One Screen
Across devices with the app

From side-by-side to multiple screens overview, the display enables all mobile users to share their full HD content.

Bring All Remote Participants Together
1080p 120° web camera

Built-in noise reduction, WDR, and backlight compensation make your meeting’s audio-visual quality great in both bright and dark environments.

*Optional VB-CAM-001


Connection Flexibility

Conduct an Engaging Workshop

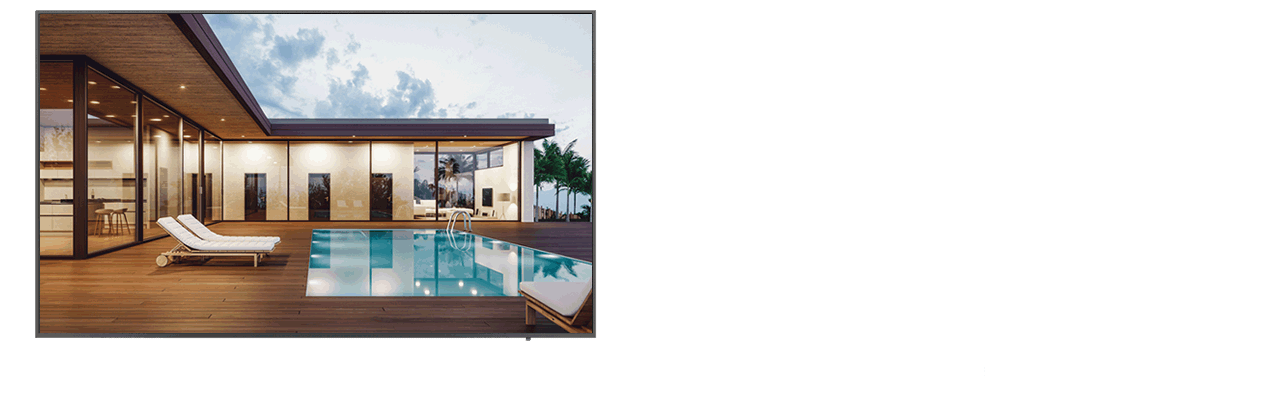

Single Content to All Displays
On-site or across rooms with the app

Mirror your content to multiple displays for multi-group environments.

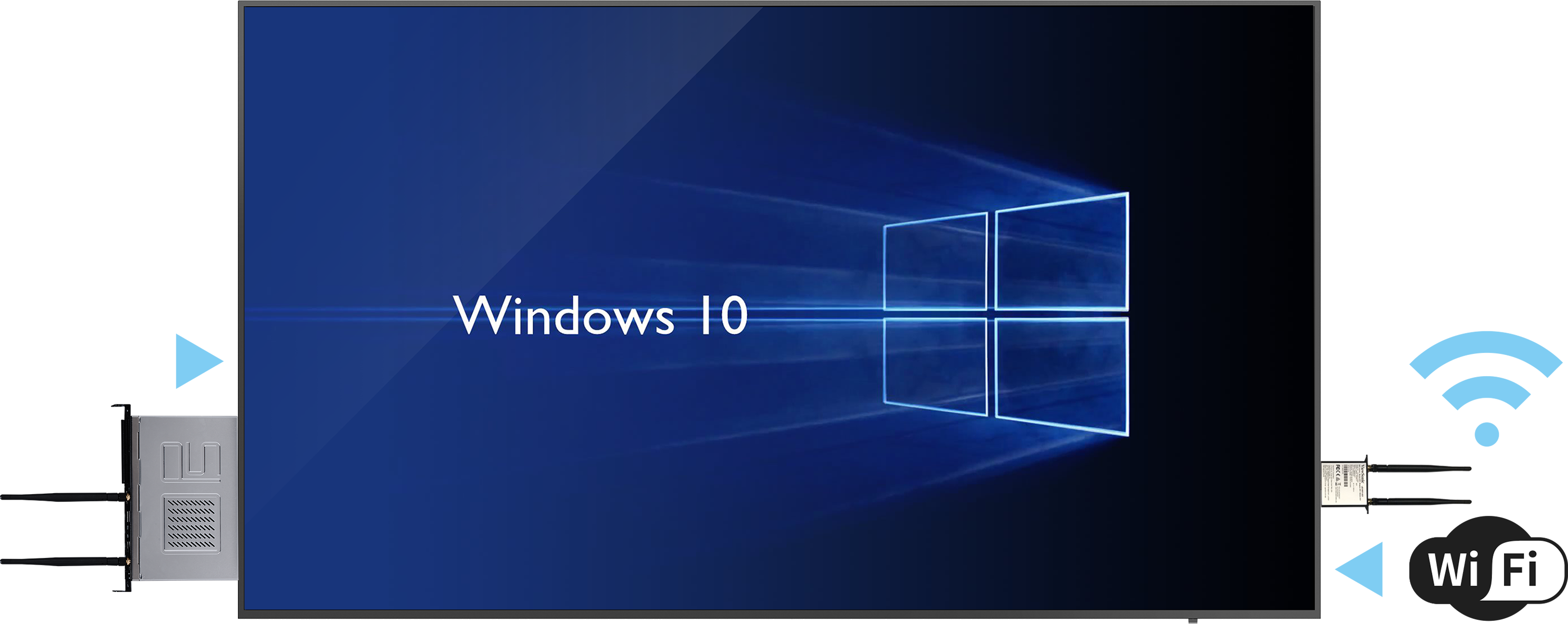

Play Multimedia and Internet Resources

Friendly OS Environment Interface
Embedded player with WiFi & OPS PC slots

*Optional WiFi module & OPS PC VPC12-WPO

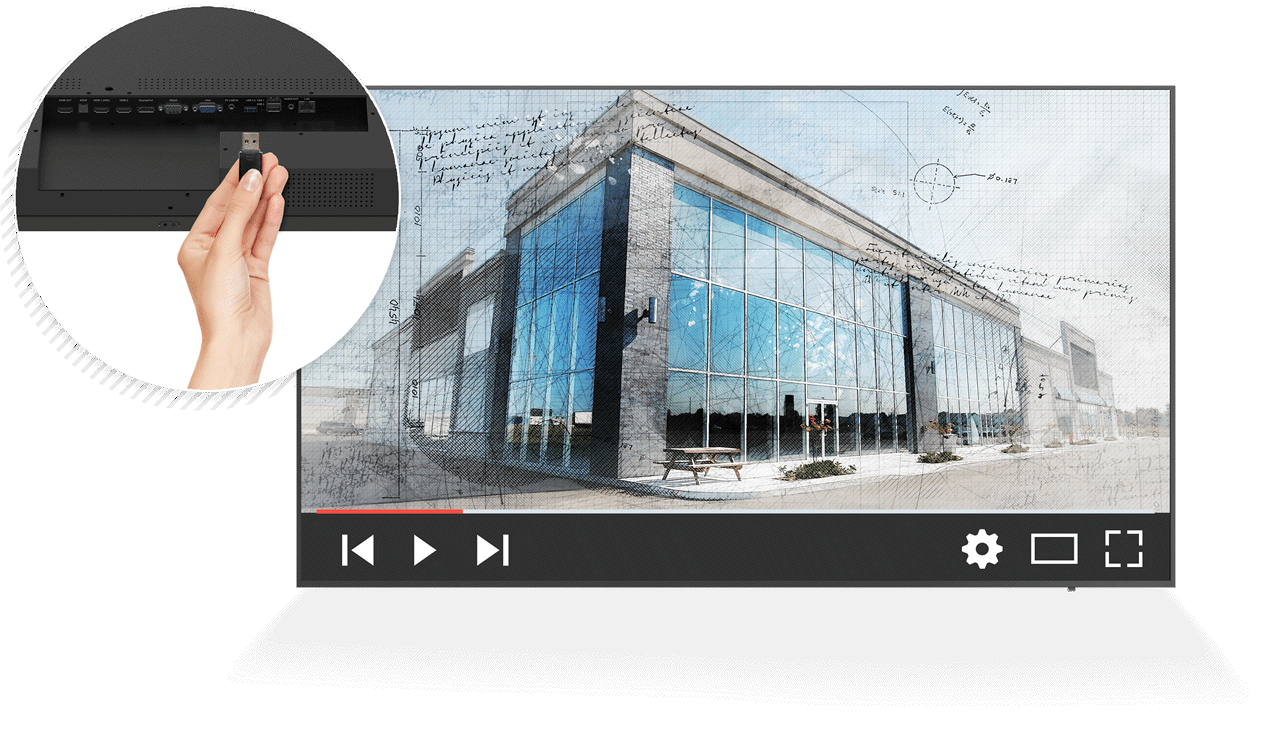

Integrated Multimedia Player
USB flash drive plug-and-play for photos, music, and video

Link with Internet Resources
Web browser

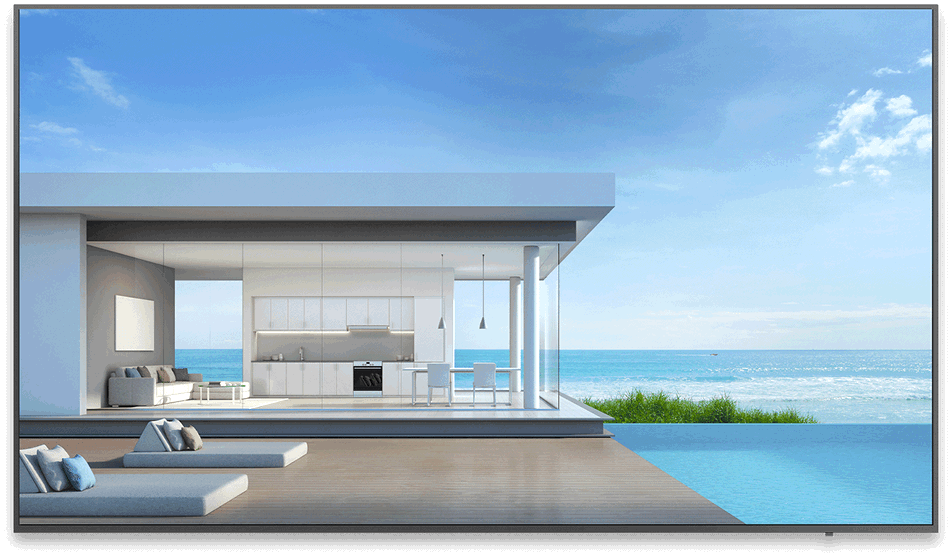

Quality Image Display for a Modern Meeting

4K
High brightness with a slim bezel

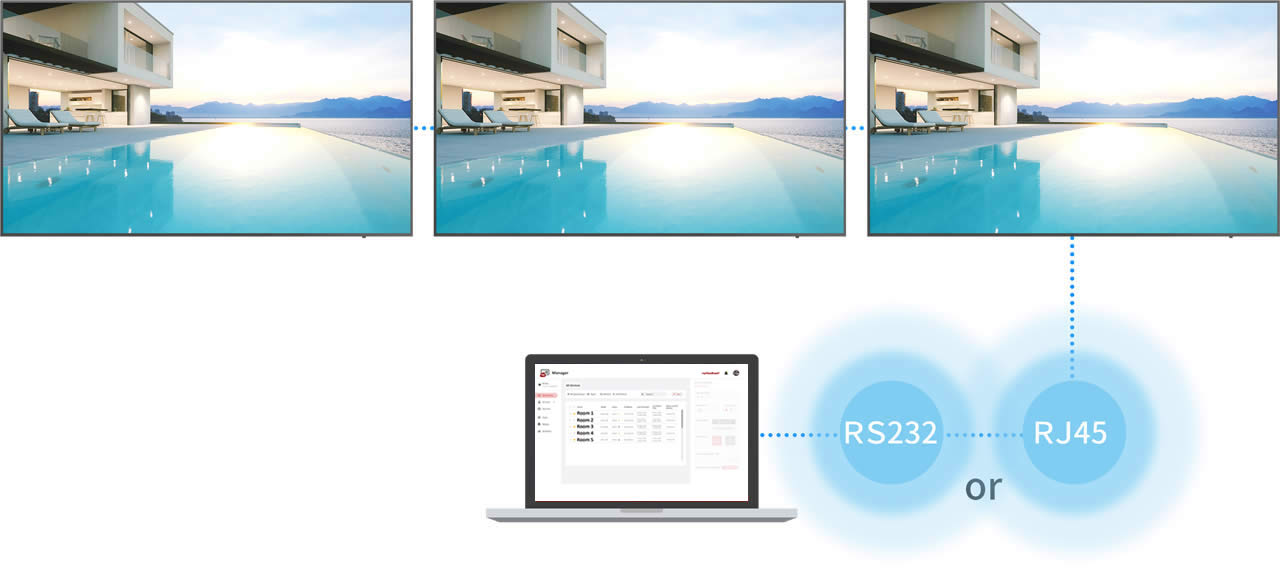

Easy IT Remote Management

Remote Settings & Content Management
myViewBoard manager, SureMDM, Revel Digital and more

Dimensions & I/O Ports

  1. AC In
  2. Power Switch
  3. Internal Speakers
  4. OPS Slot
  5. WiFi Slot
  6. Menu Controls
  7. VESA® Wall Mount 400x200mm
  8. SPDIF
  9. HDMI In x 2
  10. DisplayPort
  11. RS232
  12. VGA
  13. Audio In
  14. USB 3.0 Type A (USB Playback)
  15. USB 2.0 Type A x 2 (USB Playback)
  16. Audio Out
  17. LAN

SPECIFIKÁCIÓK


  • Megjelenítés
    Panel mérete: 75"
    Típus/ Technika: TFT LCD Module. IPS type, DLED backlight
    Megjelenített terület (mm): 1649.664(H) × 927.936(V) (75" diagonal)
    Natív felbontás: 3840 x 2160
    Képarány: 16:9
    Colors: 1.07G colors
    Fényerő: 450 nits (typ.)
    Kontrasztarány: 1200:1 Typ. , 5000:1 Max.(DCR enable)
    Válaszidő: 8 ms
    Betekintési szögek: H = 178, V = 178 typ.
    Háttérvilágítás élettartama: 30,000 Hours (min)
    Felületkezelés: Anti-glare, 3H hardness, Haze 25%
    Keret: Slim
    Orientáció: Landscape
  • INPUT
    HDMI: x2
    RGB / VGA: x1
    DisplayPort: x1
    Audió: x1 (3.5mm)
    RS-232: x1
    OPS Slot: x1 (Optional Intel OPS VPC12-WPO)
    WiFi Slot: x1
