Key Features
  • Integrated USB TypeC and Ethernet
  • Daisy chain monitor
  • Ergonomic design
  • vDisplay Manager software for multitasking
  • Lower total cost of ownership

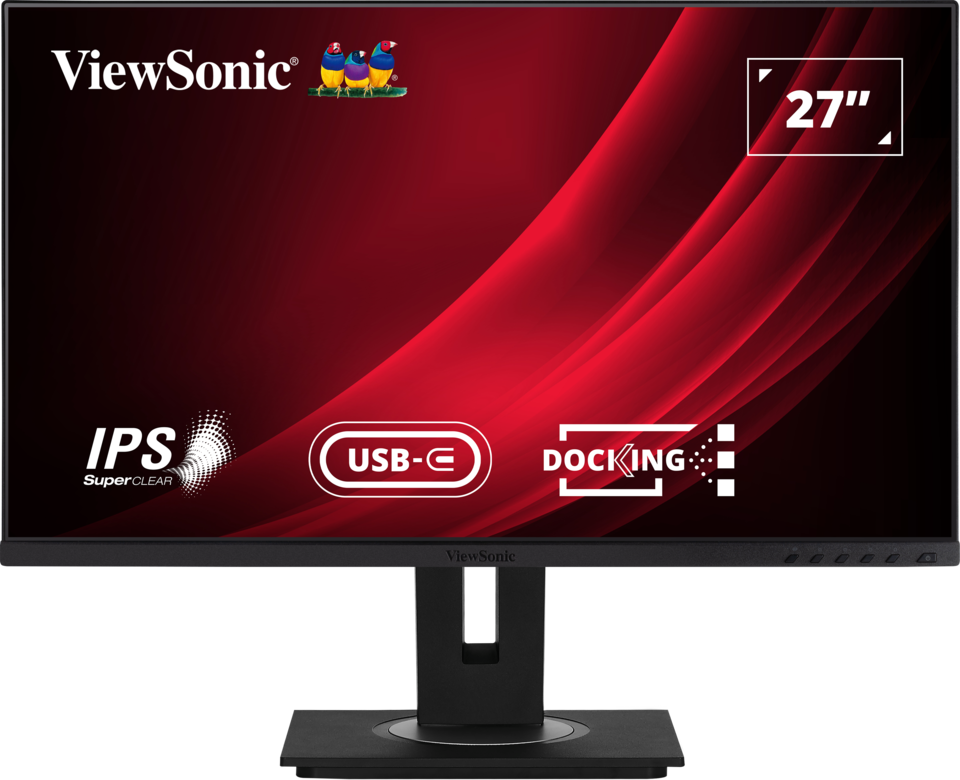

VG2756-2K
Product Description
The ViewSonic VG56 docking monitor series will keep the workstation tidy and productive with USB Type-C and Ethernet connectivity that turn your monitor into a hub for charging, data, network, and devices. With a 27” display and 2560 X 1440 resolution that delivers larger and clearer images, the VG2756 QHD monitor expands your productivity. This monitor’s DisplayPort output also makes it convenient to daisy chain monitors, reducing clutter on your desk and simplifying cable management. A range of ergonomic features such as 40-degree tilt, swivel, bi-directional pivot and height adjustment, along with eye-care technology let you stay comfortable at work all day. In addition, the supported vDisplay Manager software for multi-tasking provides efficient on-screen display control. The monitor and quick release stand ship in an eco-friendly, biodegradable package, thus minimizing total cost of ownership.
  1. Menu Control Panel
  2. VESA Compatible (Wall Mount 100 x 100 mm)
  3. USB Down Stream x 2
  4. AC In
  5. HDMI
  6. DP IN
  7. USB Type C
  8. DP out
  9. USB Up Stream
  10. LAN
Visit Us
  • www.viewsonic.com
  • 液晶面板
    顯示器尺寸 (in.): 27
    可視區域 (in.): 27
    面板類型: IPS 技術
    解析度: 2560 x 1440
    解析度類型: QHD (Quad HD)
    靜態對比度: 1000:1 (標準值)
    動態對比度: 80M:1
    高動態範圍 (HDR):
    光源: LED
    亮度: 350 cd/m² (標準值)
    色彩總數: 16.7M
    色深: 8 bit true
    長寬比: 16:9
    反應時間 (標準 GTG): 5ms
    反應時間 (GTG w/OD): 5.8ms
    可視角度: 水平 178º,垂直 178º
    背光壽命 (小時): 最少 30000 小時
    曲率: 平面 (Flat)
    刷新率 (Hz): 60
    可變刷新率技術:
    藍光過濾:
    低藍光: 軟體解決方案
    不閃屏:
    色域: NTSC: 78% 覆蓋率 (標準值);sRGB: 110% 面積 / 100% 覆蓋率 (標準值)
    點距: 0.233 mm (水平) x 0.233 mm (垂直)
    表面塗層: 抗眩光,3H 硬化塗層
  • 相容性
    PC 最高解析度: 2560x1440
    Mac® 最高解析度: 2560x1440
    PC 作業系統: Windows 11 認證;macOS 已測試
    Mac® 最低解析度: 2560x1440
  • 傳輸介面
    USB 3.2 Type A 下行連接埠: 2
    USB 3.2 Type B 上行連接埠: 1
    USB 3.2 Type C 上行連接埠 (含 90W 充電);DisplayPort Alt 模式: 1
    HDMI 1.4: 1
    DisplayPort: 1
    DisplayPort 輸出: 1
    電源輸入: 3 針插座 (IEC C14 / CEE22)
    有線網路埠 (RJ45): 1
  • 音訊
    內建喇叭: 2 瓦特 x 2
  • 電源
    節能模式 (省電): 16.81W
    節能模式 (優化): 21.12W
    消耗功率 (標準): 26.35W
    消耗功率 (最大): 35.94W
    電壓: AC 100-240V
    待機狀態: 0.5W
    電源供應: 內置電源供應
  • 附加硬體
    Kensington 鎖槽: 1
    線材收納管理:
  • 控制按鍵
    實體控制鍵: 按鍵 1 (眼部防護鍵)、按鍵 2、按鍵 3、按鍵 4、按鍵 5、按鍵 6 (電源鍵)
    螢幕操作選單: 訊號輸入選擇、音訊調整、ViewMode、色彩調整、手動影像調整、設定選單
  • 操作環境
    溫度: 32°F 至 104°F (0°C 至 40°C)
    濕度 (無凝結): 20% 至 90%
  • 壁掛
    VESA 相容尺寸: 100 x 100 mm
  • 輸入訊號
    水平頻率: 15 ~ 90KHz
    垂直頻率: 40 ~ 75Hz
  • 影像輸入
    數位同步: TMDS - HDMI (v1.4);PCI-E - DisplayPort (v1.2);Micro-Packet - Type C
  • 人體工學
    高度調整 (mm): 130
    水平旋轉: 120º
    傾斜 (前後): -5º / 40º
    垂直旋轉 (左右): 90º / 90º
  • 重量 (英制)
    淨重 (磅): 15.2
    淨重不含底座 (磅): 9.9
    總重 (磅): 22.5
  • 重量 (公制)
    淨重 (公斤): 6.9
    淨重不含底座 (公斤): 4.5
    總重 (公斤): 10.2
  • 尺寸 (英制 寬X高X深)
    包裝尺寸 (吋): 27.2 x 16.9 x 8.6
    實體尺寸 (吋): 24.1 x 15.99~20.99 x 8
    實體尺寸不含底座 (吋): 24.1 x 14.2 x 2
  • 尺寸 (公制 寬X高X深)
    包裝尺寸 (mm): 692 x 430 x 218
    實體尺寸 (mm): 612 x 406.19~533.24 x 202
    實體尺寸不含底座 (mm): 612 x 362 x 52
  • 一般資訊
    法規認證: cTUVus;FCC-B;ICES003;Energy Star;EPEAT;CEC;MX-CoC;Mexico Energy;CE;CE EMC;CB;RoHS;ErP;REACH;WEEE;EAC;UkrSEPRO;RCM
    產品內容: VG2756-2K x1 顯示器;3 針電源線 (IEC C13 / CEE22) x1;DisplayPort 線 (v1.2; 公對公) x1;USB Type-C 線 (公對公) x1;USB A to B 線 x1;快速使用指南 x1
    回收/廢棄處理: 請依照政府回收規定
    保固: *保固內容可能因市場而異
    電源管理: Energy Star 標準;EPEAT
