Key Features

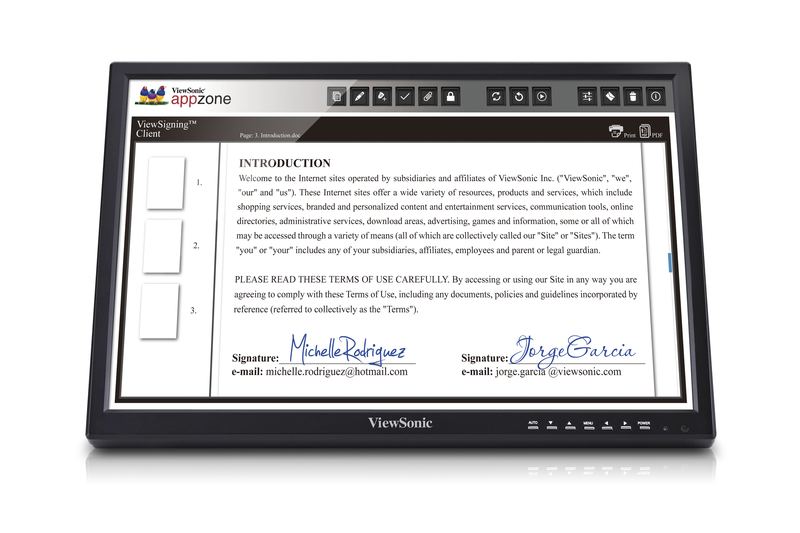

PD2211
Product Description
ViewSonic全新22吋電磁筆顯示器PD2211,擁有1920 x 1080超高解析度及搭配最先進的無電源式電磁筆(Electromagnetic resonance pen) EMP觸控技術,提供直覺性的書寫體驗,可直接在顯示器上進行書寫簽章、筆記註解或繪圖等功能。具備高階2048階的手寫感壓、200pps電磁反應速度及5080 LPI電磁顯式解析度;能模擬實際書畫筆勁,如同親筆簽名及繪圖的細膩感;而5mm的懸浮感應,能取代滑鼠進行應用程式等觸控操作。穩定的人體工學底座設計,讓電磁筆顯示器在進行手寫觸控時避免搖晃。內建HDMI跟VGA輸入介面及一組VGA輸出介面,支援Windows® 8及Mac作業系統,PD2211可支援簽章、繪圖等多個系統軟體,提供完整電子簽章解決方案及無紙化工作流程,不僅依照需求客製顧客簽章,並透過電子化有效管理所有文件,不僅節能環保,更替政府機構、教育、企業用戶、或是服務業者帶來便捷的服務與使用體驗。
Visit Us
  • www.viewsonic.com
  • LCD PANEL
    Display Area: 476.64 x 268.11 mm
    Optimum Resolution: 1920 x 1080, 16:9
    Brightness: 250 cd/m2
    Contrast Ratio: 500 : 1
    Viewing Angles: 170°/ 160°
    Backlight: LED Light-Bar
    Surface Treatment: 8H tempered glass
  • INPUT
    Frequency: Horizontal:30-48kHz, Vertical:56-70Hz
  • TOUCH
    Technology: Electromagnetic Resonance
    Touch Pen: Battery-Free
    Writing Response: 200 PPS (point per second)
    Pressure Level: 2048 Levels
    Digitizer Resolution: 5080 LPI
    Accuracy: ± 0.5mm (center), ± 1 mm (edge)
    Detectable Height: 5 - 10mm above glass
  • COMPATIBILITY
    PC: Windows XP, Windows 7, Windows 8
    MAC: Yes
  • CONNECTOR
    Power: DC Jack x 1
    Video: D-Sub x 1, HDMI x 1, D-Sub output x 1
    USB: x 1
  • ERGONOMICS
    Tilt: ± 45°
  • POWER
    Voltage: 12V / 3A
    Consumption: 30 W
  • OPERATING CONDITIONS
    Temperature: 0°C to 65°C
    Humidity: 20% - 80%(Max), Non-Condensation
  • DIMENSIONS
    Physical (in / mm): 560 x 380 x 25 mm
  • WEIGHT
    Net (lb / kg): 4kg
  • REGULATION
    CCC, CE, FCC, RoHS
  • WHAT'S IN THE BOX
    1. Pen Display x1 2. Quick Star Guide x1 3. Driver CD x1 4. USB 2.0 Y-cable x1 5. Replacement tool of Pen tip x1 6. Pen x1 7. Pen tip x3 8. Warranty card x1 (VSCN only) 9. Pen rope x1 10. User Guide x1 (China Mobile only) *Actual content may differ from market to market
