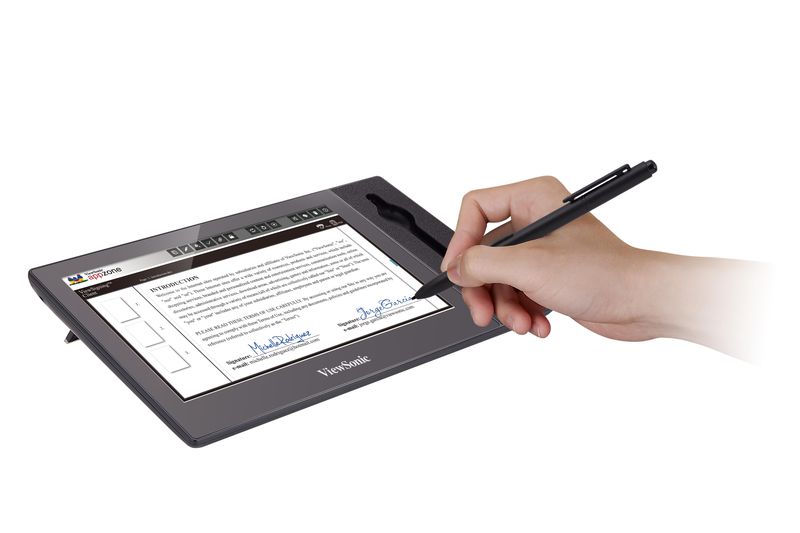

Pen Display
PD1011
Key Features
Product Description
10”高效能電磁筆顯示器，採用電磁屏(EMP)觸控技術，搭載最先進無電源式V Pen電磁筆，具備2048階高精度筆壓感測效能以及每吋5,080條線高辨識性能，15mm懸浮感應電磁，每秒200畫素反應速度
Visit Us
- www.viewsonic.com
-
LCD PANEL
Display Area: 10.1” TFT LCD Resolution: 1280 x 800, 16:10 Brightness: 160 cd / m2 Contrast Ratio: 800 : 1 Viewing Angles: 170° (V) / 170° (H) Backlight: LED Light-Bar Surface Treatment: 8H tempered glass -
TOUCH
Touch solution: EMP Technology Pen Pressure (levels): 2048 levels Report Rate (point/sec): 250 Digitizer Resolution (LPI): 5080 LPI Pen Tilt Angle: +/-45 ° Sensor Height (mm): 5-10mm above the glass -
COMPATIBILITY
PC: Windows XP/ Windows 7/ Windows 8 -
CONNECTOR
USB: USB2.0 x 1 -
ERGONOMICS
Tilt: 5°, 15° -
POWER
Consumption: 5W -
OPERATING CONDITIONS
Temperature: 32°F to 122°F (0°C to 50°C) Humidity: 20% - 80%(Max), Non-Condensation -
DIMENSIONS
Physical (in / mm): 11.81” x 7.28” x 0.87” in. Box (in / mm): 16.54" x 14.76" x 11.81" in. -
WEIGHT
Net (lb / kg): 1.87 lb/ 0.85kg Gross (lb / kg): 2.87lb/ 1.30kg -
REGULATIONS
CCC, CE, FCC, RoHS, BSMI -
WHAT'S IN THE BOX
1. Pen Display*1 2. USB 2.0 Y-cable*1 3. Pen*1 4. Pen Tip*3 5. Tool for Ten Tip Replacement *1 6. Pen Rope*1 7. Driver CD*1 8. User Guide *1 (e-file) 9. Quick Start Guide *1 10. Warranty Card*1(VSCN only)*1 *Actual content may differ from market to market
