Key Features
  • 第三代雷射光源技術，使用壽命長達 30,000 小時
  • 專為 Xbox 設計 1440p @ 120Hz帶來滑順的遊戲體驗
  • 4K HDR 可投影 300 吋大畫面
  • 3,500 ANSI 流明 隨時呈現清晰圖像
  • 透過0.65吋的DMD晶片實現高對比度
  • 水平/垂直梯形修正、四角調整功能、1.36倍光學變焦

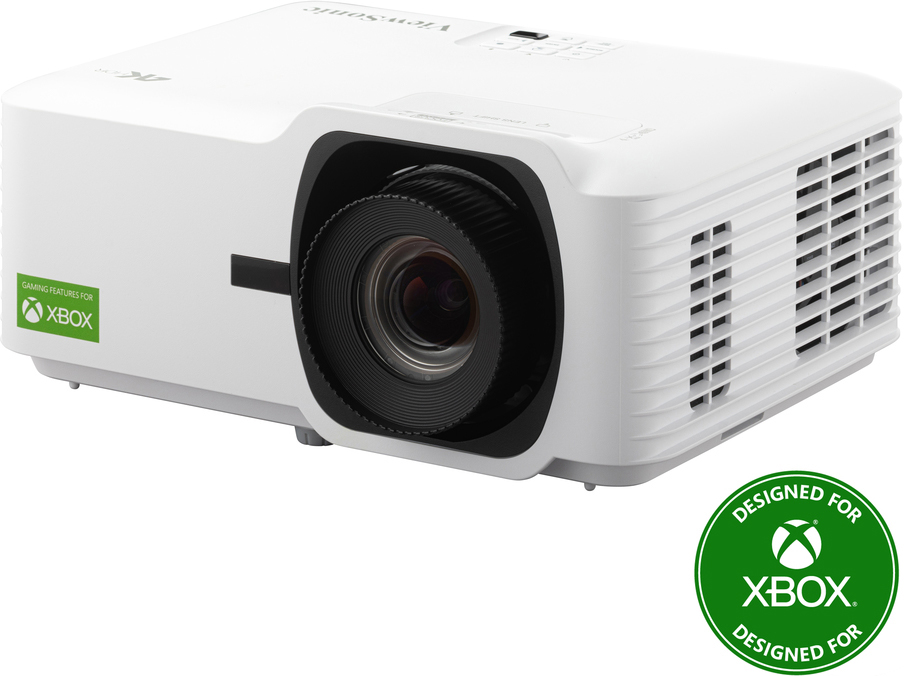

LX700-4K
Product Description
使用LX700-4K 高亮劇院娛樂3D雷射投影機，將每一次的觀影都變成一場電影體驗。採用第三代雷射光源技術，擁有3,500 ANSI流明和長達30,000小時的壽命，提供生動明亮的視覺效果，無需更換燈泡。此投影機專為Xbox設計，支援Xbox獨家的解析度和更新率組合，實現無縫遊戲體驗。支援1440p@120Hz，提供視覺享受和遊戲流暢性的完美平衡，深受遊戲玩家的喜愛。搭載德州儀器0.65吋DMD晶片，可投影在300吋大畫面上體驗增強的視覺效果。LX700-4K具有垂直鏡頭位移、1.36倍的光學變焦、水平/垂直梯形校正和四角調整功能，讓您輕鬆設置一個符合您喜好的大畫面。

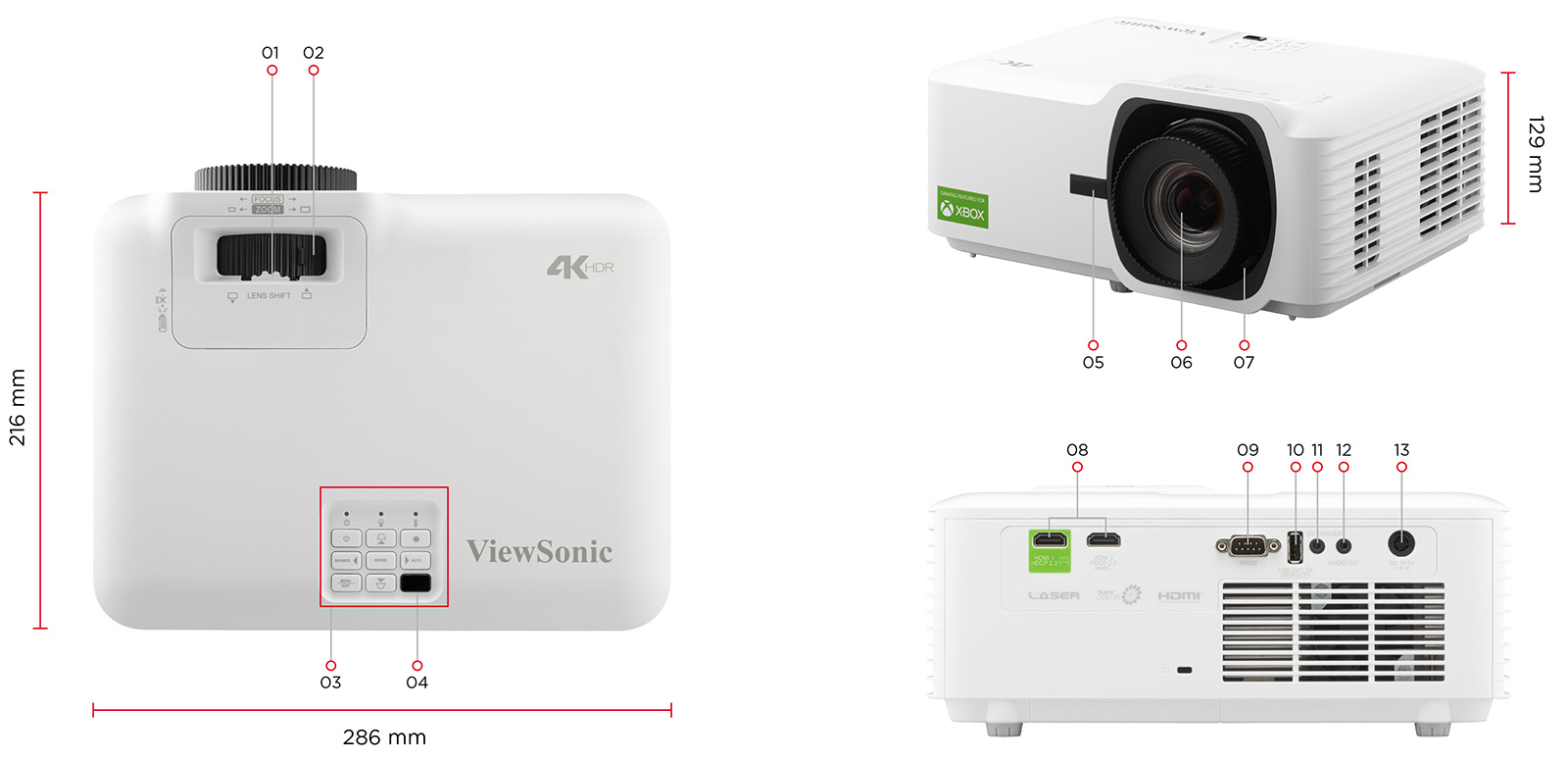

  1. Lens Shift Control Knob
  2. Zoom Ring
  3. Keypad
  4. Top IR
  5. Front IR
  6. Lens
  7. Focus Ring
  8. HDMI 2.0/ HDCP 2.2
  9. RS232
  10. USB-A (5V/1.5A , Service)
  11. 12V Trigger
  12. Zoom Ring
  13. Audio Out
  14. DC In
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Projection System: 0.65" 4K-UHD
    Native Resolution: 3840x2160
    Brightness: 3500 (ANSI Lumens)
    Contrast Ratio: 3000000:1
    Display Color: 1.07 Billion Colors
    Light Source Type: Laser Phosphor
    Light Source Life (hours) with Normal Mode: 20000
    Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
    Lens: F=2.51-2.93, f=15.985-21.423mm
    Projection Offset: 137%+/-10%
    Throw Ratio: 1.06-1.45
    Optical Zoom: 1.36x
    Digital Zoom: 0.8x-2.0x
    Image Size: 30"-300"
    Throw Distance: 0.70-9.63m
    (100"@2.35m)
    Keystone: H:+/-30° , V:+/-30°
    Lens Shift V. Range: +0%, -15%
    Audible Noise (Normal): 31dB
    Audible Noise (Eco): 26dB
    Input Lag: 4.2ms
    Resolution Support: VGA(640 x 480) to 4K(3840 x 2160)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
    Horizontal Frequency: 15K-135KHz
    Vertical Scan Rate: 23-240Hz
  • INPUT
    HDMI: 2
    (HDMI 2.0/ HDCP 2.2)
  • OUTPUT
    Audio-out (3.5mm): 1
    Audio-out (HDMI ARC): 1 (eARC)
    (Share with HDMI Input)
    Speaker: 15W
    USB Type A (Power): 1 (5V/1.5A)
    12V Trigger (3.5mm): 1
  • CONTROL
    RS232 (DB 9-pin male): 1
    USB Type A (Services): 1
    (share with USB A Output)
  • OTHERS
    Power Supply Voltage: Power adaptor:
    Input: 100~240V
    Output: 19.5VDC / 9.23A
    Power Consumption: Normal: 180W
    Standby: <0.5W
    Operating Temperature: 0~40℃
    Carton: Brown
    Net Weight: 3.30kg
    Gross Weight: 4.70kg
    Dimensions (WxDxH) with Adjustment Foot: 286x216x129mm
    Packing Dimensions: 400x280x155mm
    OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Arabic, Vietnamese, Greek, Norsk. Total 23 languages
    User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
  • STANDARD ACCESSORY
    Power Cord: 1
    Remote Control: 1
    (w/ backlit)
    QSG: Yes
    Warranty Card: Yes (CN Only)
  • OPTIONAL ACCESSORY
    Wall/Ceiling Mount: PJ-WMK-007
    Carry Bag: PJ-CASE-008
