Key Features
  • 第三代LED光源技術，光源壽命高達 30,000 小時
  • 4,000 ANSI 流明與1080p解析度，在各種環境下為您呈現清晰明亮的影像
  • 搭載 0.65 吋 DMD 晶片的數位光源處理技術，為您呈現原生高對比
  • 投影上限達300 吋，讓您以更低的成本獲得更大的畫面
  • 相較傳統燈泡投影機節省最高 59% 的耗電量
  • 水平/垂直梯形、四角校正與全方位投影，讓您安裝時更具彈性

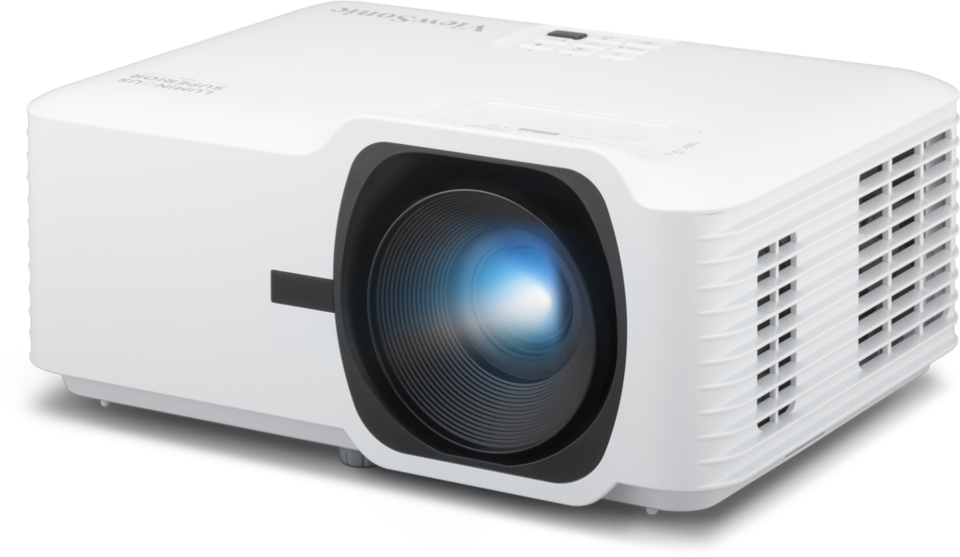

LSD400HD
Product Description
ViewSonic Luminous Superior 系列無燈泡投影機LSD400HD，專為商用與教育環境設計。採用第三代雷射光源技術，亮度高達 4,000 ANSI 流明，壽命最長可達 30,000 小時。與同級燈泡投影機相比，無燈泡設計可降低最多 59% 的耗電，兼顧環保與成本效益。LSD400HD 支援最大 300 吋投影畫面與最高1080P的解析度，並搭載 0.65 吋 DMD 晶片驅動的數位光源處理技術，為您提供絕佳的解析度與超高原生對比。配備 1.1 倍光學變焦、水平/垂直梯形校正與四角校正，以及 360° 投影；讓您無論在企業會議室、學校教室，或是室內高爾夫娛樂空間，都能靈活的安裝，輕鬆打造理想的投影空間。

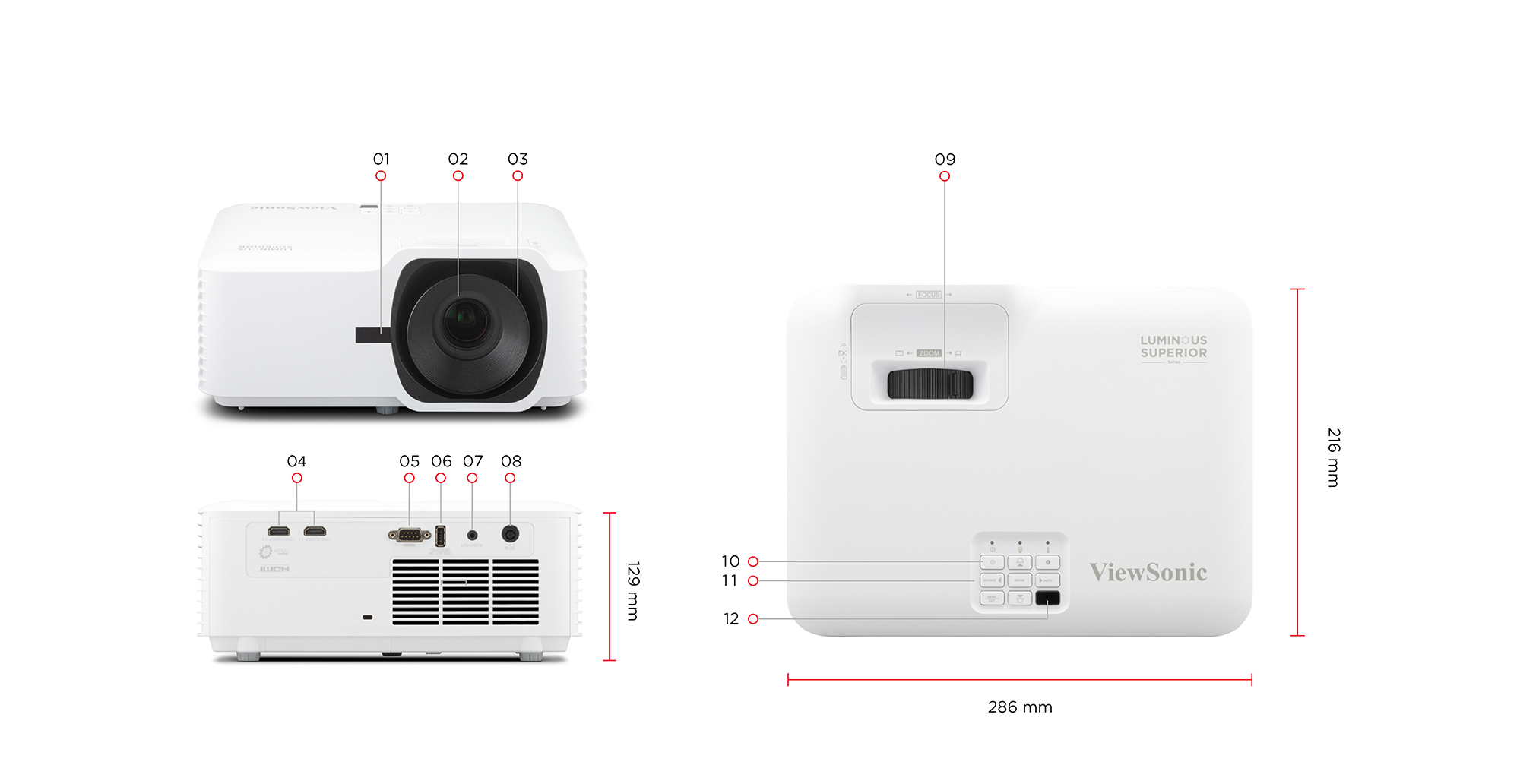

  1. 前端 IR
  2. 鏡頭
  3. 變焦環
  4. HDMI x2
  5. RS232
  6. USB-A (5V/1.5A, 維護用)
  7. 音訊輸出
  8. DC 輸入
  9. 縮放環
  10. 電源鍵
  11. 功能鍵
  12. 頂端 IR
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Projection System: 0.65" 1080P
    Native Resolution: 1920x1080
    Brightness: 4000 (ANSI Lumens)
    Brightness (Center Lumens): 4400
    Contrast Ratio: 3000000:1
    Display Color: 1.07 Billion Colors
    Light Source Type: Laser Phosphor
    Light Source Life (hours) with Normal Mode: 20000
    Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
    Lens: F=2.5-2.67, f=21.86-24mm
    Projection Offset: 132%+/-10%
    Throw Ratio: 1.48~1.62
    Optical Zoom: 1.1X
    Digital Zoom: 0.8x-2.0x
    Image Size: 30"-300"
    Throw Distance: 0.98-10.76m
    (100"@3.28m)
    Keystone: H:+/-30° , V:+/-30°
    Audible Noise (Normal): 32dB
    Audible Noise (Eco): 27dB
    Input Lag: 16.7ms
    Resolution Support: VGA(640 x 480) to 4K UHD(3840 x 2160)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
    Horizontal Frequency: 15K-135KHz
    Vertical Scan Rate: 24-120Hz
  • INPUT
    HDMI: 2
    (HDMI 2.0, HDCP 2.2)
  • OUTPUT
    Audio-out (3.5mm): 1
    Speaker: 15W
    USB Type A (Power): 1 (5V/1.5A)
  • CONTROL
    RS232 (DB 9-pin male): 1
    USB Type A (Services): 1
    (share with USB A Output)
  • OTHERS
    Power Supply Voltage: Power adaptor:
    Input: 100~240V
    Output: 19.5VDC / 9.23A
    Power Consumption: Normal: 143W
    Standby: <0.5W
    Operating Temperature: 0~40℃
    Carton: Brown
    Net Weight: 3kg (6.61 lbs)
    Gross Weight: 4.5kg (9.92 lbs)
    Dimensions (WxDxH) with Adjustment Foot: 286x216x129mm (11.3x8.5x5.1 in)
    Packing Dimensions: 400x280x155mm (15.7x11x6.1 in)
    OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Arabic, Vietnamese, Hungarian, Norsk, total 23 languages
    User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
  • STANDARD ACCESSORY
    Power Cord: 1
    Remote Control: 1
    QSG: Yes
    Warranty Card: Yes (CN Only)
  • OPTIONAL ACCESSORY
    Wall/Ceiling Mount: PJ-WMK-007
    Carry Bag: PJ-CASE-008
