LCD Display

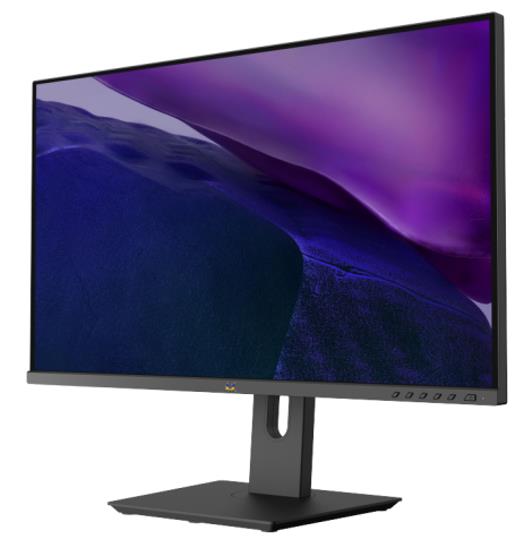

VG2481-4K
Key Features
Product Description
Visit Us
- www.viewsonic.com
-
LCD PANEL
Panel Type: IPS Viewable Area: 525.888mm(H) x 295.812mm(V) [23.8" Wide] Optimal Resolution: 3840 x 2160 @ 60Hz Aspect Ratio: 16:9 Contrast Ratio: 1300:1 (Typical) (DCR : 80000000:1) Brightness: 400 cd/m² (Typical) Viewing Angle: Horizontal: 178 degrees; Vertical: 178 degrees (CR>10) Response Time: 4ms (OD) Surface Coating: Anti-glare multi-layer coating Color Gamut: sRGB: 152% size / 100% coverage (Typ)
DCI-P3: 121% size / 100% coverage (Typ)
Adobe RGB: 130% size / 96% coverage (Typ)
NTSC: 132% size / 93% coverage (Typ)
BT.2020: 89% coverage (Typ)
* (Based on CIE1976) Slight deviations may occur due to different test environments and equipment.
The above color gamut data comes from ViewSonic Labs.Color Space Support: 1.07B colors; 10-bit (8bit+FRC) Pixel Pitch: 0.13695mm(H) x 0.13695mm(V) PPI: Approx. 185 HDCP: HDCP 1.4 & HDCP 2.2 Special Features: HDR400; Color presets (sRGB / Adobe RGB / DCI-P3 / REC.709);
Factory Calibration Report; Built-in Audio; Blue Light Filter; Flicker-Free; ViewMode -
INPUT SIGNAL
Digital: HDMI; DP; Type-C Frequency: HDMI 2.0 x 2: 3840 x 2160 @ 60Hz 8bit RGB
DP 1.4 x 1: 3840 x 2160 @ 60Hz 10bit RGB
Type-C (PD 96W) x 1: 3840 x 2160 @ 60Hz 10bit RGB -
COMPATIBILITY
PC: Windows 10/11 tested Mac: Power Mac tested -
CONNECTORS
Digital: HDMI 2.0 x 2; DP 1.4 x 1; Type-C (PD 96W) USB Interface: USB 3.0 (UP) x 1; USB 3.0 (Down) x 3 Audio: Audio out Power: External Power Adapter - Desktop type; 24V 6.24A -
MULTIMEDIA
Built-in Speaker: 3W x 2 -
ERGONOMICS
Tilt: -5° ~ 20° ± 2° Height Adjust: 0 ~ 150mm Swivel: ±45° Pivot: ±90° -
POWER
Voltage: AC 100-240V / 50-60Hz Power Consumption: 33W (Typ); 48W (Max); Standby ≤ 0.5W -
OPERATING ENV.
Temperature: 0 ~ 40°C (32 ~ 104°F) Humidity: 20 ~ 90% (Non-condensing) -
STORAGE ENV.
Temperature: -20 ~ 60°C (-4 ~ 140°F) Humidity: 5 ~ 90% (Non-condensing) -
DIMENSIONS
With Base: 538.9mm (W) x 533.2mm (Max) (H) x 213.9mm (D) Without Base: 538.9mm (W) x 319mm (H) x 51.42mm (D) Package Size: 767mm (W) x 478mm (H) x 133mm (D) Wall Mount: 100mm x 100mm & recommended wall mount screw: M4x10 Buttons: 6 front buttons -
WEIGHT
Net Weight (with base): 5.52kg Net Weight (without base): 3.36kg Package Weight: 7.87kg -
SAFETY CERT.
CCC; CEL; China RoHS; CECP -
ACCESSARIES
DP cable 1.8m
HDMI cable 1.8m
Type-C cable 1m
USB A to B cable 1.8m
Factory Calibration Report
