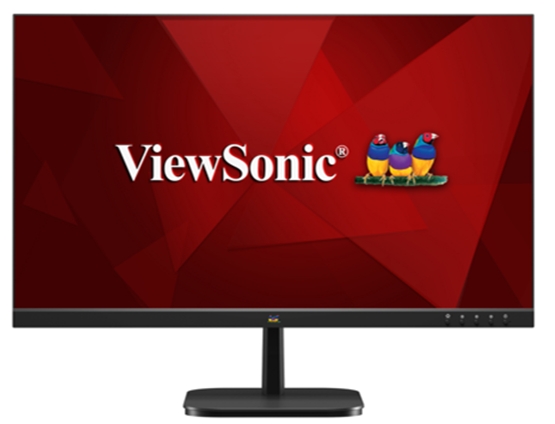

LCD Display
VA2450-HD
Key Features
Product Description
Visit Us
- www.viewsonic.com
-
LCD PANEL
Panel Type: IPS Viewable Area: 527.04(H)mm x 296.46(V)mm [23.8” Wide] Optimum Resolution: 1920 x 1080@144Hz Aspect Ratio: 16:9 Contrast Ratio: 1500:1 (Typ.) (DCR: 50,000,000:1) Brightness: 400cd/m2 (Typ.) Viewing Angles: 178 degrees; Vertical: 178 degrees (CR>10) Pixel Pitch: 0.2745mm (H) x 0.2745mm (V) Response Time: 5ms (Typ.) Surface Treatment: Anti-glare, 3H, Haze 25% Color Depth: 16.7M colors, 8bit (6bit+FRC) Color Gamut: 72% NTSC HDCP: HDCP1.4 -
INPUT SIGNAL
Analog: VGA Digital: HDMI1.4, DP1.2 Frequency: VGA: 1920 x 1080 @75Hz;
HDMI/DP Overclock: 1920 x 1080 @144Hz*144Hz is the refresh rate under overclocked settings. The native refresh rate is 120Hz.
If any abnormality occurs during overclocking, it can be adjusted to 120Hz. -
COMPATIBILITY
PC: Windows 10/11 certified Mac: macOS tested -
CONNECTOR
Analog: VGA x 1 Digital: HDMI 1.4 x 1, DP1.2 x 1 Audio: Audio out x 1 Power: Built-in power supply -
MULTIMEDIA
Built-in Speaker: None -
ERGONOMICS
Tilt: -5±2° ~ 20±2° -
POWER
Voltage: AC 100-240V / 50-60Hz Power Consumption: <0.5W (Standby), 21 W (Typ), 24 W (Max) -
OPERATING ENVIRONMENT
Temperature: 0°C - 40°C (32°F - 104°F) Humidity: 10% - 90% (Non-condensing) -
STORAGE ENVIRONMENT
Temperature: -20°C - 60°C (-4°F to 140°F) Humidity: 5% - 90% (Non-condensing) -
DIMENSIONS (WXHXD)(INCH/MM)
With Base: 539 mm(W) x 412 mm(H) x 185 mm(D) Without Base: 539 mm(W) x 323.8 mm(H) x 44.7 mm(D) Packaging Dimensions: 595 mm(W) x 386 mm(H) x 111 mm(D) Wall Mount: 100mm X 100mm & Recommended wall mount screws: M4*10mm -
WEIGHT
Net Weight with Base: 2.9kg Net Weight without Base: 2.3kg Packaging Weight: 3.9kg -
REGULATORY COMPLIANCE
CCC, China ROHS, CEL, CECP -
ACCESSARIES
HDMI cable (v1.4) 1.5m, Power cable 1.5m -
REGULATORY MODEL
VS20429
