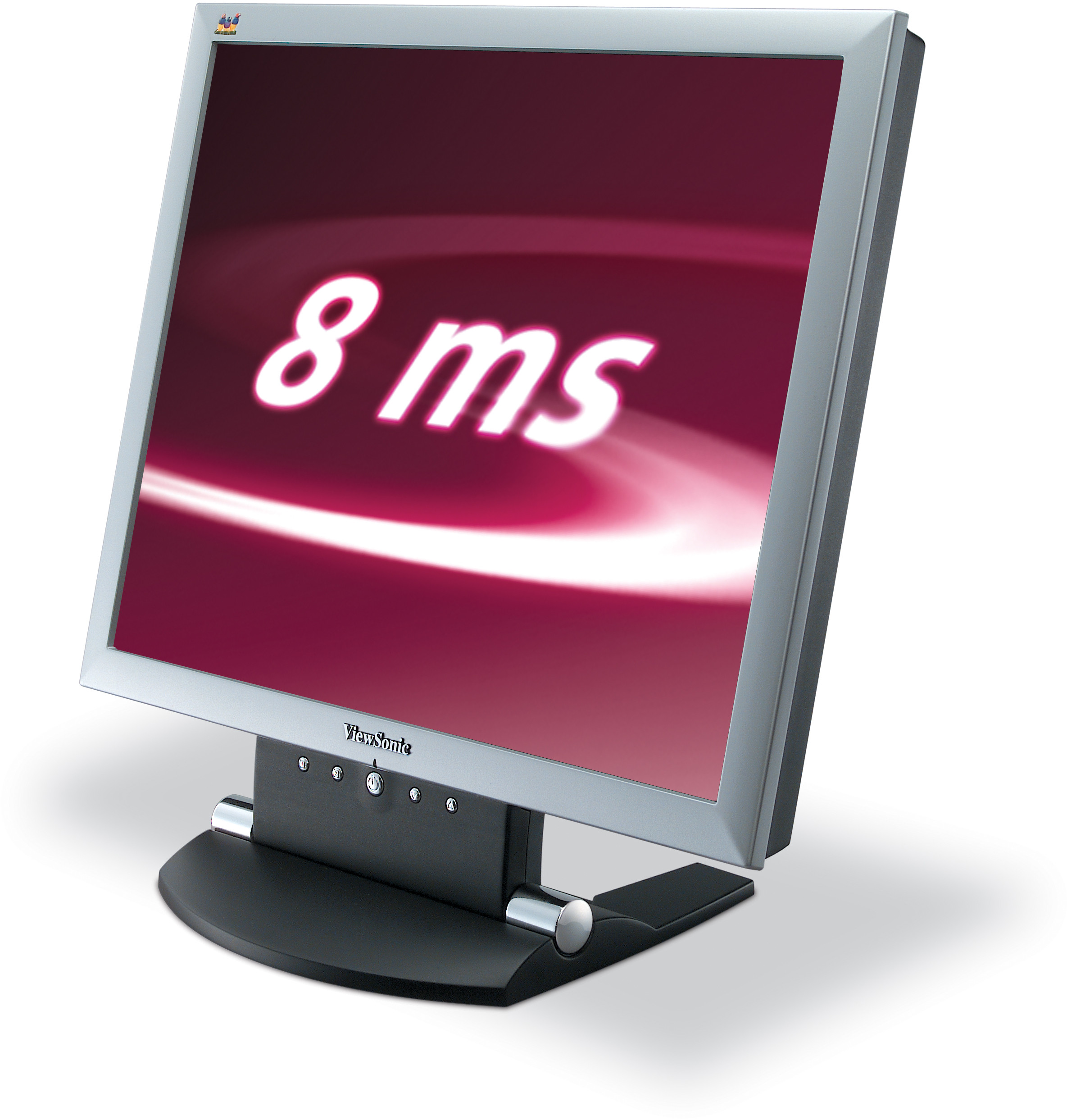

VA902

48 cm / 19" A series LCD Display

Sales Enquiry

GALLERY

Ultra-fast with attractive styling.

The 19” ViewSonic VA902 combines an attractive silver and black design with the innovative ViewSonic CLEARMOTIV™ 8ms video response with VIBRANT, CLEAR IMAGES. It is designed to enhance your work and play but only have minimal impact on your wallet. This ULTRA-SLIM BEZEL LCD DELIVERS AN IMPRESSIVE ARRAY OF FEATURES. The AutoTune function automatically optimises screen images and the OSD lock and power button lock functions prevent accidental changes to screen settings while the fold-up base makes wall mounting a snap. This stylish LCD is a perfect choice for your home office.

SPECIFICATIONS

LCD
Type: 48 cm / 19" TN-Colour TFT Active Matrix SXGA LCD
Contrast Ratio: 600:1 (typ.)
Viewing Angles: 140° horizontal, 130° vertical @ 10:1

160° horizontal, 150° vertical @ 5:1
Brightness: 250cd/m² (typ.)
Display Area: 376mm horizontal x 301mm vertical; 48.3cm diagonal
Optimum Resolution: 1280 x 1024
Response Time: 8ms (typ.)
Panel Surface: Anti-glare 3H
Pixel Pitch: 0.294mm
Colour Support: 16.2M colours (6-bit + 2-bit FRC)
Pixel Clock: 135MHz
COMPATIBILITY
PC: 15-pin mini D-Sub (detachable cable)
Mac®: Power Mac™ G3/G4/G5 1152 x 870 (@ max. 75Hz)
DIMENSIONS
Physical (mm): 414 x 407 x 219

REGULATIONS
TCO’03, CE, CB, TÜV/GS, TÜV/ERGO, ISO13406-2 (pixel fault
class II), UL, cUL, FCC-B, ENERGY, EPA Energy Star, NOM, GOST-R,
(SASO), ICES 003, BSMI, CCC, PSB, (C-TICK), TÜV-S
PACKAGE CONTENTS
LCD display, power cable, 15-pin VGA video cable, Quick Start Guide, ViewSonic Wizard CD
INPUT
Sync: H/V separated (TTL)
Frequency: Fh: 30-82kHz, Fv: 50-85Hz
Video: RGB analogue (75 ohms, 0.7 Vp-p)
CONNECTOR
Analogue: 15-pin mini D-Sub (attached cable)
Power: 3-pin AC plug, (CEE22)
POWER
Voltage: AC 100–240V, 50–60Hz (auto switch), internal power supply
Consumption: 35W (typ.); ≤ 1 watt in power save mode
CONTROLS
OSD: Auto image adjust, brightness, contrast, ViewMatch® colour adjust
[sRGB, 9300K, 6500K (default), 5400K, user colour (R,G,B)],
information [resolution, H. frequency, V. frequency, pixel clock,
model number, serial number], manual image adjust [H. size,
H./V. position, fine tune, sharpness, scaling], setup menu
[language (English, French, German, Italian, Spanish, Finnish,
Japanese, Traditional Chinese, Simplified Chinese),
resolution notice, OSD position, OSD timeout, OSD background],
memory recall, OSD lock, power lock
Physical: Power on/off, menu, down, up, select
OPERATING CONDITIONS
Temperature: 0°C to 40°C
Humidity: 10% to 90% (non-condensation)
WEIGHT
Net: 5.4kg
POWER MANAGEMENT
Meets TCO’03, ENERGY and Energy Star standards
ERGONOMICS
Down 5°, Up 20°
