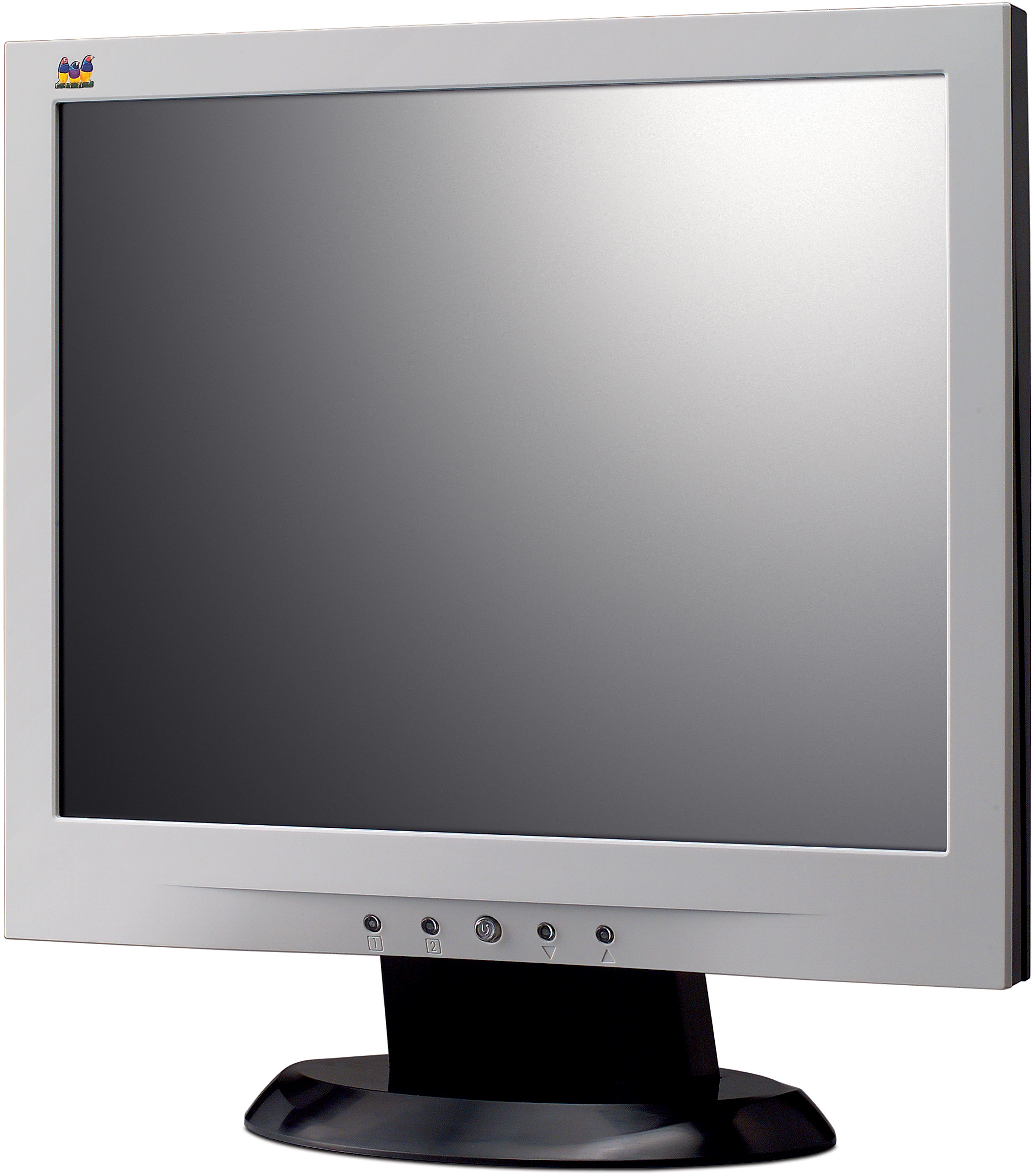

VA503m

15" LCD MONITOR WITH MULTIMEDIA

Sales Enquiry

GALLERY

Reliable, high-quality performer

ViewSonic’s 15" VA503m LCD monitor delivers impressive front-of-screen performance enhanced by a fast 16ms video response time that delivers crystal-clear graphics and smooth, full-motion video. With a 450:1 contrast ratio (typ.) and 250cd/m² brightness (typ.), the VA503m displays brilliant colours, while sRGB colour management technology further assures precise colour accuracy. Enjoy a true multimedia experience with built in stereo speakers delivering efficient audio to your desktop.This display’s clean lines, slim bezel and compact size give you more room on your desktop. The VA503m is an ideal choice for customer facing small office, home office, education and government users.

SPECIFICATIONS

LCD
Type: 38cm / 15" TN colour TFT active matrix XGA LCD
Contrast Ratio: 450:1 (typ.)
Viewing Angles: 120° horizontal, 100° vertical (at 10:1)
Brightness: 250cd/m² (typ.)
Display Area: 30.4cm horizontal x 22.8cm vertical; 38.1cm diagonal
Optimum Resolution: 1024 x 768
Response Time: 16ms (off-on-off) (typ.)
Light Source: Long life, 30000 hrs. (typ.)
Panel Surface: Anti-glare
Pixel Pitch: 0.297mm
Colour Support: 16.2M colours (6-bit + 2-bit FRC)
Pixel Clock: 85MHz
COMPATIBILITY
PC: VGA up to 1024 x 768 non-interlaced (@ 60Hz recommended)
Mac®: Power Mac™ up to 1024 x 768 non-interlaced (@ 60Hz recommended)
DIMENSIONS
Physical With Stand: 344 x 348 x 147
Physical Without Stand: 344 x 290 x 54

REGULATIONS
TCO’99, CE, CB, GS, Ergo, ISO13406-2 (pixel failure class II),
UL/cUL, Energy Star, FCC-B, ICES 003, NOM, GOST-R, SASO, BSMI,
CCC, PSB, C-TICK, TUV-S/IRAM/UL-AR S Mark, WEEE, RoHS
PACKAGE CONTENTS
LCD Monitor, power cable, 15-pin VGA video cable, audio cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers)
AUDIO
Speaker: 2 x 1 Watt integrated invisible stereo speakers
CONNECTOR
Analogue: 15-pin mini D-sub (attached cable)
Power: 3-pin AC plug (CEE22)
Audio (input/output): 3.5mm stereo audio line-in
POWER
Voltage: AC 100 – 240V, 50/60Hz (auto switch), internal power supply
Consumption: <23 watt (max.), <1 watt in power save mode
CONTROLS
Basic: Power, menu [1], up, down, select [2]
OSD: Auto image adjust, contrast, brightness, audio adjust (volume, mute), ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number, website), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language [English, Finnish, French, German, Italian, Japanese, Spanish, Simplified Chinese, Traditional Chinese], resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall
OPERATING CONDITIONS
Temperature: 0°C – 40°C
Humidity: 20% – 90% (non-condensing)
WEIGHT
Net With Stand: 2.7kg
VIDEO INPUT
Frequency: Fh: 30 – 82kHz
Fv: 50 – 85Hz
Sync: H/V separated (TTL)
Analogue: RGB analogue (0.7 Vp-p, 75 ohm)
POWER MANAGEMENT
Meets TCO’99 and Energy Star standards
SECURITY
Kensington® security port
VESA MOUNT COMPLIANT
VESA FDMI 75mm x 75mm
ERGONOMICS
Tilt: Down 5°, Up 20°
