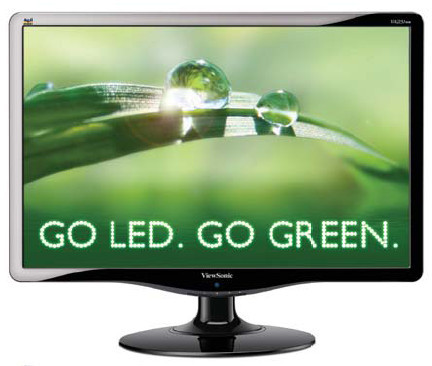

VA2231wa-LED

55cm/22" 16:9 FULL HD LED MONITOR

Sales Enquiry

GALLERY

OVERVIEW

ViewSonic’s new VA2231wa-LED features an LED backlight 22” (21.5” viewable) thin bezel widescreen monitor. Environmentally friendly mercury-free VA2231wa-LED offers full HD 1920x1080 resolution, 10,000,000:1 MEGA dynamic contrast ratio, VGA inputs, 5ms response time, VESA mountable glossy finish design. The aspect ratio adjustment feature automatically senses the input single and will not stretch a 4:3 signal but instead will position the image in the middle of the screen with side bars. A 3 year warranty, Energy Star 5.0 & TCO5.0 certification, the industry’s best pixel performance policy, and energy saving Eco mode make VA2231wa-LED a great long-term investment.

SPECIFICATIONS

COLORS
Black
LCD
Contrast Ratio: 1000:1
Viewing Angles: 170° (H), 160° (V)
Optimum Resolution: 1920×1080
Response Time: 5 (typical)
Light Source: 30,000 (Minimum)
Panel Surface: Anti-Glare, Hard coating (3H)
Pixel Pitch: 0.24825 mm x 0.24825 mm
Colour Support: 16.7 Millions
Size: 55cm/22”wide Color a-Si TFT Active Matrix LCD with 16:9 aspect ratio
Brightness: 250 (typical)
Dynamic Contrast Ratio: 10,000,000:1
COMPATIBILITY
Mac®: 1920x1080 Non Interlaced
PC: VGA up to 1920x1080 Non Interlaced

DIMENSIONS
Physical (WxHxD): 513mm (W) x 389.1 mm (H) x 195.6mm (D)
REGULATIONS
UL, CUL, FCC-B (ICES-003B), CB, CE, ICES-003B, I, NOM, GOST-R, HYGIENIC, Energy Star,
CCC, BSMI, PSB, C-TICK, SASO, WEEE, RoHSCEL, Nemko-ERGO,TCO 5.0
INPUT
Sync: Separate Sync
Analogue: RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p)
Frequency: 24–82kHz / 50–75Hz
CONNECTOR
Analogue: 1×15 pin mini D-sub
Power: Internal Power Adapter, 3-pin plug (CEE22)
POWER
Voltage: AC 100-240V (Universal); 50/60Hz
Consumption: 22 W (typical) / 24W (maximum)
Save Mode (W): ≦0.2W
CONTROLS
Basic: [1], [2], power button, Down[ ], Up[ ]
Main Menu: Auto Image Adjust, Contrast/Brightness, Input Select, D-SUB, Color Adjust, sRGB,
9300K, 7500K, 6500K, 5000K, User Colour [R, G, B],
Information Manual Image Adjust, H/V Position, Horizontal Size, Fine Tune, Sharpness,
Dynamic Contrast, Aspect ratio, Setup Menu, Language, Resolution Notice,
OSD Position, OSD Timeout, OSD Background, OSD Pivot, Auto power off, Memory
Recall
VESA® MOUNT
100 × 100 (mm)
WEIGHT
Net: 3.91 Kg (8.62lbs)
OPERATING CONDITIONS
Humidity: 10 - 90 (%)
Temperature: 0 - 40 (°C) / 32 - 104 (°F)
