OVERVIEW

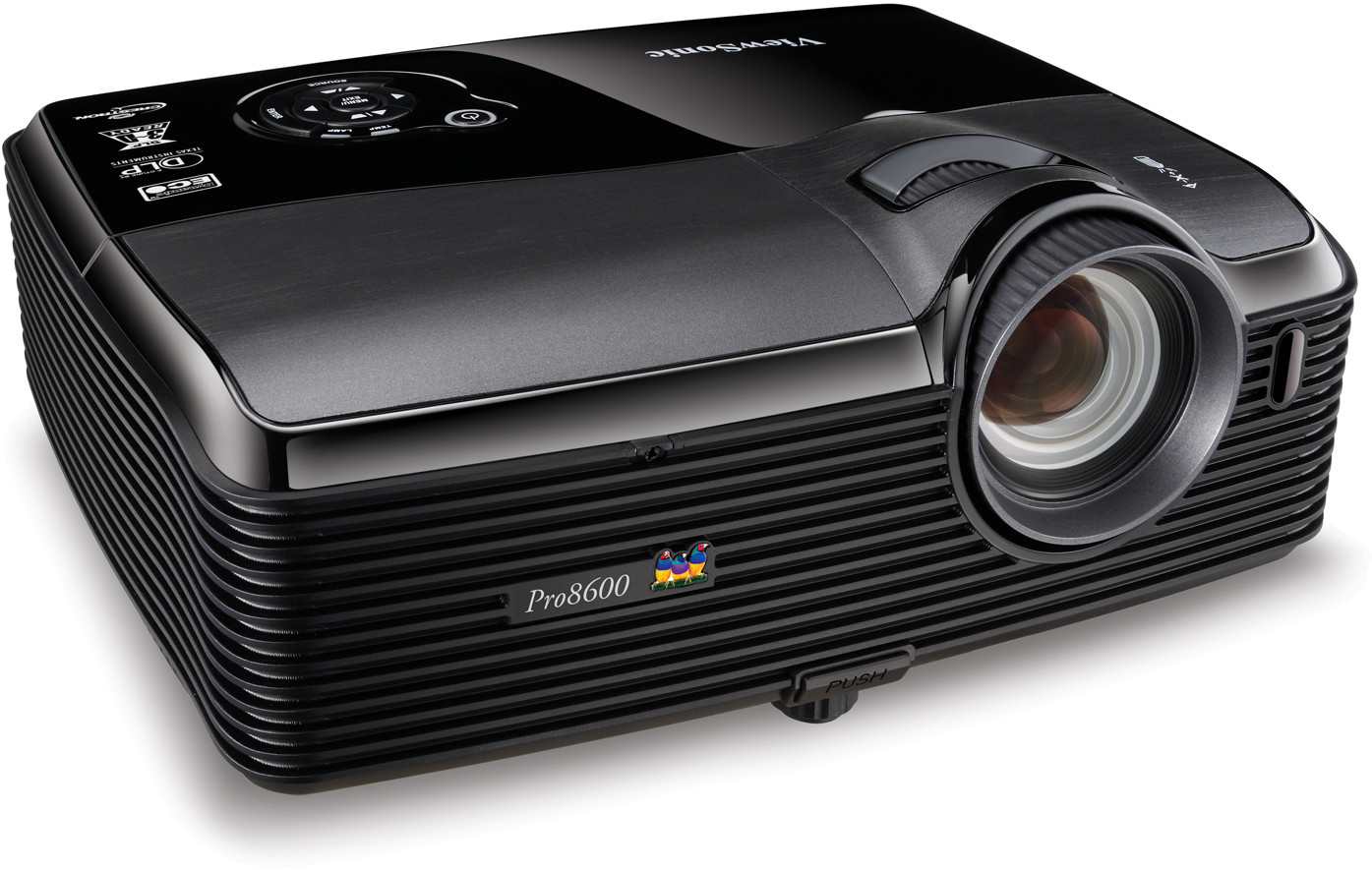

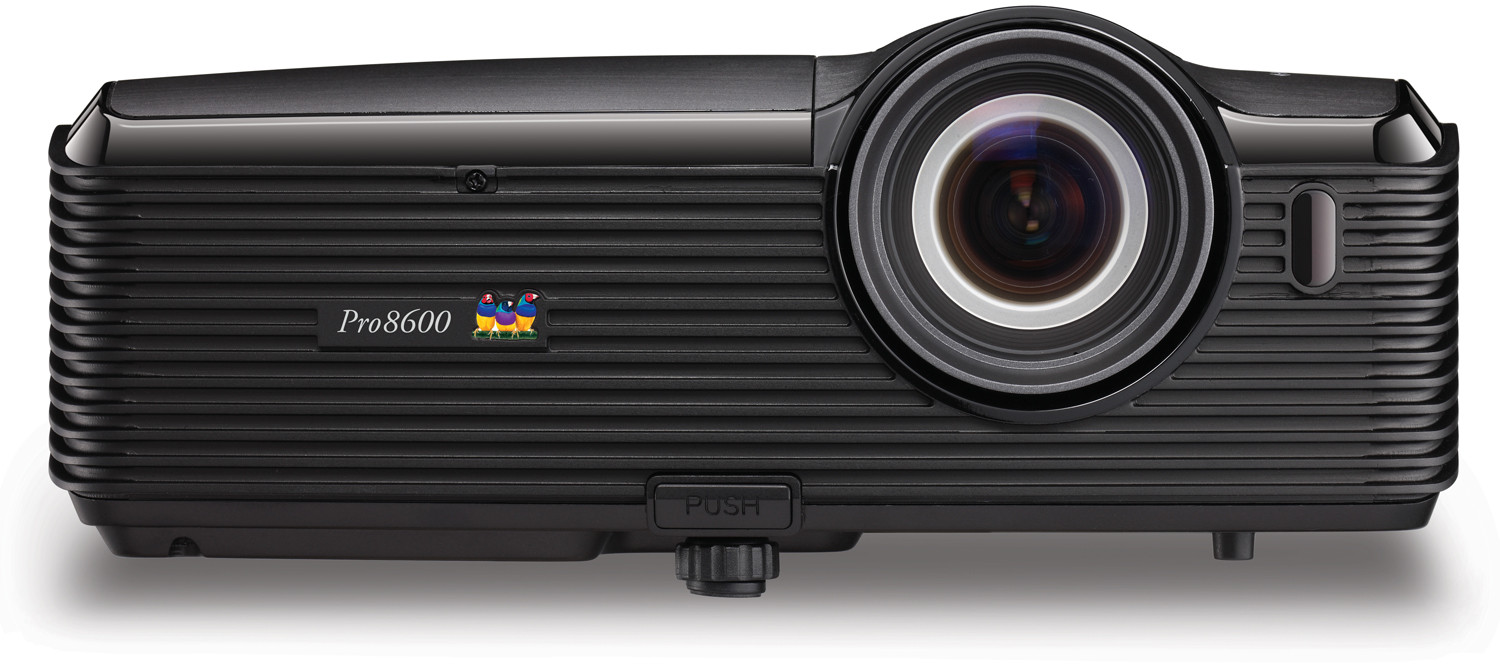

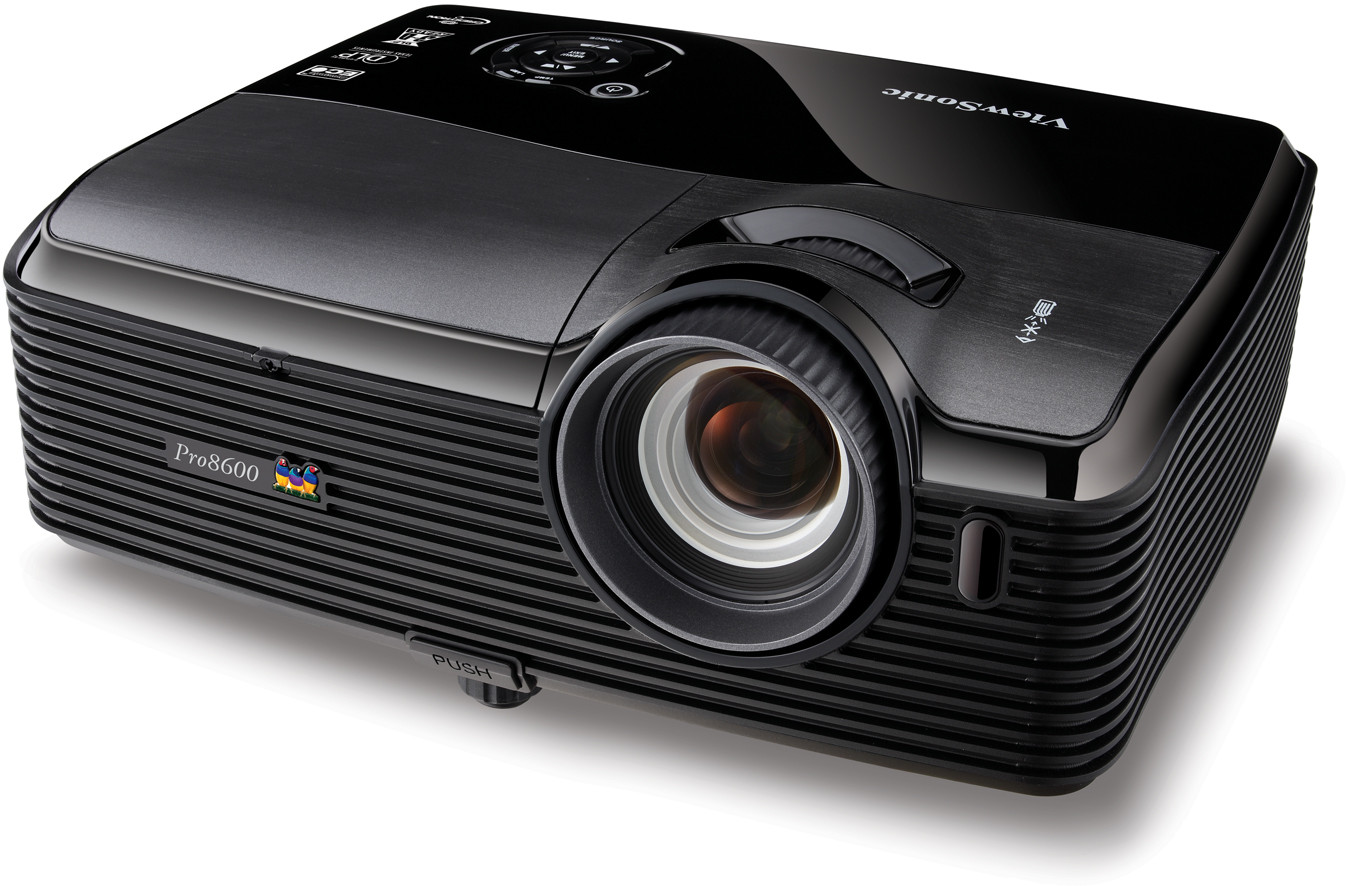

ViewSonic's Pro8600, a networkable XGA projector, is integrated with cutting-edge 6000 lumens ultrahigh brightness, 15,000:1 contrast ratio, and a wide 1.5X optical zoom adjustment, that ensure every image is crystal clear and vivid in a wide range of environments. The Pro8600 supports a Crestron RoomView® network management system that efficiently controls and manages all the projectors in the network from a central terminal. Through a RJ45 connection, the Pro8600 can simultaneously display inputs from 4 different computer screens, provided all devices are connected to the same intranet. This facilitates the development of synergy among the participants. It can also be operated byjust plugging in an USB flash to enjoy the content immediately, eliminating the need for a PC. The versatile interfaces, such as HDMI, RGB, S-video, component inputs and integrated speakers and microphone, allow the Pro8600 to be used as an audiovisual stereo, making it the optimal solution for projection in large lecture rooms, conference rooms, and public demo rooms.

Vivid and crystal clear Full HD 1080p projection in
any environment

With ultrahigh 6,000 lumens brightness and ViewSonic’s exclusive
BrilliantColor™ technology, the Pro8600 ensures clear, stunningly
vivid image quality, even in bright environments.

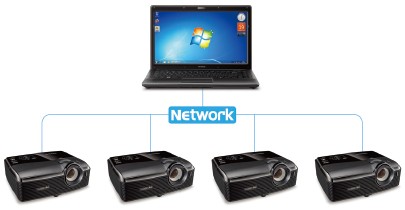

LAN projection increases the flexibility of the presentation

The LAN Display on Pro8600 offers connectivity to PCs and
other terminal devices through a single LAN cable. This renders
all the audio and video, as well as system management to be
consolidated and transmitted in a much more efficient manner.

Wireless Display

By plugging-in an optional WiFi USB dongle, such as ViewSonic’s
WPD-100, into the Pro8600, you can now connect any WiFi
equipped laptop to the Pro8600 for image and audio transmission.

USB Display

The Pro8600 carries an USB Display function that provides an alternative way to set up your presentation easily and quickly by connecting your laptop to the Pro8600 through an USB cable.

PC-less presentation

This projector supports a USB reader that accesses files directly
from an USB flash drive, rendering a PC-free projection.

Crestron RoomView® network management system

Crestron RoomView® provides an advanced, real-time alert
system that simplifies maintenance efforts by sending updates on
the power status, lamp lifespan, and unit presence directly to your
PC. It also automates device functions such as power on/off, and
broadcasts urgent messages via closed captioning.

Wide 1.5x optical zoom adjustment

Optical zoom provides the Pro8600 flexibility to project the best
screen size for a wide range of applications.

Versatile digital interface and input/output

The Pro8600 features a wide range of compatibility for highdefinition
content input including HDMI, Composite, and S-video
input. A pair of 10W speakers, complemented with a microphone
input, provides high volume audio without the need for external
speakers.

Auto Keystone Correction Projects Perfect Images

With built-in auto keystone correction, the Pro8600 can automatically correct uneven distorted images caused by none vertical projection surfaces and tilt of the projector. This allows the device to project impeccable images, making it perfect for both educational institutes, and large corporate venues.

Highly Efficient OPTO-Mechanical Module; Convenient Off- to- Go Feature

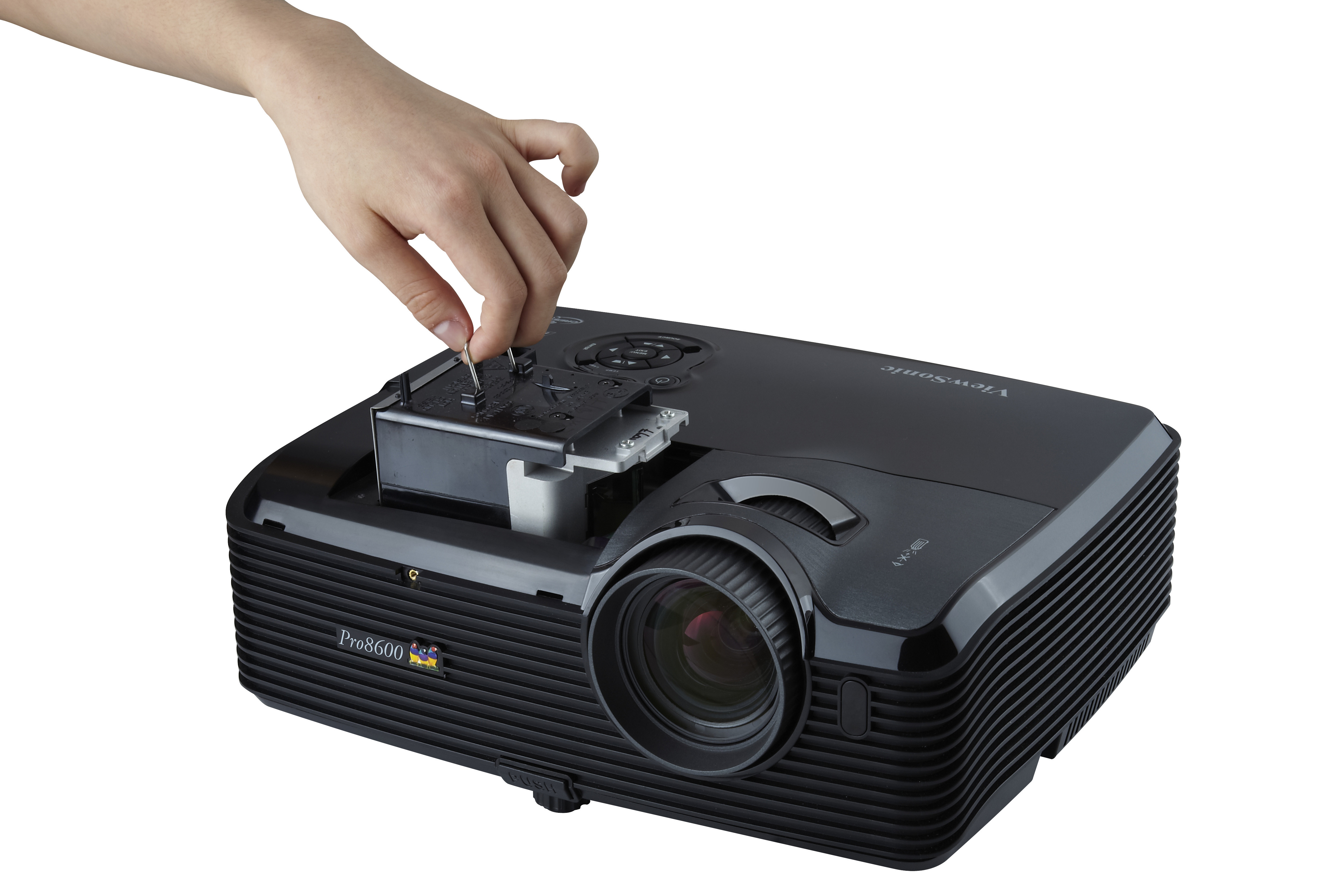

The Pro8600 is equipped with a highly efficient OPTO-Mechanical module and long life lamp. This provides an extraordinary performance while ensuring projectors cool down within a short time. The Off To Go feature enables projectors to dissipate heat even when it they are unplugged, delivering a more convenient and easier experience to users.

The Foremost PixelWorks Video Processor- Extraordinary Audio-Visual Experience

The Pro8600 projector with Full HD 1080p gives an outstanding high resolution audio-visual experience. The 3:2/ 2:2 pull-down helps to eliminate stripes, mosquito, and other analog noises to present clear and vivid images in pristine quality.

DLP Link 3D Ready Technology

The Pro8600 uses DLP Link 3D ready technology and complementary DLP Link 3D glasses to deliver the most compelling 3D visual experience. The DLP Link imaging chip’s incredible speed enables the projector to simultaneously cast two images on a single screen, creating the perfect 3D image that can be viewed through the active glasses.

Built-in 10W Speaker with High Quality Sound Effect

The Pro8600 comes with a pair of built-in 10W speakers and microphones. These generate a high quality amplified sound that is projected to every corner of an open space, without the use of external devices. This enhances the delivery of school lectures and business presentations.


6000 ANSI Lumens Brightness- Perform Impeccable Images

The Pro8600 projector provides 6000 ANSI lumens brightness that can clearly project high quality images even in well-lit environments. This makes it perfect for large scale lecture rooms and board rooms.

15,000:1 High Contrast Ratio for Sharp Color Performance

ViewSonic's Advanced Connect™ Projector has an enhance contrast ratio of 15,000:1, providing an ultra sharp color performance. The expanded grayscale offers an accurate reproduction of images, with vibrant and detailed color effects for text and graphic content.

Closed Caption Decoding Capability Enhances the Audio Teaching

The built-in closed caption decoding function allows the Pro8600 to hide subtitles at anytime. This not only supports audio-lingual training in language lessons, but also creates an interactive learning environment.

REVIEWS


ViewSonic Pro8600 review

“As a catch-all projector for any environment and scenario, the Pro8600 isn't the final solution, but for many users its high brightness will trump its low resolution. 4/5”

Read Review


“As a catch-all projector for any environment and scenario, the Pro8600 isn't the final solution, but for many users its high brightness will trump its low resolution. 4/5”

Read Review

SPECIFICATIONS


  • Product Specification
    Resolution: XGA (1024 x 768)
    Brightness (ANSI Lumens): 6,000
    Contrast (with Dynamic Contrast Ratio): 15,000:1
    Lamp Hour (Normal / Eco / DynamicEco): 2,500 / 3,000
    Throw Ratio in Meters (Wide ~ Tele): 1.45 ~ 2.18
    Optical Zoom: 1.5x
    Digital Zoom: 2.0x
    Screen Size: 30” ~ 300”
    Projection Offset: 130% +/- 5%
    Display Colours: 1.073 Billion Colours
    Keystone: +/- 40° (Vertical)
    Noise min (Normal / Eco): 34dB / 32dB
    Speaker: 20W (10W x 2)

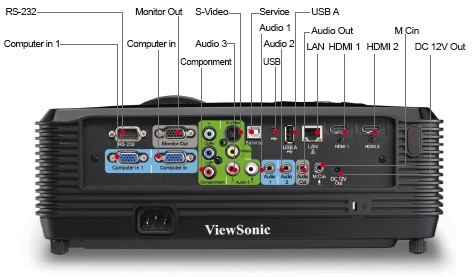

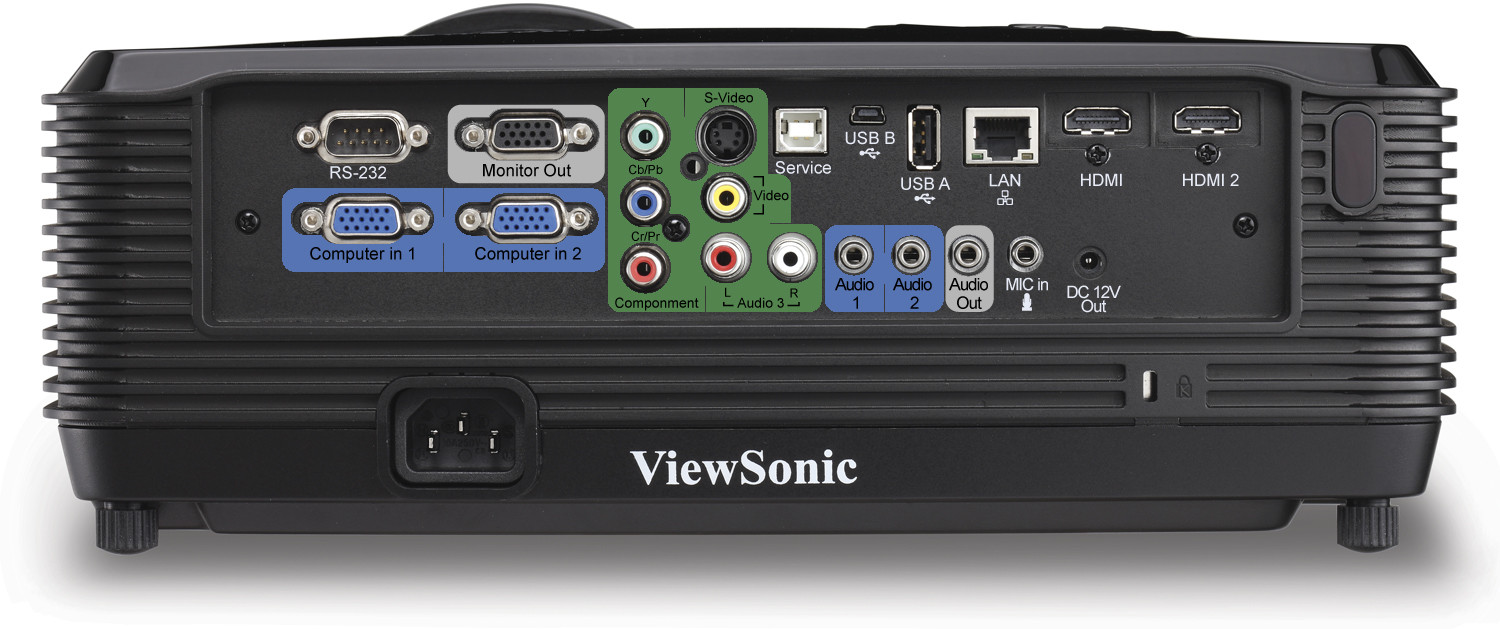

  • Input Connectivity
    HDMI In: 1
    VGA-in: 2
    Component Input: 1
    S-Video: 1
    Composite Input: 1
    Audio-in (3.5mm): 2
    Audio-in (RCA pair): 1
    USB Type A : 1 (WiFi dongle, Jpeg show)
    USB Type B: 1 (Firmware, mouse control)
    Mini USB: 1 (USB display)
    Microphone in (3.5mm): 1
  • Output Connectivity
    VGA-out: 1
    Audio-out (3.5mm): 1
