OVERVIEW

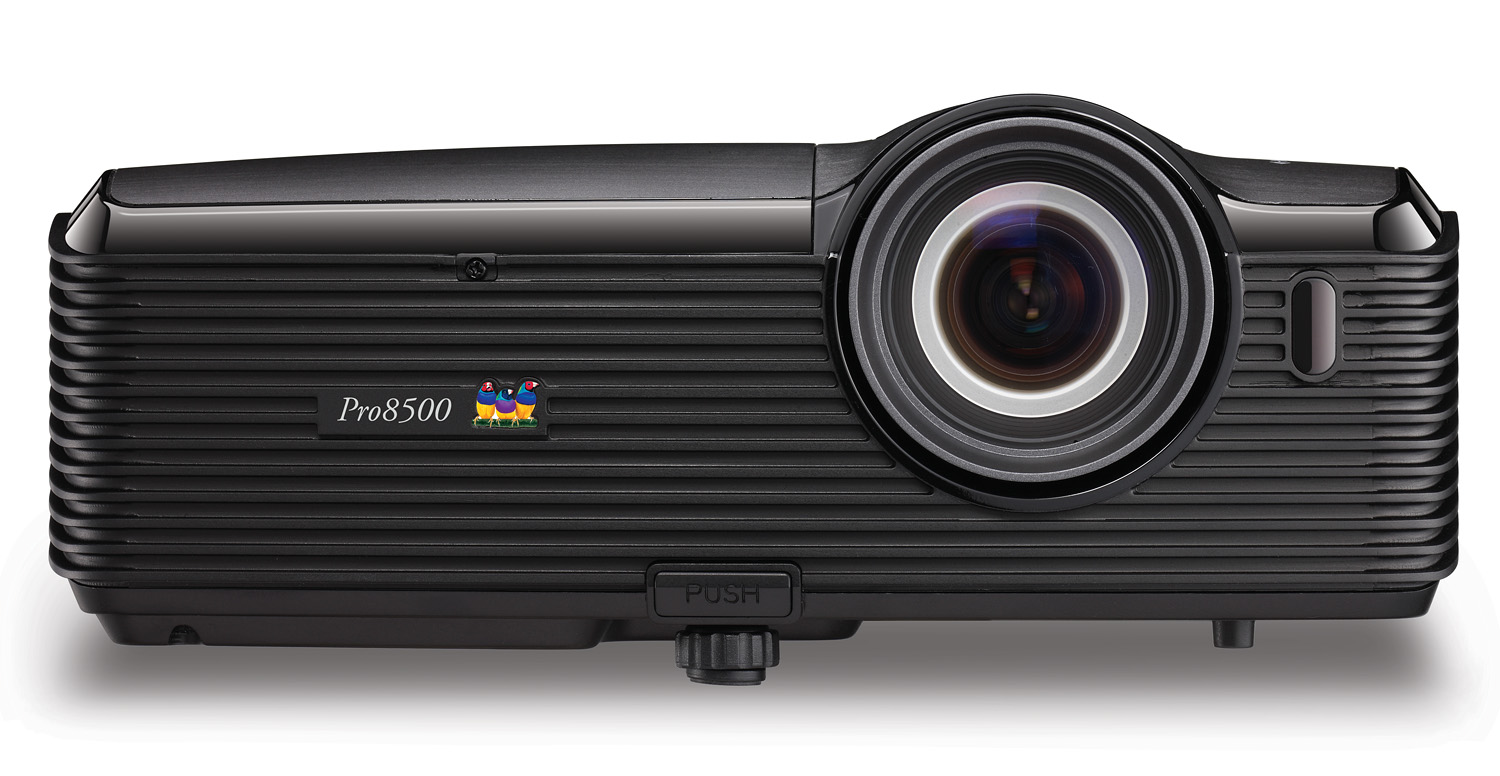

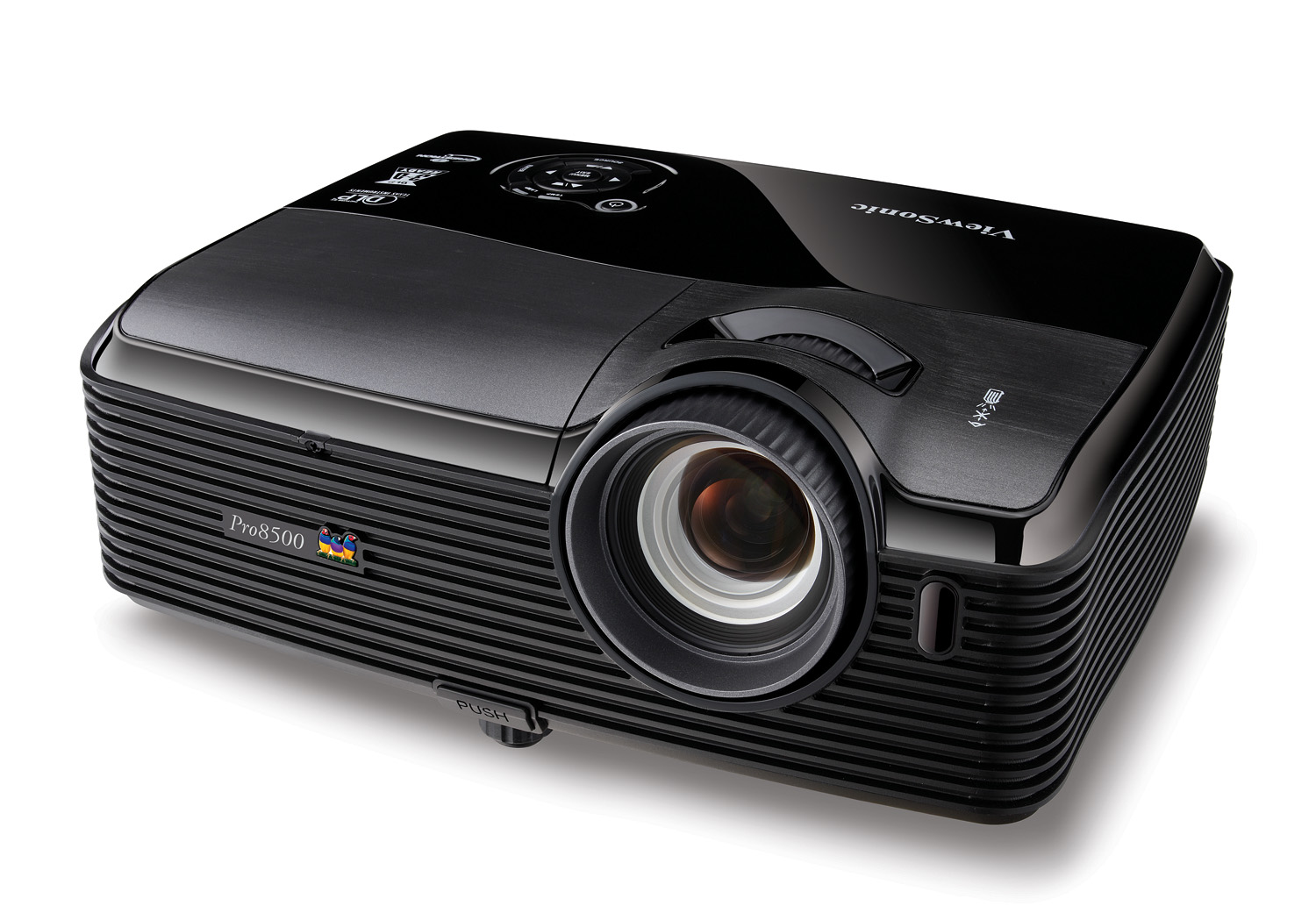

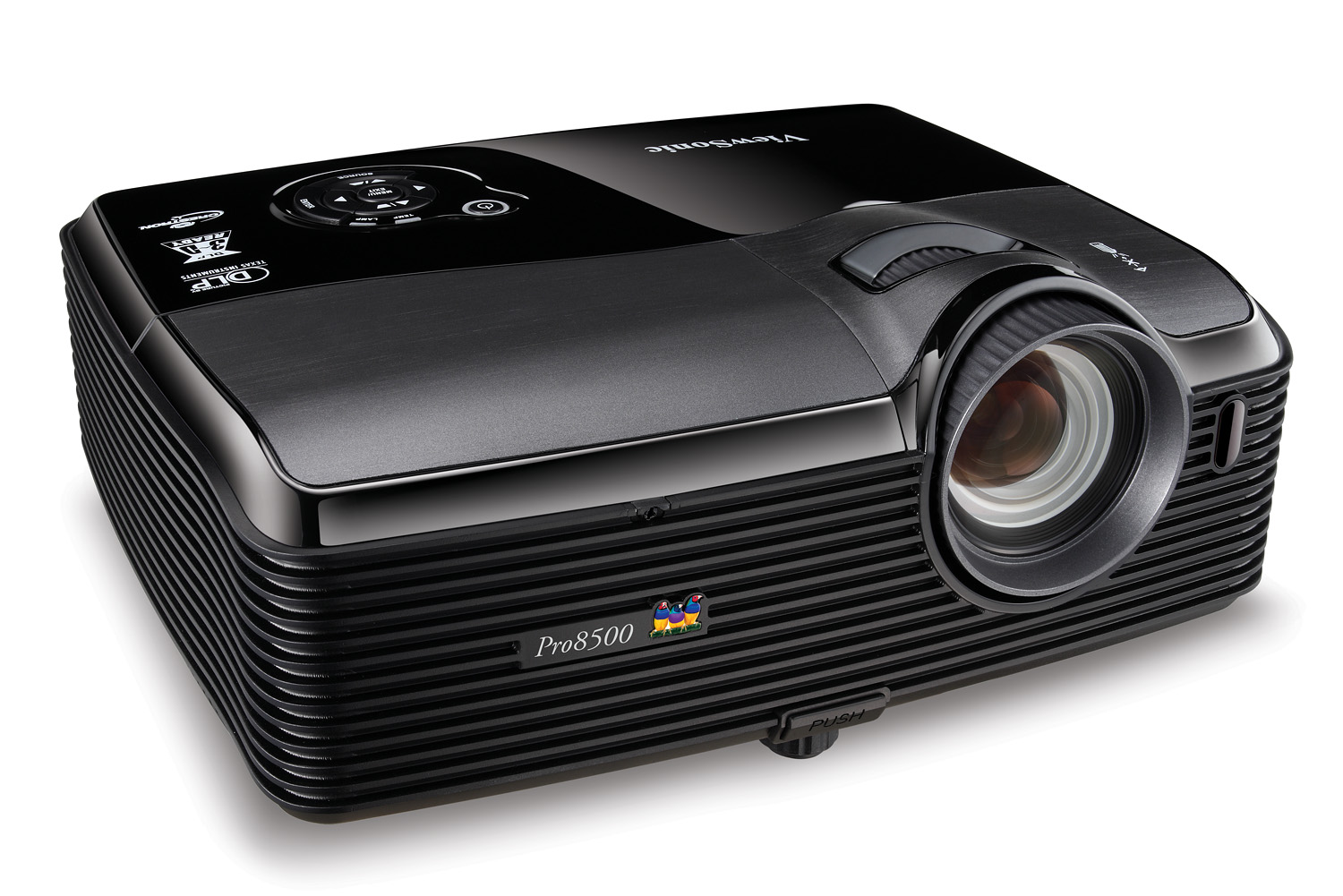

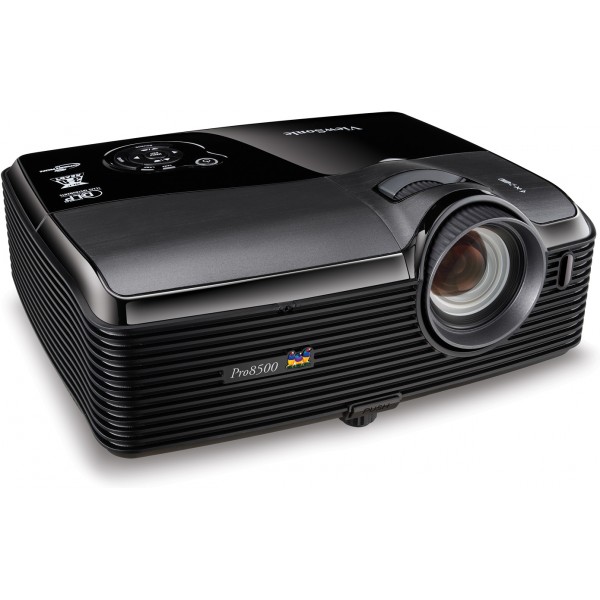

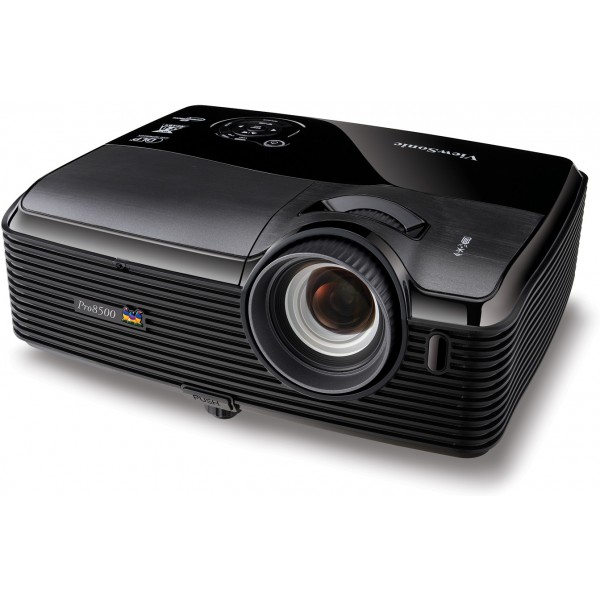

The ViewSonic® Pro8500 is an advanced high brightness DLP® installation projector which includes BrilliantColor™ technology to produce more vibrant colours. The Pro8500 delivers 5000 lumens with a 1024x768 XGA native resolution, allowing it to shine in virtually any lighting situation. The Pro8500 provides maximum mounting flexibility with a wide 1.5X optical zoom adjustment and a multitude of connectivity options including Network Display, USB, and WiFi. The filter-less design and long lamp life provide for easy maintenance and low total cost of ownership.

High Brightness and Networkable

BrilliantColor™ technology

Latest BrilliantColor technology delivers stunning all-digital clarity with life-like colour, sharp graphics and outstanding video. The sophisticated 6- segment colour wheel enhances the yellow colour performance that is key to accurate and vivid colour reproduction.

Closed captioning

Integrated closed captioning decoder for the hearing impaired.

Give Greener presentations and save

Use the Eco mode to achieve lower power consumption, reduce overall noise and extend lamp life. Filter less design saves costs and maintenance.

HDMI 1.3

Through HDMI 1.3 and a full array of other input interfaces provide all the connectivity needed.

Network control through RJ-45

Schedule, manage and monitor the projector remotely and receive e-mail alerts of projector lamp status.

USB Display

With its advanced management software, you can project up to 4 PCs at the same time with the ability of broadcast up to 8 projectors.

PC-Less Slide Show Presentation

This projector supports a USB reader that can access files directly from an USB flash drive, rendering a PC-less projection. The preloaded Office Viewer on the Pro8500 supports file formats such as Word, Excel, Powerpoint, and PDF, as well as music and videos.

5000 ANSI Lumens Brightness- Perform Impeccable Images

The Pro8520HD provides 5000 ANSI lumens brightness that can clearly project high quality images even in well-lit environments.

Stay connected

Supports multiple video timing formats from SD (NTSC, PAL & SECAM) to HD 1080p.

USB Display

Project your presentations through any USB connection without the hassle of running a bulky VGA cable.

Wireless Capability

By plugging-in an optional WiFi USB dongle, such as ViewSonic’s WPD-100, into the Pro8500, you can now connect any WiFi equipped laptop to the Pro8500 for image and audio transmission.

SPECIFICATIONS


  • Product Specification
    Resolution: XGA (1024 x 768)
    Brightness (ANSI Lumens): 5,000
    Contrast (with Dynamic Contrast Ratio): 4,900:1
    Lamp Hour (Normal / Eco / DynamicEco): 2,500 / 3,000
    Throw Ratio in Meters (Wide ~ Tele): 1.45 ~ 2.18
    Optical Zoom: 1.5x
    Digital Zoom: 2.0x
    Screen Size: 30” ~ 300”
    Projection Offset: 130% +/- 5%
    Display Colours: 1.073 Billion Colours
    Keystone: +/- 40° (Vertical)
    Noise min (Normal / Eco): 32dB / 27dB
    Speaker: 20W (10W x 2)

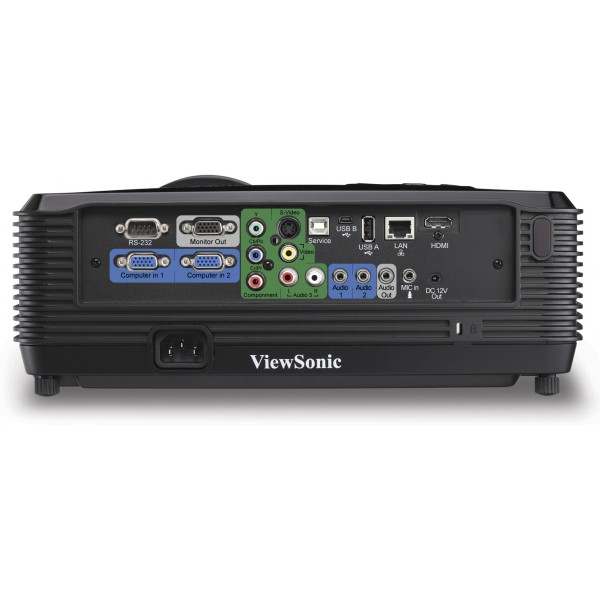

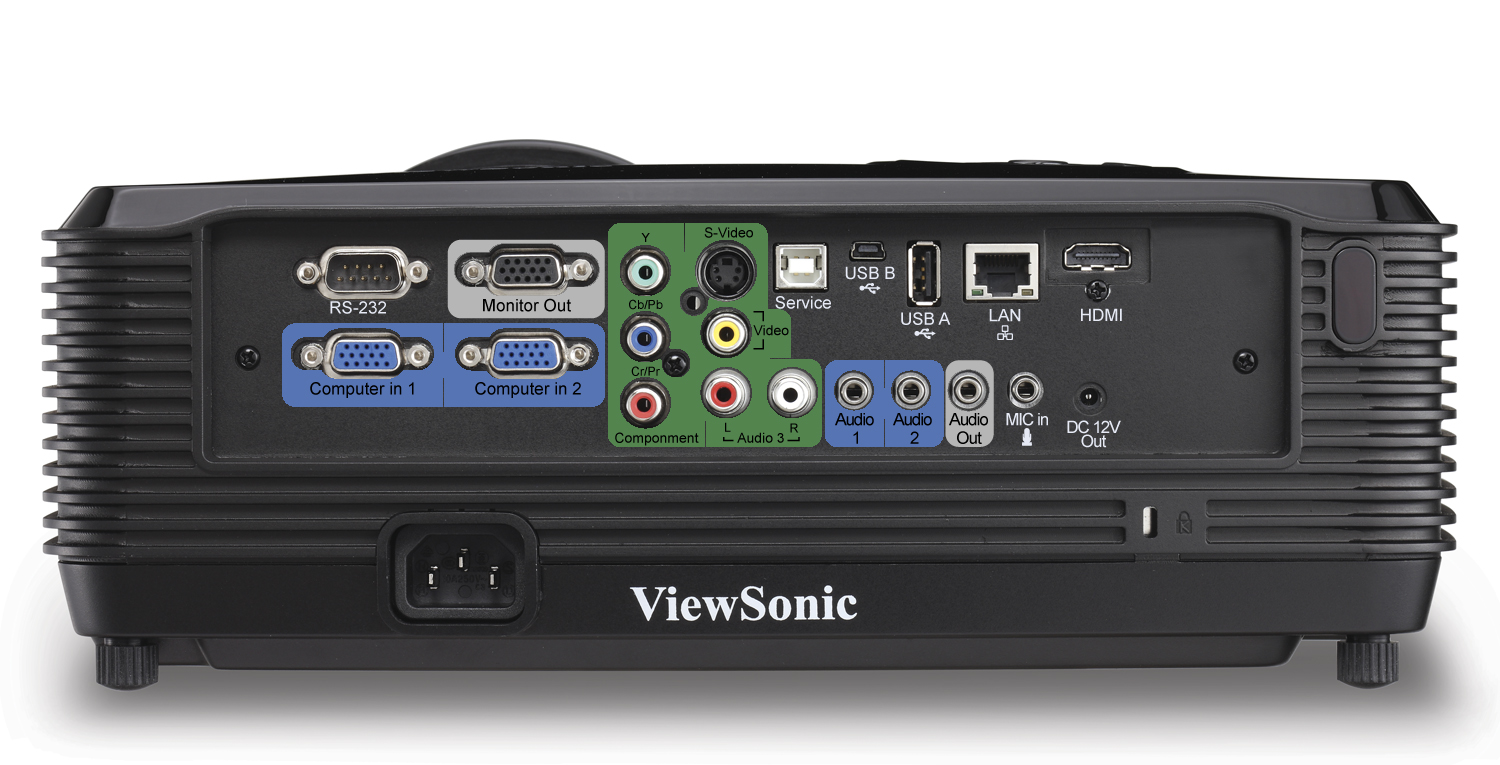

  • Input Connectivity
    HDMI In: 1
    VGA-in: 2
    Component Input: 1
    S-Video: 1
    Composite Input: 1
    Audio-in (3.5mm): 2
    Audio-in (RCA pair): 1
    USB Type A : 1 (WiFi dongle, Jpeg show)
    USB Type B: 1 (Firmware, mouse control)
    Mini USB: 1 (USB display)
    Microphone in (3.5mm): 1
  • Output Connectivity
    VGA-out: 1
    Audio-out (3.5mm): 1
