Pro8450w

120HZ AND 3D-READY

Sales Enquiry

GALLERY

Broaden your vision.

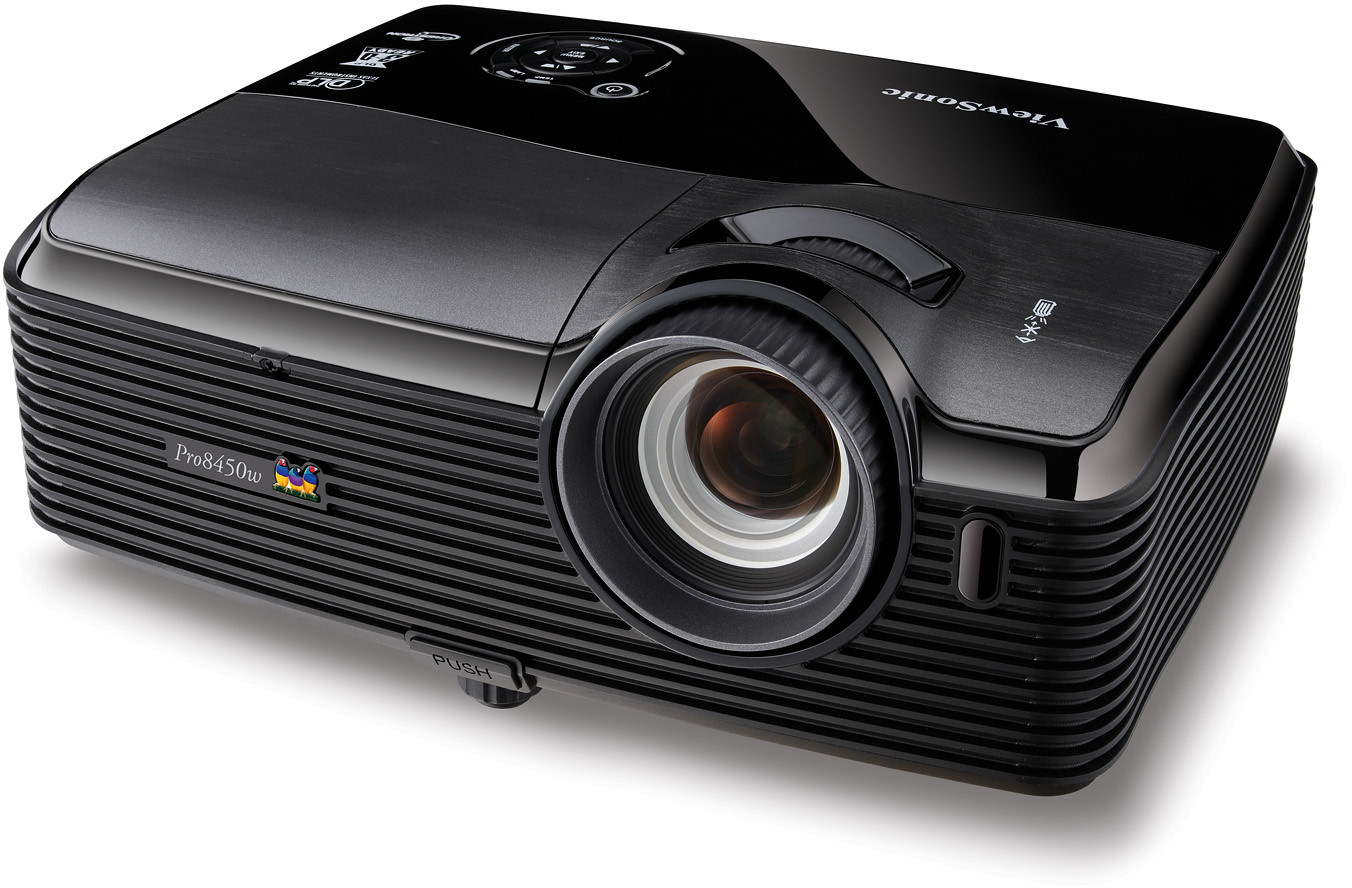

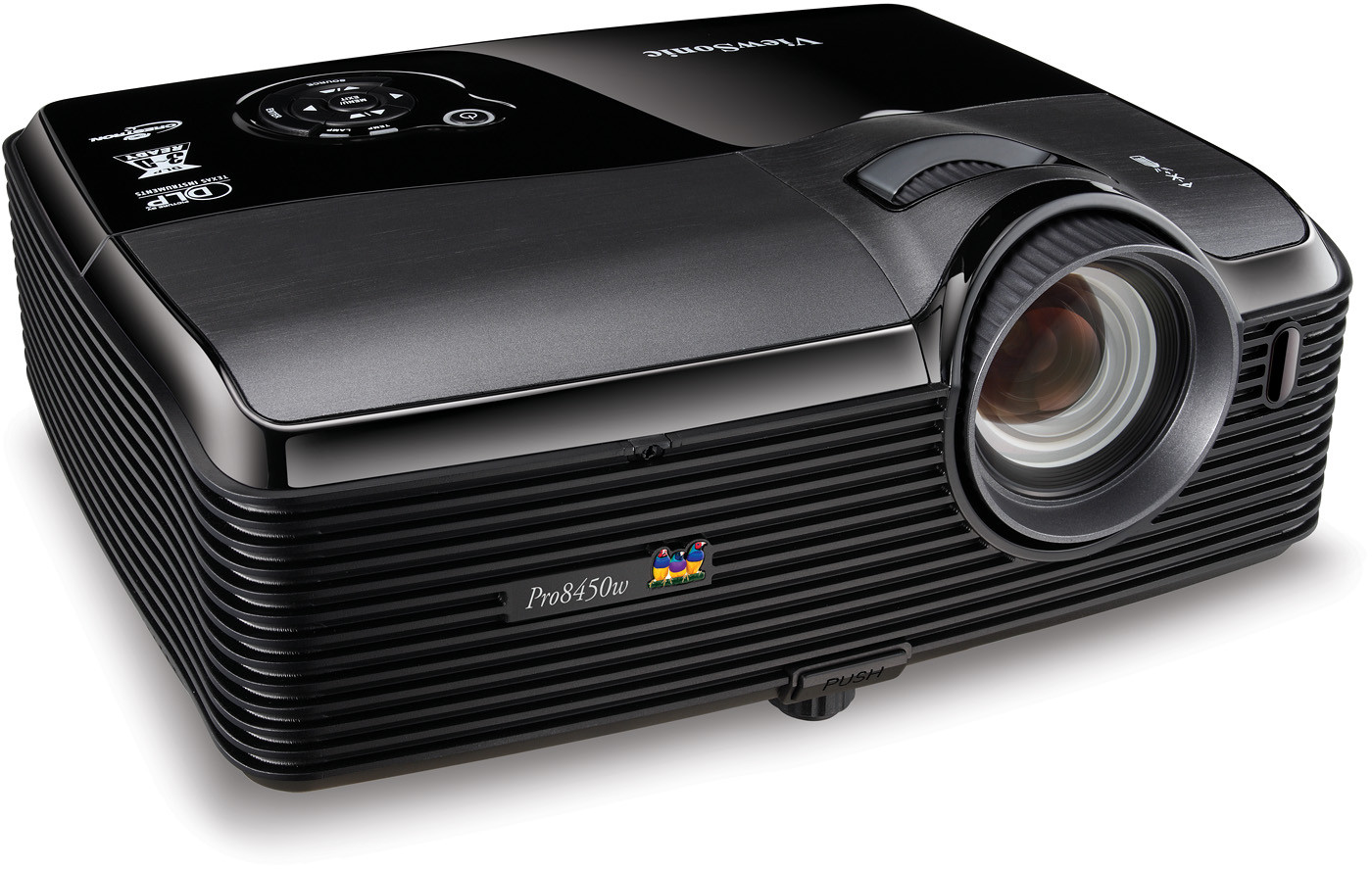

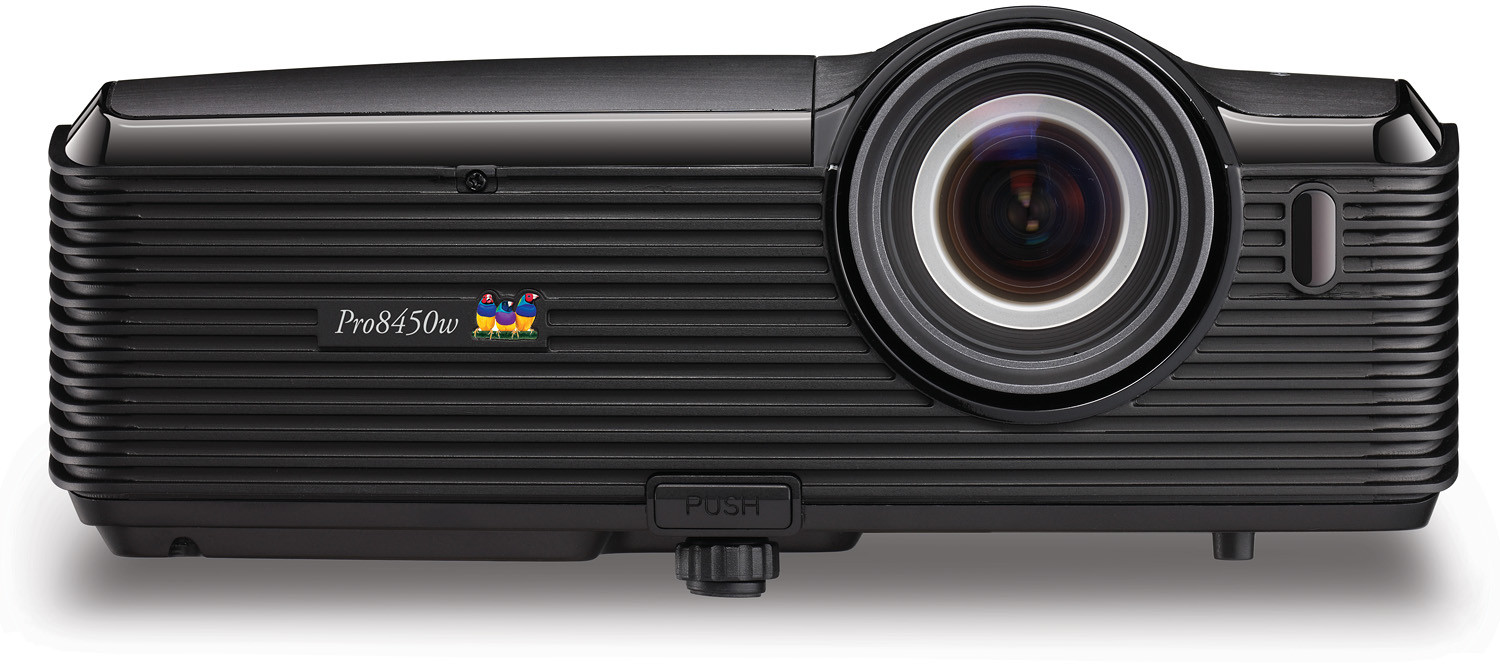

The ViewSonic® Pro8450w is an advanced high brightness DLP® installation projector which includes BrilliantColor™ technology to produce more vibrant colours. The Pro8450w delivers 4500 lumens with a 1280x800 WXGA native resolution, allowing it to shine in virtually any lighting situation. The Pro8450w provides maximum mounting flexibility with a wide 1.5X optical zoom adjustment and a multitude of connectivity options including Network Display, USB, and WiFi via an optional accessory. The filter-less design and long lamp life provide for easy maintenance and low total cost of ownership.

SPECIFICATIONS

COMPATIBILITY
PC: VGA to UXGA
Mac®: Up to SXGA +
DIMENSIONS
Physical (WxHxD): 13.1 x 4.3 x 10.4 (in) / 333 × 110 × 263 (mm)(W X H X D)
REGULATIONS
CB, RoHS, SVHC, WEEE, UL/cUL, FCC-B, ICES-004, TUV-S
(Argentina), NOM, PSB, C-tick, KC, CE, GOST-R, Hygienic,
UKrSEPRO, CCC

PACKAGE CONTENTS
ViewSonic projector, power cable, VGA cable, remote
control/laser with batteries, lens cap, Quick Start Guide
INPUT SIGNAL
Frequency: Fh: 31 - 100KHz, Fv: 48 - 120Hz
Computer and Video: NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60),
SECAM (B, D, G, K, K1, L), SD 480i and 576i (24fps, 25fps
and 30fps), ED 480p and 576p (24fps, 25fps and 30fps), HD
720p, 1080i and 1080p (24fps, 25pfs and 30fps)

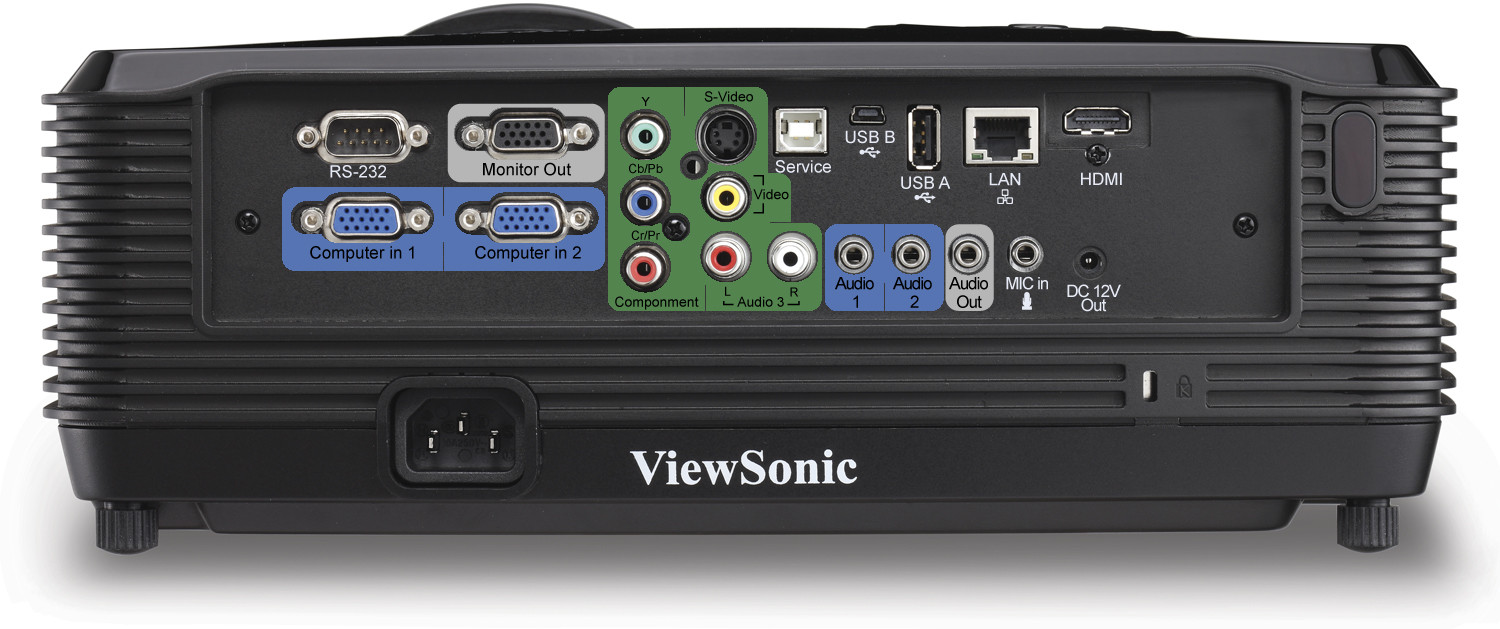

CONNECTOR
Audio Out: 3.5mm mini jack
Network: RJ - 45
PC RGB Input: 15-pin mini D-sub (x2)
S-Video Input: 4-pin mini - DIN
PC RGB Output: 15-pin mini D-sub
Audio Input: 3.5mm mini jack
Control: RS-232 (9 Pin D-sub)
Component-In: RCA (x3)
Digital-In: HDMI 1.3
Composite Input: RCA jack
USB: Type A:for PC-less slide show presentation-support
JPGE,BMP,TIFF,PNG,GIF form USB flash driver,optional
wireless USB adapter.

Mini-B:for direct presentation from PC.
(not Mac compatible)
POWER
Voltage: 100~240VAC (Auto Switching), 50/60Hz (universal)
Consumption: 342W (typ) / <1W (stand-by mode)

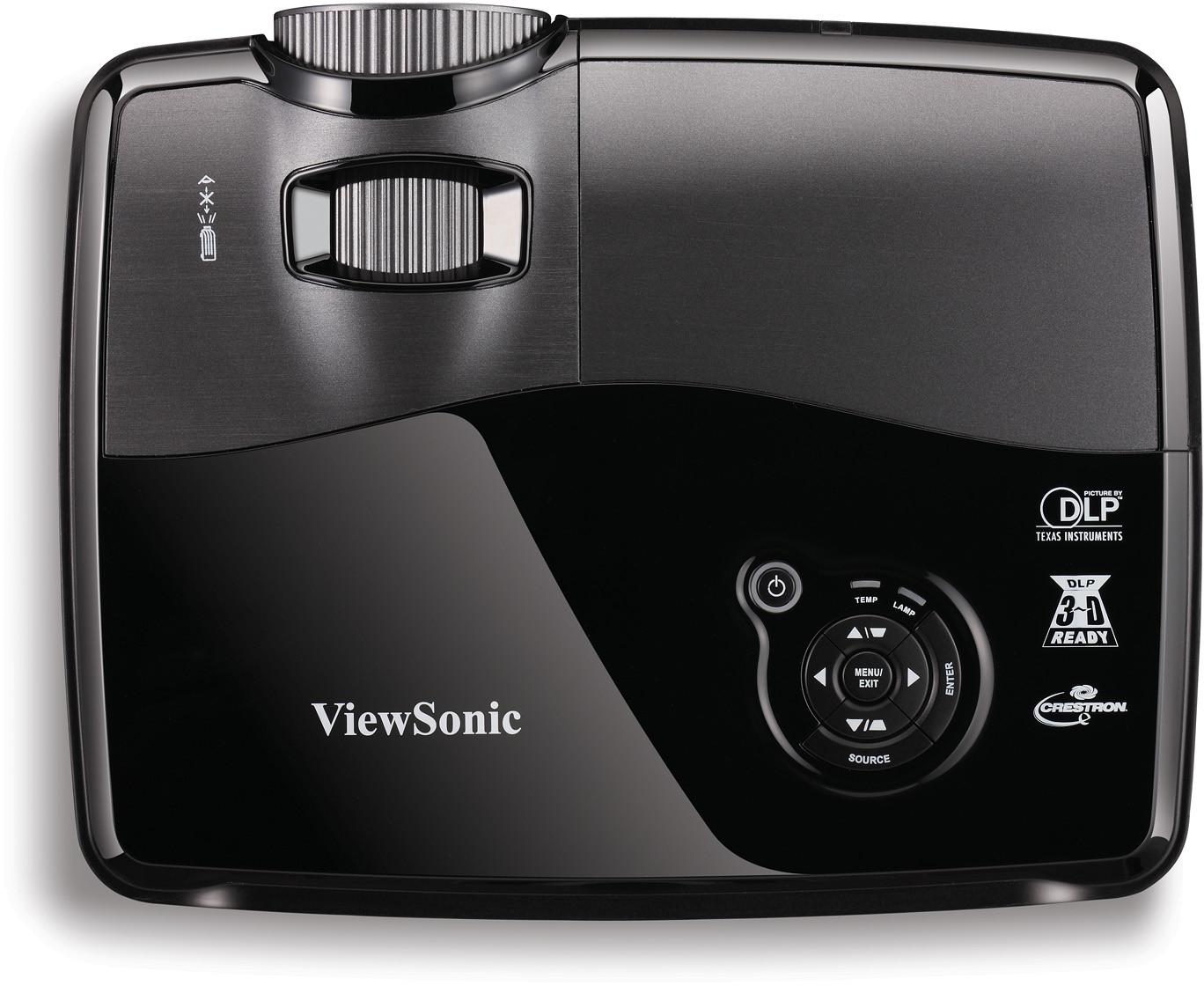

CONTROLS
Basic: Power, keystone/arrow keys, left/blank, menu/exit,
right/panel key lock, auto, mode/enter, source
OSD: Picture: Brightness, Contrast, Colour Setting, Keystone,
Aspect Ratio, Image, White Intensity, Gamma, 3D Sync,
3D Sync Invert

Computer Image: Frequency, Tracking, H Position, V
Position

Video Image: Saturation, Sharpness, Tint

Setting: Manual Position, Projection, Signal Type, Lamp
Hour, Lamp Hour Reset, Filter Mode, Filter Hours, Filter Hours
Reset, Power Saving, Auto Source, Eco-mode, High
Altitude, OSD Timeout

Advance: Blank Screen, Password Word, Screen Capture,
Start up Screen, Text Shot, Digital Zoom, DCR, Close
Captions, Brilliant Colour
DISPLAY
Contrast Ratio : 4300:1 (with DCR)
Aspect Ratio: 16:10 (native), 16:9, 4:3
Throw Distance: 0.9m - 10m / 3ft - 32.8ft
Throw Ratio: 1.46–2.2:1
Brightness: 4500 Lumens
Keystone Correction: Vertical : +/– 40 degrees(Auto)
Lamp life ( Normal / Eco / Dynamic Eco ): 4000 / 5000 hours
Type: 0.65" Digital Micromirror Device (DLP™)
Resolution: WXGA 1280x800 (native)
Size: 30" - 300" / 0.76m - 7.6m
Lamp: 280 watt
Lens: 1.5× Manual optical zoom / Manual optical focus
NOISE LEVEL
Normal: 32dB
Eco-mode: 27dB
AUDIO
Speakers: 10W (x2)
WEIGHT
Net: 8.5 lb (3.86 kg)
OPERATING CONDITIONS
Humidity: 10% - 90% (non-condensing)
Temperature: 32ºF - 104ºF (0ºC - 40ºC)
Altitude: 0~6,000 ft (1,800m), operational up to 10,000 ft (3048m)
