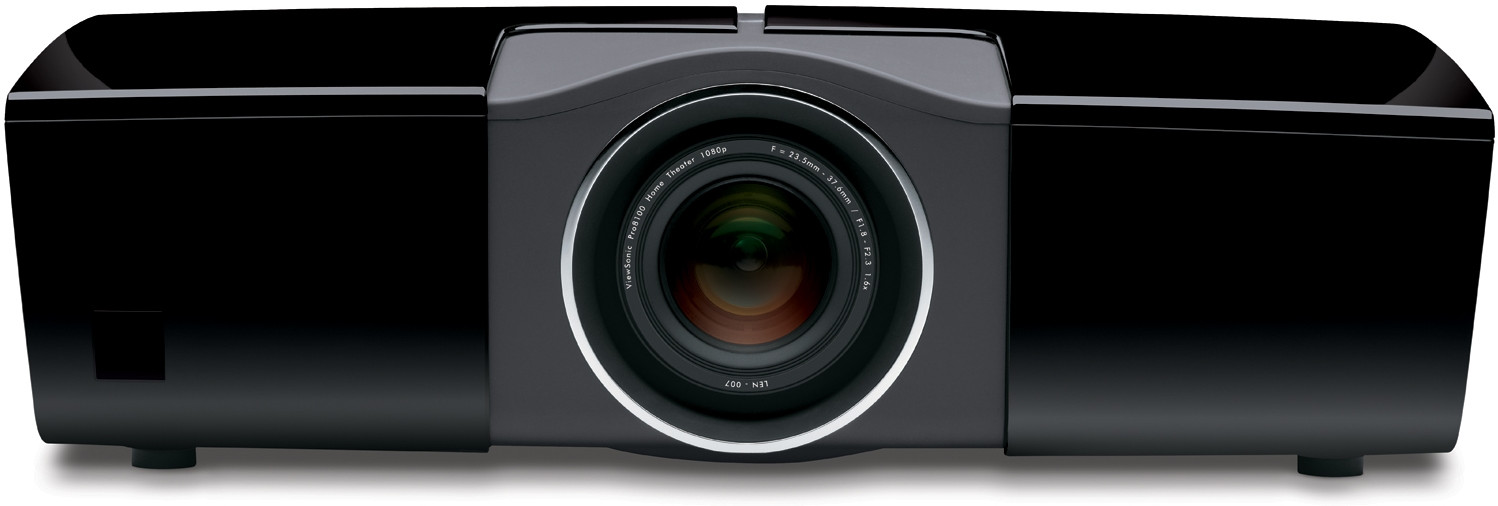

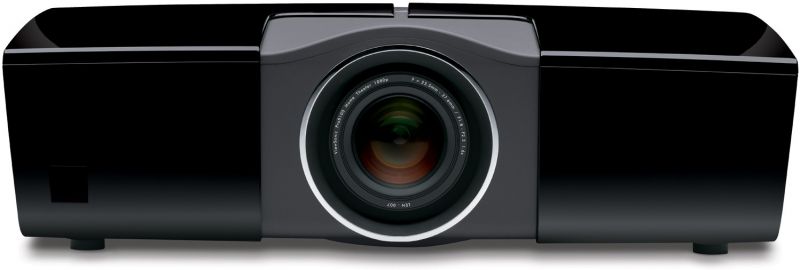

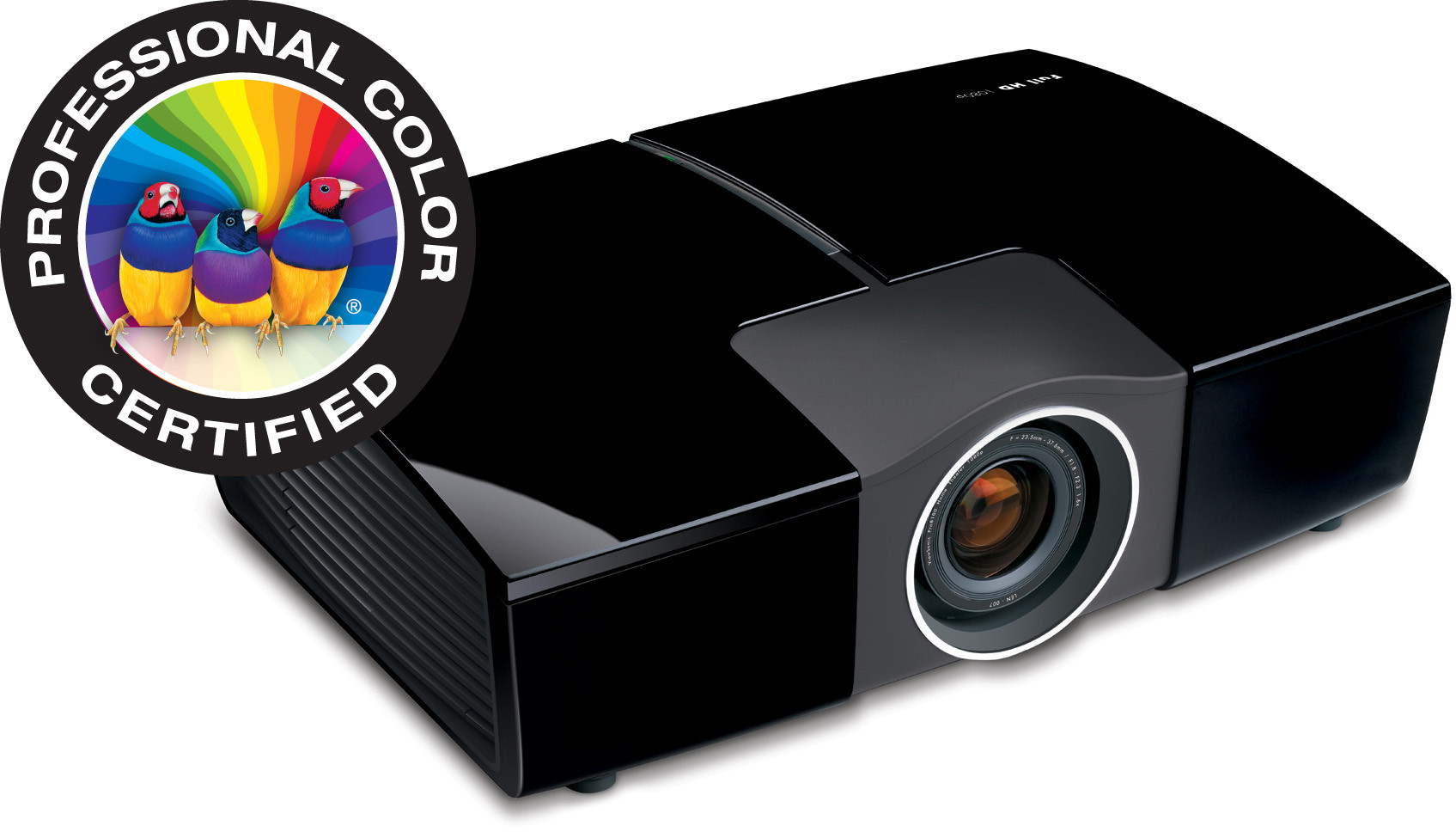

Precision Pro8100

1080p Home Theatre Projector with Precision Color System™

Sales Enquiry

GALLERY

High-definition performance

The Precision Pro8100 Home Theatre projector features state of-the-art engineering to provide optimal video clarity. Full 1080p HD resolution on a C2FINE™ liquid crystal panel is complemented by a Silicon Optix-Reon VX high-performance video processor with HQV (Hollywood Quality Video) for stunning HD movies, videos, and TV. In addition, ViewSonic’s unique Precision Color System technology provides sophisticated colour tuning by employing the world‘s most advanced image processing algorithms to deliver 33 levels of gamma correction, 3D colour management and auto contrast. These features are usually only found in combination with an advanced external image processor and have never before been seen in a projector!

REVIEWS

4-out-of-5

“Received a 4.5 out of 5 star review”

SPECIFICATIONS

COLORS
Black
LCD
Type: 3 x 0.74” Poly-Si TFT with MLA
Resolution: 1920 x 1080 Full-HD native
Lens: Motorised zoom, motorised focus
Zoom Factor: 1.6 (F = 1.8-2.3/f = 23.5mm-37.6mm)
Digital Keystone: 60° vertical (±30º), 80° horizontal (±40º)
Lens Shift: Motorised V & H Lens Shift (vertical ± 75 %, horizontal ± 5 %)
COMPATIBILITY
PC: Analogue: from VGA up to 1920 x 1080
Mac®: Analogue: from VGA up to 1920 x 1080

DIMENSIONS
Physical (WxHxD): 543 x 156 x 387
REGULATIONS
CE, CB, UL, GS, GOST-R, FCC-B, CCC, ICES 003, C-TICK, NOM, PSB, TUV-S/IRAM/UL-AR S Mark, UKrSEPRO, WEEE, RoHS
PACKAGE CONTENTS
3LCD Projector, power cables (Europe [Schuko]/UK), VGA cable, HDMI cable, microfibre wiping clothsoft projector cover, remote control, batteries, Quick Start Guide (multi-language), ViewSonic Wizard CD (User guide) (multi-language)
INPUT SIGNAL
Frequency: Fh: 15–100kHz; Fv: 56–90Hz
Video: RGB analogue, NTSC M, NTSC 4.43, PAL (B, D, G, H, I, M, N), SECAM, SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i)

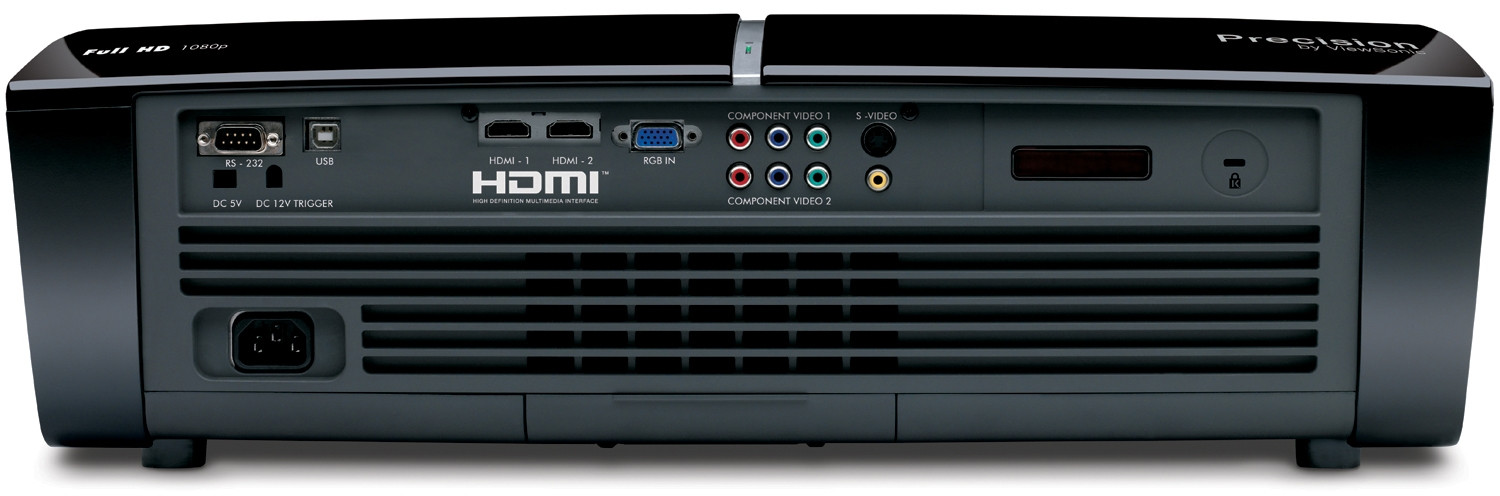

CONNECTOR
Composite Video Input: 1 x RCA jack
HDMI (input): 2 x HDMI 1.3a (HDCP)
Component Video Input: 2 x RCA sets
Screen Relay (12V): 1 x DC 12V power jack
Control: 1 x 9-pin D-sub RS-232c
S-Video: 1 x 4-pin mini-DIN
PC-VGA: 1 x 15-pin mini D-sub
POWER
Voltage: AC 100 – 240 V, 50/60Hz (auto switch)
Consumption: 230 Watt (typ.)
OPERATING CONDITIONS
Temperature: 0 °C – 40 °C
Humidity: 10%–90% (non condensation)
WEIGHT
Net: 9.0kg
Gross: 15.0kg
DISPLAY
Contrast Ratio : 13000:1 (max.)
Display size: 40“-300“ (1.0m-7.6m) (Diagonal)
Aspect Ratio: 16:9 (native)
Throw Distance: 1.2m-15.4m
Throw Ratio: 1.4-2.3:1
Lamp type: 160W, 2000 hours (Eco mode up to 5000 hours maximum¹ – 3000 hours recommended for optimum performance)
Brightness: 1000 ANSI lumens (max.)
NOISE LEVEL
Normal: 23dB (typ.)
Eco-mode: 18dB (typ.)
OTHER
Silicon Optix-Reon VX-210 with HQV, Precision Color System, auto-iris, backlight remote, daylight mode, Full 10-bit image processing, advanced black level adjustment, short-throw optics, powered H&V lens shift, 1.6 x powered optical zoom & focus, Eco mode, changeable top covers
