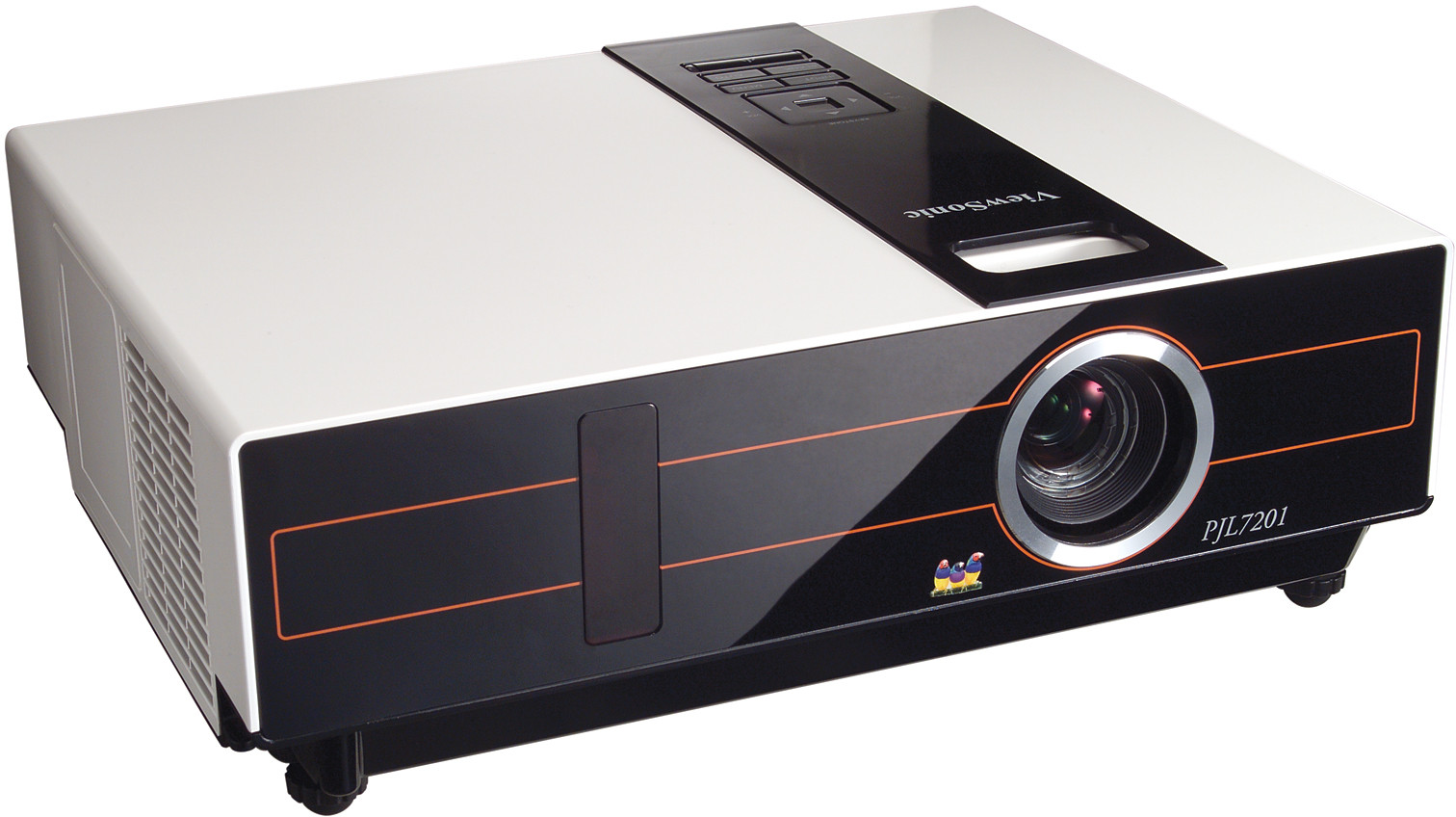

PJL7201

BRIGHT 3LCD PROJECTOR WITH ADVANCED CONNECTIVITY

Sales Enquiry

GALLERY

Feature packed, versatile, reliable

ViewSonic’s PJL7201 features the latest LCD panels, 2,700 lumens and native 1024x768 XGA resolution to deliver clear and crisp images and smooth video performance even in well lit environments. The PJL7201 is very flexible with built-in automatic digital keystone correction and better than average optical zoom function, projecting square images from almost any angle. A wide range of connectors, including DVI with HDCP support and the remote control with mouse function make it easy to deliver dynamic presentations. The PJL7201 offers a PIN lock function to protect your investment and includes many other features like 10-bit gamma correction, customizable start-up screen and easy lamp replacement. The PJL7201 offers an impressive set of features at affordable cost which make it the perfect choice for applications in education, institutions and corporations.

SPECIFICATIONS

LCD
Type: 1.6 cm / 0.63" (×3) Poly-Si TFT with Micro Lens
Resolution: XGA 1024×768 (native) / Full HD 1920×1080 (compressed)
Lens: 1.2× Manual optical zoom / Manual optical focus
Digital Keystone: Auto vertical digital keystone correction: ± 30 degrees
COMPATIBILITY
PC: Analogue: VGA to Full HD
Mac®: Analogue: Up to XGA (may require Mac Adapter)
DIMENSIONS
Physical (WxHxD): 325 × 112 × 260
W x H x D mm: 462 × 195 × 359

REGULATIONS
UL60951-1, cUL, FCC part15 ClassB, CISPR22 ClassB, CISPR24 ClassB, ICES003, IRAM, CB, CE, CCC, Gost-R+ Hyg, UkrSEPRO, NEMKO-GS, SASO, PSB, C-tick, EK, KPS (Korea), RoHS
PACKAGE CONTENTS
Projector, power cords, VGA cable, USB cable, wireless remote control, lens cap, soft case, ViewSonic Wizard CD, Quick Start Guide
WARRANTY
3 years on-site product warranty and a limited one year lamp warranty
AUDIO
Speaker: 1 x 7W
INPUT SIGNAL
Frequency: Fh:31-92 KHz, Fv:48-120 Hz
Video: RGB Analogue, NTSC M, NTSC 4.43, PAL (B, D, G, H, I, M, N, 60), SECAM, SDTV / EDTV (480i/p, 576i/p), HDTV (720p, 1080i/p), HDTV (480i/p, 576i, 720p, 1080i/p)
CONNECTOR
Digital: 1 × DVI-I
Audio Out: 1 × 3.5mm mini jack
PC RGB Input: 1 × 15-pin mini D-sub
Composite Video Input: 1 × RCA jack
S-Video Input: 1 × 4-pin mini-DIN
Component Video Input: 1 × RCA jack
PC RGB Output: 1 x 15-pin mini D-sub
Audio Input: 2 × 3.5mm mini jack, 1 (L/R) × RCA jack
Control: 1 × RS-232 (9 Pin D-sub)
USB: 1 × USB type B (for mouse control only
POWER
Voltage: 90~120VAC/220~240VAC (Auto Switching), 50/60Hz (universal)
Consumption: 255W (Typ.) / <5W (Stand-by mode)
CONTROLS
Basic: Keystone, Vol +/-, Input, Menu, Blank, Auto
OSD: Picture: <Computer Mode> Brightness, Contrast, Sharpness, Display mode ( Natual, Cinema, Daylight, Greenboard, Whiteboard, Blackboard), Color Temp. ( High, Mid, Low, User: User Red, User Green, User Blue) <Video Mode> Brightness, Contrast, Sharpness, Display mode, Color Temp. ( High, Mid, Low, User: User Red, User Green, User Blue), Color, Tint

Audio: Volume, Audio Channel Setting ( RGB, DVI-I, Video, S-Video, YPbPc)

Image: <Computer Mode> H Posititon, V Position, Phase, Frequency, Auto Keystone, V Keystone, Resize, Auto Syne, Auto Search <Video Mode> Auto Keystone, V Keystone, Resize, Auto Search

Setting: Language (12 languages), Select Source, Logo Setting, Lamp Mode ( Normal, Economic), Lamp time, Reset Lamp Timer, Reset Filter Timer, Filter Counter

Option: Zoom/ PAN, Still, Blank, Reset All, Auto Ceiling ( Front, Ceiling, Rear, Ceiling and Rear)

Advanced: PIN Lock Protection, Modify PIN, Auto Brightness, DCR (Dynamic Contrast Ratio), Closed Caption, Blank off, Auto on ( lamp on), No signal off
OPERATING CONDITIONS
Temperature: 41ºF-95ºF (5ºC-35ºC)
Humidity: 20%-80% (non-condensing)
Altitude: 0 to +10,000 ft
WEIGHT
Net: 3.0 kgs
Gross: 6.3 kgs
DISPLAY
Contrast Ratio : 650:1
Display size: 1.0m-7.6m / 40"-300" (Diagonal)
Aspect Ratio: 4:3 (native) / 16:9
Throw Distance: 1.1m-10.5m (43.3"-413")
Throw Ratio: 1.4:1 - 1.7:1
Lamp type: 220 w
Brightness: 2700 Lumens
Lamp life ( Normal / Eco / Dynamic Eco ): 2000 / 3000 (hours)
NOISE LEVEL
Normal: 32dB
Eco-mode: 29dB
OTHER
Short Throw Feature, DVI with HDCP suppor t, Supports Dynamic Contrast ratio, 6 default picture mode for different environment usage, Auto off and on
