PJD7383i

Professional Interactive Learning

Sales Enquiry

GALLERY

OVERVIEW

The PJD7383i combines a fully capable enterprise projector with an easy to use interactive solution. Designed with education and training requirements specifically in mind the PJD7383i can literally change the way you communicate.

ViewSonic have taken this one step further and considered that for it to be successfully deployed the projector needs to be easy to manage and deliver an immediate return on investment. Compatibility with the acclaimed Crestron e-Control and RoomView express network contral software provides a hands-free level of management previously unseen in such a fully functional projector.

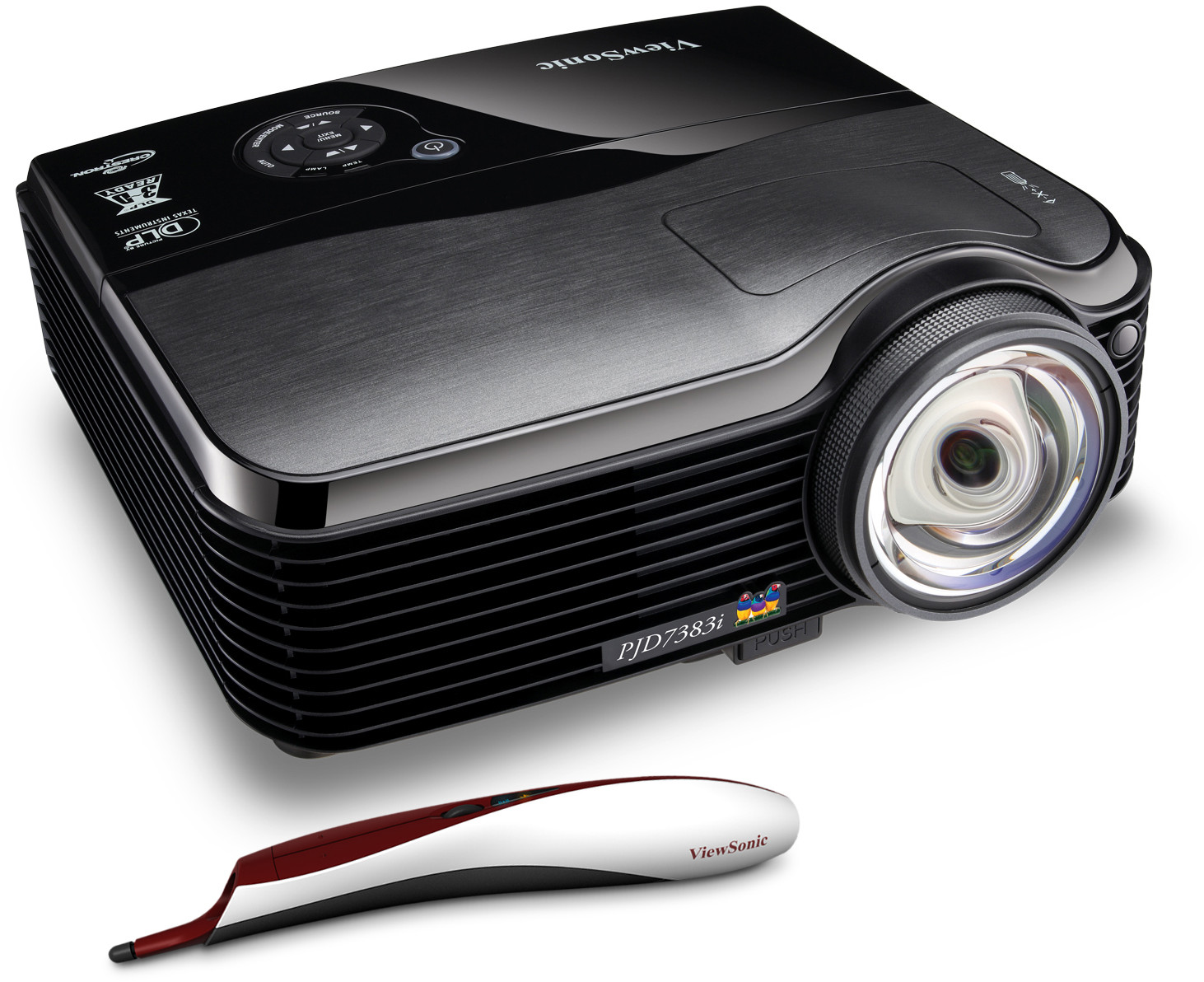

The innovative PointBlank interative pen that comes with the projector requires no calibration and interacts on any surface. This saves money over traditional Interactive White Board solutions and is easy to use, every time.

SPECIFICATIONS

COLORS
Black
COMPATIBILITY
Mac®: Up to 1400×1050 (may require Mac Adapter)
PC: XGA to UXGA
DIMENSIONS
Physical (WxHxD): 290 mm x 254mm x 126 mm
11.42” x 10 ” x 4.96”

REGULATIONS
CB, UL, cUL, FCC (including ICES-003), CE, UL-Argentina,
NOM, TUV-GS, GOST-R, SASO, Ukraine, PSB, C-Tick,
Korean-eK, CCC, Hygiene, WEEE, RoHS
PACKAGE CONTENTS
Interactive Pen,ViewSonic projector, power cable,soft case
VGA cable, usb cable, remote control, lens cap,
quick start guide, ViewSonic DVD wizard.
AUDIO
Speaker: 10Wx1
INPUT SIGNAL
Frequency: Fh: 31-100 KHz, Fv: 48-120 Hz
Computer and Video: NTSC M (3.58 MHz), 4.43MHz PAL (B, D, G, H, I, M, N, 60)
SECAM (B, D, G, K, K1, L) 480i and 576i 480p and 576p, 720p,1080i

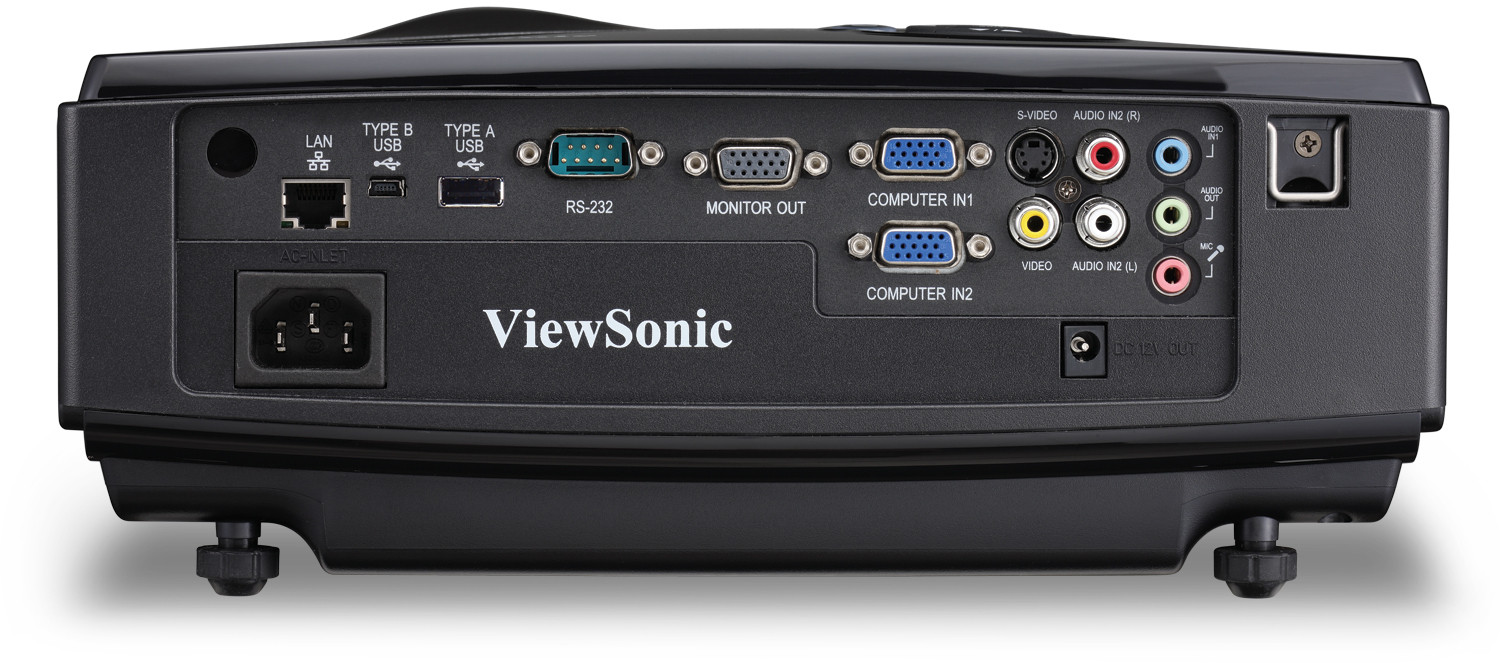

CONNECTOR
Audio Out: 1×3.5mm mini jack
S-Video Input: 1×4-pin mini-DIN
Screen Relay (12V): 12V trigger
RGB: 2×15-pin mini D-sub/ 1×15-pin mini D-sub
Audio Input: 1×3.5mm mini jack(Microphone) / RCA x1
Control: 1×RS-232 (9 Pin D-Sub)/ RJ45
USB: TYPE A x 1/ TYPE B x 1
Composite Input: 1×RCA jack
POWER
Voltage: 100~240VAC(Auto Switching), 50/60Hz (universal)
Consumption: 298W (Typical) / <1W (Stand by Model)

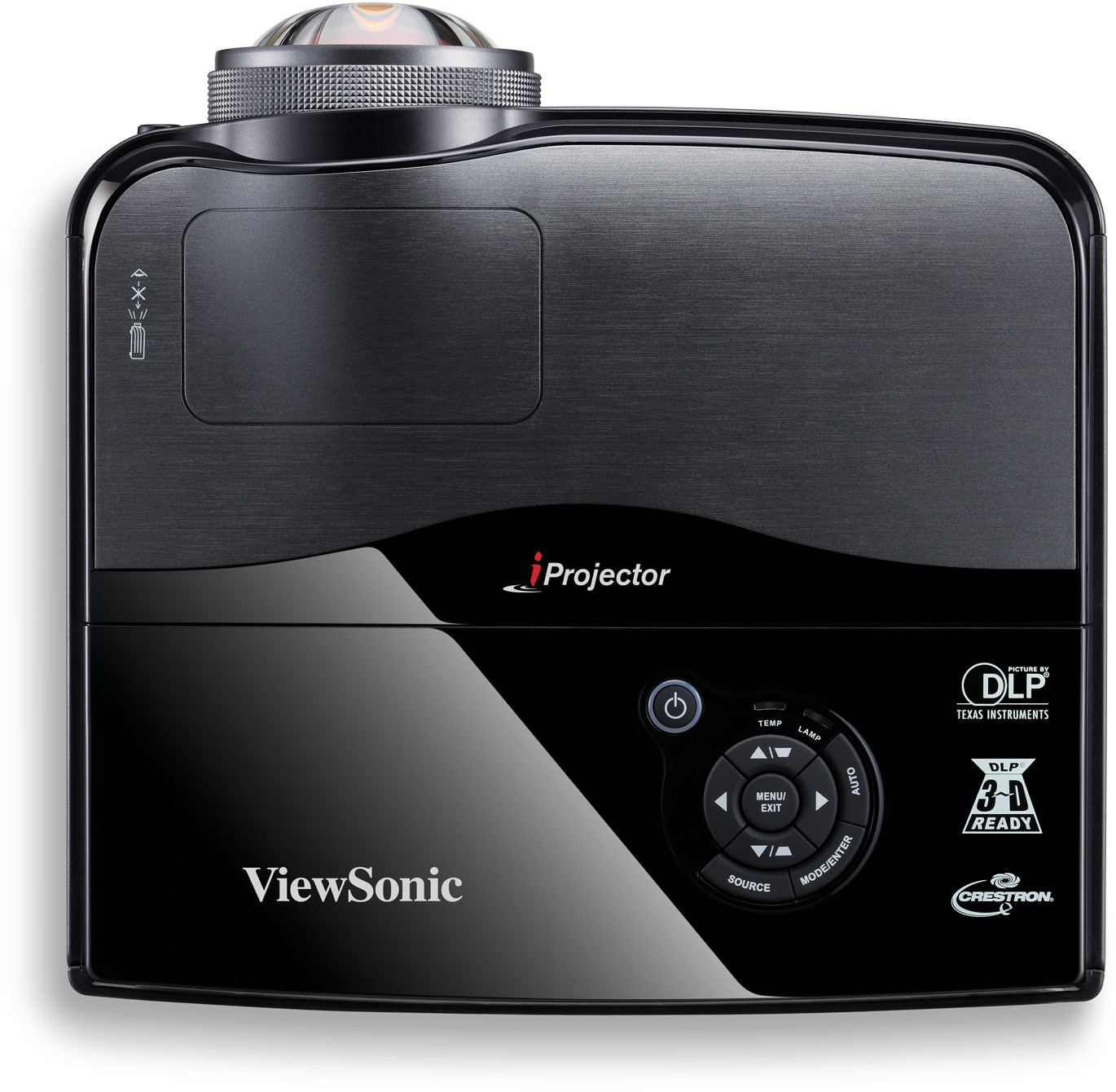

CONTROLS

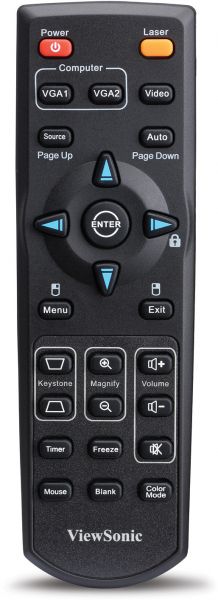

Basic: Power / Freeze/ Blank / Auto / Menu / 4 directon buttons /
VGA1 &2 / Video / Source / Enter/ Exit / Keystone+/- /
Magnify +/- / Volume +/- / Mute / Color Mode
OSD: (1) Display:Screen color/ Aspect raito/ Keystone/Position/
Phase/ H. Size/ Zoom/ 3D sync/ 3D sync invert/ Color
Management (2) Picture:Color Mode PC/Video: Brightest/
PC/ ViewMatch Cinema/ User 1/ User 2 Reference Mode:
PC/Video: Brightest/ PC/ ViewMatch/ Cinema Brightness /
Contrast /Color /Tint / Sharpness / Brilliant Color /Color Temp.
/Save Settings (3) Source:Quick Auto Search
(4) System Setup (Basic):Language/ Projector Position / Auto
Power Off /Blank Timer / Panel Key lock/ Splash Screen /
Screen Capture/ Message/ LAN Control Settings/Standby
Settings (Microphone/ Active VGA Out/ Active Audio Out)
(5) System Setup (Advanced): High Altitude Mode /DCR
Audio Settings (Mute/ Volume/ Microphone Volume)/Menu
Settings/ losed Caption/Lamp Settings / Security Setting /
Reset All Settings (6) Information: Current System Status
(Source/Color mode/ Resolution Colour System Equivalentlamp
hour/ MAC address)
DISPLAY
Contrast Ratio : 3000:1(with DCR)
Throw Distance: 0.37m - 3.7m /1.2ft-12.1ft
Throw Ratio: 0.61
Brightness: 3000 Lumens
Color Wheel: 6-Seg RGBCYW / 7200rpm
Native Resolution: XGA 1024 × 768 (Native)
Lamp life ( Normal / Eco / Dynamic Eco ): 4000 / 6000 (hours)
Type: 0.55" Digital Micromirror Device (DLP™)
Keystone: Vertical digital keystone correction: ± 40 degrees
Lamp: 210 watt
Lens: Digital Zoom/Manual focus
Color Depth: 24 bits, 16.7M Colors
NOISE LEVEL
Normal: 32dB
Eco-mode: 27dB
LANGUAGE
English/ Frence / Germany/ Italian/ Spanish/ Russian/
T. Chinese/ S. Chinese/ Japanese/ Korean/ Swedish/
Dutch/ Turkish/ Czech/ Portuguese/ Thai/ Polish/ Finnish
WEIGHT
Net: 3.5kg (7.7lb)
OPERATING CONDITIONS
Humidity: 10%-90% (non-condensing)
Temperature: 0ºC-40ºC
