OVERVIEW

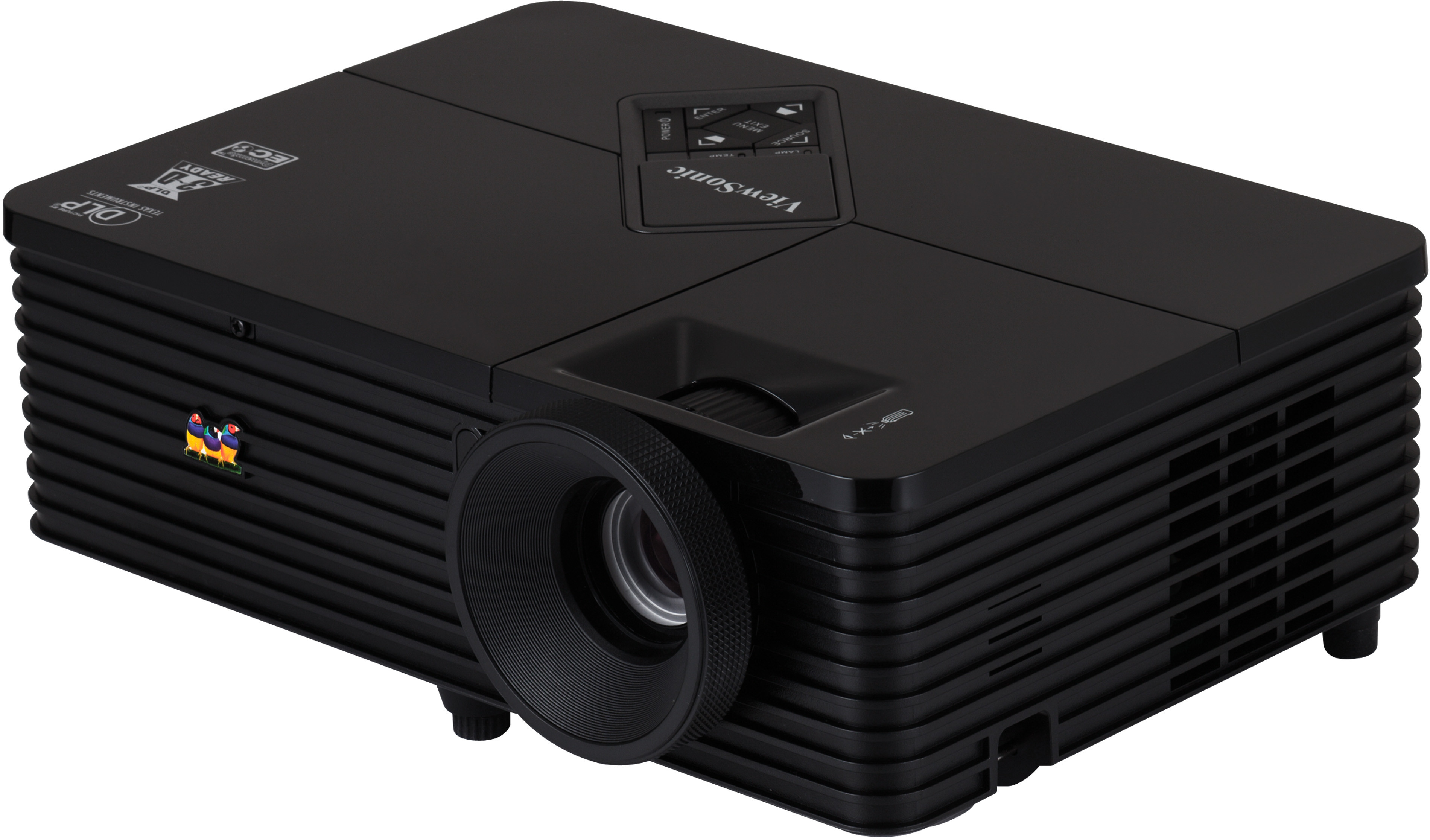

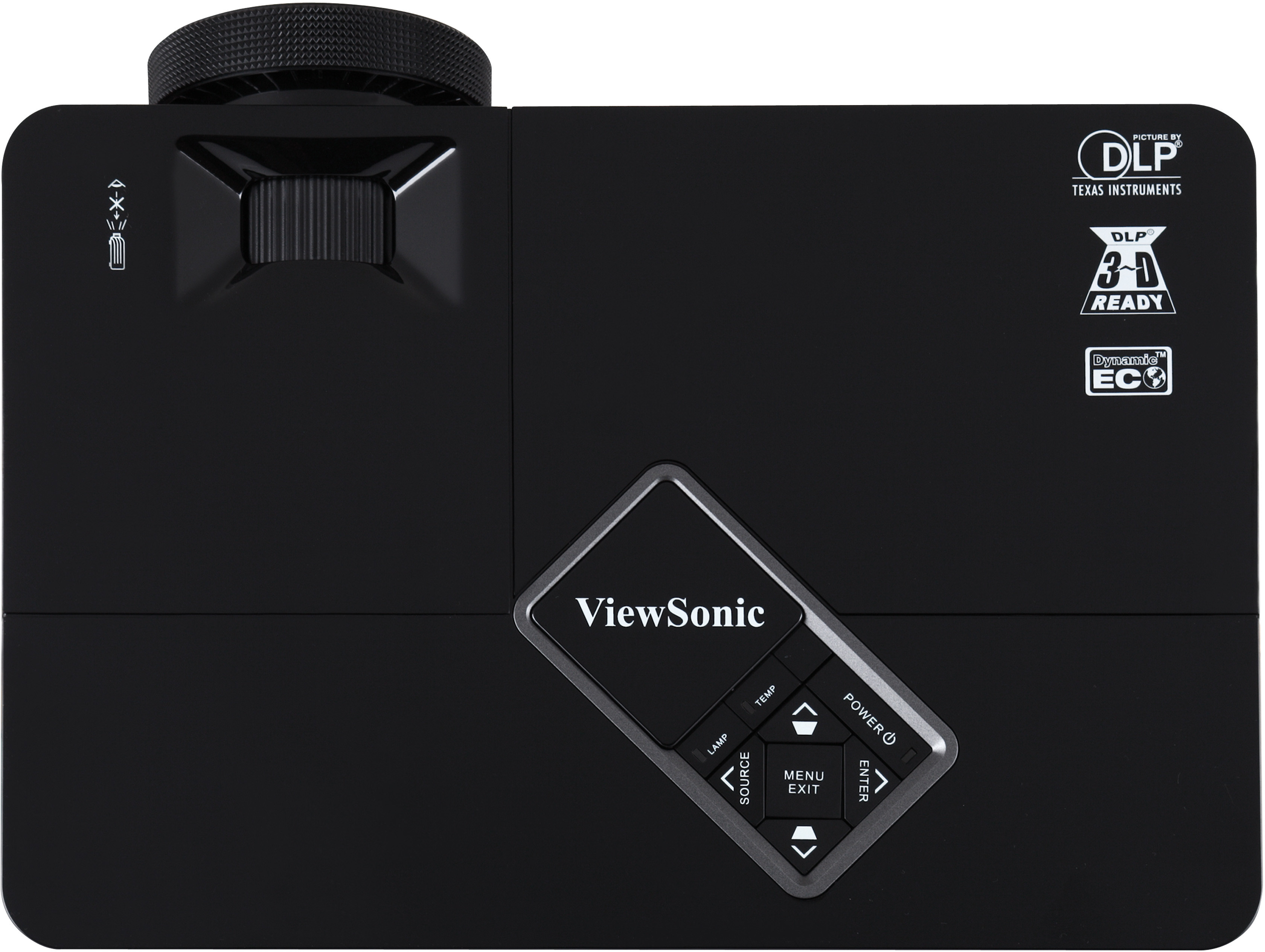

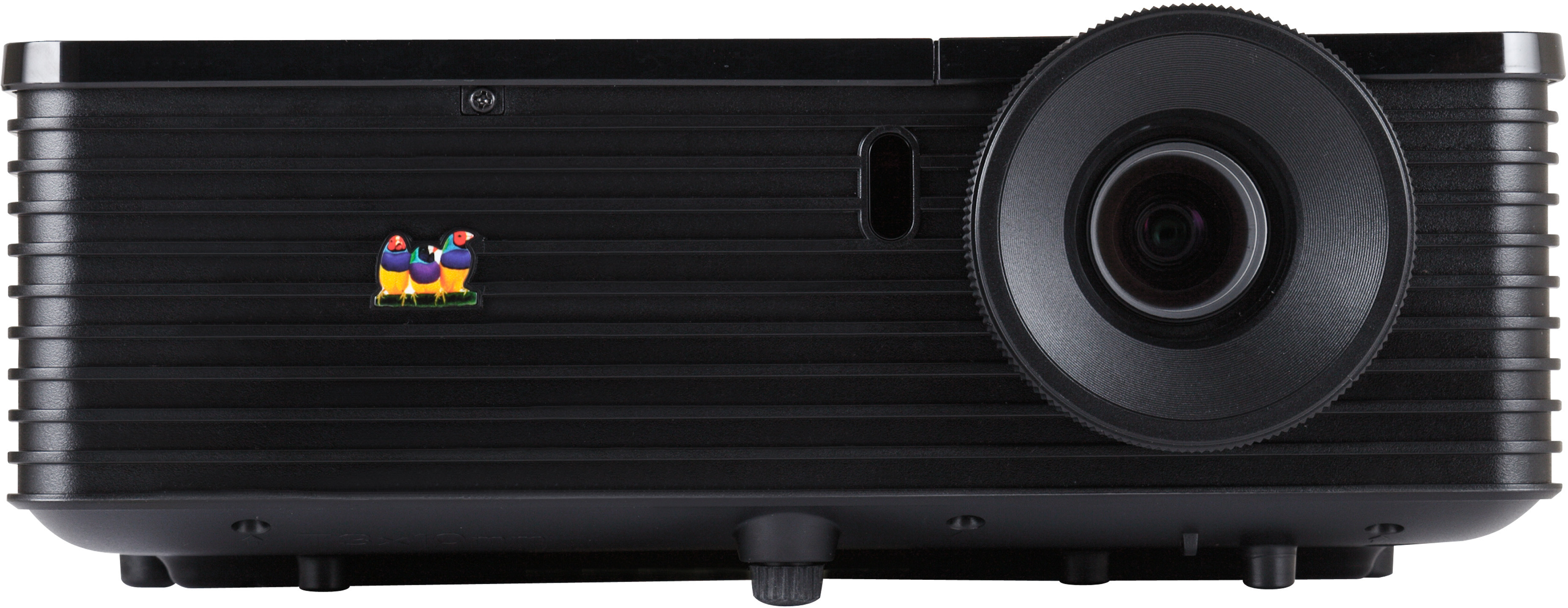

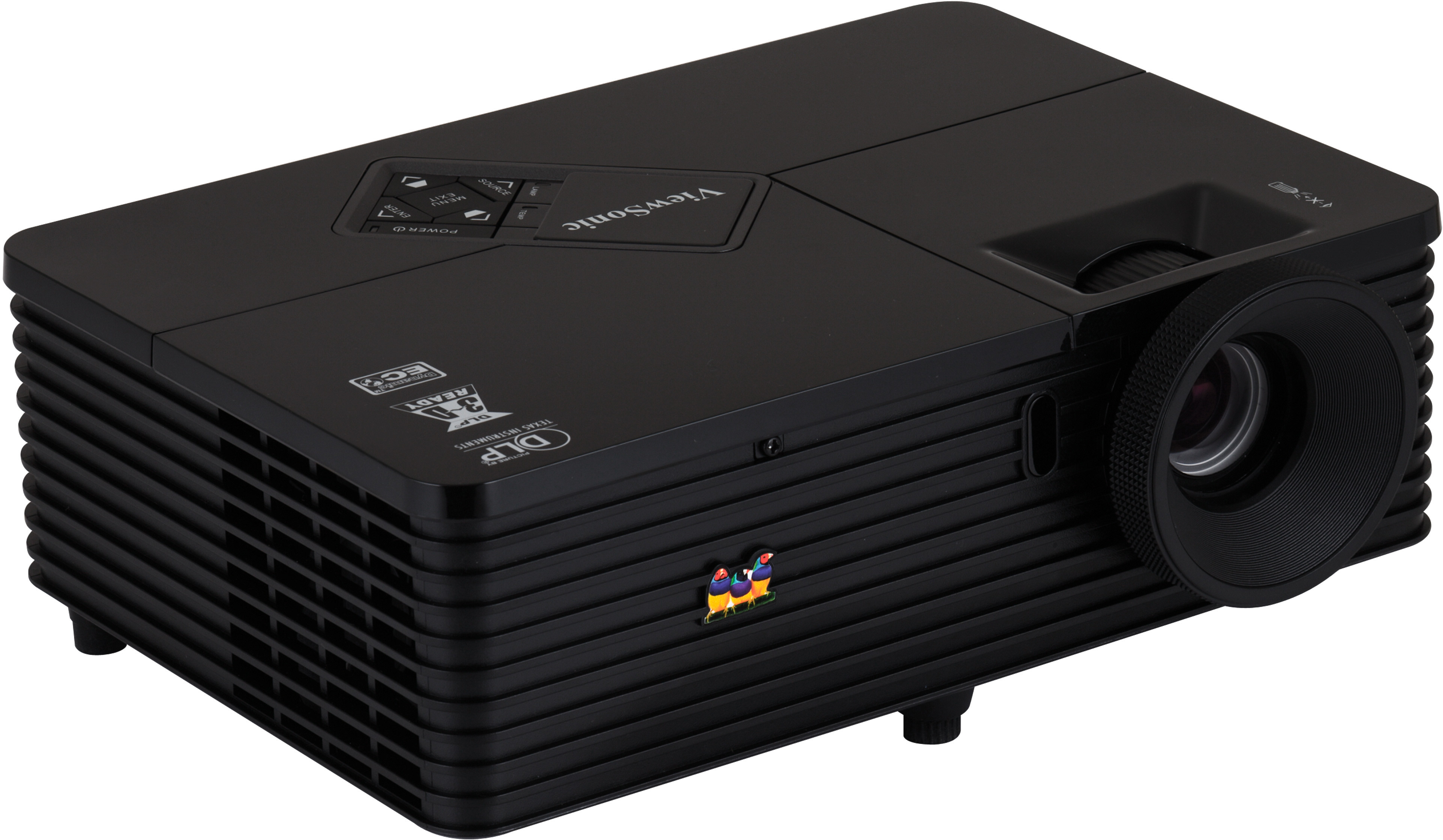

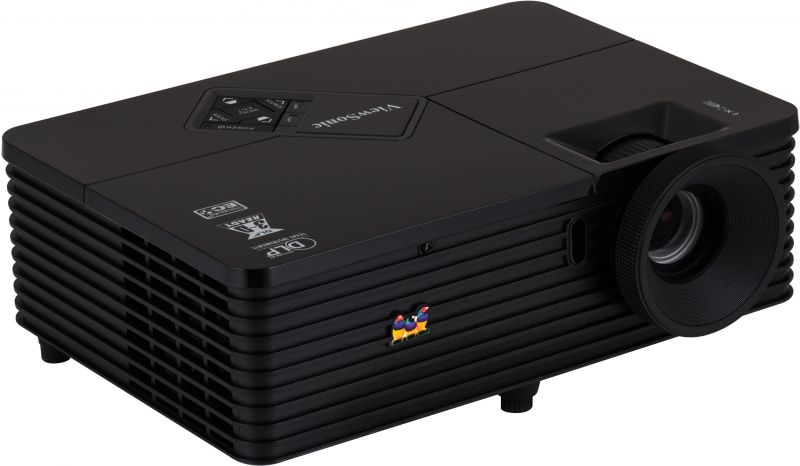

ViewSonic’s new PJD7223 is a 4000 lumens and 15,000:1 projector for medium-sized rooms that delivers clear, bright and sharp images with vivid and accurate colors, even in bright environments. This projector features DynamicEco Technology to adjust lamp brightness, thereby prolonging the lamp lifespan, lowering power consumption and reducing the total cost of ownership. By pressing the “D.Eco” button on the remote control, the presenter can dim the screen to refocus the audience’s attention to the presenter. Equipped with versatile I/O ports, the PJD7223 provides a flexible connectivity to a wide range of devices. The PJD7223 is integrated with a variety of functions and tools, making it a costeffective option that efficiently and impressively upgrades your presentations.

High brightness and contrast ratio ensures stunning image quality

The PJD7223 features 4,000 lumens brightness and a 15,000:1 contrast ratio to ensure the image will be crystal clear and vivid even in the bright environments. This feature allows the PJD7223 to adapt to various environments for greater flexibility in use.


DynamicEco Technology gives more and consumes less

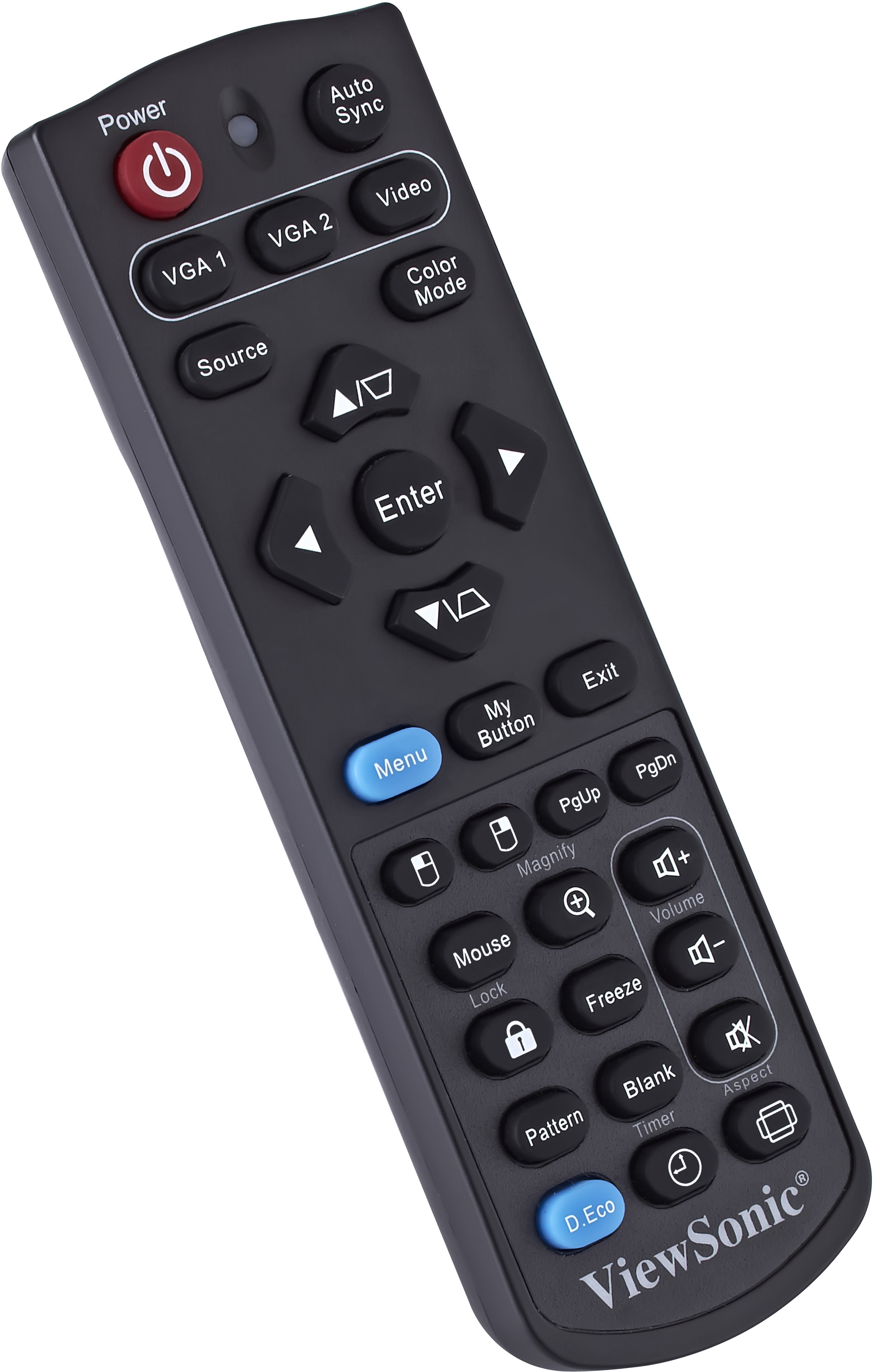

ViewSonic’s proprietary DynamicEco technology can conserve up to 70% more power by automatically reducing lamp brightness when there are no source inputs; this also lowers total cost of ownership. By clicking D.Eco on the remote control, the presenter can dim the projection and easily regain the audience’s attention.

3D ready brings images to life

The PJD7223 supports 3D ready technology to create a true-to-life audiovisual experience in the medium-sized rooms. By putting on the 3D glasses, you can easily enjoy the life-like effects of 3D made images or videos on an up to 300” screen.

Easy vertical keystone correction

When projectors are tilted, the projection image aspect ratio may display rectangular images in a trapezoidal shape, resulting in image distortion. The PJD6 series offers +40°/-40° keystone correction to fix projected image distortion issues easily and quickly.

Versatile digital interface and input/output

The PJD7223 features a wide range of compatibility for high-definition content input including Composite, S-video, and VGA input. The built-in 2W speaker, complemented with a microphone input, provides high volume audio without the need for external speakers.

SPECIFICATIONS


  • Product Specification
    Resolution: XGA (1024 x 768)
    Brightness (ANSI Lumens): 4,000
    Contrast (with Dynamic Contrast Ratio): 15,000:1
    Lamp Hour (Normal / Eco / DynamicEco): 3,000 / 4,000
    Throw Ratio in Meters (Wide ~ Tele): 1.97 ~ 2.17
    Optical Zoom: 1.1x
    Digital Zoom: 2.0x
    Screen Size: 30” ~ 300”
    Projection Offset: 130% +/- 10%
    Display Colours: 1.07 Billion Colours
    Keystone: +/- 40° (Vertical)
    Noise min (Normal / Eco): 36dB / 34dB
    Speaker: 2W x 1

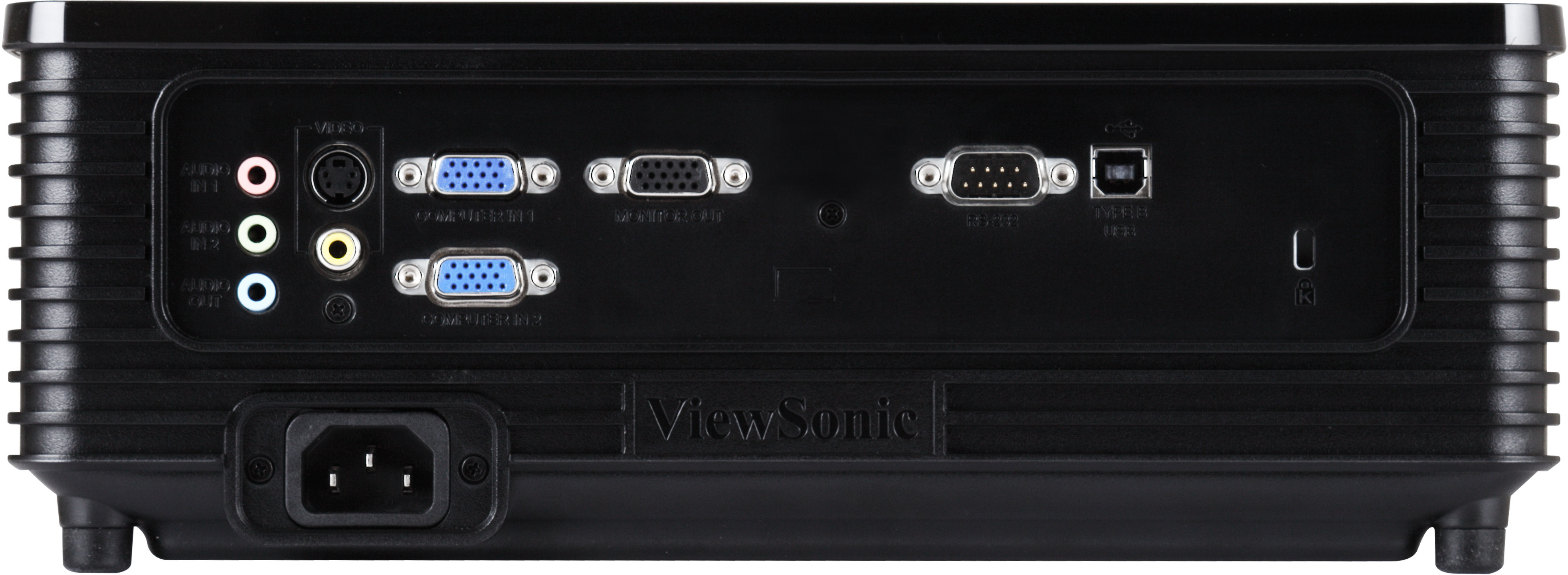

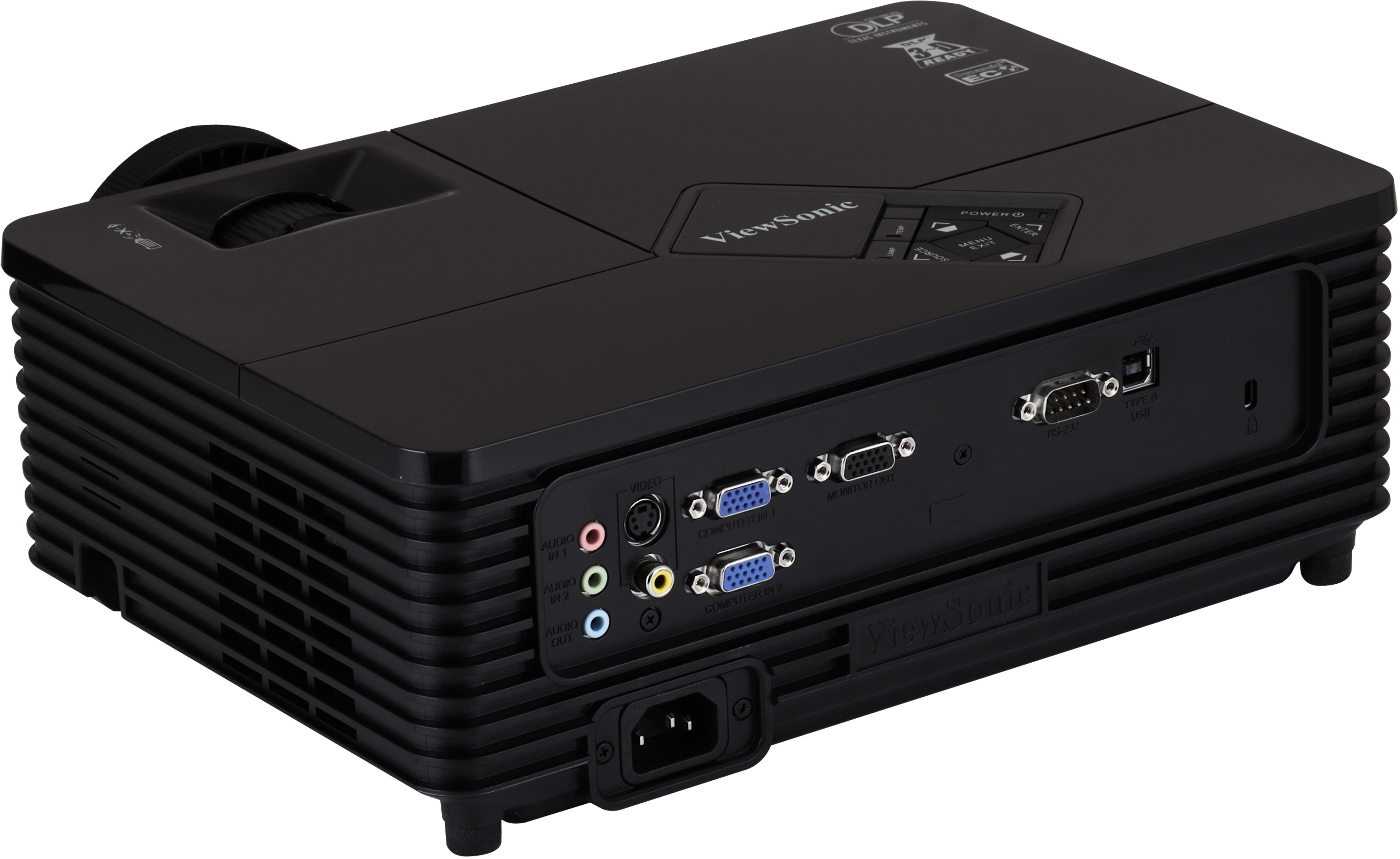

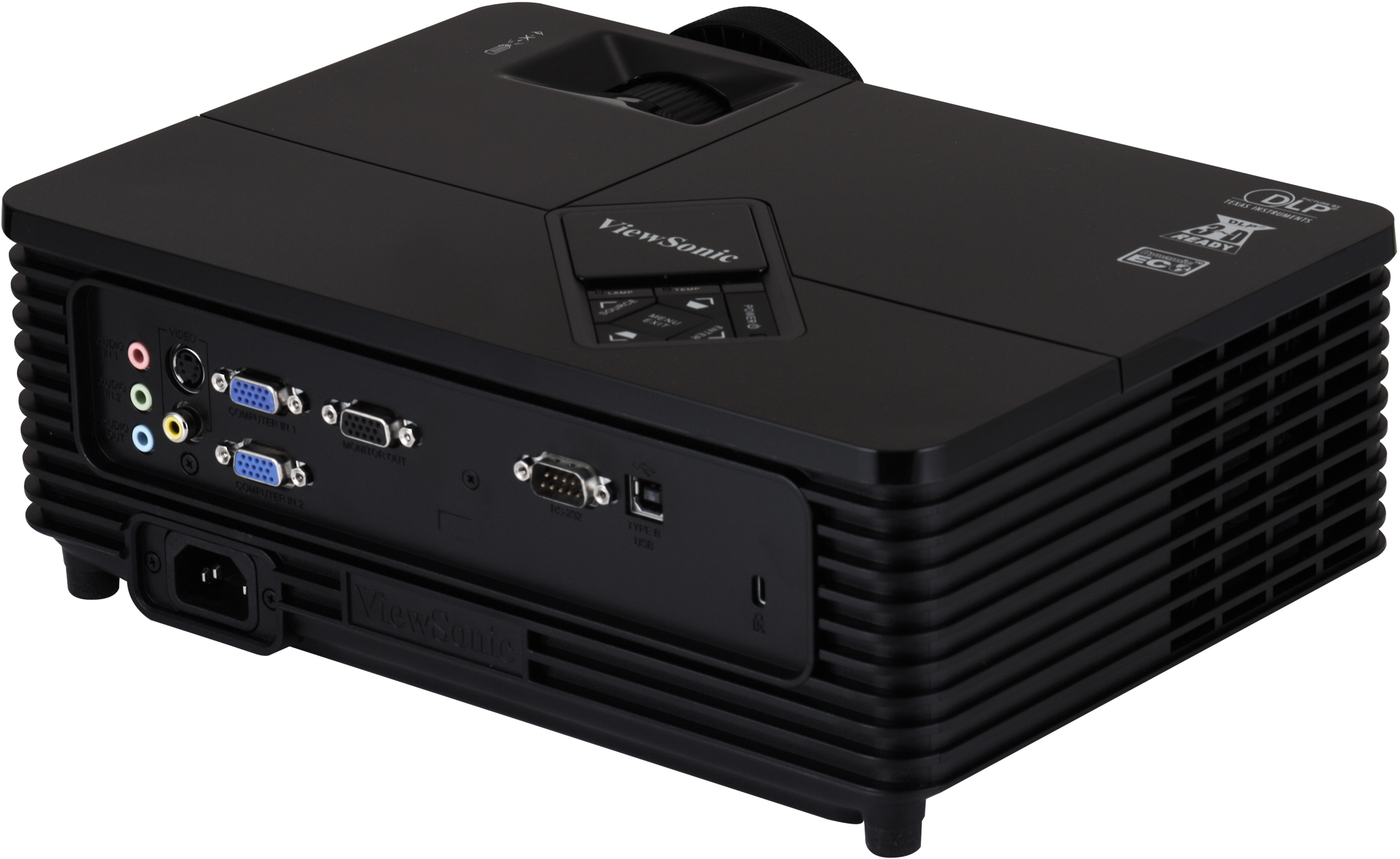

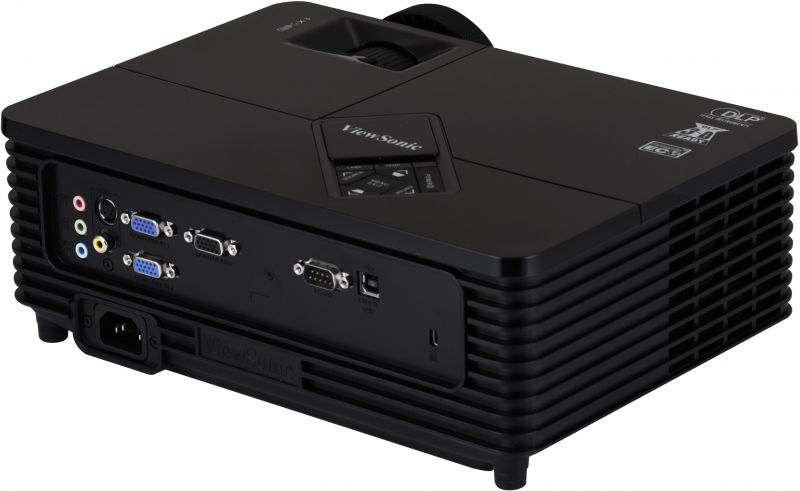

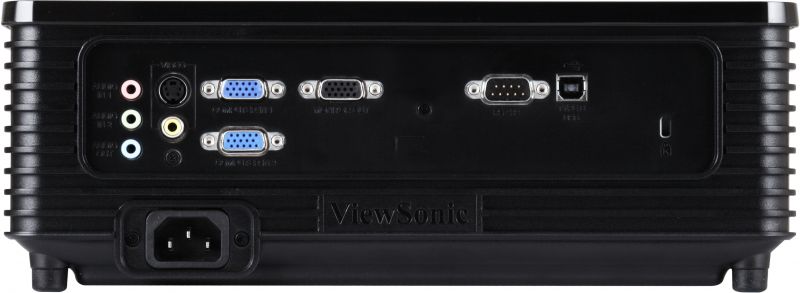

  • Input Connectivity
    VGA-in: 2
    Component Input: shared with VGA-in
    S-Video: 1
    Composite Input: 1
    Audio-in (3.5mm): 2
    USB Type B: 1 (Firmware, mouse control)
  • Output Connectivity
    VGA-out: 1
    Audio-out (3.5mm): 1
