OVERVIEW

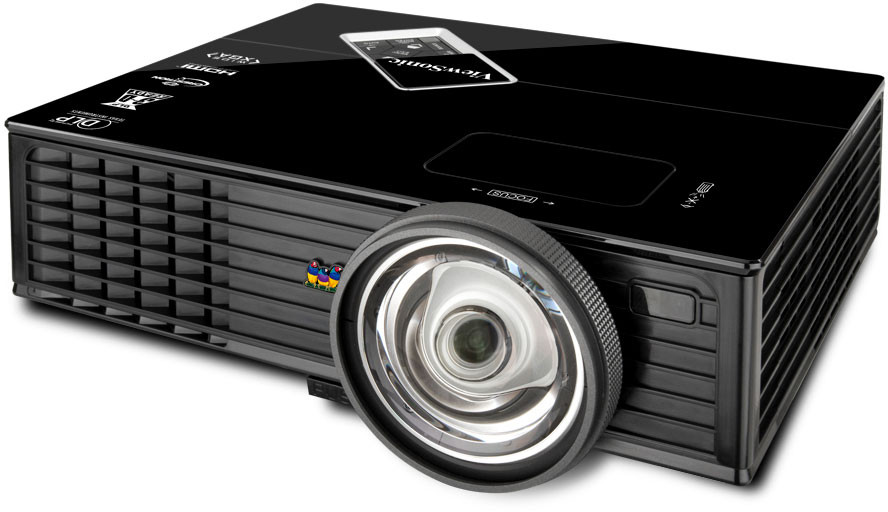

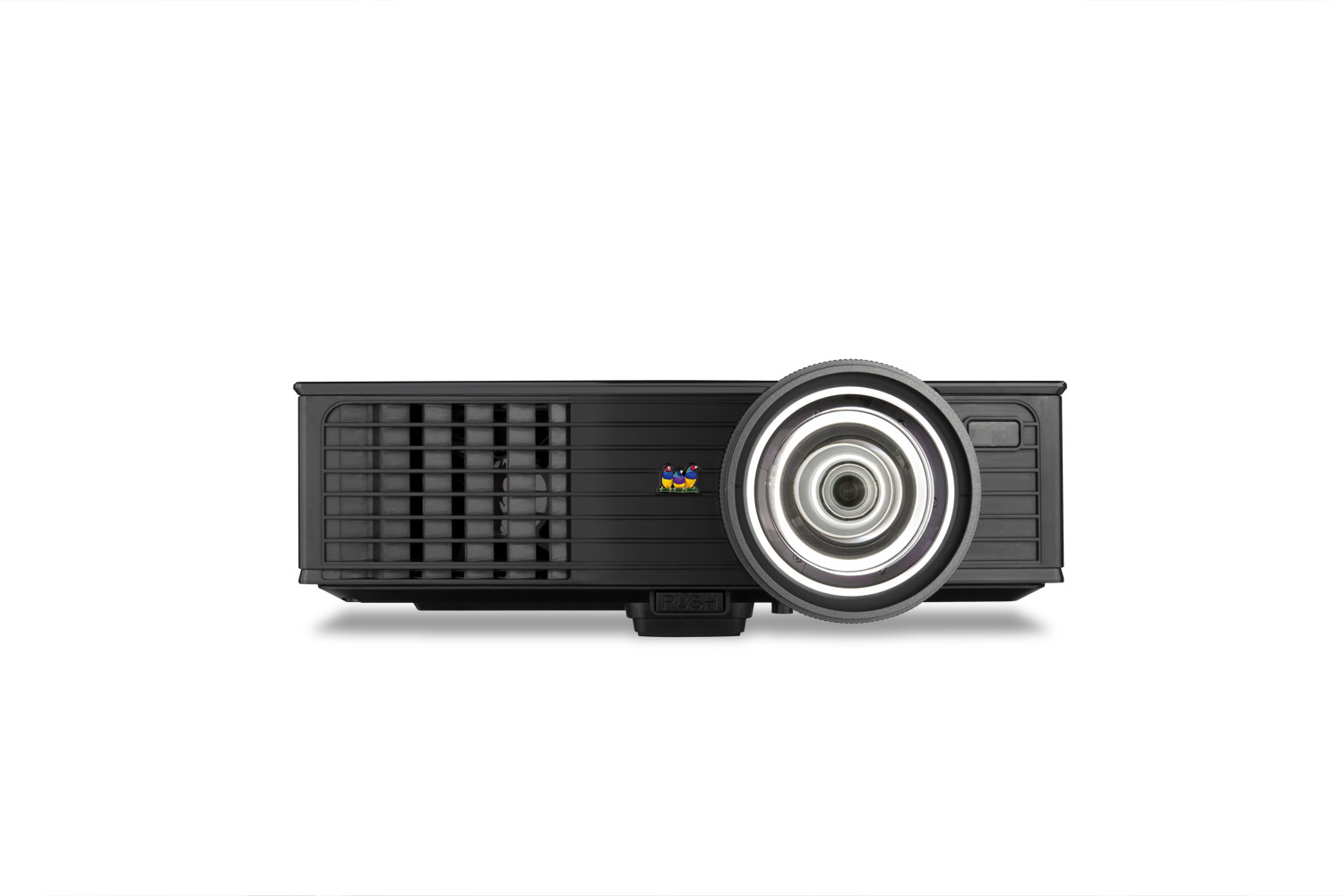

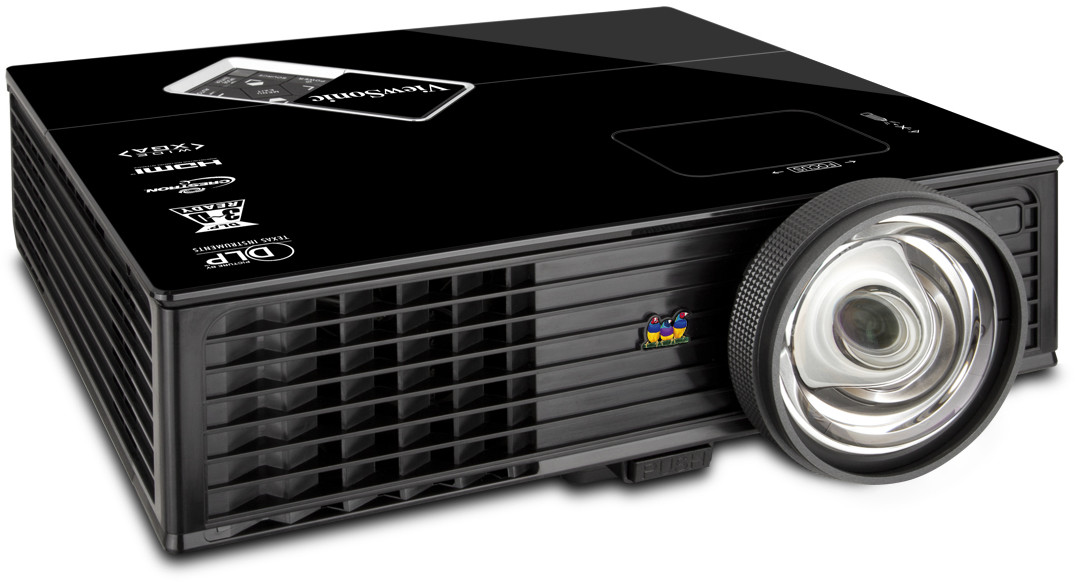

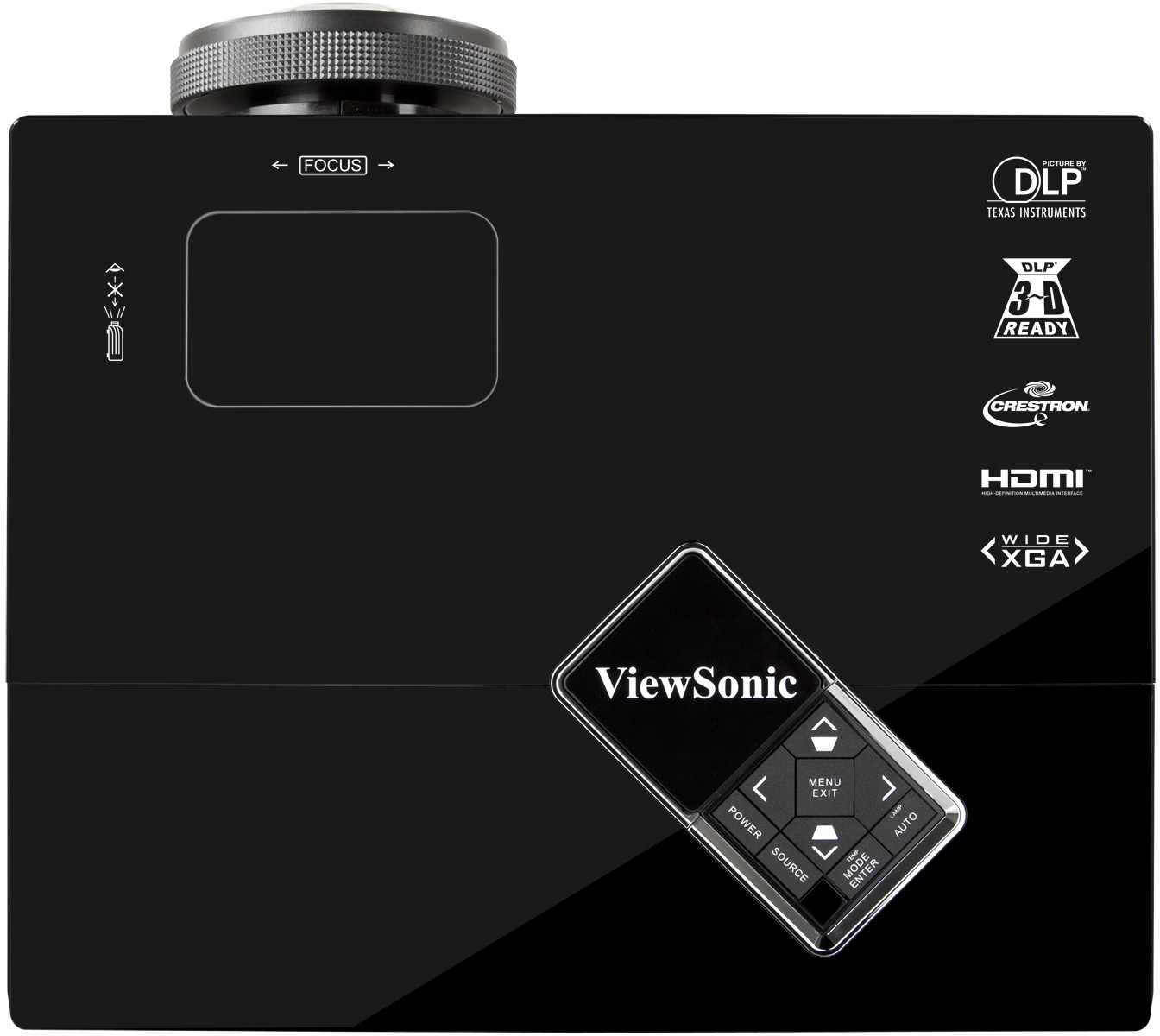

ViewSonic’s PJD6683w is an advanced networkable, widescreen, short throw DLP projector. Equipped with Crestron® built-in e-Control™ and RoomView Express™, it is ideal for classroomand corporate environments. The DynamicEco™ mode and Dynamic Movie mode automatically adjusts the brightness and contrast ratio to ensure true and vivid image quality is delivered.The PJD6553w has 3000 ANSI lumens and 15,000:1 high contrast ratio and incorporates BrilliantColor™ technology to producemore vibrant colours. Using DynamicEco™ technology, the presenters can dim the image for control of audience focus while saving up to 70% in energy. With extensive input options including HDMI and integrated 10W speaker for an amazing multimedia performance, this WXGA 1280x800 projector is ideal for classrooms or board rooms.

SPECIFICATIONS


  • Product Specification
    Resolution: WXGA (1280 x 800)
    Brightness (ANSI Lumens): 3,000
    Contrast (with Dynamic Contrast Ratio): 15,000:1
    Lamp Hour (Normal / Eco / DynamicEco): 3,500 / 5,000
    Throw Ratio in Meters (Wide ~ Tele): 0.5
    Optical Zoom: Fixed
    Digital Zoom: PC: 1.0x ~ 2.0x
    Screen Size: 30” ~ 300”
    Projection Offset: 130% +/- 5%
    Display Colours: 1.07 Billion Colours
    Keystone: +/- 40° (Vertical)
    Noise min (Normal / Eco): 33dB / 29dB
    Speaker: 10W x 1

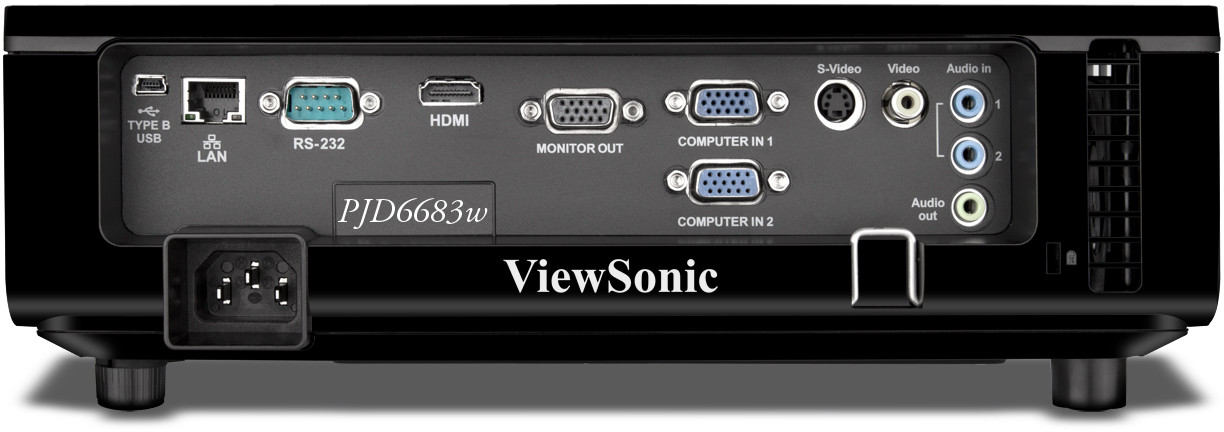

  • Input Connectivity
    HDMI In: 1
    VGA-in: 2
    Component Input: shared with VGA-in
    S-Video: 1
    Composite Input: 1
    Audio-in (3.5mm): 2
    Mini USB: 1 (Firmware, mouse control)
  • Output Connectivity
    VGA-out: 1
    Audio-out (3.5mm): 1
