OVERVIEW

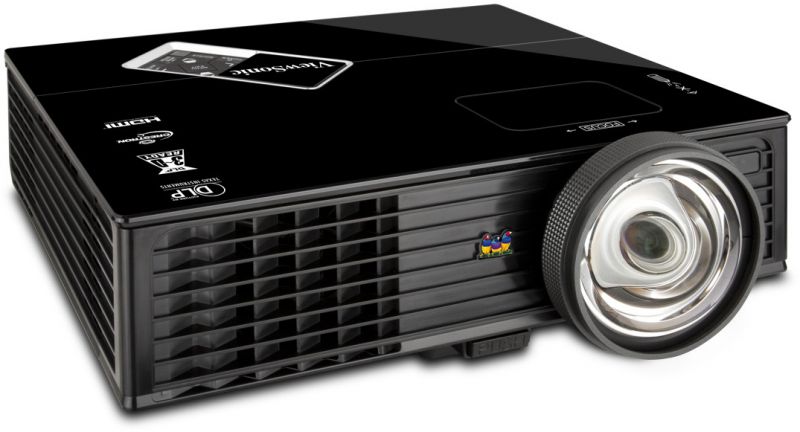

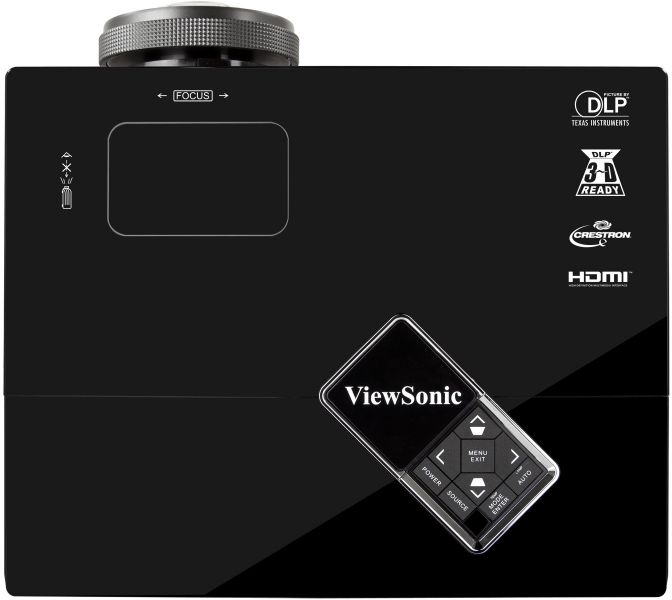

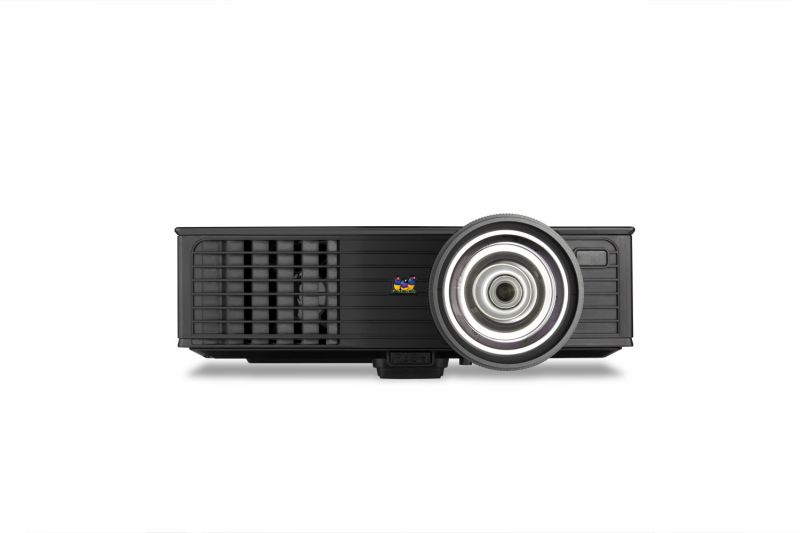

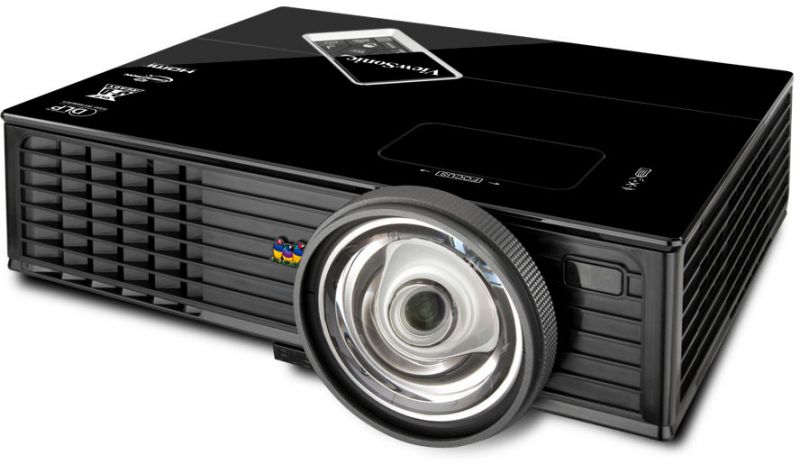

ViewSonic’s PJD6383 multimedia DLP® short-throw projector is ideal for education purposes showing images with high brightness and a defined resolution. It is compatible with the Crestron RoomView® network management software that facilitates processes by a centralized monitor and allows management of multiple projectors monitoring over LAN or WLAN. DynamicEco™ mode reduces power consumption and extends the projector’s lifespan where Dynamic Movie mode automatically adjusts the image brightness and contrast with the changing environments.Its exclusive technologies help teachers to provide a better teaching experience and save on total cost of ownership. Moreover, the projector can be easily and efficiently managed by IT persons and is optimal for educational campuses or libraries. Versatile connectivity and an HDMI interface allow for connection with multimedia devices and increases content attractiveness for classrooms.

SPECIFICATIONS


  • Product Specification
    Resolution: XGA (1024 x 768)
    Brightness (ANSI Lumens): 3,000
    Contrast (with Dynamic Contrast Ratio): 15,000:1
    Lamp Hour (Normal / Eco / DynamicEco): 3,500 / 5,000
    Throw Ratio in Meters (Wide ~ Tele): 0.61
    Optical Zoom: Fixed
    Digital Zoom: PC: 1.0x ~ 2.0x
    Screen Size: 30” ~ 300”
    Projection Offset: 130% +/- 5%
    Display Colours: 1.07 Billion Colours
    Keystone: +/- 40° (Vertical)
    Noise min (Normal / Eco): 33dB / 29dB
    Speaker: 10W x 1

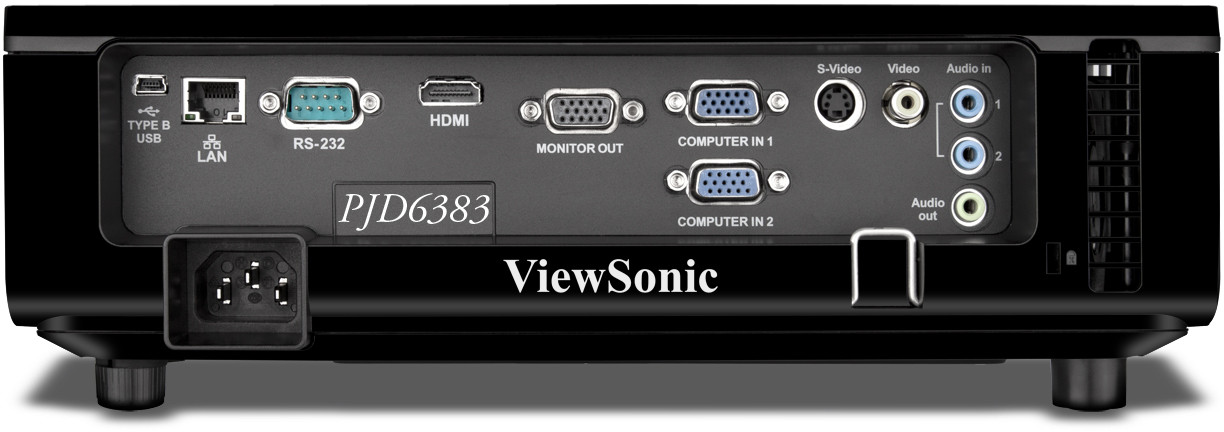

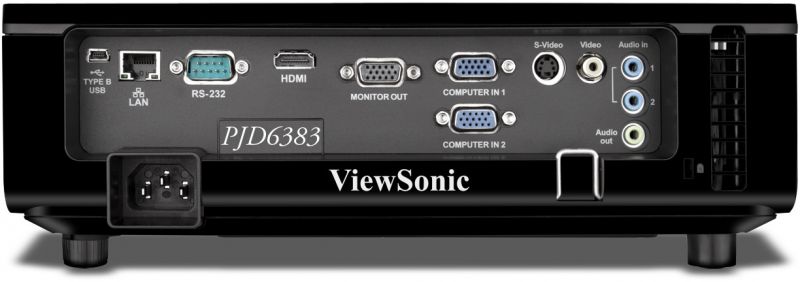

  • Input Connectivity
    HDMI In: 1
    VGA-in: 2
    Component Input: shared with VGA-in
    S-Video: 1
    Composite Input: 1
    Audio-in (3.5mm): 2
    Mini USB: 1 (Firmware, mouse control)
  • Output Connectivity
    VGA-out: 1
    Audio-out (3.5mm): 1
