OVERVIEW

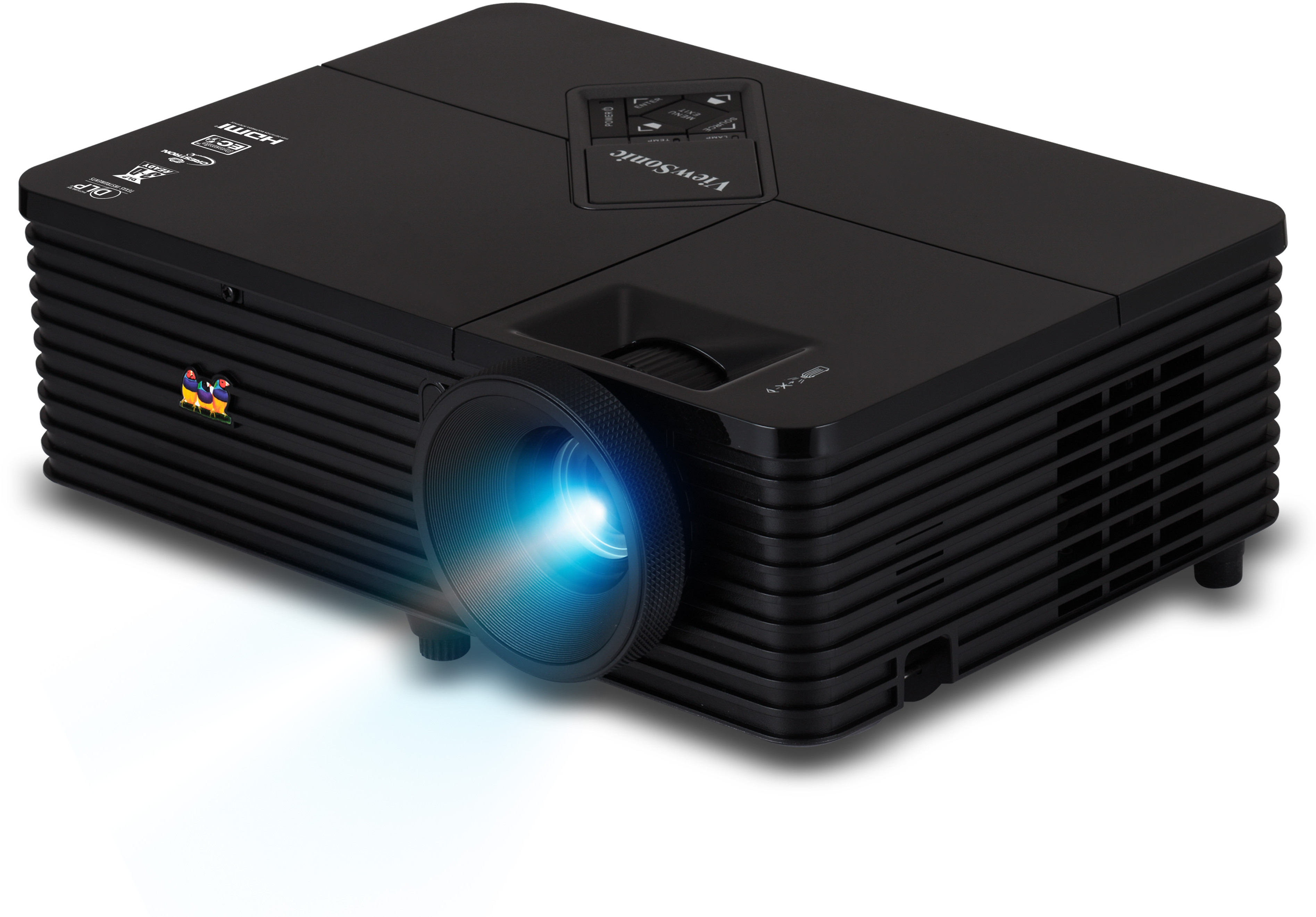

The PJD6345, a 3500 lumens projector, is ViewSonic’s most advanced model that offers smart network projection for effective and interactive presentations. Through a WiFi connection, this projector can access images and files stored in Android and iOS devices. You can install a projection application onto your Android and iOS device, which allows you to easily adjust projector settings, retrieve files and share your presentation, by simply touching the display on your smart device. Meanwhile, the Live Cam function allows you to activate the camera on your Android or iOS device for live image sharing.Similarily the Live Draw function provides real-time note-taking onto the projected content and saves it on the smart devices for instant and effective interaction. Through a RJ45 connection, the PJD6345 can simultaneously project inputs from 4 different computers for a flexible and efficient presentation. The PJD6345 also supports the CrestronRoomView® network management system that efficiently controls and manages all the projectors in the network from a central terminal. This facilitates the development of synergy among the participants. The embedded Office Viewer allows the projector to be operated by just plugging in an USB flash, eliminating the need for a PC in order to enjoy the presentation and multimedia contents. The PJD6345 has adopted cutting-edge technology to provide a smart and interactive option for upgrading your presentation to an unparalleled level.

Compatible with Android/iOS for smart and wireless connection

By plugging-in an optional WiFi USB dongle, such as ViewSonic’s WPD-100, into the PJD6345, you can connect your Android or iOS devices to this projector to enjoy an instant, smart network projection. With the ViewSonic’s application, that needs to be installed onto your Android or iOS device, you can now control the PJD6345 through the app, allowing you to share images and documents efficiently and intuitively. This application offers a Live draw function and Live cam function for a more interactive experience.

Wireless Display via WiFi

By plugging-in an optional WiFi USB dongle, such as ViewSonic’s WPD-100, to the PJD6345, you can now connect the projector to any WiFi equipped laptop for efficient image and audio transmission.

LAN projection increases the flexibility of the presentation

Through a LAN connection, the PJD6345 can connect with up to four PCs to simultaneously display all screens in a single projection. This allows users to share multiple resources to efficiently communicate in educational and professional environments.

An USB reader creates PC-less presentation

This projector supports a USB reader that can access files directly from an USB flash drive, rendering a PC-less projection. The preloaded Office Viewer on the PJD6345 supports file formats such as Word, Excel, Powerpoint, and PDF, as well as music and videos.

BrilliantColor technology provides stunning and defined images

ViewSonic integrates BrilliantColor™ technology into the PJD6345 to construct digital colors that deliver stunning, vibrant images. The advanced 6-segment color wheel specifically enriches the performance of yellow and further augments overall color reproduction to ensure a defined picture quality. The 3,500 lumens and 15,000:1 contrast ratio on the PJD6345 ensures clear, stunningly vivid images

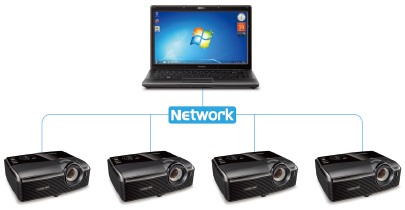

Crestron RoomView® network management system

Crestron RoomView® provides an advanced, real-time alert system that simplifies maintenance efforts by sending updates on the power status, lamp lifespan, and unit presence directly to your PC. It also automates device functions such as power on/off, and broadcasts urgent messages via closed captioning.

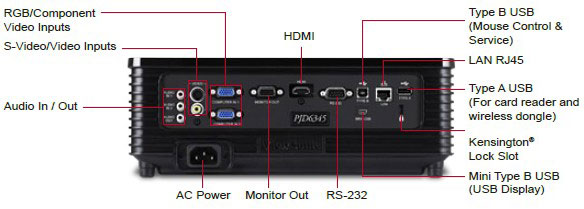

Versatile digital interface and input/output

The PJD6345 features a wide range of compatibility for high-definition content input including HDMI, Composite, S-video, and VGA input. The pair of 10W speakers, complemented with a microphone input, provides high volume audio without the need for external speakers.

Easy and quick connection via USB Display

The PJD6345 carries an USB Display function that provides an alternative way to set up your presentation. This can be done easily and quickly by connecting your laptop to the PJD6345 through an USB cable.

SPECIFICATIONS


  • Product Specification
    Resolution: XGA (1024 x 768)
    Brightness (ANSI Lumens): 3,500
    Contrast (with Dynamic Contrast Ratio): 15,000:1
    Lamp Hour (Normal / Eco / DynamicEco): 3,500 / 5,000 / 7,000
    Throw Ratio in Meters (Wide ~ Tele): 1.97 ~ 2.17
    Optical Zoom: 1.1x
    Digital Zoom: 2.0x
    Screen Size: 30” ~ 300”
    Projection Offset: 130% +/- 10%
    Display Colours: 1.07 Billion Colours
    Keystone: +/- 40° (Vertical)
    Noise min (Normal / Eco): 33dB / 30dB
    Speaker: 16W x 1

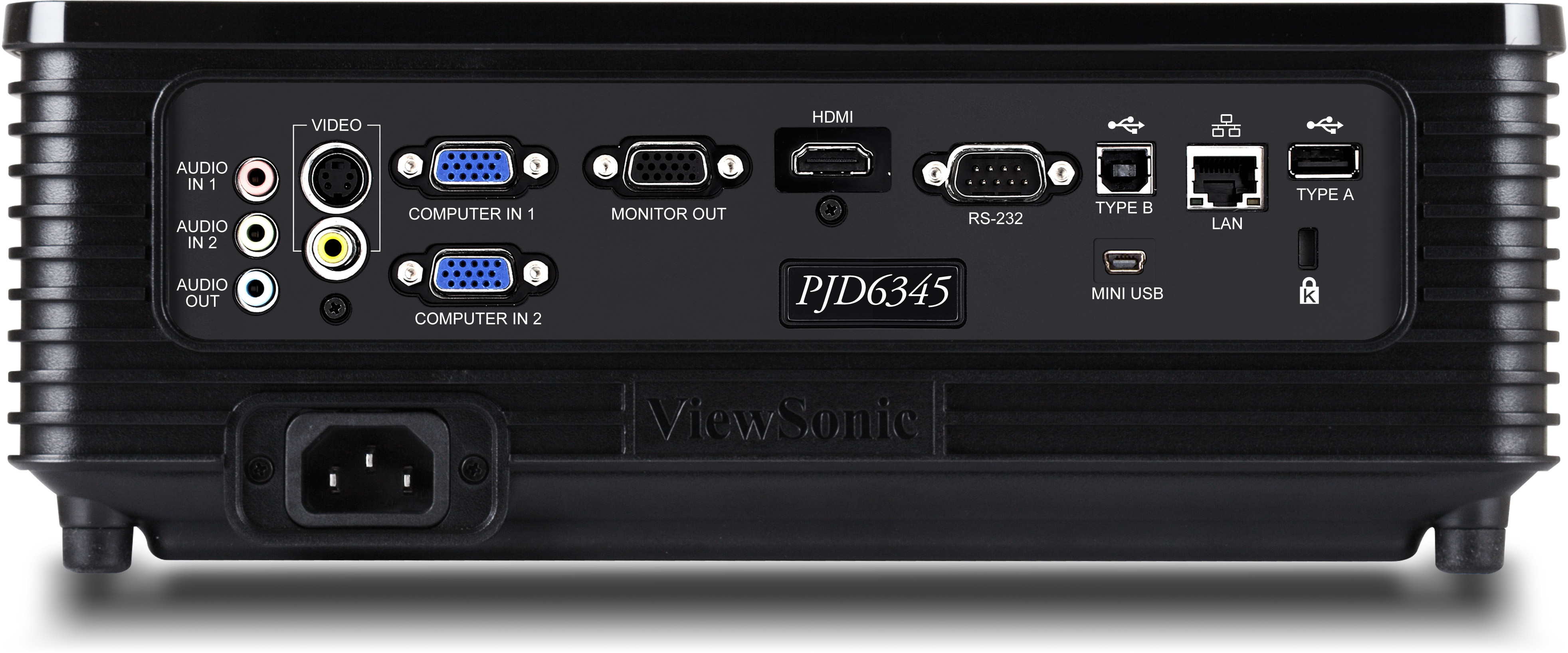

  • Input Connectivity
    HDMI In: 1
    VGA-in: 2
    Component Input: shared with VGA-in
    S-Video: 1
    Composite Input: 1
    Audio-in (3.5mm): 2
    USB Type A : 1 (WiFi dongle, USB display)
    USB Type B: 1 (Firmware, mouse control)
    Mini USB: 1 (USB display)
    Microphone in (3.5mm): Share with audio in 2
  • Output Connectivity
    VGA-out: 1
    Audio-out (3.5mm): 1
