PJD6251

LIGHT BRIGHT AND PORTABLE PROJECTOR 120HZ, 3D-READY

Sales Enquiry

GALLERY

Brilliant, bright image. Easy maintenance.

The advanced PJD6251 120Hz / 3D ready DLP projector includes BrilliantColor™ technology to produce more vibrant colors. The HDMI port provides high quality content. And the ultra-high brightness and contrast ratios make this projector shine in virtually any lighting situation. This projector offers table top and ceiling or wall mount options. Making it ideal for classrooms and meeting rooms. The top load lamp and filter-less design provides for easy maintenance and low total cost of ownership. RJ- 45 connectivity enables remote network control, while the extensive input options and integrated 2x5W speaker provide for effective presentations or classroom lessons. This projector also features closed captioning for the hearing impaired. Choose the PJD6251 for both classroom or corporate settings.

SPECIFICATIONS

COLORS
Black
COMPATIBILITY
PC: VGA to UXGA
Mac®: Up to 1024×768(may require Mac Adapter)
DIMENSIONS
Physical (WxHxD): 280×114×218(mm) / 11×4.5×8.58(inch)

REGULATIONS
CB, ROHS, WEEE, UL / cUL, FCC-B, ICES-003, IRAM(Argentina), NOMPSB,
C-tick, EK, CE, TUV / GS, GOST-R, Hygienic, SASO UKrSEPRO, CCC
PACKAGE CONTENTS
ViewSonic projector, power cable, VGA cable, remote control with
batteries, lens cap, Soft case, Quick Start Guide, ViewSonic Wizard
CD(with User Guide)
WARRANTY
3 years, 1years or 1000 hours
INPUT SIGNAL
Frequency: Fh:31-100KHz, Fv:50-120Hz
Computer and Video: NTSC M(3.58MHz), 4.43MHz, PAL(B, D, G, H, I, M, N, 60), SD 480i and
576i(24fps, 25fps and 30fps), ED 480p and 576p(24fps, 25fps and 30fps),
HD 720p, 1080i (24fps, 25pfs and 30fps)

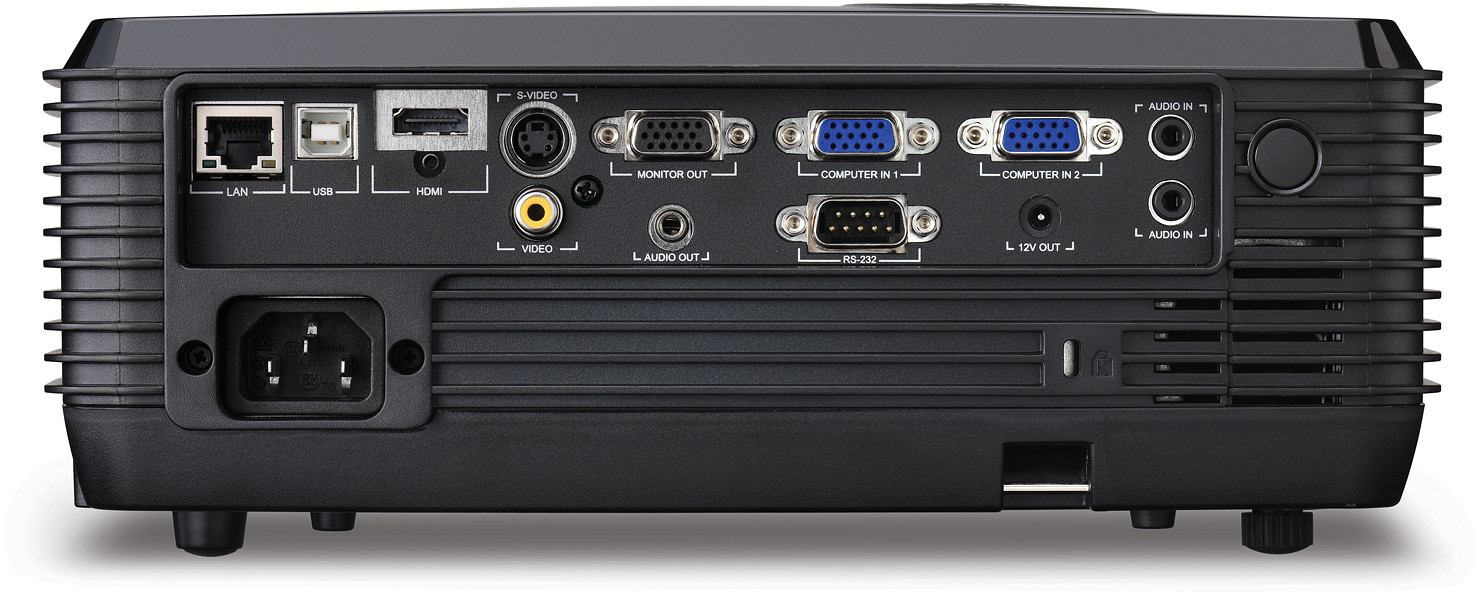

CONNECTOR
Audio Out: 1 × 3.5mm mini jack
PC RGB Input: 2 × 15-pin mini D-sub
S-Video Input: 1 × 4-pin mini-DIN
HDMI (input): 1 × HDMI 1.3
PC RGB Output: 1 × 15-pin mini D-sub
Audio Input: 2 × 3.5mm mini jack
Control: 1 × RS-232(9 Pin D-sub)
Composite Input: 1 × RCA jack
POWER
Voltage: 90~240VAC(Auto Switching), 50 / 60Hz(universal)
Consumption: 380W(Typical) / <1W(Stand-by mode)

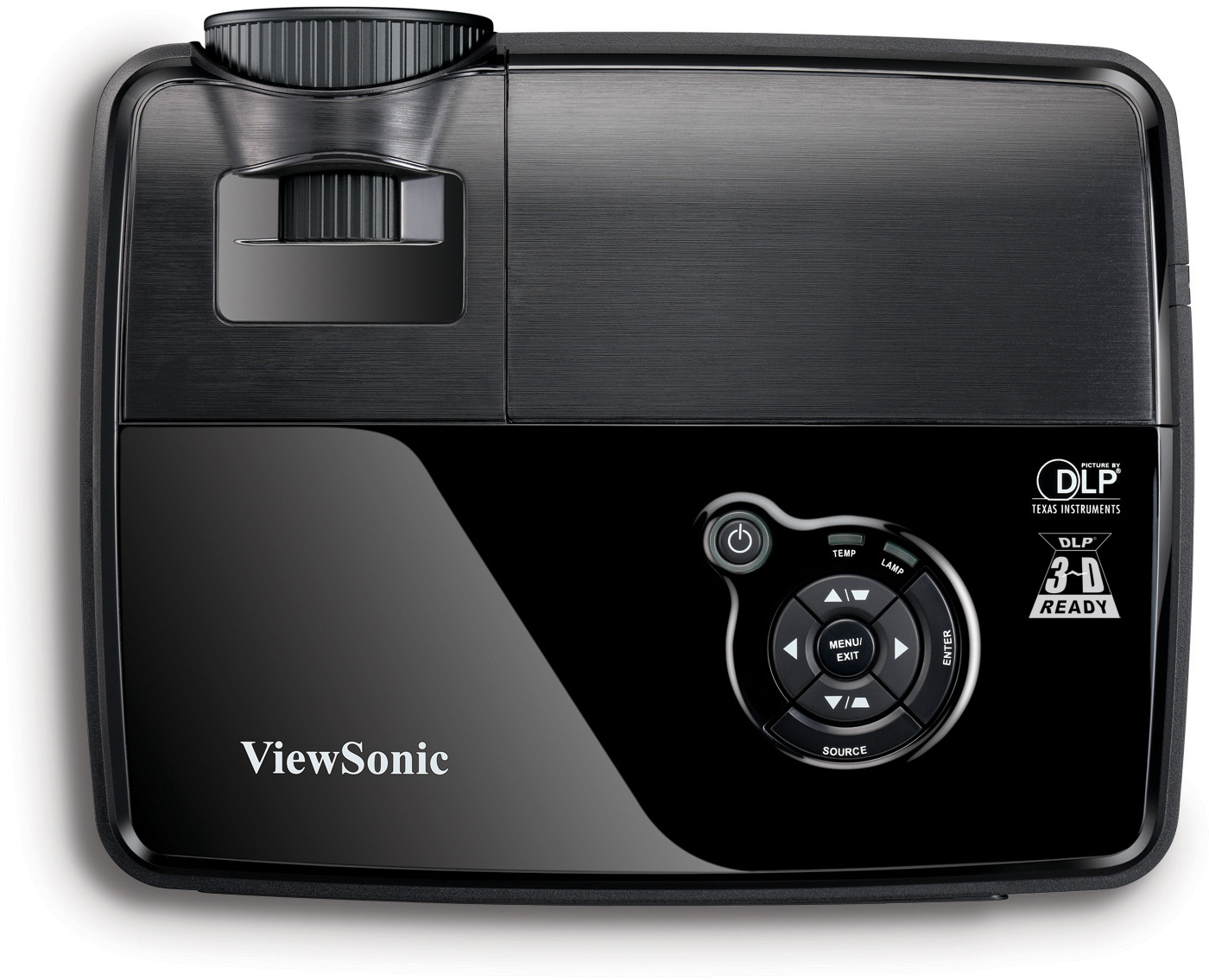

CONTROLS
Basic: POWER, Keystone/ Arrow keys, Left/ BLANK, MENU/ EXIT, Right/ Panel
key lock, AUTO, MODE/ ENTER, SOURCE
OSD: Picture: Brightness, contrast, color setting, keystone, aspect ratio, image,
white intensity, gamma, 3D sync, 3D sync invert.

Computer Image: Frequency, tracking, H position, V position.
Video Image: Saturation, sharpnes, tint.

Setting: Manu position, projection, signal type, lamp hour, lamp hour
reset, filter mode, filter hours, filter hours reset, power saving, auto source,
ECO mode, high altitude, OSD timeout.

Advance: Blank screen, password word, screen capture, start up screen,
text shot, digital zoom, DCR, close captions, brilliant color,
OPERATING CONDITIONS
Temperature: 0ºC-40ºC(32ºF-104ºF)
Humidity: 10%-90%(non-condensing)
Altitude: 0~1800m(6000ft), operational up to 3048m(10,000ft) at reduced reliability
and performance
WEIGHT
Net: 2.95kg (6.5lb)
DISPLAY
Brightness (maximum): 3700 Lumens
Contrast Ratio : 2800:1
Display size: 0.8m - 7.6m (30" - 300")
Aspect Ratio: 4:3(native) & 16:9
Throw Distance: 1m-10m
Throw Ratio: 1.6-1.9
Color Wheel: 6-Seg RGBCYW / 7200rpm
Color Gamut: 85 % NTSC 1931 CIE
Lamp life ( Normal / Eco / Dynamic Eco ): 4000 / 5000(hours)
Type: 1.4 cm / 0.55" Digital Micromirror Device(DLP™)
Resolution: XGA 1024×768(Native) / SXGA 1600×1200(compressed)
Keystone: Vertical digital keystone correction:+/- 40 degrees
Lamp: 230watt
Lens: 1.2 × Manual optical zoom / Manual optical focus
Color Depth: 24 bits, 16.7M Colors(8+8+8)
NOISE LEVEL
Normal: 37dB
Eco-mode: 35dB
LANGUAGE
English/ Dutch/ French/ Spanish/ Italian/ Korean/ Thai/ Portuguese/ T.
Chines/ S. Chinese/ Japanese/ Russian/ German/ Swedish/ Turkish/ Finnish/
Polish
