OVERVIEW

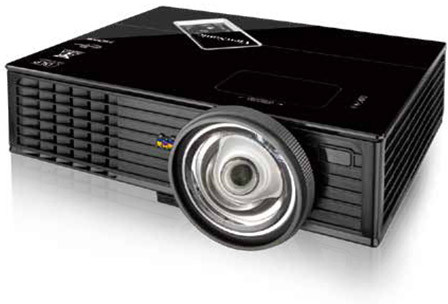

ViewSonic’s new short throw projection model,the PJD5453s, requires merely 0.76 meter for a 72” image projection. It is perfect for use in limited room space. Boasting BrilliantColor™ technology, 2,500 lumens, and a 15,000:1 contrast ratio, the PJD5453s delivers clear, crisp images and vividly accurate colors to best meet the environment requirements of any presentation. This budget-friendly option features DynamicEco Technology allowing it to automatically adjust lamp brightness, extending the lamp life to 8000 hours. The HDMI connection and multiple video input options in the PJD5453s provide flexible connections to a variety of media devices while the integrated speaker saves the effort of connecting external speakers. The Off-to-Go mode, vertical keystone correction, and 144Hz/3D ready functions allow the operation of this projector series to be simple and efficient, making presentations easier than ever.

Short Throw projection

The PJD5453s adopts a cutting-edge short throw lens that requires 0.76 meters for a 72” image projection. The short throw facilitates a more comfortable presentation experience by eliminating distractions from shadows on the screen, as well as eyestrain and glare from the projector’s blinding light.

XGA resolution, 2,500 lumens, and 15,000:1 contrast
ratio

The PJD5453s supports 2,500 lumens brightness and 15,000:1 contrast, ensuring image quality will remain crystal clear and vivid even in bright environments.

10000-hours high performance long-life light bulbs

The The energy-saving mode on the PJD5453s automatically adjusts the brightness to optimize performance, extending the lamp life to up to 10,000 hours and saving maintenance costs.

DynamicEco Technology makes excellent energy conservation

ViewSonic’s proprietary DynamicEco Technology will automatically adjust lamp brightness to render a longer projector lamp life and conserve up to 70% power consumption.

3D Projection Ready

The 3D DLP® Link technology supports an image update frequency of 144Hz, allowing the projected image to be shown with a 3D stereoscopic effect.

Off-to-Go Mode saves your time

The efficient Off-to-Go mode on the PJD5 series enables quick shutdown and turn-on, saving every second of your valuable time. The PJD5 series takes only 3 seconds to turn on, while shutting down instantly and requiring zero power consumption to cool down the projector.

Easy vertical keystone correction

When projectors are tilted, the projection image aspect ratio may display rectangular images in a trapezoidal shape, resulting in image distortion. The PJD5 series offers +40°/-40° keystone correction to fix projected image distortion issues easily and quickly.

Ultra-low power consumption in standby mode

The PJD5453s consumes only 0.5W in standby mode, saving ownership cost and practicing environmental friendliness.

SPECIFICATIONS


  • Product Specification
    Resolution: XGA (1024 x 768)
    Brightness (ANSI Lumens): 2,500
    Contrast (with Dynamic Contrast Ratio): 15,000:1
    Lamp Hour (Normal / Eco / DynamicEco): 4,500 / 6,000 / 8,000
    Throw Ratio in Meters (Wide ~ Tele): 03-10-15
    Optical Zoom: Fixed
    Digital Zoom: 2.0x
    Screen Size: 40" ~ 300”
    Projection Offset: 130% +/- 10%
    Display Colours: 1.07 Billion Colours
    Keystone: +/- 40° (Vertical)
    Noise min (Normal / Eco): 32dB / 29dB
    Speaker: 2W x 1

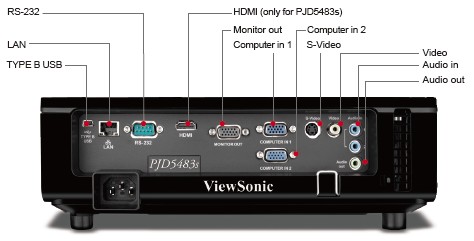

  • Input Connectivity
    VGA-in: 2
    Component Input: shared with VGA-in
    S-Video: 1
    Composite Input: 1
    Audio-in (3.5mm): 2
    USB Type B: 1 (Firmware, mouse control)
  • Output Connectivity
    VGA-out: 1
    Audio-out (3.5mm): 1
