OVERVIEW

ViewSonic’s new PJD5 Series features DynamicEco Technology to automatically adjust lamp brightness and thereby extend lamp life to 10000 hours. Requiring only 0.5W power consumption in standby mode, the PJD5 series lowers the total ownership cost, making it a budget friendly option. This series has a slim and portable design that weighs less than 5 pounds. Boasting BrilliantColor™ technology, 3,000 lumens, and 15,000:1 contrast ratio, the PJD5 series delivers clear, crisp images and vivid, accurate colors, while supporting a variety of resolutions, to best meet the environmental requirements of any professional presentation. The HDMI connection, multiple video input options and integrated speakers in the PJD5 series provide flexible connections to a variety of devices. Additionally, the Off-to-Go mode, vertical keystone correction, and 144Hz/3D ready functions allow the operation of this projector series to be simple and efficient, making business presentations convenient, smart, and easy. The PJD5 series delivers value to you by fully utilizing every second.

Hight brightness and contrast ration ensures the stunning image quality

The PJD5 series carries a variety of models with a versatile range of resolutions to cater to specific image quality requirements. Each model will support 3,000 lumens brightness and 15,000:1 contrast, ensuring the image quality will remain crystal clear and vivid even in the bright environments.

DynamicEco Technology makes excellent energy conservation

ViewSonic’s proprietary DynamicEco Technology will automatically adjust lamp brightness to render a longer projector lamp life and conserve up to 70% power consumption.

BrilliantColor™ technology delivers vivid colour to the life

ViewSonic integrates BrilliantColor™ technology into the PJD5 series to construct digital colours that deliver stunning and vivid images. The advanced 6-segment colour wheel enriches the performance of the yellow colour and further augments overall colour reproduction to present defined picture quality.

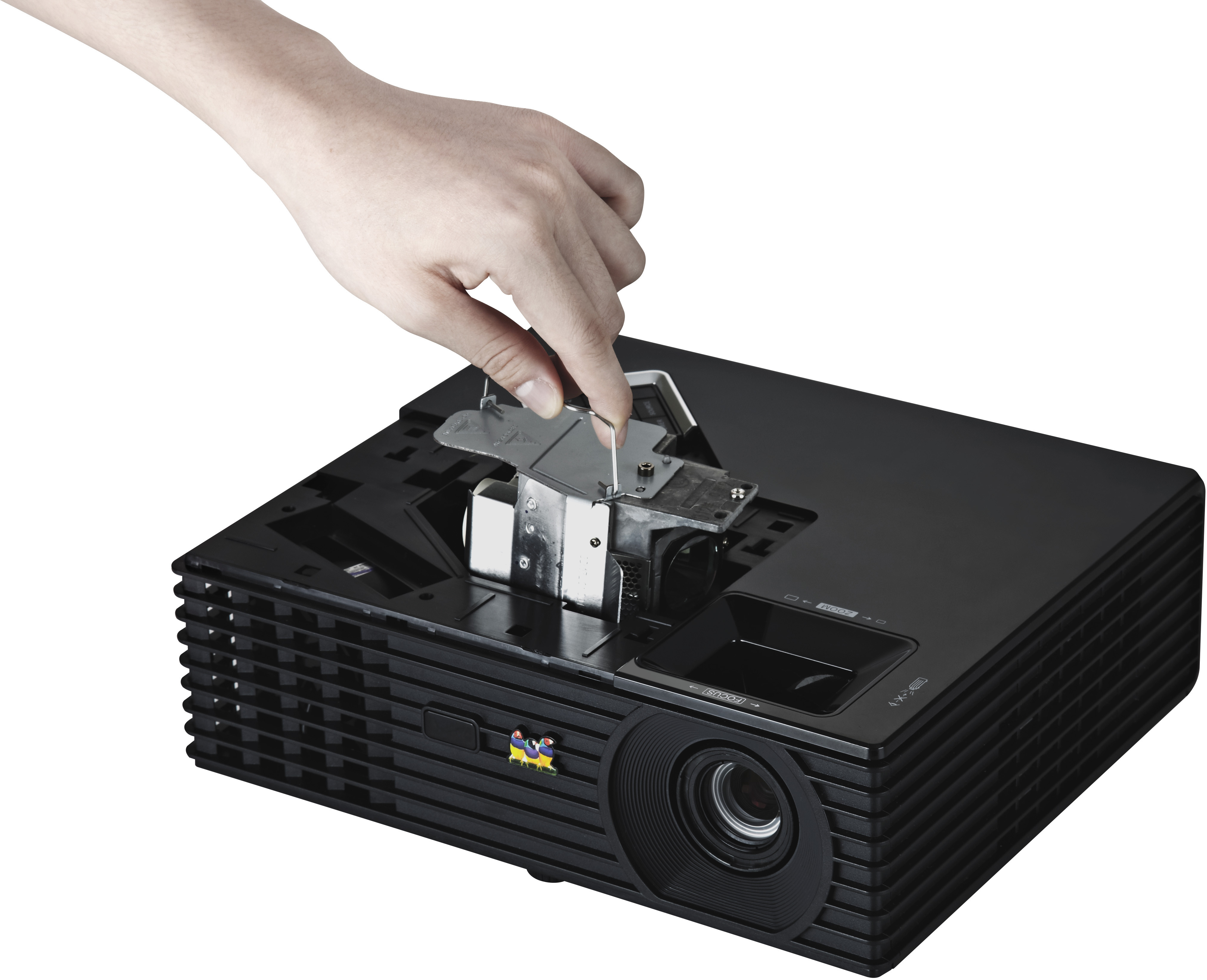

10000-hours high performance long-life light bulbs

The energy-saving mode on the PJD5 series automatically adjusts the brightness, which extends the lamp light to up to 10,000 hours and saves on maintenance costs.

3D Projection Ready HDMI 1.4 Input (only for PJD5134, PJD5234, PJD5234L, PJD5533w)

The 3D DLP® Link technology supports an image update frequency of 144Hz, allowing the projected image to be shown with a 3D stereoscopic effect. Along with HDMI 1.4, the PJD5 series brings supreme images onto a large screen.

Ultra-low power consumption in standby mode

The PJD5 series consumes only 0.5W in standby mode, saving ownership cost and practicing environmental friendliness.

Off-to-Go Mode saves your time

The efficient Off-to-Go mode on the PJD5 series enables quick shutdown and turn-on, saving every second of your valuable time. The PJD5 series takes only 3 seconds to turn on, while shutting down instantly and requiring zero power consumption to cool down the projector.

Easy vertical keystone correction

When projectors are tilted, the projection image aspect ratio may display rectangular images in a trapezoidal shape, resulting in image distortion. The PJD5 series offers +40°/-40° keystone correction to fix projected image distortion issues easily and quickly.

REVIEWS


Review of PJD5134

“The ViewSonic PJD5134 provides decent image quality and a good range of connectivity choices as a budget-priced, low-resolution portable data projector. [...] The PJD5134 offers a good mix of low price, portability, brightness, connectivity, and image quality suitable for typical business and classroom presentations.”

Read Review

SPECIFICATIONS


  • Product Specification
    Resolution: SVGA (800 x 600)
    Brightness (ANSI Lumens): 3,000
    Contrast (with Dynamic Contrast Ratio): 15,000:1
    Lamp Hour (Normal / Eco / DynamicEco): 5,000 / 6,000 / 10,000
    Throw Ratio in Meters (Wide ~ Tele): 1.86 ~ 2.04
    Optical Zoom: 1.1x
    Digital Zoom: 2.0x
    Screen Size: 24” ~ 300”
    Projection Offset: 120% +/- 5%
    Display Colours: 1.07 Billion Colours
    Keystone: +/- 40° (Vertical)
    Noise min (Normal / Eco): 32dB / 29dB
    Speaker: 2W x 1

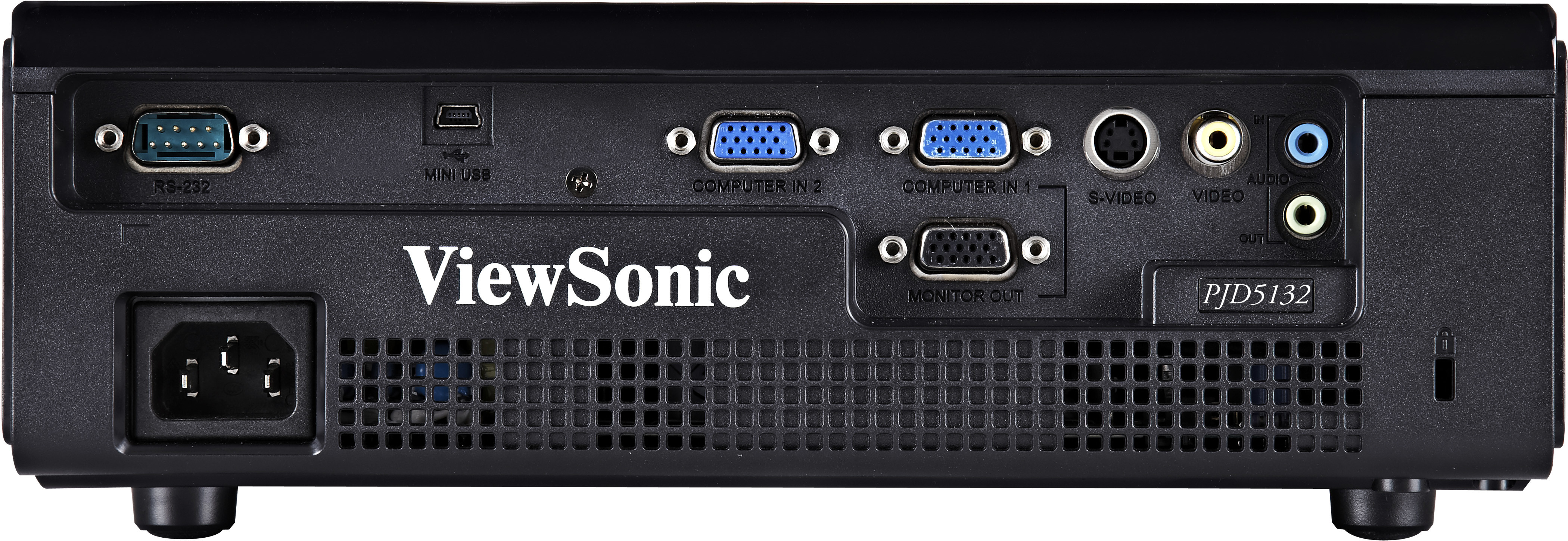

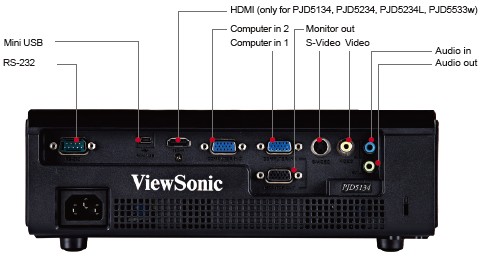

  • Input Connectivity
    HDMI In: 1
    VGA-in: 2
    Component Input: shared with VGA-in
    S-Video: 1
    Composite Input: 1
    Audio-in (3.5mm): 1
    Mini USB: 1 (Firmware, mouse control)
  • Output Connectivity
    VGA-out: 1
    Audio-out (3.5mm): 1
