PJD5133

Easy to use, easy to afford.

Sales Enquiry

GALLERY

OVERVIEW

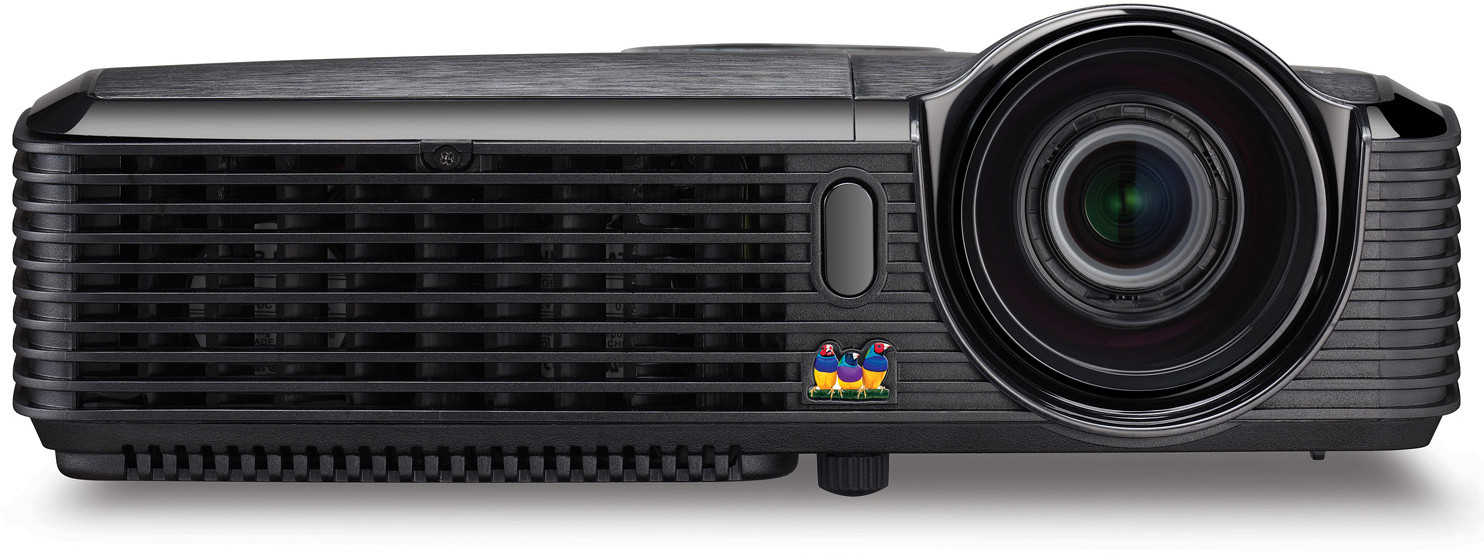

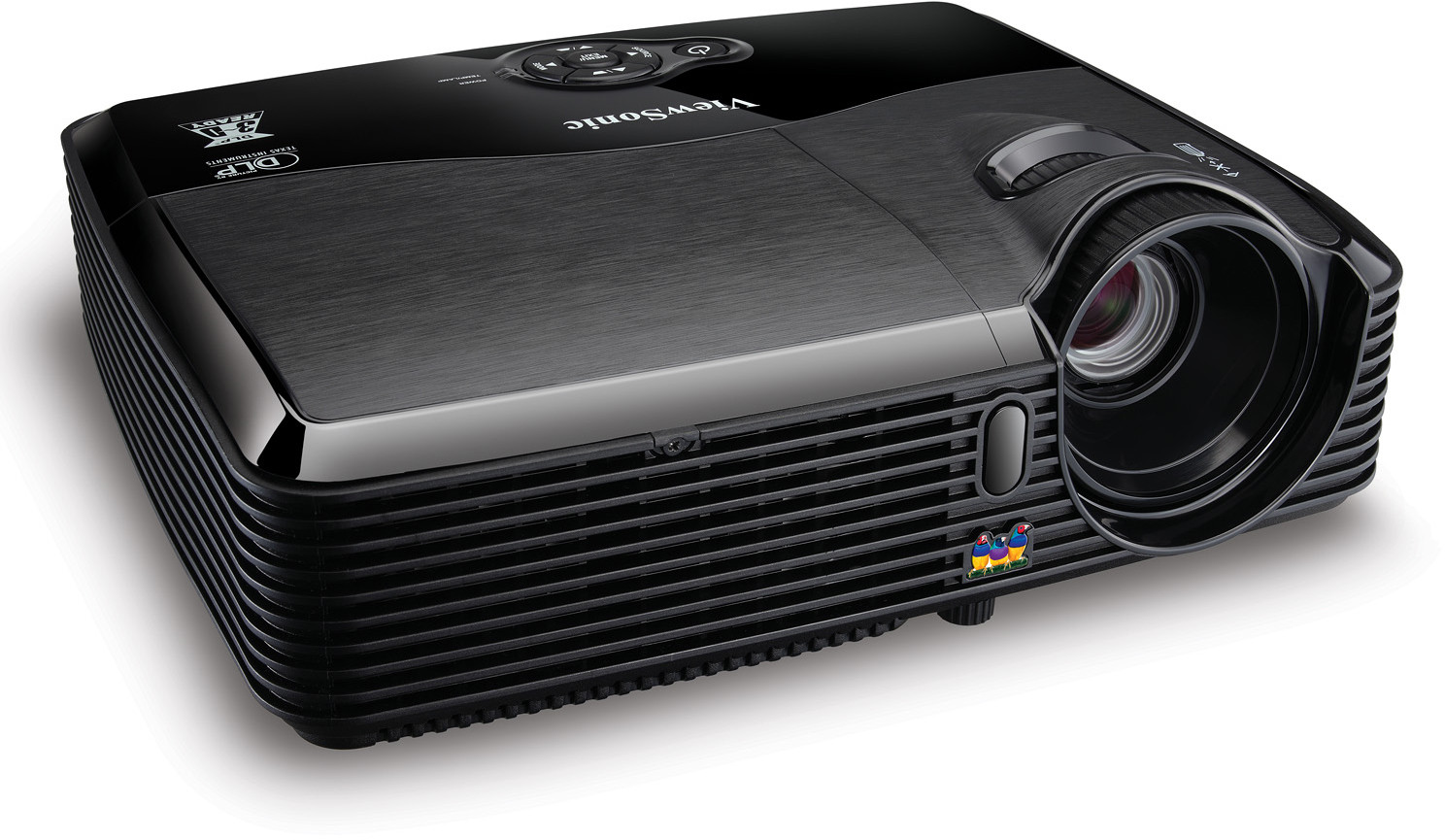

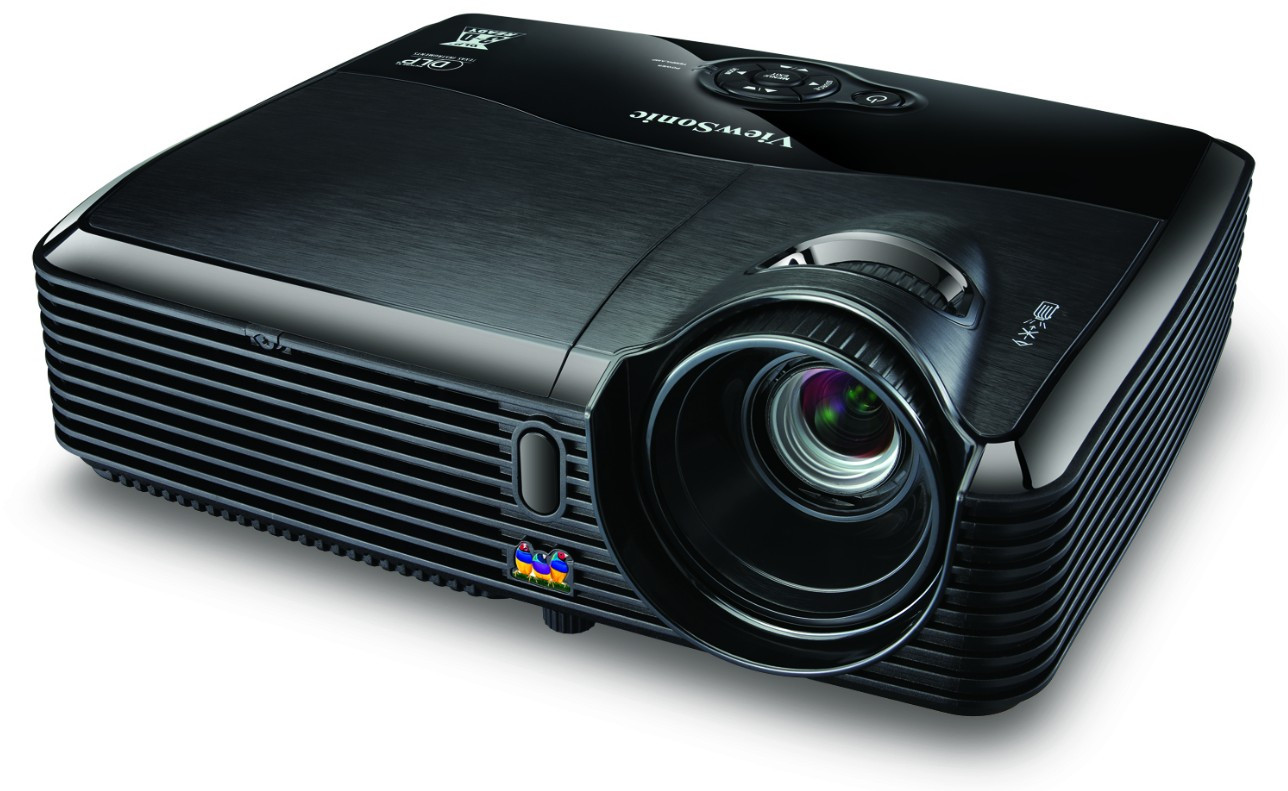

The ViewSonic® PJD5133 is a high-performance SVGA 800x600 DLP® projector with 2700 ANSI lumens and 3000:1 contrast ratio. With new slim design at only 3.2 inches high, makes it ideal to move from room to room on campus or throughout the office. This projector offers a variety of hardware and software features including HDMI, multiple PC and video input options, 1.1x manual optical zoom, vertical keystone correction, 120Hz/3D-ready, support HD video signal and integrated speaker. Filter-less design and energy-saving* Eco-mode provide for easy maintenance and longer product life. The PJD5133 lightweight design is ideal for tabletop use or ceiling mounting in both classrooms and corporate offices.

Key Features:

2,700 ANSI lumens for clear and bright images
BrilliantColor™ technology provides exceptional display quality
HDMI for true digital picture clarity
6-segment color wheel design, auto source detection, support HD video signals & integrated speaker
3D-Ready & up to 120Hz refresh rate powered by DLP® Link Technology
ECO mode & filter-less design for longer product life & easy maintenance
New slim design for easy mobility

Bright in virtually any setting
Using less watts per lumen than other comparable projectors. And with a 3000:1 dynamic contrast ratio, it’s the bright choice for business, education and mobile presenters

Settings where the PJD5133 is the perfect solution:

Business - conference rooms, meetings, brainstorming, etc.
Classrooms - lectures, videos, project presentations and even auditorium presentations
Mobile presentations - ideal for the business travelers , on-the-road presenters

Business

Education

Home

DLP Technology
Advanced DLP (Digital Light Processing) technology allows you to experience crystal clear, razor-sharp and lifelike images with the same DLP technology that Hollywood relies on. For fast action, the response time is also on the order of 1,000 times faster than similiar LCD based projectors. And with no air filters to clean or change, the latest generation of DLP based projectors from ViewSonic offer amongst the lowest TCO (total cost of ownership) in the industry. Check out the TCO calculators at http://www.viewsonic.com/viewschool/dlp-tco-calculator/

BrilliantColor™ technology
Color is one of the most important characteristics of a good projection system, and the latest BrilliantColor technology delivers stunning all-digital clarity with lifelike color, sharp graphics and outstanding video. The sophisticated 6-segment color wheel enhances the yellow color performance that is key to accurate and vivid color reproduction. With multi-color processing, colors are richer and more vibrant with exquisite and precise detail.

The HDMI Advantage
Delivers the best high-definition video and audio quality without losing any degradation. It's perfect for connecting to any high definition home entertainment devices like Blu-ray® DVD players, HD gaming consoles and HD receivers.

Packed with features

6-segment color wheel design improves color performance and accuracy to provide natural, vivid colors
Auto source detection senses the source input and syncs with your computer automatically
Support wide range of digital signals from SD (480i/480p) to HD (720p/1080i/1080p)
Integrated speaker ideal for multimedia applications, videos, audio-enabled presentations

3D-Ready / 120Hz refresh rate powered DLP® Link Technology
With support for TI’s DLP Link technology, you’ll have amazing 3D capabilities at your disposal. The projector’s embedded emitter function means all that’s required to unlock 3D capabilities is a pair of DLP Link compatible glasses, such as the optional ViewSonic PGD-250 active shutter glass kit*.

Eco-mode saves money, power and helps the planet
With only a slight 20% decrease in brightness, the ECO-mode function can extend the life of your lamp by almost 50% and up to 6,000 hours in some cases. Other benefits of ECO-mode operation include reduced power consumption, as well as less heat and audible noise output. It´s good for the environment and great for your budget. The ECO-mode function will definitely help lower your total cost of ownership (TCO).

New Slim Design
At only 3.2 inches height and lightweight 5.7 pounds, it´s light and compact, making it ideal for mobility and portability.

We´ll help you calculate the distance
Choose a projector that fits your space, as well as your lifestyle and needs. Simply determine your desired image size and then cross reference on this chart to locate the required projection distance. An interactive distance calculator specific to each and every ViewSonic projector is also available here to help calculate desired image size and throw distance based on your screen size.

ViewSonic projector feature comparison

What´s in the Box

ViewSonic projector
Power cable
VGA cable
Remote control with batteries
Quick Start guide
ViewSonic Wizard CD (with User Guide)

Dimensions and other features:

Product Dimensions (w x h x d): 11.2 × 3.2 × 9.2 (in) / 284 × 82 × 234 (mm)

SPECIFICATIONS

COLORS
Black
COMPATIBILITY
Mac®: Up to 1600×1200 @ 60Hz (may require Mac Adapter)
PC: VGA to UXGA
DIMENSIONS
Physical (WxHxD): 11.2 × 3.2 × 9.2 (in) / 284 × 82 × 234 (mm)
Packaging: 13.0 × 13.0 × 5.5 (in) / 330 × 330 × 140 (mm)

REGULATIONS
RoHS, CB, CCC, PSB,C-tick, KC, SASO, CE, GOST-R, Ukr, ErP, SVHC list & REACH DoC, UL, FCC (including ICES-003), cUL/CSA, Argen, NOM
PACKAGE CONTENTS
ViewSonic projector, power cable, VGA cable, remote control with batteries, Quick Start Guide, ViewSonic Wizard CD (with User Guide)

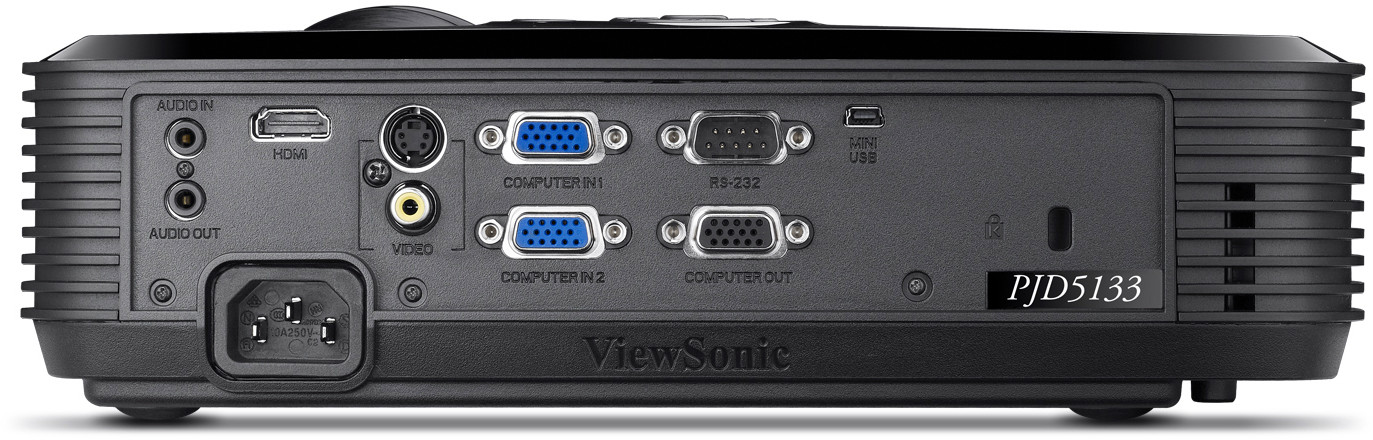

CONNECTOR
Audio Out: 3.5mm mini jack
S-Video Input: 4-pin mini-DIN
HDMI (input): HDMI 1.3
Component Video Input: 15-pin mini D-Sub (shared with RGB) (x2)
Audio Input: 3.5mm mini jack
Control: RS-232 (DB-9)
Composite Input: RCA jack
RGB Input: 15-pin mini D-sub (x2)
RGB Output: 15-pin mini D-sub
POWER
Voltage: 100~240VAC (Auto Switching), 50/60Hz (universal)
Consumption: 235W (typ) / <1W (stand-by mode)
CONTROLS

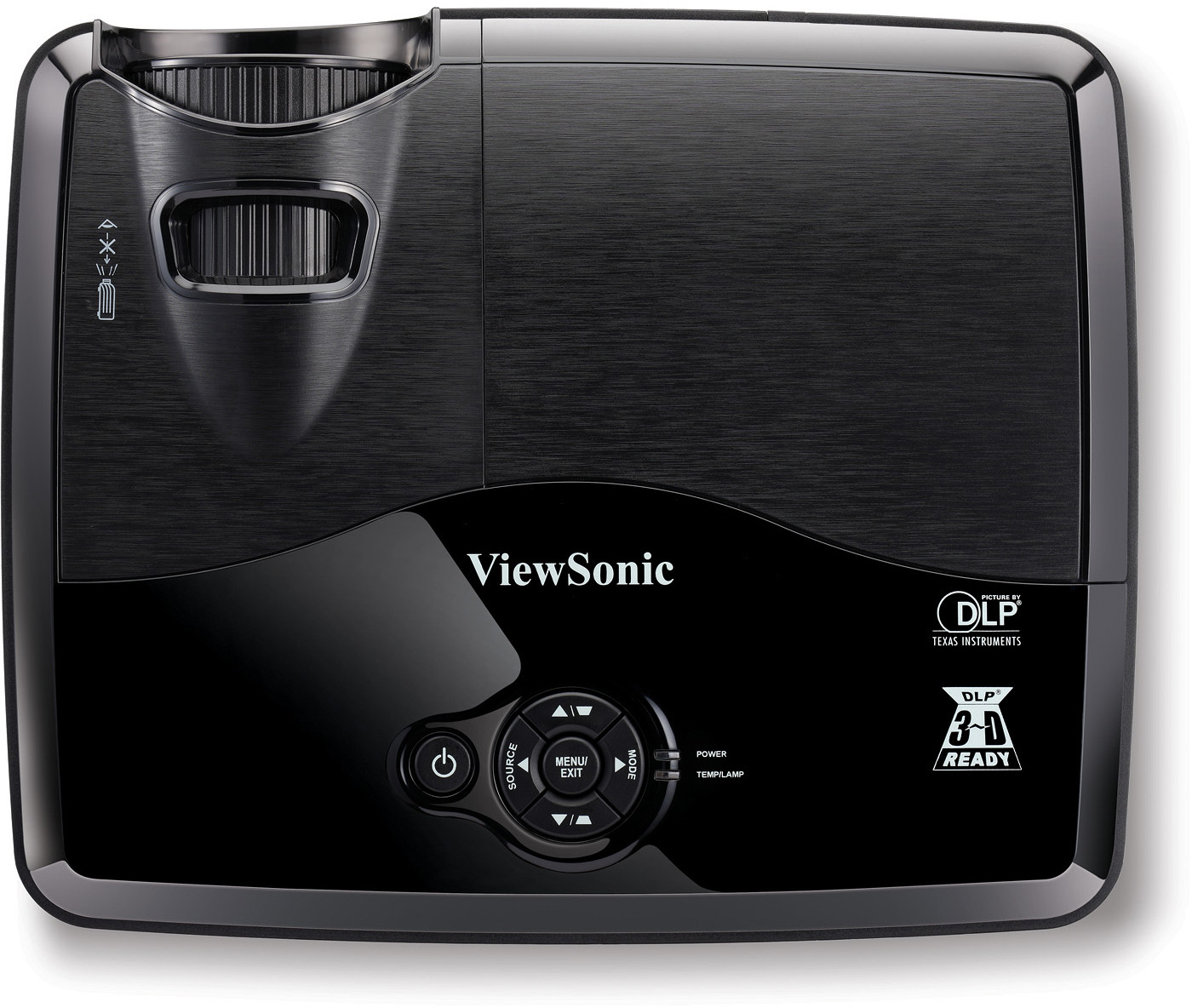

Basic: Power, keystone/arrow keys, left/source, menu/exit, right/mode
OSD: Picture: Color Mode, Brightest, PC, ViewMatch, Movie, User 1, User 2, White board, Black board, Green board, Brightness, Contrast, Color setting, User color, White intensity, Gamma, Aspect Ratio, Keystone, 3D sync, 3D invert
Video/Audio: Frequency, Tracking, H & V position, Zoom, Video setting, Audio setting
Setting (Basic): Projector Projection, Menu Setting, Signal Type, Blank Screen, Test Pattern, Start up screen, Message, Auto source, Power saving, Green Mode
Option (Advanced): Closed Caption, DCR, Password, Presentation Timer, High Altitude, Lamp Setting, Factory Default
Information: Current System Status, Input Source, Resolution, H & V Frequency, Lamp hours
DISPLAY
Contrast Ratio : 2000:1 (typ), 3000:1 (dynamic)
Display size: 27"–300" / 0.7m–7.6m
Aspect Ratio: 4:3 (native), 16:9, 16:10, auto
Throw Distance: 3.9' - 36' / 1.2m - 11m
Throw Ratio: 1.97–2.17:1
Lamp type: 180W
Brightness: 2700 ANSI Lumens
Color Wheel: 6-Seg RGBCYW / 7200rpm
Lamp life ( Normal / Eco / Dynamic Eco ): 5000 / 6000* hours
Type: 0.55" Digital Micromirror Device (DLP™)
Resolution: SVGA 800×600 (Native)
Keystone: Vertical digital keystone correction: +/– 40 degrees
Lens: 1.1× Manual optical zoom / Manual optical focus
Color Depth: 24 bits, 16.7M Colors (8+8+8)
NOISE LEVEL
Normal: 30dB
Eco-mode: 28dB
AUDIO
Speakers: 1Wx1
WEIGHT
Gross: 7.5 lb (3.4 kg)
Net: 5.7 lb (2.6 kg)
OPERATING CONDITIONS
Humidity: 10%–80% (non-condensing)
Temperature: 32ºF–104ºF (0ºC–40ºC)
Altitude: 0~6,000 ft (1,800m), operational up to 10,000 ft (3048m)
INPUT SIGNAL
Computer and Video: NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60), SECAM (B, D, G, K, K1, L), SD 480i and 576i, ED 480p and 576p, HD 720p, 1080i and 1080p
Frequency: Fh: 31–100KHz, Fv: 50–120Hz
