PJD5112

Light Bright and Portable Projector 120HZ AND 3D READY

Sales Enquiry

GALLERY

Affordable and easy to use

The ViewSonic PJD5112 is a practical projector that offersoutstanding value and performance. This SVGA resolution projectorsupports high definition signals and projects 2700 lumens for clear,bright images in most lighting conditions. At only 2.7kg, it is lightand compact, making it ideal for the mobile presenter or to movefrom room to room in the office or on a campus. Texas Instruments’BrilliantColor. technology delivers brilliant, true-color and highcontrast images for viewing presentations, charts, or video. Withextensive connectivity, including two RGB inputs and one RGBoutput, the PJD5112 is an excellent multifunctional data/videoprojector. The Eco-mode function reduces fan noise for lessdistraction during important presentations and even extends thelamp life up to 5000 hours*. The PJD5112 is perfect for users lookingfor an easy to use, versatile and portable projector at a great price.

SPECIFICATIONS

COLORS
Black
COMPATIBILITY
PC: VGA to UXGA
Mac®: Up to 1152 × 864 (may require Mac Adapter)
DIMENSIONS
Physical (WxHxD): 280 × 114 × 218 (mm) / 11 × 4.5 × 8.58 (inch)

REGULATIONS
CB, ROHS, WEEE, UL / cUL, FCC-B, ICES-003, NOM, PSB, C-tick,
CE, TUV / GOST-R, Hygienic, UKrSEPRO, CCC
PACKAGE CONTENTS
ViewSonic projector, power cable, VGA cable, remote control
with batteries, lens cap, Quick Start Guide, ViewSonic Wizard
CD(with User Guide)
AUDIO
Speaker: 2W ×1
INPUT SIGNAL
Frequency: Fh:31-100KHz, Fv:50-120Hz
Computer and Video: NTSC M(3.58MHz), 4.43MHz, PAL(B, D, G, H, I, M, N, 60), SD 480i
and 576i(24fps, 25fps and 30fps), ED 480p and 576p(24fps,
25fps and 30fps), HD 720p, 1080i (24fps, 25pfs and 30fps)

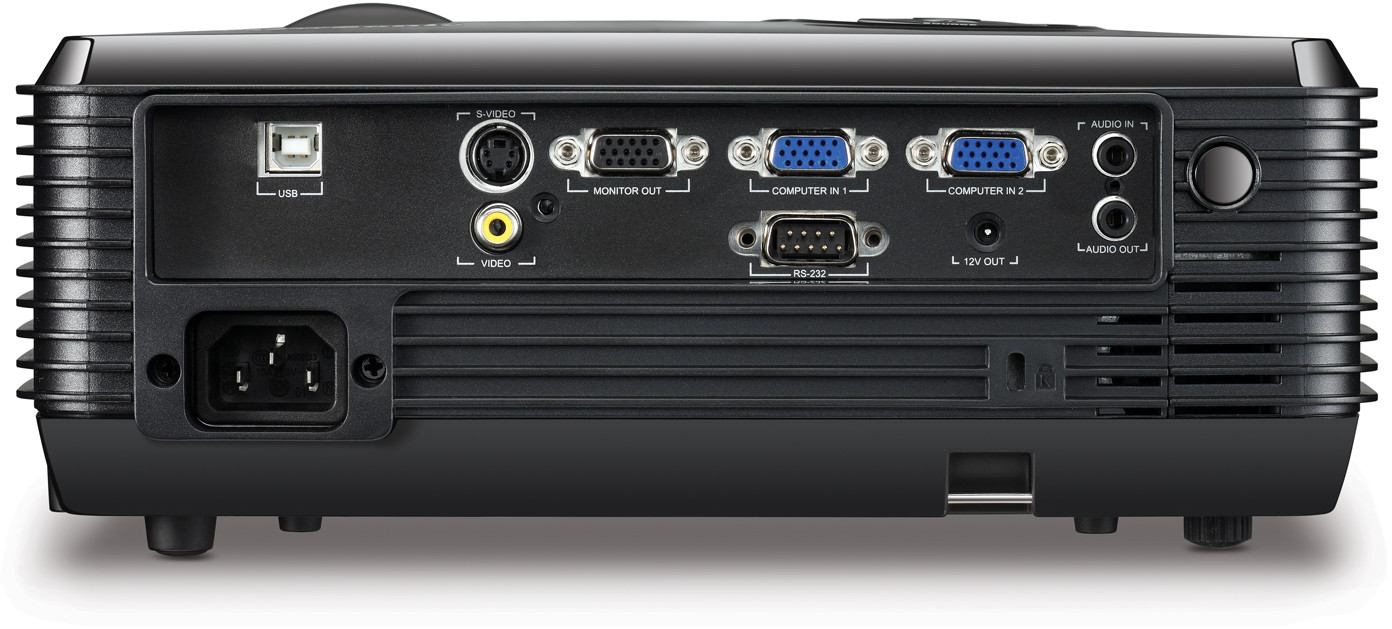

CONNECTOR
Control: 1 × RS-232 (8 Pin Mini-Din)
RGB (input/output): 2 × 15-pin mini D-sub / 1 × 15-pin mini D-sub
Audio (input/output): 1 × 3.5mm mini jack / 1 × 3.5mm mini jack
USB: 1× TYPE B (Firmware upgrade)
S-Video: 1 × 4-pin mini-DIN
Power: 12V DC Connector
Composite Input: 1 × RCA jack
POWER
Voltage: 90~240VAC (Auto Switching), 50 / 60Hz (universal)
Consumption: 235W (Typical) / <1W (Stand-by mode)

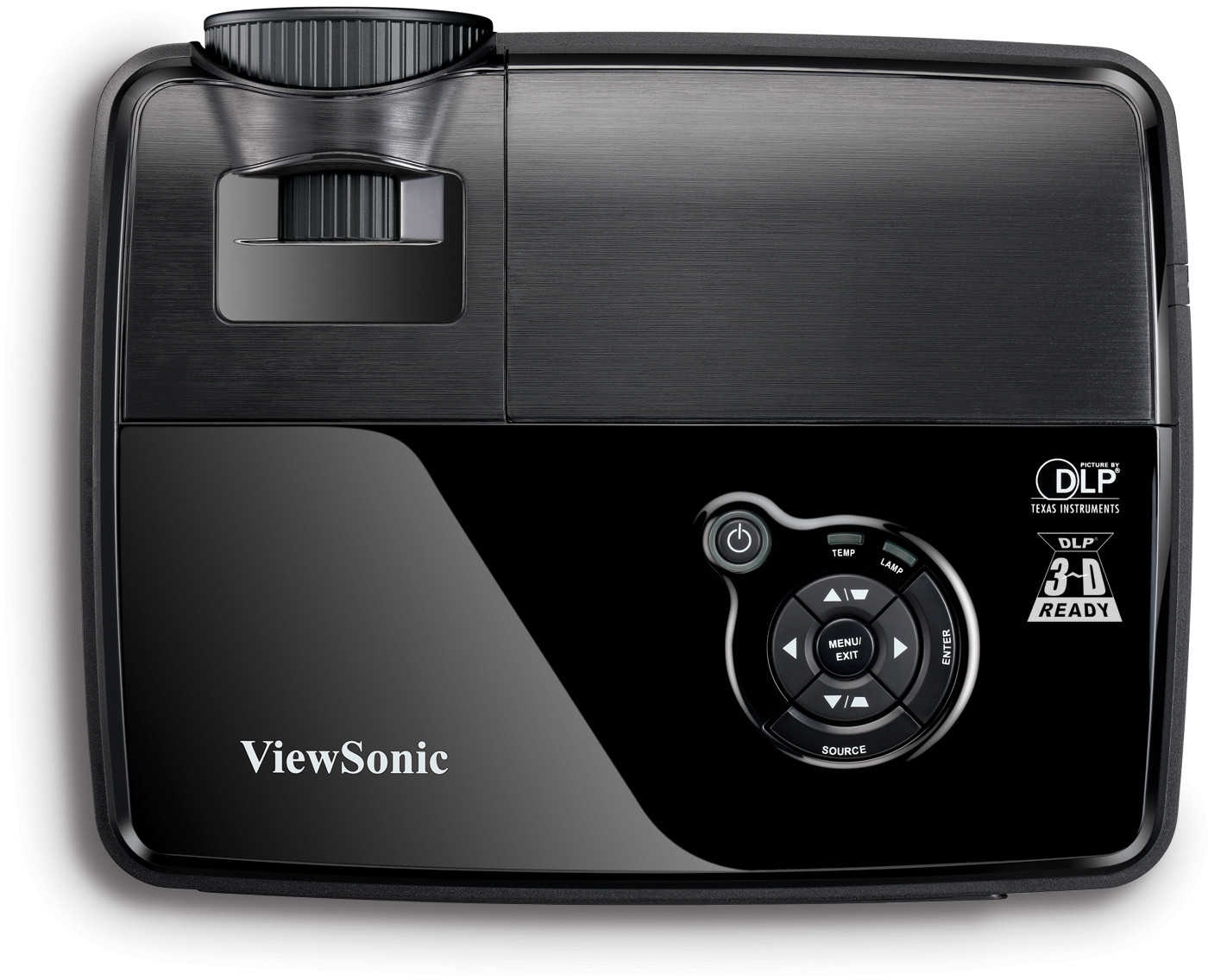

CONTROLS
Basic: POWER, Keystone/ Arrow keys, Left/ BLANK, MENU/ EXIT, Right/
Panel key lock, AUTO, MODE/ ENTER, SOURCE
OSD: Picture: Brightness, contrast, color setting, keystone, aspect
ratio, image, white intensity, gamma, 3D sync, 3D sync invert.
Computer Image: Frequency, tracking, H position, V position.
Video Image: Saturation, sharpnes, tint.
Setting: Manu position, projection, signal type, lamp hour,
lamp hour reset, filter mode, filter hours, filter hours reset, power
saving, auto source, ECO mode, high altitude, OSD timeout.
Advance: Blank screen, password word, screen capture, start
up screen, text shot, digital zoom, DCR, close captions, brilliant
color.
OPERATING CONDITIONS
Temperature: 0ºC-40ºC (32ºF-104ºF)
Humidity: 10%-80% (non-condensing)
Altitude: 0~1800m (6000ft), operational up to 3048m(10,000ft) at
reduced reliability and performance
DISPLAY
Contrast Ratio : 2800:1
Display size: 0.68m-7.62m / 27"-300"
Aspect Ratio: 4:3 (native) & 16:9
Throw Distance: 1.2m-10m
Throw Ratio: 1.6-1.9
Brightness: 2700 Lumens
Lamp life ( Normal / Eco / Dynamic Eco ): 3500 / 5000 (hours)
Type: 1.4cm / 0.55" Digital Micromirror Device(DLP™)
Resolution: SVGA 800×600(Native) / UXGA 1600×1200(compressed)
Keystone: Vertical digital keystone correction:+/- 40 degrees
Lamp: 180watt (RLC-050)
Lens: 1.2× Manual optical zoom / Manual optical focus
NOISE LEVEL
Normal: 31dB
Eco-mode: 29d
LANGUAGE
English/ Dutch/French/ Spanish/Italian/ Korean/
Thai/ Portuguese/ T. Chines/ S. Chinese/ Japanese/ Russian /
German/ Swedish/ Turkish/ Finnish/ Polish
WEIGHT
Net: 2.66kg(5.86 lb)
