Crisp, bright meetings

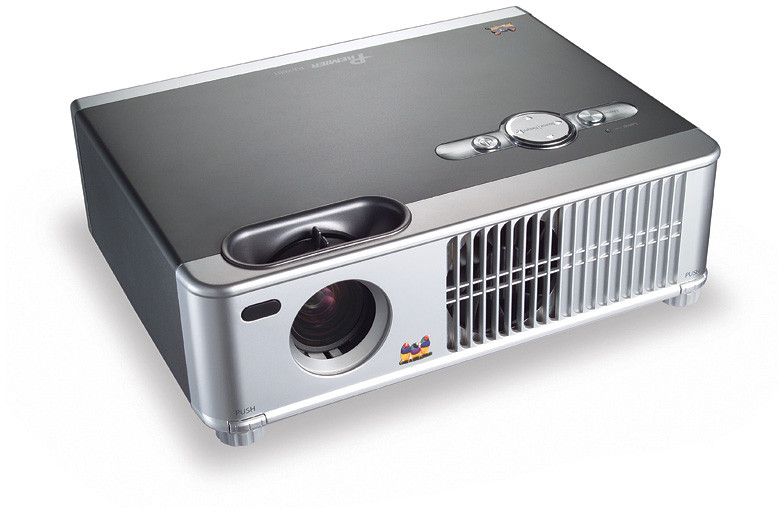

The ViewSonic PJ678 is a powerful, high brightness 2500 lumen projector. A wide array of analogue PC and video connectors plus one digital input make it an extremely versatile short-throw projector. Incorporation of the latest D5 LCD panel generation technology together with a native resolution of 1024 x 768 pixels guarantees rich, lifelike colours and razor-sharp images for both video and data. Thanks to its special short-throw optics and keystone correction small spreadsheets, text or video clips can be screened in perfect XXL format even in small rooms. The fl exible, richly-featured PJ678 is the optimal small budget choice for education and training. Furthermore, the optional available ViewSonic WPG-150 wireless adapter provides seamless cable-free performance.

SPECIFICATIONS


  • LCD
    Type: 3 x 0.63” EPSON D5 Poly-Si TFT with MLA
    Resolution: 1024 x 768 XGA native, (max. 1280 x 1024 SXGA compressed)
    Lens: Manual zoom, manual focus
    Zoom Factor: 1.2 (F = 1.75–1.9/f = 18.85mm–22.23mm)
    Vertical keystone correction: 32° vertical (±16º)
  • COMPATIBILITY
    PC: Analogue: VGA up to SXGA (scaled), 1024 x 768 @ 60Hz preferred
    Mac®: Analogue: VGA up to SXGA (scaled), 1024 x 768 @ 60Hz preferred
  • DIMENSIONS
    W x H x D mm: 298 x 84 x 224 (physical)

    360 x 310 x 220 (packaging)
