PJ658

High brightness and portability

Sales Enquiry

GALLERY

OVERVIEW

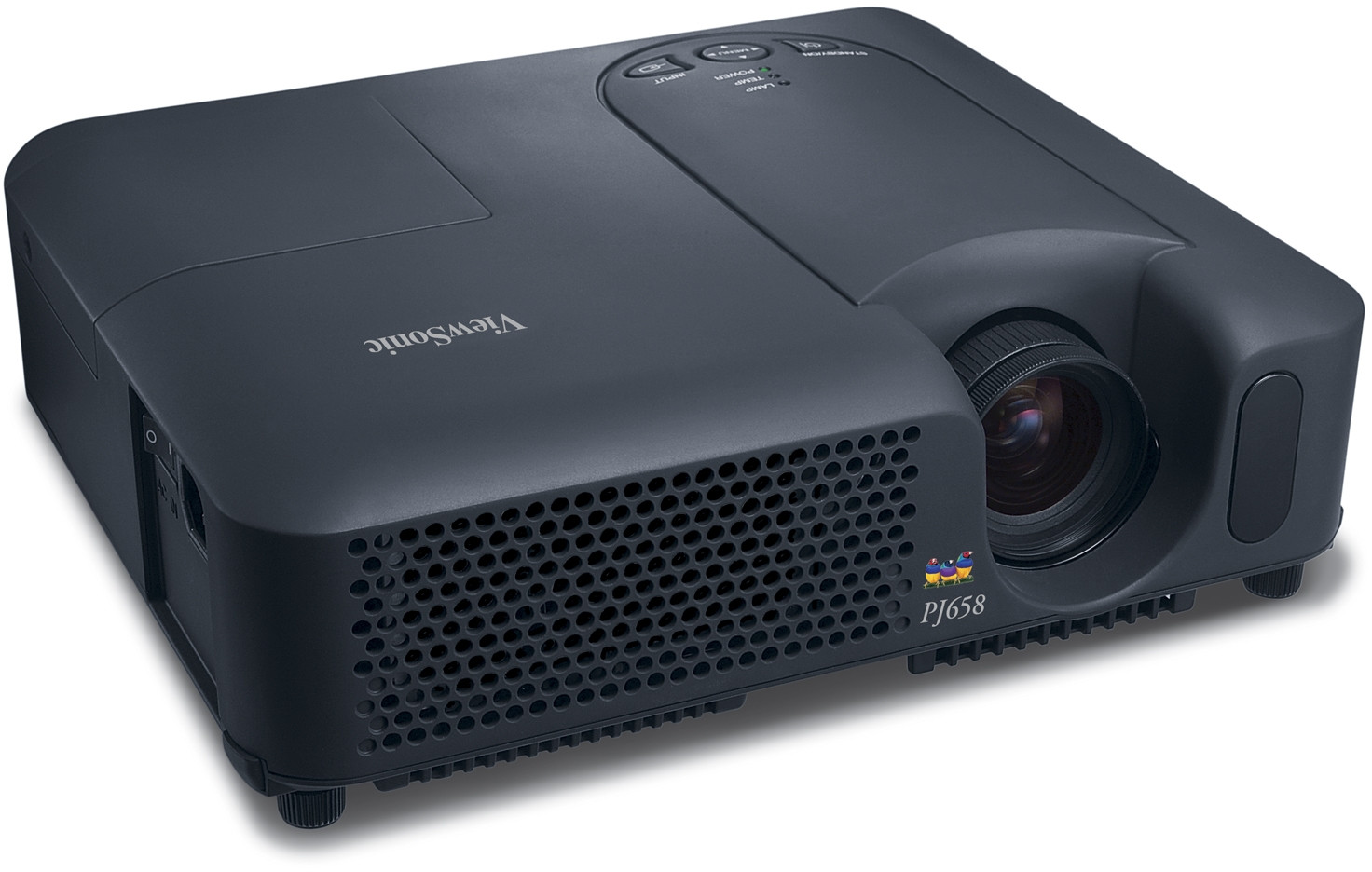

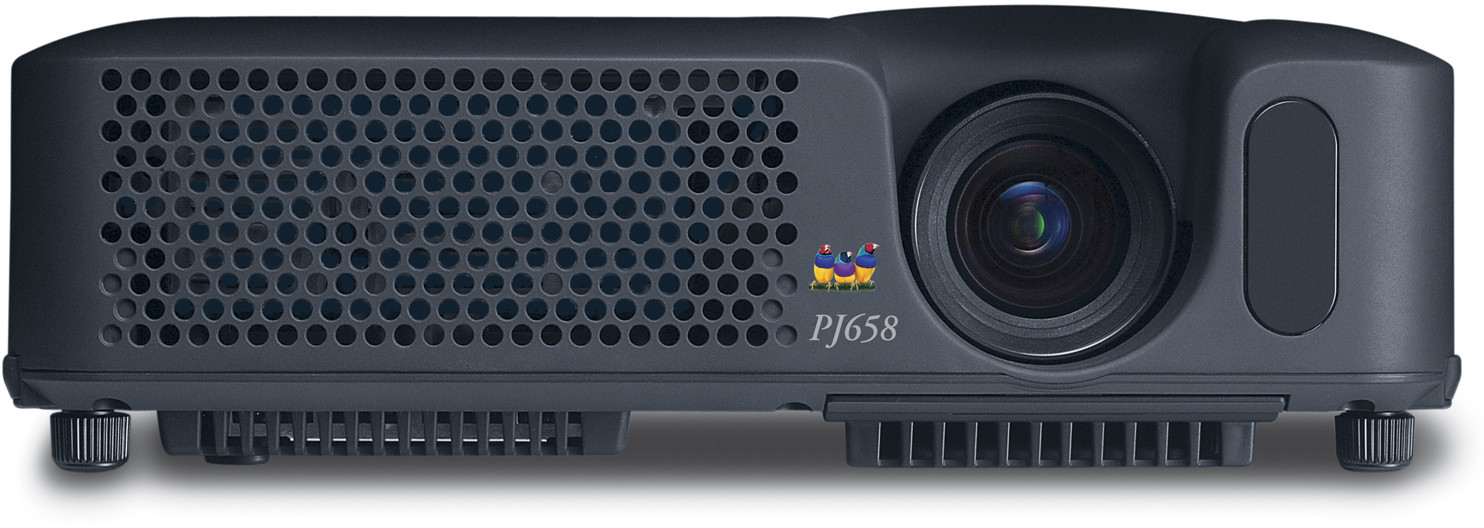

The ViewSonic® PJ658 XGA projector is loaded with features in a portable form factor that won't weigh you down.

Highly portable at 6.6 pounds with 2,500 lumens for powerful presentations in any lighting environment
Multiple inputs allow you to connect multiple display sources for dynamic multimedia presentations
Advanced image processing, digital keystone correction and manual zoom and focus ensure that your images are crisp, clear and sharp
The security bar and Kensington® security lock port give you the peace of mind that your projector is secure
Features a sliding cover that allows for easy access to the projector's filter and lamp

REVIEWS

Editor's Choice

“9/10”

SPECIFICATIONS

COLORS
Black
COMPATIBILITY
PC: Analog: from VGA up to UXGA (scaled)
Mac®: Analog: up to SXGA (may require a Mac adapter)
DIMENSIONS
Physical (mm): 306mm x 100mm x 249mm
Physical (in): 305mm x 99mm x 249mm (12" x 3.9" x 9.8")

REGULATIONS
UL 60950, C-UL, FCC-B, TUV/GS, CB, CE, C-TICK, NOM
PACKAGE CONTENTS
Projector, power cords, VGA cable, RCA video cable, remote control, soft case, lens cap, ViewSonic Wizard CD, Quick Start Guide
WARRANTY
Three-year limited warranty on parts and labor, first-year Express Exchange® Service. One-year limited warranty on lamp***
AUDIO
Speaker: 1x1 watt
INPUT SIGNAL
Frequency: Fh: 31.5-106kHz; Fv: 56-120Hz
Computer and Video: RGB analog, NTSC, NTSC 4.43, PAL, SECAM, HDTV (480i, 480p, 576i, 720p, 1080i)

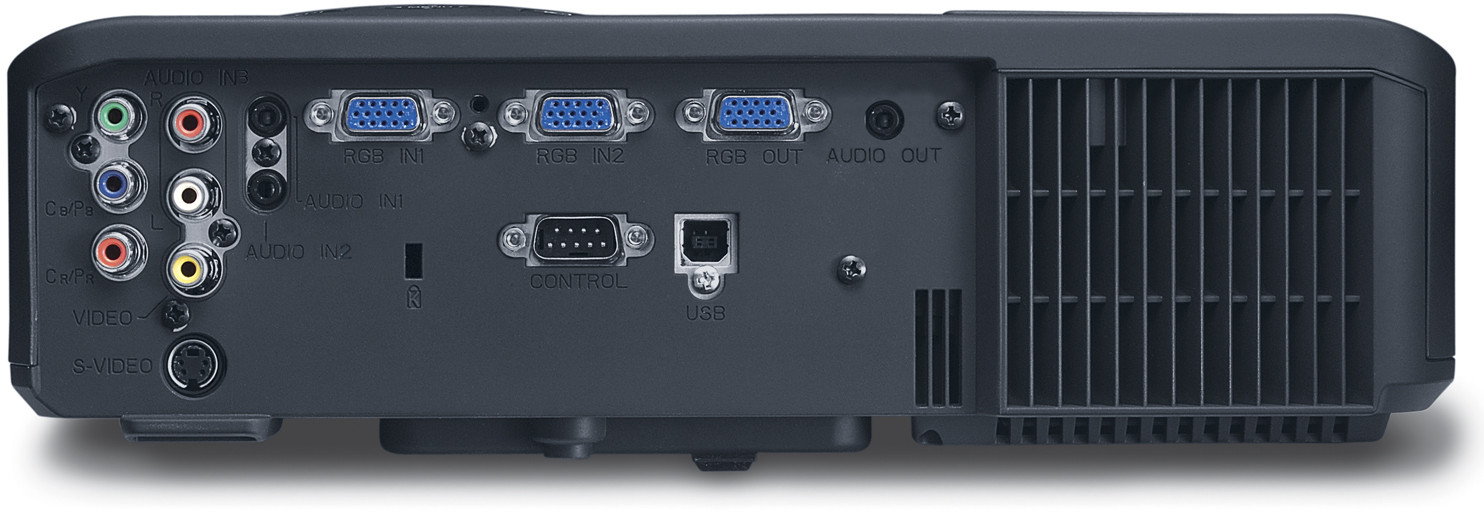

CONNECTOR
Audio Out: Stereo mini jack
PC RGB Input: 15-pin HD, D-sub (x2)
Composite Video Input: RCA jack (x1)
S-Video Input: Mini-DIN 4-pin (x1)
Component Video Input: RCA jack (x1 set)
PC RGB Output: 15-pin HD, D-sub
Audio Input: Stereo mini-jack (x2); RCA (L/R)
Control: 9-Pin D-sub for RS232 control
USB: For mouse control
POWER
Voltage: 100-240 VAC, 50/60Hz (universal)
Consumption: 310W (typ)
CONTROLS
Basic: Standby/On, input, menu
On View (PC mode): Language, brightness, contrast, gamma, color temperature, color, tint, sharpness, progressive, My Memory, aspect, overscan, V./H. position, H. phase, H. size, auto adjust, color space, component, video format, frame lock, information, V. keystone, whisper, mirror, volume, audio, language, menu position, OSD bright, blank color, start up, My Screen, My Screen Lock, message, auto search, auto off, lamp time, filter time, service menu
OPERATING CONDITIONS
Temperature: 41-95°F (5-35°C)
Humidity: 10-85% (non-condensing)
Altitude: Sea level to +6,000 ft.
WEIGHT
Net: 6.6 lb. (3 kg)
Gross: 16.5 lb. (7.5 kg)
TECHNOLOGY
Type: 1.5 cm / 0.6" (x3) Poly-Si TFT with micro-lens
Pixel Format: 1024x768 XGA
Lens: Manual zoom, manual focus
Zoom Factor: 1.2
Keystone: Auto Vertical ± 15º
DISPLAY
Contrast Ratio : 500:1
Display size: 0.8m - 7.6m (30" - 300") (diagonally)
Aspect Ratio: 4:3 (native), 16:9
Throw Distance: 0.9m-10.7m (35"-425")
Throw Ratio: 1.7-1.9
Lamp type: 200W, 2,000 hours**
Brightness: 2,500 ANSI lumens
NOISE LEVEL
Normal: 39 dB (typ)
Whisper mode: 34 dB (typ)
OTHER
Auto vertical digital keystone correction, progressive scan, 3:2 pull down, whisper mode, pin lock, security bar, ensington security port, blackboard/whiteboard projection modes, My Screen
