PJ588D

PREMIUM HIGH-PERFORMANCE DLP PROJECTORS WITH ADVANCED FEATURES

Sales Enquiry

GALLERY

High-performance duett

ViewSonic’s PJ568D and PJ588D projectors feature DLP technology that deliver AMAZINGLY CRISP DIGITAL IMAGES. With 2500 (PJ568D) / 3000 (PJ588D) lumens respectively and an ultra-high 2000:1 contrast ratio, these workhorse projectors let you deliver multimedia lessons in the classroom or dynamic presentations in the boardroom with STUNNING VISUAL IMPACT at a whisper quiet 29 dB in eco-mode. Their native 1024 x 768 XGA resolution, digital keystone correction and zoom lens ensure that you’ll get the best possible image in virtually any setting. Experience the shining and accurate colours of the PJ568D and PJ588D thanks to the sophisticated 5-segment colour wheel, advanced video features and multiple inputs.

SPECIFICATIONS

COLORS
Black
COMPATIBILITY
PC: Analogue: VGA up to SXGA (scaled), 1024 x 768 @ 60Hz preferred
Mac®: Analogue: up to SXGA (scaled), 1024 x 768 @ 60Hz preferred
DIMENSIONS
Physical (WxHxD): 300 x 94 x 243
W x H x D mm: 386 x 266 x 450

REGULATIONS
CE, CB, GOST, UL/cUL, FCC-B, CCC, PSB, C-Tick, NOM, BSMI, UL-AR, EK-mark (Korea), Ukraine, WEEE, RoHS
PACKAGE CONTENTS
DLP Projector, 1.8m power cables (Europe [Schuko]/UK), VGA cable, remote control with laser pointer, batteries, lens cap, soft carrying case, Quick Start Guide (multi-language), ViewSonic Wizard CD (User guide) (multi-language)
AUDIO
Speaker: 1 x 1 watt
INPUT SIGNAL
Frequency: Fh: 15.31–90kHz; Fv: 50–85Hz
Video: RGB analogue, Video NTSC M, NTSC 4.43, PAL (B, G, H, I, M, N, 60), SECAM (B, D, G, K, K1, L), SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i)

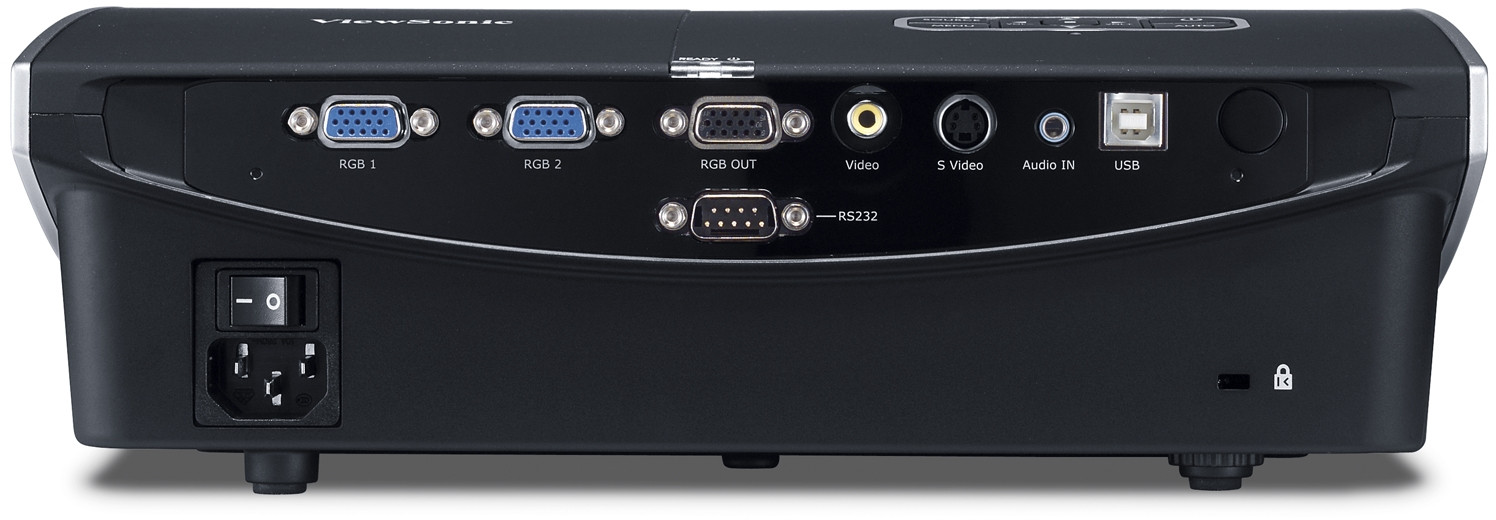

CONNECTOR
Composite Video Input: 1 x RCA jack
Component Video Input: 15-pin mini D-sub to 3 x RCA component video adapter (optional)
Audio Input: 1 x 3.5mm stereo mini jack
Control: 1 x 9-pin D-sub RS-232
USB: 1 x USB Typ B (for mouse control)
S-Video: 1 x 4-pin mini-DIN
PC-VGA-In: 2 x 15-pin mini D-sub
PC-VGA-Out: 1 x 15-pin mini D-sub
POWER
Voltage: AC 100–240V, 50/60Hz (auto switch)
Consumption: < 250W (typ.)
CONTROLS
Basic: Stand-by, menu, input
OSD: Main Menu (brightness, contrast, sharpness, colour temperature (3 defaults, user RGB], saturation, tint, gamma, colour space, reset), Configuration Menu (blank screen, auto source detection, auto off, volume, OSD position, OSD display, OSD background, reset), Setup Menu (H/V position, keystone, aspect ratio, advanced feature [user RGB, white peaking, logo display, fan speed security lock], reset), Utility Menu (video type, projection (rear, front, ceiling), frequency, tracking, digital zoom, reset), Language Menu (English, French, German, Italian, Portuguese, Russian, Spanish, Simplified Chinese, Traditional Chinese), Status Menu (video information, active source, lamp timer, lamp timer reset, eco mode, daylight mode)
OPERATING CONDITIONS
Temperature: 5°C–35°C
Humidity: 10%–80% (non condensation)
WEIGHT
Net: 2.7kg
Gross: 5.2kg
DISPLAY
Contrast Ratio : 2000:1
Display size: 0.6m-6.9m (23"-273" ) (Diagonal)
Aspect Ratio: 4:3 (native), 16:9
Throw Distance: 1.0m–10.0m
Throw Ratio: 1.8–2.1:1
Lamp type: 200W, 3000 hours (Eco mode 4000 hours¹, Boost mode 2000 hours)
Brightness: 3000 ANSI lumens
NOISE LEVEL
Normal: 33dB (typ.)
Eco-mode: 29dB (typ.)
OTHER
Vertical digital keystone correction, progressive scan, 3:2 pull down, Eco mode, daylight mode, unplug and go, USB mouse support
DLP
Type: 1.8 cm / 0.7" DDR XGA DMD DLP
Resolution: 1024 x 768 XGA native, (1280 x 1024 SXGA compressed)
Lens: Manual zoom, manual focus
Digital Keystone: Vertical ± 15º
Zoom Factor: 1.15 (F = 2.53-2.72/f = 21.3mm-24.5mm)
