PJ562

LIGHT, BRIGHT AND PORTABLE

Sales Enquiry

GALLERY

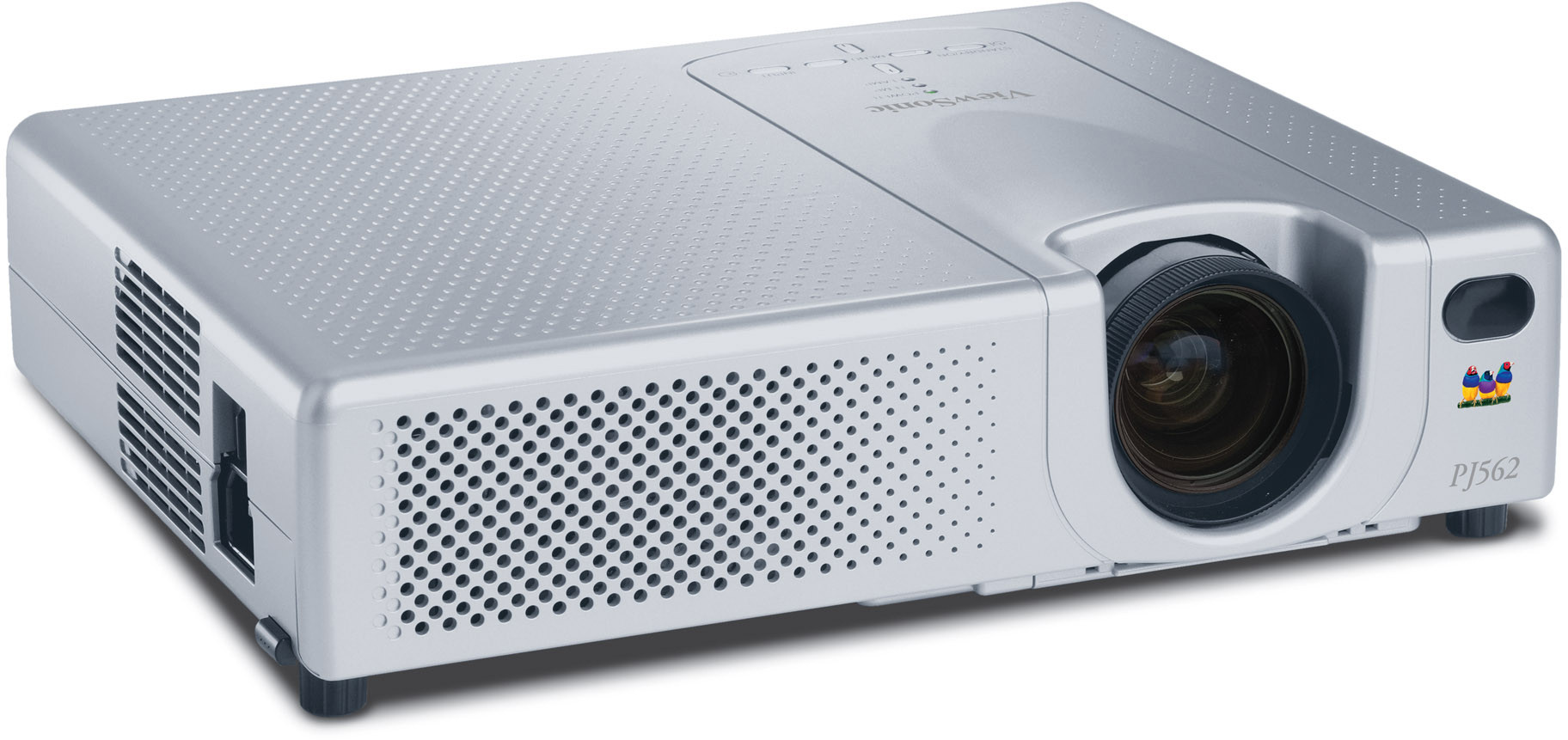

A versatile, portable high-performance projector.

The ViewSonic PJ562 weighs in at just 2.45kg so it’s small enough to take on the road with you, or between meeting rooms or classrooms. The 2000 LUMENS WITH 1024 x 768 XGA NATIVE RESOLUTION make it bright and powerful enough for the most demanding professional. Project crisp, clear images in virtually any setting with the optical zoom lens, short focal lens and digital keystone correction. MULTIPLE INPUTS allow you to connect two PCs or add a video source for DYNAMIC MULTIMEDIA PRESENTATIONS. This full featured projector makes the most of your presentations and your budget.

SPECIFICATIONS

LCD
Type: 3 x 1.7cm / 0.7" P-Si-TFT with Micro lens
Resolution: XGA, 1024 x 768 native (max. 1600x1200 compressed)
Lens: Manual focus/zoom
Zoom Factor: 1.2, F1.7-1.9 (f=21.8mm - 26.2mm)
Digital Keystone: Vertical ± 15°
COMPATIBILITY
Mac®: Analogue: to SXGA
PC: Analogue: VGA to UXGA (scaled)
DIMENSIONS
Physical (mm): 297mm (W) x 65mm (H) x 233mm (D)

REGULATIONS
TÜV/GS, CE, CB, UL, C-UL, FCC-CLASS B, C-Tick, NOM, TÜV-S
WARRANTY
Please see: www.viewsoniceurope.com/UK/Support/warranty.htm
AUDIO
Speaker: 1 Watt
INPUT SIGNAL
Frequency: Fh: 15-91kHz, Fv: 50-120Hz
Video: RGB analogue, NTSCM, NTSC 4.45, PAL, PAL60, SECAM,HDTV (480i/p, 576i, 720p, 1080i)
CONNECTOR
Audio Out: 3.5mm Stereo mini jack
PC RGB Input: 15-pin D-sub (x2)
Composite Video Input: RCA jack
S-Video Input: Mini-Din 4-pin
Component Video Input: RCA jack (set)
PC RGB Output: 15-pin D-sub
Audio Input: 3.5mm Stereo mini jack (x2)
Control: 9-pin D-sub RS-232 (serial)
USB: USB Typ B for mouse control
POWER
Voltage: 100 – 120 / 200 - 240VAC, 50-60Hz (auto-switch)
Consumption: 240 watts (typ)
CONTROLS
OSD: Auto adjust, language [English, French, German, Spanish, Italian, Norwegian,
Dutch, Japanese, Portuguese, Simplified Chinese, Korean, Swedish, Russian,
Finnish, Polish], brightness, contrast, aspect ratio, keystone, Gamma, colour
space, colour, tint, sharpness, picture-mode, whisper-mode, component, mirror
[normal, H:invert,V:invert, H/V:invert], reset, filter time, progressive-mode, My
Screen start up, My Screen lock, overscan, H/V-position, H-Phase, H-size, videoformat,
frame lock, information, message, volume, menu position, OSD bright,
Auto off/on, lamp timer, filter timer, service menu
Physical: Stand by/on, menu, input, reset, H/V keystone
OPERATING CONDITIONS
Temperature: 0 °C to 30 °C
Humidity: 10 % to 85 % (non condensation)
WEIGHT
Net: 2.45kg
DISPLAY
Contrast Ratio : 400:1
Aspect Ratio: 4:3 (native), 16:9
Throw Distance: 0.89m - 11m
Throw Ratio: 1.5 ~ 1.8:1
Brightness: 2000 ANSI lumens
Size: 0.8m - 7.6m (30" - 300") (measured diagonally)
Lamp: 165 watts, 4000 hours2
NOISE LEVEL
Normal: 38 dB (typ)
Whisper mode: 32 dB (typ)
OTHER
Digital keystone correction, Digital Gamma correction, soft carrying case,
remote control with mouse control, dual RGB input, RGB output, auto adjust,
PIN Lock System, 3:2 pull down, progressive scan, overscan, MyScreen, Freeze
