PJ556D

VERSATILE, BRIGHT AND PORTABLE PROJECTOR WITH DLP® TECHNOLOGY

Sales Enquiry

GALLERY

Presentations in digital clarity

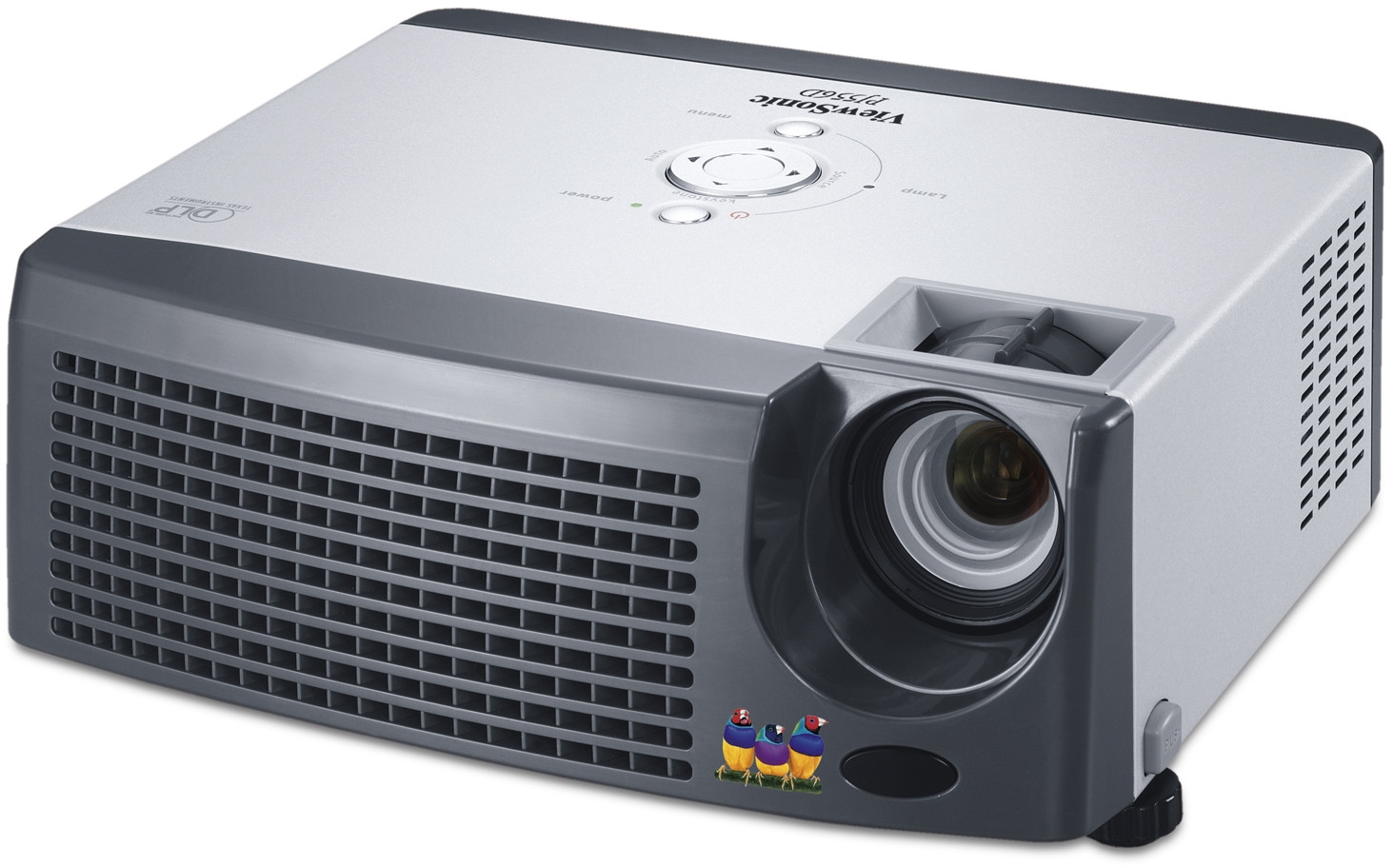

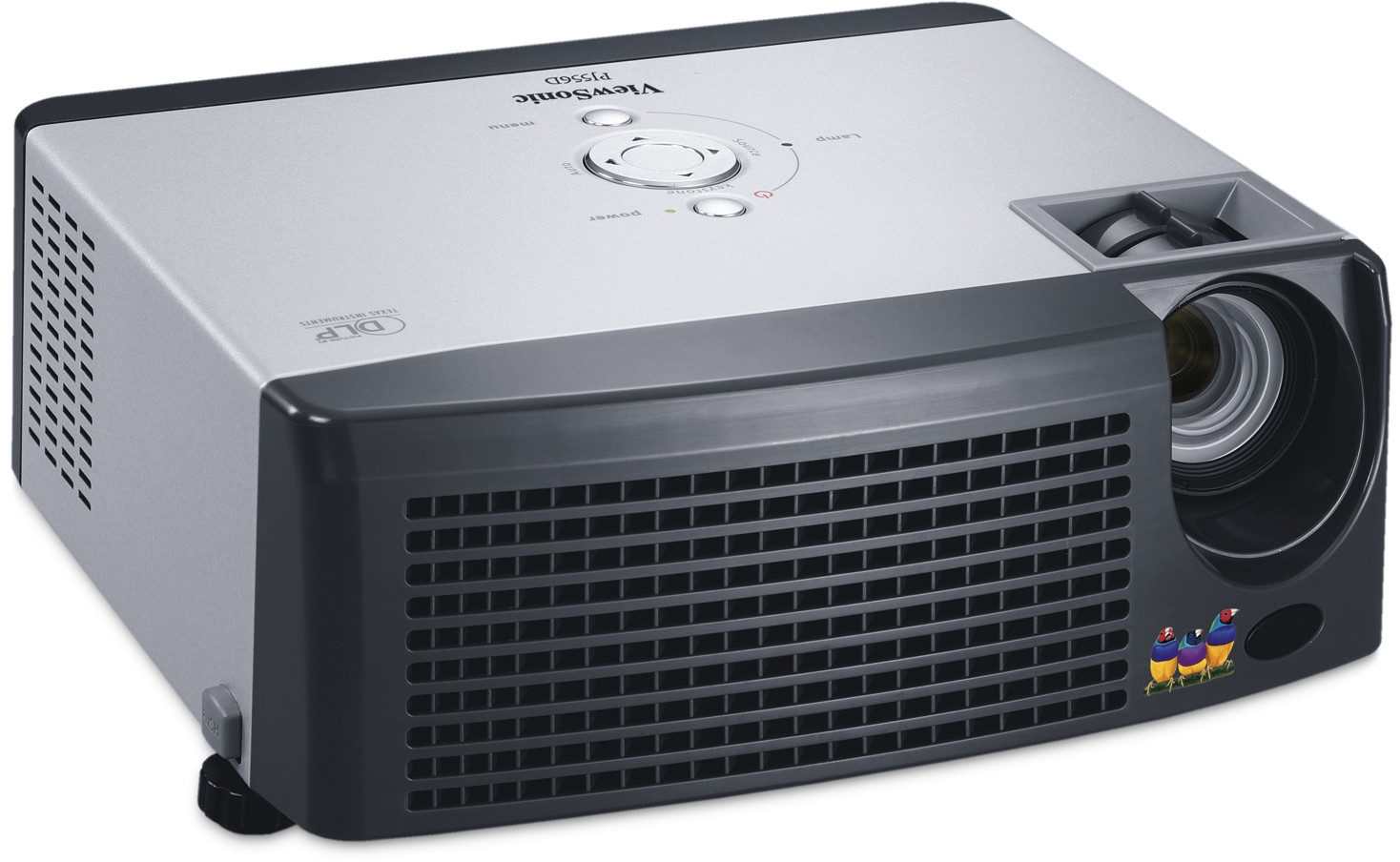

The ViewSonic® PJ556D projector delivers amazingly crisp digital images available only with a DLP projector. Weighing in at just 2.7kg with 2000 ANSI LUMENS and a 2000:1 CONTRAST RATIO (typ.), this portable projector makes it easy to give multimedia lessons in the classroom or dynamic presentations in the boardroom with dramatic effect. Advanced image processing, digital vertical keystone correction and optical zoom ensure the best possible image regardless of location. The PJ556D is flexible with MULTIPLEINPUTS AND SUPPORT FOR HD SIGNALS. Educational and business users alike will enjoy giving presentations with the PJ556D.

SPECIFICATIONS

COMPATIBILITY
PC: Analogue: VGA up to SXGA (scaled), 1024 x 768 @ 60Hz preferred
Mac®: Analogue: up to SXGA (scaled), 1024 x 768 @ 60Hz preferred
DIMENSIONS
W x H x D mm: 256 x 102 x 223 (physical)

360 x 300 x 250 (packaging)
REGULATIONS
CE, CB, GOST, Hygienic, UL, CUL, FCC-B, CCC, C-Tick, NOM, NEMKO, PCBC, PSB, PSE, ICES-003, Argentina TÜV/GS, EK, EZU, IRAM, Ukraine, WEEE, RoHS

PACKAGE CONTENTS
DLP Projector, power cables (Europe [Schuko]/UK), VGA cable, AV cable (RCA), S-video cable, audio cable, remote control with laser pointer, batteries, lens cap, soft carrying case, Quick Start Guide (multi-language),
ViewSonic Wizard CD (User guide) (multi-language)
AUDIO
Speaker: 1 x 2 watt
INPUT SIGNAL
Frequency: Fh: 15–80Hz;

Fv: 50–85Hz
Video: RGB analogue, Video NTSC M, NTSC 4.43, PAL (60 M, N), SECAM, SDTV/EDTV (480i/p, 576i/p) HDTV (720p, 1080i)
CONNECTOR
Control: 1 x 9-pin D-sub RS-232
USB: USB Typ B (for service only)
Audio: 1 x 3.5mm stereo mini jack
S-Video: 1 x 4-pin mini-DIN
PC-VGA: 1 x 15-pin mini D-sub
Composite Video: 1 x RCA jack
Component Video: 15-pin mini D-sub to 3 x RCA component video adapter (optional)³
POWER
Voltage: AC 100–120/200-240V, 50/60Hz (auto switch)
Consumption: < 250W (typ.)
CONTROLS
Basic: Stand-by, menu, input
OSD: Displays Menu (brightness, contrast, V keystone correction, aspect ratio, blank screen, gamma, white peaking, colour temperature, user colour [RGB]), Video Menu (sharpness, saturation, tint), Display Menu (phase, tracking, H/V position), Advance Menu (auto source select, projection [front, rear, ceiling], eco mode, high alt. mode, lamp hours, lamp reset, auto shutdown, OSD timeout, menu position, factory reset), Language Menu (English, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish, Simplified
Chinese, Traditional Chinese), audio (volume, mute)
OPERATING CONDITIONS
Temperature: 0°C–40°C
Humidity: 10%–90% (non condensation)
WEIGHT
Net: 5.9 lb. (2.7 kg)
Gross: 12.5 lb. (5.7 kg)
DISPLAY
Contrast Ratio : 2000:1 (typ.)
Display size: 25"–285" (0.64m–7.24m) (Diagonal)
Aspect Ratio: 4:3 (native), 16:9
Throw Distance: 1.0m–10.0m
Throw Ratio: 1.73–1.85:1
Lamp type: 200W, 2000 hours (Eco mode 3000 hours¹)
Brightness: 2000 ANSI lumens (typ.)
NOISE LEVEL
Normal: 36dB (typ.)
Eco-mode: 32dB (typ.)
OTHER
Vertical digital keystone correction, 3:2 pull down, Eco mode,
high altitude setting
