PJ552

LIGHT, BRIGHT AND PORTABLE

Sales Enquiry

GALLERY

A bright, affordable choice for home and office.

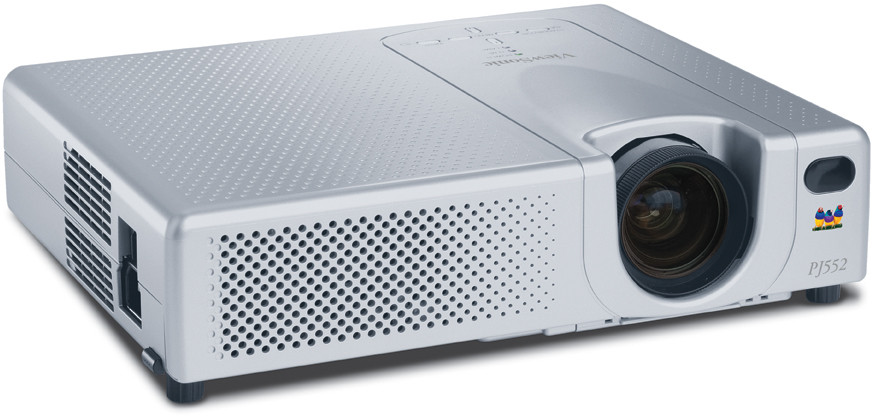

The ViewSonic PJ552 offers bright images for office presentations and impressive home entertainment viewing with 1600 lumens and 1024 x 768 XGA native resolution. This small, powerful projector steps up to deliver high-resolution images, sharp text, spreadsheets and graphics. An optical zoom lens, short focal length and digital keystone correction project precise images in virtually any setting. Advanced features like video PROGRESSIVE SCAN AND 3:2 PULL DOWN DELIVER SMOOTHER VIDEO PERFORMANCE FOR HOME THEATRE ENTERTAINMENT. Multiple inputs allow you to connect two PCs or add a video source for DYNAMIC MULTIMEDIA PRESENTATIONS.

SPECIFICATIONS

LCD
Type: 3 x1.8cm (0.7") P–Si TFT with micro-lens, TFT active matrix
Resolution: 1024x768 XGA
Lens: Manuel zoom/focus
Zoom Factor: 1.2
Digital Keystone: Vertical +/- 15º
COMPATIBILITY
Mac®: Analogue: to SXGA
PC: Analogue: VGA to UXGA (scaled)
DIMENSIONS
Physical (mm): 297mm x 233mm x 65mm

REGULATIONS
UL60950, C-UL, FCC-CLASS B, ULDEMKO, CB, CE, TUV-S, C-TICK, NOM
WARRANTY
Please see: www.viewsoniceurope.com/UK/Support/warranty.htm
AUDIO
Speaker: 1x1 watt
INPUT SIGNAL
Frequency: Fh: 15–91kHz; Fv: 50–120Hz
Video: RGB analogue, NTSCM, NTSC 4.45, PAL, SECAM, HDTV (480i, 480p, 576i, 720p, 1080i)
CONNECTOR
Composite Video Input: RCA jack (x1)
S-Video Input: Mini-Din 4-pin (x1)
Component Video Input: RCA jack (x1 set)
Control: 9-Pin D-Sub for RS232 control
RGB (input/output): 15-pin D-sub (x2)/(x1)
Audio (input/output): Stereo mini-jack (x2)/(x1)
USB: USB (x1) for mouse control
POWER
Voltage: 100–240 VAC, 50–60Hz (universal)
Consumption: 240 watts (typ)
CONTROLS
OSD: Language, Display (brightness, contrast, gamma, colour temperature, colour,
tint, sharpness), progressive, My Memory, aspect, overscan, V.position,
H. position, H. Phase, H. size, auto adjust, colour space, component, video
format, frame lock, S-aspect, information, V. keystone, whisper, mirror, volume,
language, menu position, OSD bright, blank colour, start up, My Screen, My
Screen Lock, message, auto search, auto power off, auto power on, lamp time,
filter time, service menu
Physical: Standby, menu, input, reset, keystone
OPERATING CONDITIONS
Temperature: 0-35°C
Humidity: 10—85% (non-condensing)
WEIGHT
Net: 2.5kg
DISPLAY
Contrast Ratio : 400:1
Aspect Ratio: 4:3(native), 16:9
Throw Distance: 0.89m - 11m
Throw Ratio: 1.5~1.8:1
Brightness: 1600 lumens
Size: 0.8m - 7.6m (30" - 300") (diagonally)
Lamp: 165W, 4000 hours2
NOISE LEVEL
Normal: 38 dB (typ)
Whisper mode: 32 dB (typ)
OTHER
Digital keystone correction, soft carrying case, remote with mouse control, dual
RGB input, RGB output, auto adjust, 3:2 pull down, progressive scan, frame
lock, overscan
