PJ506D

VERSATILE, BRIGHT AND PORTABLE PROJECTOR WITH KEYSTONE CORRECTION

Sales Enquiry

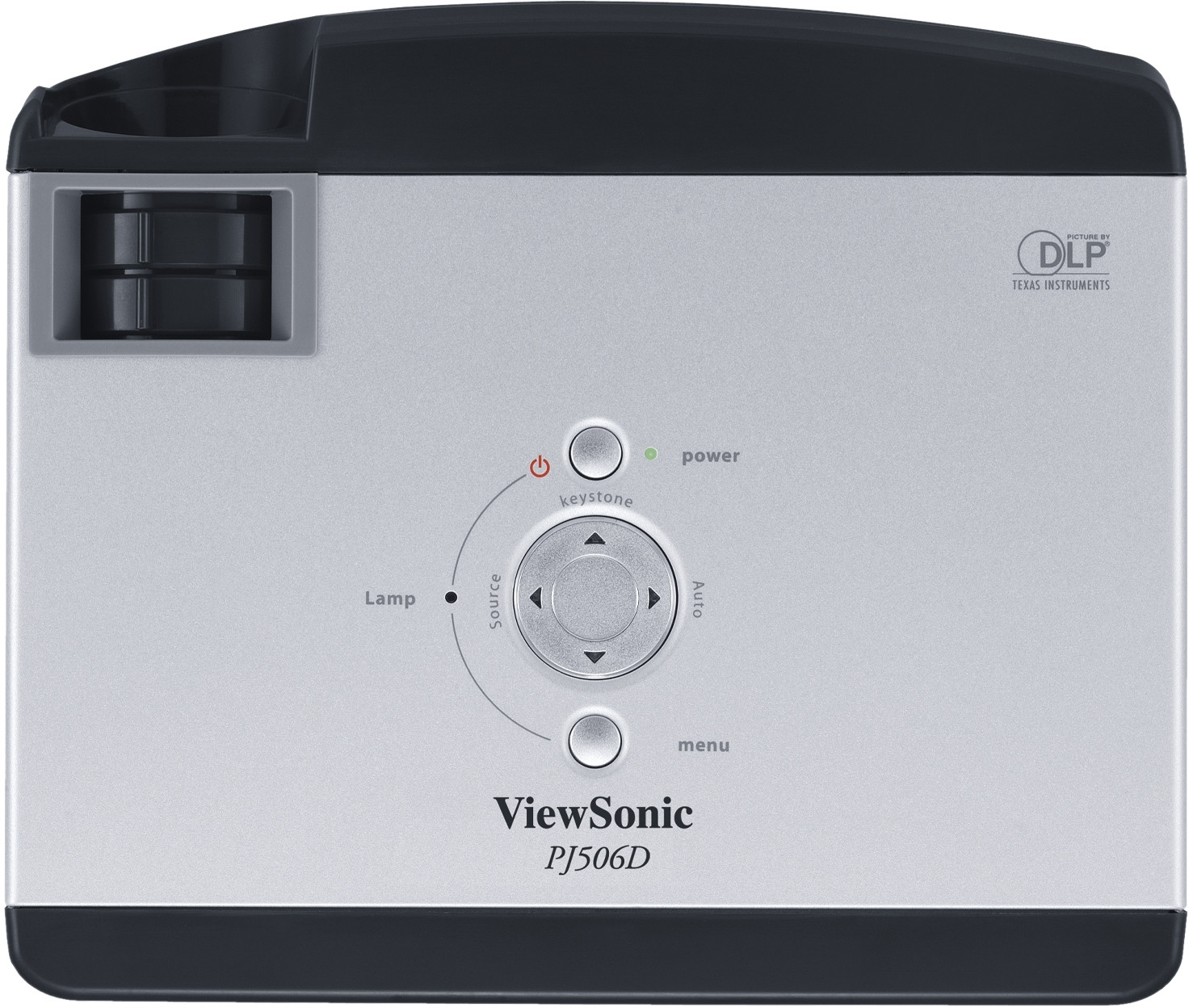

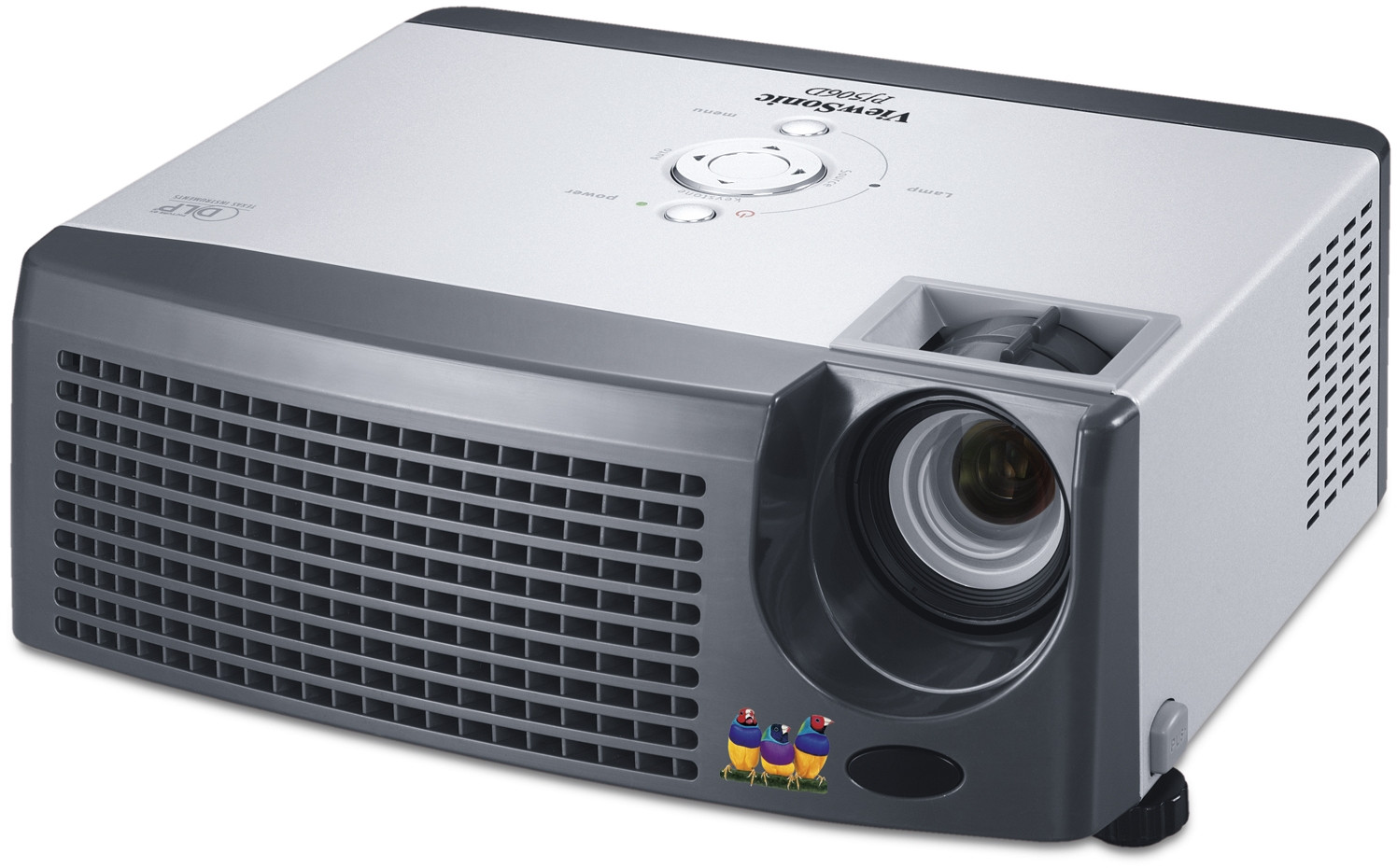

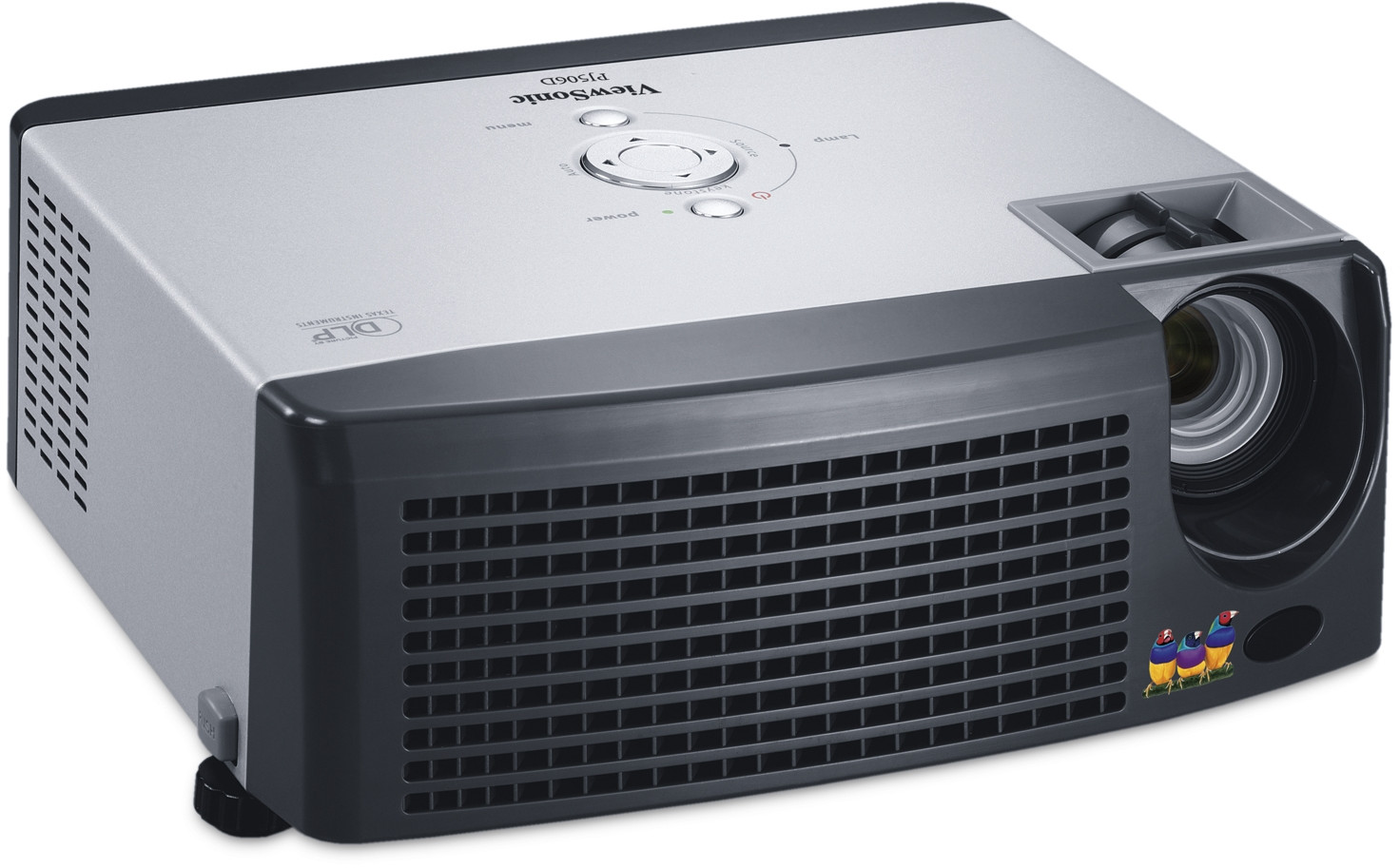

GALLERY

Digitally clear images and video

ViewSonic’s PJ506D DLP projector is designed to meet the needs of today’s multimedia presenters. DLP technology delivers crystalclear images and brilliant colours. With 2000 ANSI lumens and an ultra-high 2000:1 contrast ratio (typ.), this portable projector is ideal for video as well as data presentations in a home, classroom or meeting room environment. The PJ506D is a versatile performer with multiple inputs, advanced image processing and support for 720p and 1080i HD signals. The native 800 x 600 SVGA resolution, digital keystone correction and zoom lens ensure that you’ll get the best possible image in virtually any setting. Image reversing functions offer further installation flexibility. The PJ506D is lightweight, versatile and is packed with performance at an affordable price.

SPECIFICATIONS

COMPATIBILITY
PC: Analogue: VGA up to SXGA (scaled), 800 x 600 @ 60Hz preferred
Mac®: Analogue: up to SXGA (scaled), 800 x 600 @ 60Hz preferred
DIMENSIONS
W x H x D mm: 256 x 102 x 223 (physical)

306 x 250 x 300 (packaging)
REGULATIONS
CE, CB, GOST, UL, FCC-B, CCC, NOM, PSB, CUL, ICES-003, Argentina TÜV/GS, IRAM, WEEE, RoHS

PACKAGE CONTENTS
DLP Projector, power cables (Europe [Schuko]/UK), VGA cable, AV cable CONTENTS (RCA), S-video cable, audio cable, remote control, batteries, lens cap, soft carrying case, Quick Start Guide (multi-language), ViewSonic Wizard CD (User guide) (multi-language)
WARRANTY
Three-year limited warranty on parts and labor, first-year Express Exchange® Service. One-year limited warranty on lamp.***
AUDIO
Speaker: 1x1 watts
INPUT SIGNAL
Frequency: Fh: 31–79kHz; Fv: 56–85Hz
Video: RGB analogue, NTSC M, NTSC 4.43, PAL, SECAM, SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i)
CONNECTOR
PC RGB Input: 1 x 15-pin mini D-sub
Control: 1 x 9-pin D-sub RS-232m stereo mini jack
Audio: 1 x 3.5mm stereo mini jack
S-Video: 1 x 4-pin mini-DIN
Composite Video: 1 x RCA jack
Component Video: 15-pin mini D-sub to 3 x RCA component video adapter (optional)
POWER
Voltage: AC 100 – 240V, 50/60Hz (auto switch)
Consumption: 250W (typ.)
CONTROLS
Basic: Stand-by, menu, input
OSD: Display mode, brightness, contrast, V keystone correction, aspect ratio, blank screen, gamma, white peaking, colour temperature, user colour, video (sharpness, saturation, tint), display (phase, tracking, H/V position), advance (auto source select, projection [front, rear, ceiling], eco mode, lamp hours, lamp reset, auto shutdown, language, OSD timeout, menu position, factory reset), audio (volume, mute)
OPERATING CONDITIONS
Temperature: 0°C to 40°C
Humidity: 10% to 90% (non condensation)
Altitude: 0 to +3048m sea level
WEIGHT
Net: 2.7kg
Gross: 5.7kg
DISPLAY
Contrast Ratio : 2000:1 (typ.)
Display size: 25”–285” (0.63m–7.24m) (Diagonal)
Aspect Ratio: 4:3 (native), 16:9
Throw Distance: 0.99m–9.9m
Throw Ratio: 1.64 –1.96:1
Lamp type: 200W UHB, 2000 hours (Eco mode 3000 hours¹)
Brightness: 2000 ANSI lumens (typ.)
NOISE LEVEL
Normal: 36 dB (typ.)
Eco-mode: 32 dB (typ.)
OTHER
Vertical digital keystone correction, 3:2 pull down, Eco mode
DLP
Type: 1.4 cm / 0.55" DDR SVGA DMD DLP
Resolution: 800 x 600 SVGA native, (max. 1280 x 1024 SXGA compressed)
Lens: 1.1 (F = 2.36-2.46/f = 19.91mm-21.36mm)
Digital Keystone: Vertical ± 15º
Zoom Factor: 1.1 (F = 2.36-2.46/f = 19.91mm-21.36mm)
