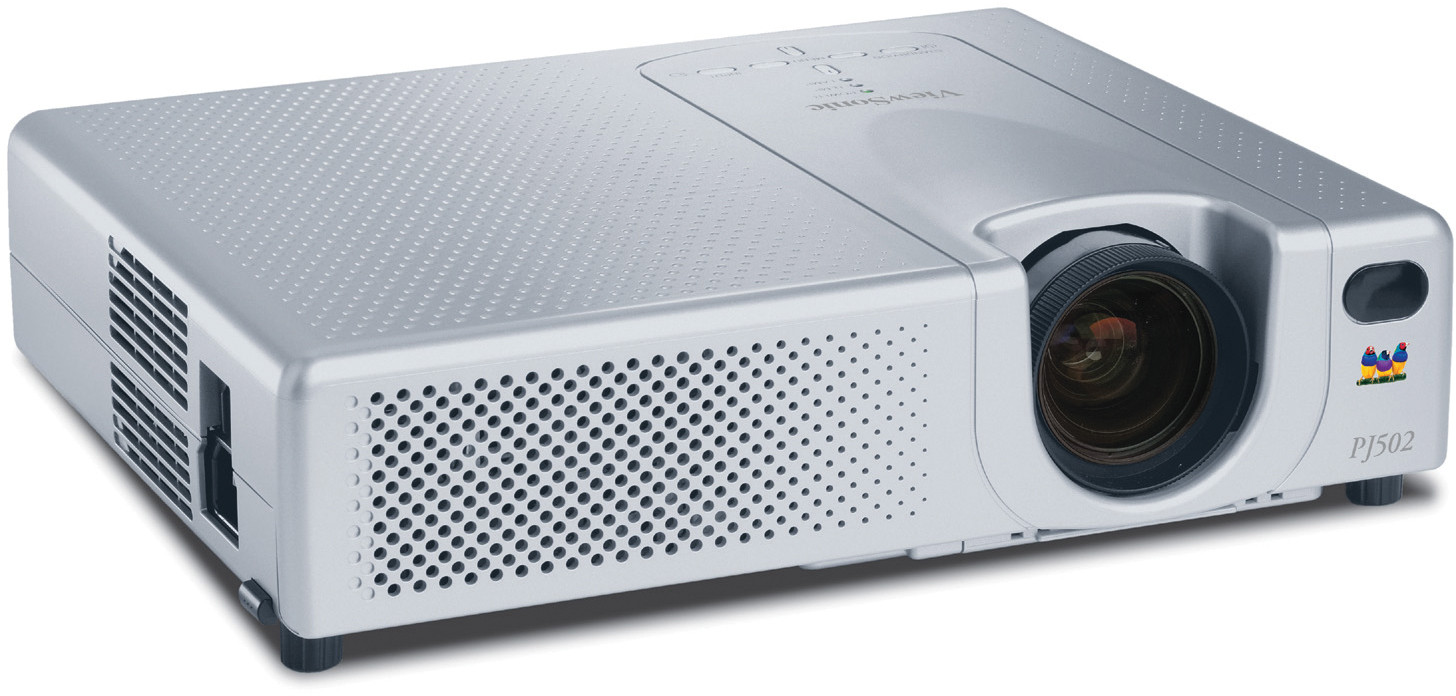

PJ502

UL, C-UL, FCC-Class B, CB, CE, TUV/GS, C-Tick, NOM

Please see: http://www.viewsoniceurope.com/UK/Support/warranty.htm

Speaker: 1x1-watt

Frequency: Fh: 15–91kHz; Fv:50–120Hz
Computer and Video: RGB analogue
NTSC, NTSC 4:3, PAL, SECAM, 480i/p, HD signals 720p, 1080i

Video Input: S-video, composite, component
RGB: 15–pin HD, D–sub cable
Audio Input: RCA (x1)
Control: RS-232

Voltage: 100–240 VAC, 50–60Hz (universal)
Consumption: 220 watts (typ)

OnView®: Language [English, French, German, Spanish, Italian, Norwegian,
Dutch, Japanese, Portuguese, Chinese, Korean, Swedish, Russian,
Polish], Display [keystone, brightness, contrast, aspect, whisper,
mirror, language, gamma, colour], Balance (RGB) [sharpness,
colour, tint, my memory, H/V position, H phase, H size, overscan,
colour space, component, video, frame lock, 3D-YCS, video NR,
progressive, information, S2-aspect, adjust, power-off, search,
blank, start up, menu position, message, screen type, reset], Audio
[volume, mute], Lamp [timer, timer reset], Filter [timer, timer reset]
Physical: Standby on/off, menu, input
Remote Standby on/off, page up, page down, enter, volume, mute,
blank, auto adjust, search, RGB, video, aspect, magnify on/off,
freeze, position, keystone, reset, escape

Temperature: 0–30º C
Humidity: 10–85% (non-condensing)

Net: 2.4 kg

Contrast Ratio : 400:1
Aspect Ratio: 4:3 (native), 16:9
Throw Distance: 0.9m - 11m
Throw Ratio: 1.49–1.79:1
Brightness: 1,600 lumens
Keystone Correction: ±15° vertical
Size: 0.76m - 7.6m (measured diagonally)
Lamp: 165W, 4,000 hour rating3

Normal: 33dB (typ)
Whisper mode: 29dB (typ)

Front and rear projection, overscan, frame lock, 3D-YCS, video
NR, progressive scan, soft carrying case, remote control
