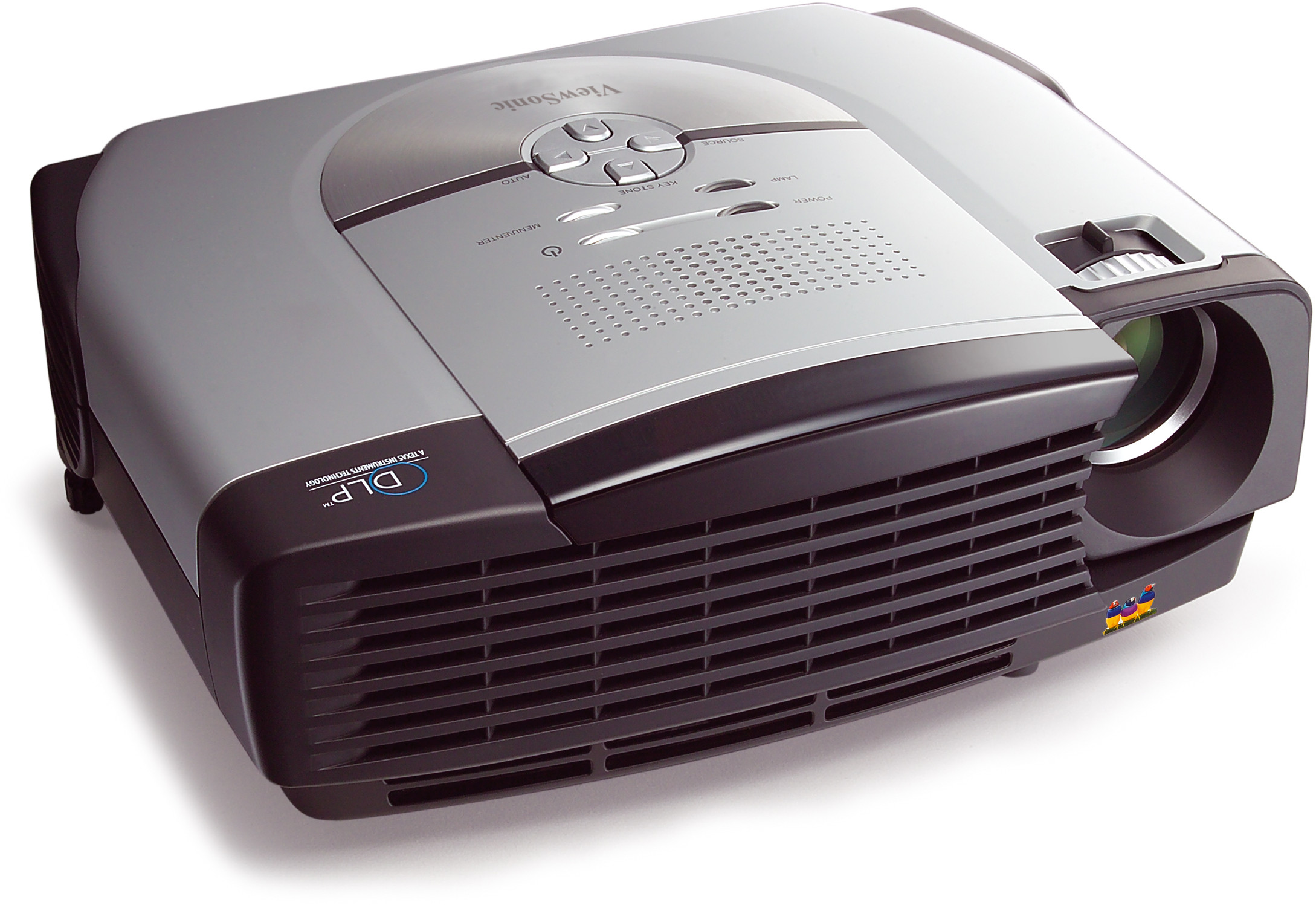

PJ458D

ULTRA-PORTABLE XGA DLP™ PROJECTOR

Sales Enquiry

GALLERY

A bright, affordable choice for home and office

The ViewSonic PJ458D employs single DLP panel design technology with 2000 lumens and a 1024 x 768 XGA native resolution to produce bright, sharp images for CONVINCING OFFICE PRESENTATIONS AND IMPRESSIVE HOME ENTERTAINMENT. Small yet powerful, clear viewing is assured with a 2000:1 contrast ratio. Its wide throw ratio and vertical keystone correction lets PRECISE IMAGES BE PROJECTED IN VIRTUALLY ANY SETTING. In addition, 3:2 pull down and progressive scan are incorporated to boast TOP VIDEO PERFORMANCE. Support of HDTV and worldwide video signal standards (NTSC, PAL and SECAM) provide for exceptional versatility. And its filterless design means users won’t even have to worry about replacing or cleaning the air filter.

SPECIFICATIONS

COMPATIBILITY
Mac®: Analogue: to SXGA (scaled), 1024 x 768 @ 60Hz preferred
PC: Analogue: VGA to SXGA (scaled), 1024 x 768 @ 60Hz preferred
DIMENSIONS
W x H x D mm: 256 x 88 x 200
REGULATIONS
UL, CE, FCC Class B, CCC, NOM, PSB, Gost

PACKAGE CONTENTS
DLP projector, power cables (Europe [Schuko]/UK), VGA video cable,
S-video cable, RCA video cable, audio cable, remote control, batteries,
soft carry case, lens cap, Quick Start Guide, ViewSonic Wizard CD-ROM
(User Guide/drivers)
WARRANTY
Please see: www.viewsoniceurope.com/UK/Support/warranty.htm
AUDIO
Speaker: 2 Watt
INPUT SIGNAL
Frequency: RGB analogue, NTSC M, NTSC 4.43, PAL (B, D, G, H, I, M, N), SECAM, HDTV (480i/p, 576i/p, 720p, 1080i)
Video: Fh: 31 – 79kHz, Fv: 50 – 85Hz
CONNECTOR
PC RGB Input: 15-pin mini D-sub
Composite Video Input: RCA jack
Component Video Input: 15-pin mini D-sub to 3x RCA Component video adapter (optional)
USB: USB Typ B (for service only)
Audio: 3.5mm stereo mini jack
S-Video: 4-pin mini-DIN
POWER
Voltage: AC 100 – 240V, 50/60Hz (auto switch)
Consumption: 250 watts (typ.)
CONTROLS
OSD: Auto adjust, language (English, French, German, Spanish, Portuguese,
Italian, Russian, Simply Chinese, Traditional Chinese, Japanese, Korean),
brightness, contrast, user colour, sharpness, tint, saturation, aspect ratio,
H/V position, H phase, Eco Mode, lamp time, lamp reset, projection (front,
rear, ceiling), volume, mute, blank screen, white peaking, auto source select,
auto off, OSD timeout, reset
Physical: Standby on/off, menu, input, reset, keystone
OPERATING CONDITIONS
Temperature: 5°C to 40°C
Humidity: 35% to 85% (non condensation)
WEIGHT
Net: 2.2kg
DISPLAY
Contrast Ratio : 2000:1
Aspect Ratio: 4:3 (native), 16:9
Throw Distance: 1.2m – 10m
Throw Ratio: 1.57 ~ 1.89:1
Brightness: 2000 ANSI lumens
Size: 0.79m – 7.9m (31.2" – 312" ) (Diagonal)
Lamp: 200 watts, 3000 hours2
NOISE LEVEL
Normal: 34dB (typ.)
Eco-mode: 32dB (typ.)
OTHER
Auto power off, auto search, progressive scan, frame lock, 3:2 pull-down,
digital vertical Keystone adjustment, Eco Mode, easy lamp replacement,
easy quick on
DLP
Type: 1.4 cm / 0.55" DDR XGA DMD DLP™
Resolution: XGA, 1024 x 768 native (max. 1280 x 1024 compressed)
Lens: Manual focus/zoom
Digital Keystone: Vertical ± 15°
Zoom Factor: 1.2, F2.4 – 2.57 (f = 18mm – 21.57mm)
