PJ452

LIGHT, BRIGHT AND PORTABLE PROJECTOR WITH KEYSTONE CORRECTION

Sales Enquiry

GALLERY

Practical, versatile, lightweight

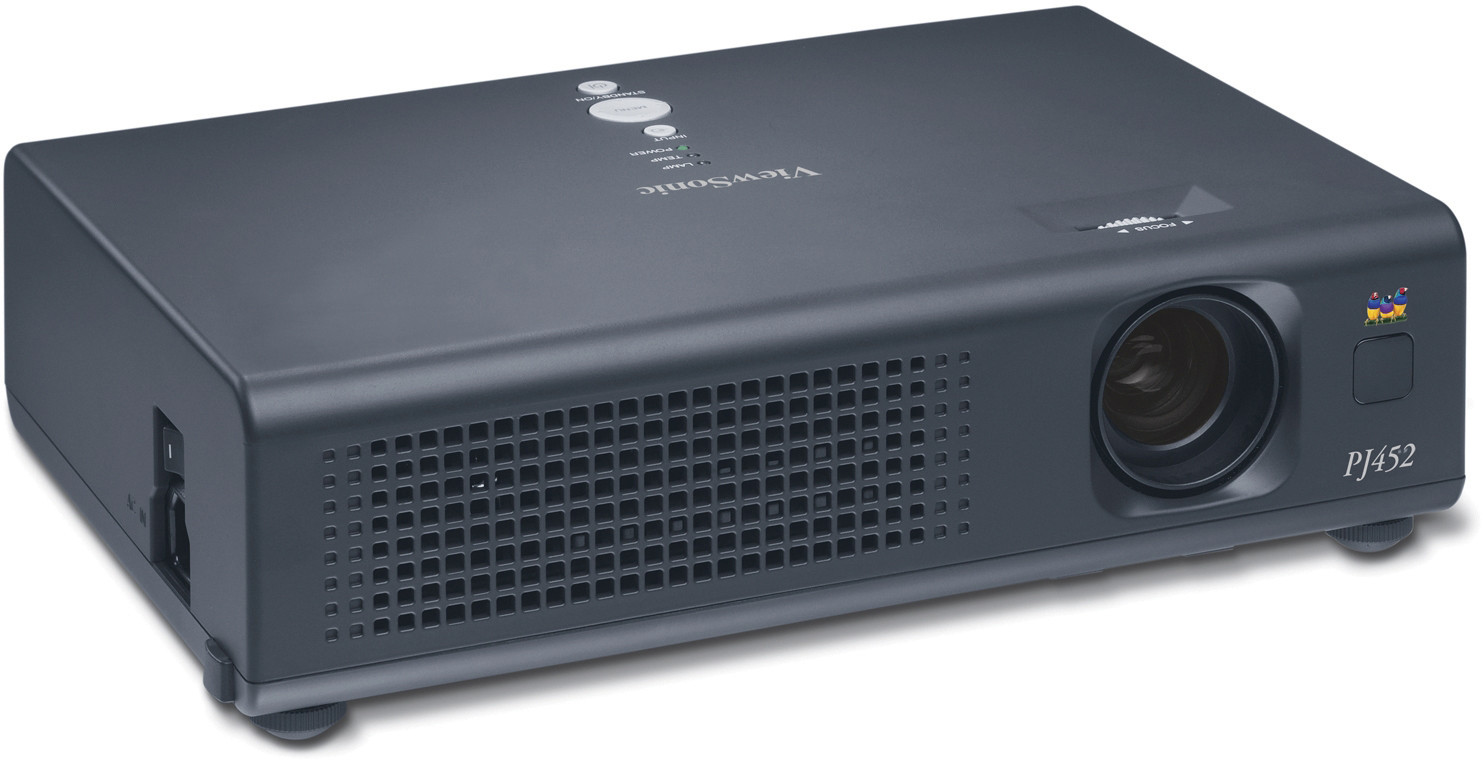

The ViewSonic PJ452 is a superb choice for those looking for a portable, multifunctional data and video projector. Weighing in at just 2.35kg, this projector boasts 1600 lumens and 1024 x 768 XGA resolution for CLEAR, BRIGHT IMAGES FOR DATA AND VIDEO. The PJ452 supports HD signals and both 4:3 and 16:9 aspect ratios for brilliant videos. Advanced video features such as PROGRESSIVE SCAN AND 3:2 PULL DOWN, COMBINED WITH DIGITAL KEYSTONE CORRECTION ENSURE PERFECT IMAGES IN ANY SETTING. This richly-featured, portable projector is affordable and great for work or play. It’s an excellent value for professional presentations or home theatre use.

SPECIFICATIONS

COLORS
Black
LCD
Type: 3 x15mm(0.6") P-Si TFT active matrix with MLA
Resolution: 1024 x 768 XGA native, (max. 1600 x 1200 UXGA compressed)
Lens: Manual zoom/manual focus
Zoom Factor: 1.2 (F = 1.6 ~ 1.88 / f = 18.6mm - 22.3mm)
Digital Keystone: Vertical ± 15º
COMPATIBILITY
Mac®: Analogue: up to SXGA (scaled), 1024 x 768 @ 60Hz preferred
PC: Analogue: from VGA up to UXGA (scaled) ), 1024 x 768 @ 60Hz preferred

DIMENSIONS
W x H x D mm: 285 x 73 x 202
REGULATIONS
CE, CB, UL-DEMKO/GS, UL/C-UL, FCC-B, CCC, C-TICK, GOST, NOM, PSB, TÜV-S, WEEE, RoHS
PACKAGE CONTENTS
3LCD Projector, 1.8m power cables (US/Europe [Schuko]/UK), 2.0m VGA cable, remote control, batteries, lens cap, Quick Start Guide (multi-language), ViewSonic Wizard CD (User guide) (multi-language)
WARRANTY
Please see: www.viewsoniceurope.com/UK/Support/warranty.htm
AUDIO
Speaker: 1 x 1 Watt
INPUT SIGNAL
Frequency: Fh: 31 – 92kHz; Fv: 56 – 120Hz
Video: RGB analogue, NTSC M, NTSC 4.43, PAL (B, D, G, H, I, M, N), SECAM, SDTV (480i/p, 576i/p), HDTV (720p, 1080i)
CONNECTOR
Audio Out: 1 x 3.5mm stereo mini jack
PC RGB Input: 2 x 15-pin mini D-sub
Composite Video Input: 1 x RCA jack
Component Video Input: 15-pin mini D-sub to 3x RCA Component video adapter1
PC RGB Output: 1 x 15-pin mini D-sub
Audio Input: 1 x 3.5mm stereo mini jack
Control: 1 x 9-pin D-sub RS-232
S-Video: 1 x 4-pin mini-DIN
POWER
Voltage: AC 100 - 120/220 - 240V, 50/60Hz (auto switch)
Consumption: 240W (typ.)
CONTROLS
Basic: Standby, input, reset, V keystone
OSD: Easy menu (aspect, zoom, keystone, mode, brightness, contrast, colour,
tint, sharpness, eco mode, mirror, reset, filter time, language), advanced
menu (picture menu [brightness, contrast, gamma, colour temperature,
colour, tint, sharpness, progressive, My Memory], image menu [aspect,
over scan, H/V position, H phase, H size, auto adjust], input menu
[colour space, video format, frame lock, information], setup menu
[zoom, keystone, eco mode, mirror, volume], screen menu [language,
menu position, OSD bright, blank, start-up, My Screen, My Screen
Lock, message], option menu [auto search, auto off, lamp time, filter
time, service])
OPERATING CONDITIONS
Temperature: 0°C – 35°C
Humidity: 10% – 85% (non condensation)
WEIGHT
Weight: 2.35kg
DISPLAY
Contrast Ratio : 500:1 (typ.)
Aspect Ratio: 4:3 (native), 16:9
Throw Distance: 1.2m - 9.0m
Throw Ratio: 1.5 - 1.8:1
Brightness: 1600 ANSI lumens
Size: 1.02m - 7.62m (40" - 300") (Diagonal)
Lamp: 165W UHB, 2000 hours (Eco mode 3000 hours2)
NOISE LEVEL
Normal: 38dB (typ.)
Eco-mode: 33dB (typ.)
