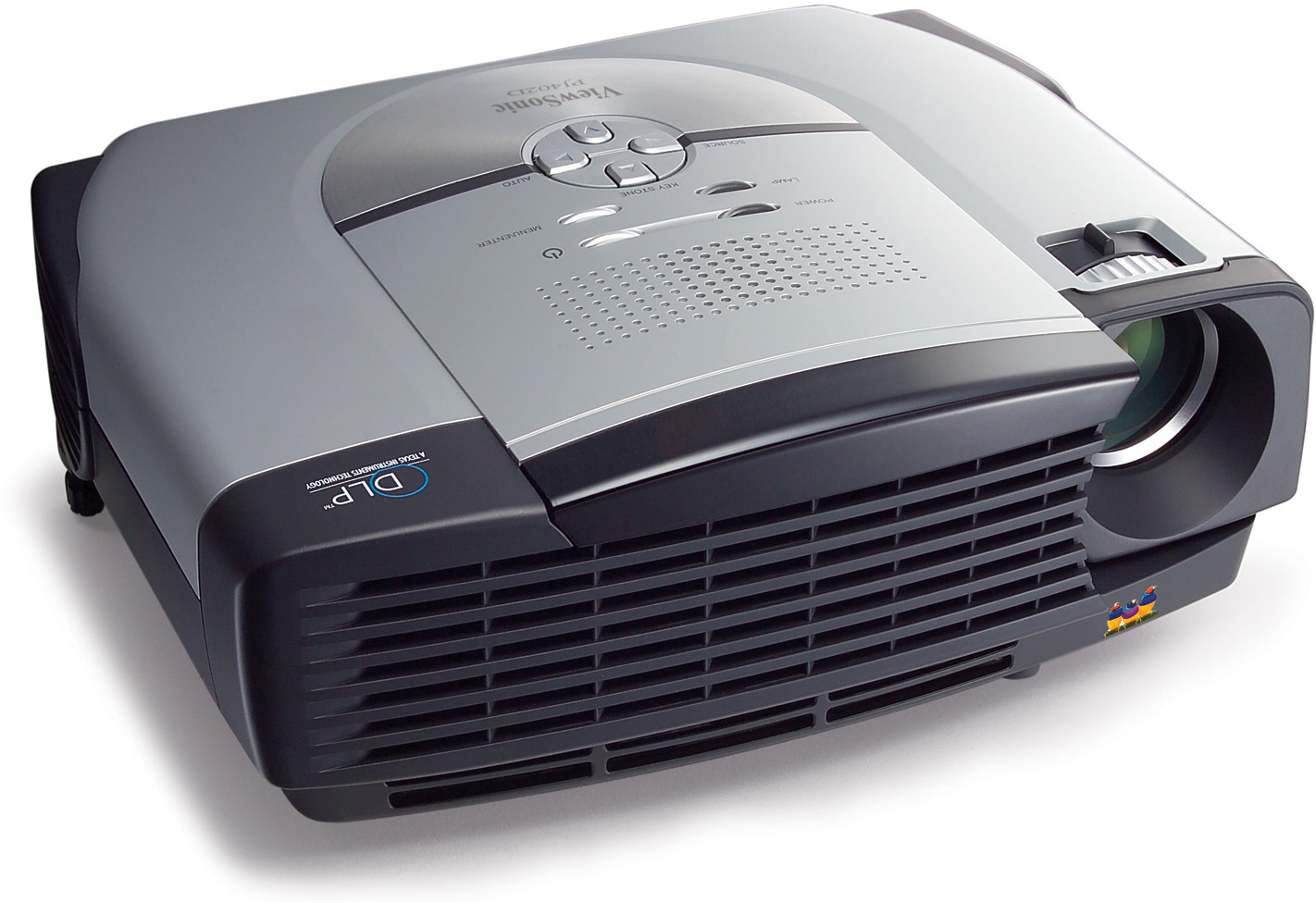

PJ402D

ULTRA-PORTABLE SVGA DLP™ PROJECTOR

Sales Enquiry

GALLERY

Easy to use, easy to afford

The ViewSonic PJ402D packs an impressive 2000 ANSI LUMENS IN JUST 2.2kg. Matched with a contrast ratio of 2000:1, projections will astonish thanks to their RICH, SATURATED COLOUR AND PICTURE-PERFECT VIDEO. Switch to Eco mode and EXTEND LAMP LIFE WHILE REDUCING NOISE OUTPUT. Support of HDTV and worldwide video signal standards (NTSC, PAL and SECAM) plus multiple video inputs, zoom and digital keystone correction provide for exceptional versatility. A filterless design means users needn’t worry about replacing or cleaning the air filter either, and operation is a breeze with trouble-free one-touch set-up and auto-tuning. The light, bright and affordable PJ402D is an ideal choice for home cinema, classroom purposes and corporate training or board rooms.

SPECIFICATIONS

COMPATIBILITY
Mac®: Analogue: (640 x 480, expanded) to SXGA (scaled), 800 x 600 @ 60Hz preferred
PC: Analogue: (640 x 480, expanded) to SXGA (scaled), 800 x 600 @ 60Hz preferred
DIMENSIONS
Physical (WxHxD): 256 x 88 x 200 (physical)
W x H x D mm: 360 x 300 x 250 (packaging)
REGULATIONS
CE, CB, GOST-R, UL/C-UL, FCC-B, VCCI, CCC, C-Tick, S-JQA

PACKAGE CONTENTS
DLP™ projector, power cables (Europe [Schuko]/UK), VGA video cable,
S-video cable, RCA video cable, audio cable, remote control, batteries,
soft carry case, lens cap, Quick Start Guide, ViewSonic Wizard CD-ROM
(User Guide/drivers)
WARRANTY
Please see: www.viewsoniceurope.com/UK/Support/warranty.htm
AUDIO
Speaker: 1 x 2-Watt
INPUT SIGNAL
Frequency: Fh: 31 – 79kHz, Fv: 50 – 85Hz
Video: RGB analogue, NTSC M, NTSC 4.43, PAL (B, D, G, H, I, M, N, 60), SECAM, SDTV (480i/p, 576i/p), HDTV (720p, 1080i)
CONNECTOR
Composite Video Input: RCA jack
Component Video Input: 15-pin mini D-sub to 3x RCA Component video adapter1
USB: USB Typ B (for service only)
Audio: 3.5mm stereo mini jack
S-Video: 4-pin mini-DIN
PC-RGB: 15-pin mini D-sub
POWER
Voltage: AC 100 – 240V, 50/60Hz (auto switch)
Consumption: 250 watts (typ.)
CONTROLS
OSD: Auto image adjust, Image (contrast, brightness, keystone, aspect ratio
[1:1, 16:9, 4:3], blank screen, Gamma [film, photo, RGB, video], white
peaking, colour temperature [high, mid, low, user], colour-RGB), Video
(sharpness, saturation, tint), Display (phase, H size, H/V position),
Language (English, French, German, Italian, Japanese, Korean,
Portuguese, Russian, Spanish, Simplified Chinese, Traditional Chinese)
Advanced (auto source detection, projection [front, rear, ceiling], ECO mode, lamp timer, lamp timer reset, OSD timeout, OSD position, reset), Audio (volume, mute)
Physical: Standby on/off, menu, input, auto image adjust, keystone
WEIGHT
Net: 2.2kg
Gross: 5.0kg
DISPLAY
Contrast Ratio : 2000:1
Aspect Ratio: 4:3 (native), 16:9, 1:1
Throw Distance: 1.2m – 10m
Throw Ratio: 1.79 ~ 2.1:1
Brightness: 2000 ANSI lumens
Size: 27.8" – 278" (0.71m – 7.06m) (diagonal)
Lamp: 200 watts, 2000 hours (Eco mode 3000 hours2)
NOISE LEVEL
Normal: 36dB (typ.)
Eco-mode: 34dB (typ.)
DLP
Type: 1.4 cm / 0.55" DDR XGA DMD DLP™
Resolution: SVGA, 800 x 600 native (max. 1280 x 1024 compressed)
Lens: Manual focus/manual zoom
Digital Keystone: Vertical ± 15°
Zoom Factor: 1.2, F 2.5 (f = 20.2mm – 24.2mm)
OPERATING CONDITIONS
Humidity: 35% – 85% (non condensation)
Temperature: 5°C – 40°C
