PJ400-2

PORTABLE SVGA 3LCD PROJECTOR WITH KEYSTONE CORRECTION

Sales Enquiry

GALLERY

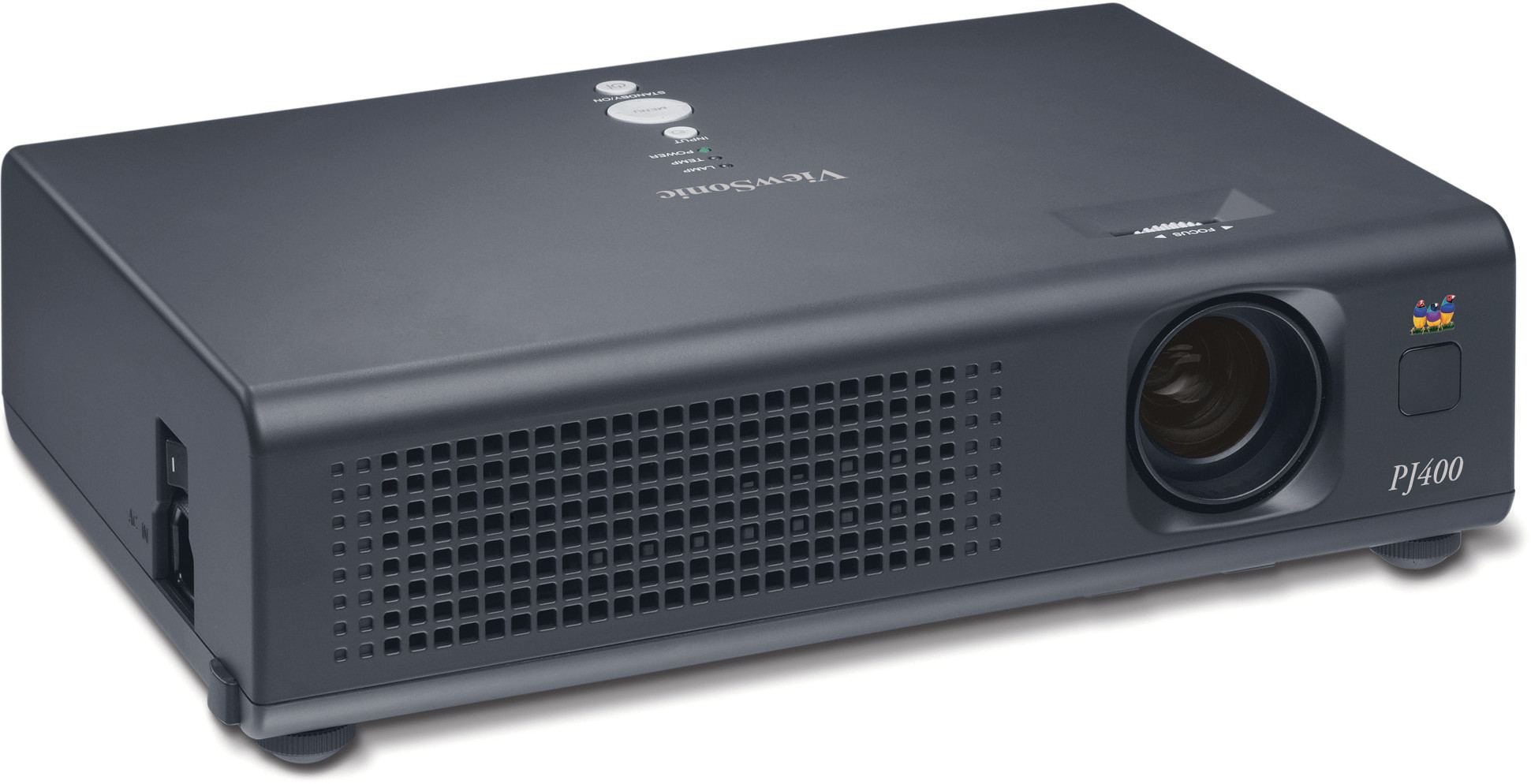

Portable, multifunctional projector

The ViewSonic PJ400 weighs only 2.3kg but packs big power into its compact package. With native SVGA 800 x 600 resolution and 1600 lumens, the PJ400 is BRIGHT AND POWERFUL ENOUGH FOR VIRTUALLY ANY SITUATION. Advanced video features such as progressive scan and 3:2 pull down, deliver smooth, crisp video performance as well as project sharp, precise images from your data applications. Add a high definition video source for DYNAMIC MULTIMEDIA PRESENTATIONS with RGB input and HDTV signal support. This full featured projector is an excellent choice for professional presentations or home theatre use.

SPECIFICATIONS

COLORS
Black
LCD
Type: 3 x 1.4cm / 0.55" P-Si TFT active matrix with MLA
Resolution: 800 x 600 SVGA native, (max. 1600 x 1200 UXGA compressed)
Lens: Digital zoom/ manual focus
Zoom Factor: 1.2 (digital) (F=1.8 / f=21.4mm)
Digital Keystone: Vertical ± 15º
COMPATIBILITY
Mac®: Analogue: up to SXGA (scaled), 800 x 600 @ 60Hz preferred
PC: Analogue: VGA up to UXGA (scaled), 800 x 600 @ 60Hz preferred

DIMENSIONS
W x H x D mm: 285 x 73 x 202 (physical)
390 x 160 x 295 (packaging)
REGULATIONS
UL-DEMKO/GS, CE, CB, GOST, UL60950/C-UL, FCC B, C-Tick, NOM, TÜV/S (Argentina), PSB , MIC, WEEE, RoHS
PACKAGE CONTENTS
3LCD Projector, 1.8m power cables (US/Europe [Schuko]/UK), 2m VGA cable, remote control, batteries, lens cap, filter cover, Quick Start Guide (multi-language), ViewSonic Wizard CD (User guide) (multi-language)
WARRANTY
Please see: www.viewsoniceurope.com/UK/Support/warranty.htm
AUDIO
Speaker: 1 x 1 Watt
INPUT SIGNAL
Frequency: Fh: 15–92kHz; Fv: 56–120Hz
Video: RGB analogue, Video NTSC M, NTSC 4.43, PAL (B, D, G, H, I, M, N), SECAM, SDTV (480i/p, 576i/p), HDTV (720p, 1080i)
CONNECTOR
Composite Video Input: Composite Video 1 x RCA jack
S-Video Input: 1 x 4-pin mini-DIN
Component Video Input: 15-pin mini D-sub to 3x RCA Component video adapter1
Control: 1 x 9-pin D-sub RS-232
RGB (input/output): 1 x 15-pin mini D-sub
Audio In: 1 x 3.5mm stereo mini jack
CONTROLS
Basic: Standby, menu, input
OSD: Easy menu (aspect, zoom, keystone, mode, brightness, contrast, colour, tint, sharpness, eco mode, mirror, reset, filter time, language), advanced menu (picture menu [brightness, contrast, gamma, colour temperature, colour, tint, sharpness, progressive, My Memory], image menu [aspect, over scan, H/V position, H phase, H size, auto adjust], input menu [colour space, video format, frame lock, information], setup menu [zoom, keystone, eco mode, mirror, volume], screen menu [language Dutch/English/Finnish/French/German/Italian/Japanese/Korean/Norwegian/Polish/Portuguese/ Russian/Spanish/
Swedish/Simplified Chinese/ Traditional Chinese/Turkey, menu position, OSD bright, blank, start-up, My Screen, My Screen Lock, message], option menu [auto search, auto off, lamp time, filter time, service])
WEIGHT
Net: 2.3kg
Gross: 4.9kg
DISPLAY
Contrast Ratio : 300:1 (typ.)
Aspect Ratio: 4:3 (native), 16:9
Throw Distance: 1.52m–11.58m
Throw Ratio: 1.9
Brightness: 1600 ANSI lumens (typ.)
Size: 1.0m-7.6m / 40"-300" (Diagonal)
Lamp: 165W UHB, 2000 hours (Eco mode 3000 hours2)
NOISE LEVEL
Normal: 38dB (typ.)
Eco-mode: 33dB (typ.)
OPERATING CONDITIONS
Humidity: 10%–85% (non condensation)
Temperature: 5°C–35°C
