PJ400

LIGHT, BRIGHT AND PORTABLE

Sales Enquiry

GALLERY

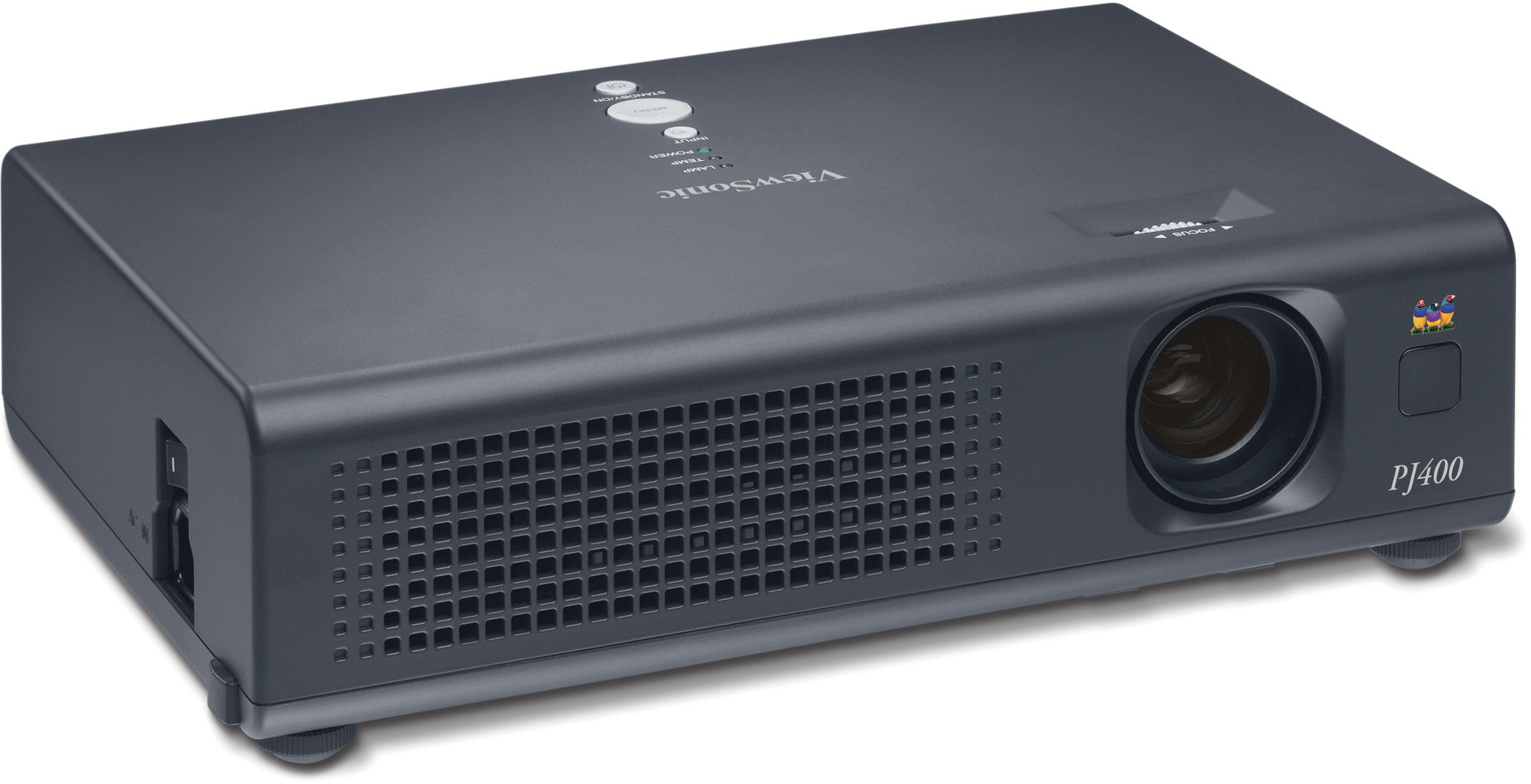

Portable, multifunctional projector.

The ViewSonic PJ400 weighs only 2.2kg but packs big power into its compact package. With native SVGA 800 x 600 resolution and 1600 lumens, the PJ400 is BRIGHT AND POWERFUL ENOUGH FOR VIRTUALLY ANY SITUATION. Advanced video features such as progressive scan and 3:2 pull down, deliver smooth, crisp video performance as well as project sharp, precise images from your data applications. Add a high definition video source for DYNAMIC MULTIMEDIA PRESENTATIONS with RGB input and HDTV signal support. This full featured projector is an excellent choice for professional presentations or home theatre use.

SPECIFICATIONS

COLORS
Black
LCD
Type: 3x 1.4cm / 0,55" Poly-Si TFT with micro-lens
Resolution: 800x600 SVGA
Lens: Manual focus
Zoom Factor: 1.2 (digital)
Digital Keystone: Vertical +/- 15º
COMPATIBILITY
Mac®: Analogue: up to SXGA (may require a Mac adapter)
PC: Analogue: from VGA up to UXGA (scaled)

DIMENSIONS
Physical (WxHxD): (WxDxH) 285mm x 73mm x 202mm
REGULATIONS
TÜV-S, CE, UL 60950, C-UL, FCC-B, UL-DEMKO/GS, CCC, CB, C-TICK, GOST, NOM, PSB
WARRANTY
Please see: www.viewsoniceurope.com/UK/Support/warranty.htm
AUDIO
Speaker: 1x1 watts
INPUT SIGNAL
Frequency: Fh: 15–91kHz; Fv: 56–120Hz
Video: RGB analogue, NTSCM, NTSC 4.43, PAL, SECAM, HDTV (480i, 480p, 576i, 720p, 1080i)
CONNECTOR
Composite Video Input: RCA jack (x1)
S-Video Input: Mini-Din 4-pin (x1)
Component Video Input: VGA DB-15 to HDTV/component cable3
Audio Input: Stereo mini-jack (x1)
Control: 9-Pin D-sub for RS232 control
RGB (input/output): 15-pin HD, D-sub cable (x1)
POWER
Voltage: 100–240 VAC, 50–60Hz (universal)
Consumption: 240 watts (typ)
CONTROLS
OnView®: Language, brightness, contrast, gamma, colour temperature, colour, tint,
sharpness, progressive, My Memory, aspect, overscan, V. position, H.position,
H. Phase, H. size, auto adjust, colour space, component, video format,
information, V. keystone, whisper, mirror, volume, language, menu position, OSD bright, blank colour, start up, My Screen, My Screen Lock, message, auto search, lamp time, filter time, service menu
Physical: Standby, input, menu
WEIGHT
Net: 2.2kg (4.8lbs)
Gross: 6.3 kg (13.9Ibs)
DISPLAY
Contrast Ratio : 300:1
Aspect Ratio: 4:3(native), 16:9
Throw Distance: 1.44m - 7.41m
Throw Ratio: 1.8
Brightness: 1600 lumens
Size: 1.0m-5m / 40"–200" (diagonally)
Lamp: 165W, 4000 hours2
OTHER
Vertical digital keystone correction, progressive scan, 3:2 pull down, auto adjust, remote control
OPERATING CONDITIONS
Humidity: 10—85% (non-condensing)
Temperature: 0 - 35º C
