PJ359w

ULTRA-PORTABLE WXGA 3LCD PROJECTOR WITH AUTO KEYSTONE CORRECTION

Sales Enquiry

GALLERY

Versatile, portable performance

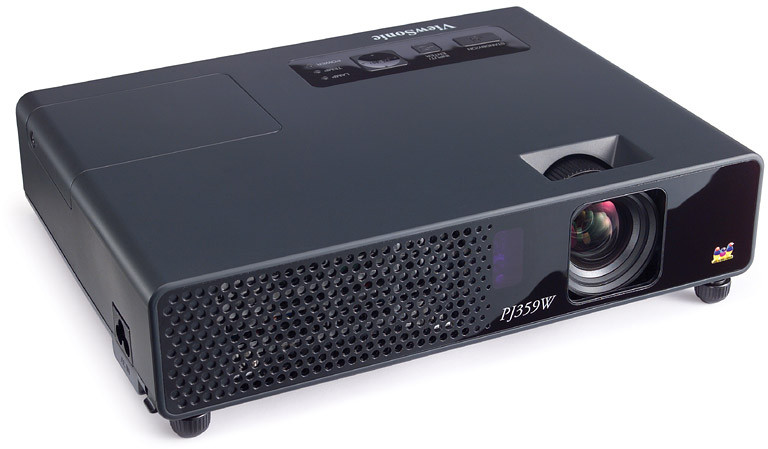

The ViewSonic® PJ359w ultra-portable projector is a performance leader with a rich feature set at an affordable price. The PJ359w is specially designed to be compatible with widescreen-format laptops and imaging applications. It delivers 2,000 LUMENS AND 1280X800 WXGA RESOLUTION for crisp, detailed images in any lighting situation. Automatic keystone correction ensures your image is perfectly proportioned, while the preset screen modes give you the best possible picture for your projection surface. This impressive, portable projector features HDMI 1.3 connectivity and supports HD signals up to 1080p. It's easy to set up and its DIRECT OFF FEATURE allows you to unplug it and go. The PJ359w is ideal for table-top or mounted use in the office, classroom or on the road.

SPECIFICATIONS

LCD
Type: 1.4 cm / 0.55" (x3) Poly-Si TFT with Micro Lens
Resolution: WXGA 1280×800 (native) / UXGA 1600×1200 (compressed)
Lens: 1.2x Manual Optical Zoom / Manual focus
Digital Keystone: Vertical Digital keystone correction:+/-30 degrees
COMPATIBILITY
PC: Analogue: VGA up to SXGA(scaled)
Mac®: Analogue: up to UXGA(scaled)
DIMENSIONS
Physical (WxHxD): 274 x 59 x 205
W x H x D mm: 375 x 195 x 292

REGULATIONS
UL60950-1/C-UL, FCC B, CE, DEMKO-GS, WEEE, RoHS, C-Tick, TÜV, GOST, CCC
PACKAGE CONTENTS
Projector, Power cable, RGB cable, Remote control, Soft case, Lens cap, Quick Start Guide, ViewSonic Wizard CD (with User Guide)
AUDIO
Speaker: 1x1 W
INPUT SIGNAL
Frequency: Fh:31-106 KHz, Fv:56-120 Hz
Computer and Video: RGB Analogue, NTSC M, NTSC 4.43, PAL(B, D, G, H, I, M, N, 60),SECAM, SDTV/EDTV(480i/p, 576i/p), HDTV(720p, 1080i/p)
CONNECTOR
Digital: 1 X HDMI 1.3
Audio Out: 1 X 3.5 mini jack
PC RGB Input: 2 X 15-pin mini D-sub
Composite Video Input: 1 X RCA jack
S-Video Input: 1 X 4-pin mini-DIN
Audio Input: 1 X 3.5 mini jack
USB: 1 X USB type B (for mouse control only)
POWER
Voltage: 100~240VAC(Auto Switching), 50/60Hz (universal)
Consumption: 310W (typ) / 5W (Stand-by mode)
CONTROLS
Basic: Standby/On, input, menu
OSD: Easy Menu: Aspect, Auto keystone execute, Keystone, Picture mode, Brightness, Contrast, Color, Tint, Sharpness, Whisper, Mirror, Reset, Filter time, Language, Go to advanced menu…

Picture Menu: Brightness, Contrast, Gamma, Color temp, Color, Tint, Sharpness, My memory

Image Menu: Aspect, Over scan, V. position, H. position, H. phase, H. size, Auto adjust execute

Input Menu: Progressive, Video NR, Color space, Video format, HDMI, Frame lock, Computer in, Resolution

Setup Menu: Auto keystone execute, Keystone, Whisper, Mirror, Standby mode

Audio Menu: Volume, Audio, HDMI audio

Screen Menu: Language, Menu position, Blank, Start up, Myscreen, Myscreen lock, Message, Source name, Template

Option Menu: Auto search, Auto keystone, Auto on, Auto off, Lamp time, Filter time, My button, My source, Service, Security

C.C. (Closed Caption) Menu: Display, Mode, Channel
OPERATING CONDITIONS
Temperature: 41ºF - 95ºF(5ºC - 35ºC)
Humidity: 10% - 85% (non-condensing)
Altitude: 0 to + 6,000 ft
WEIGHT
Net: 1.8 kgs
Gross: 4.5 kgs
DISPLAY
Contrast Ratio : 500:1
Display size: 0.8m - 7.6m (30" - 300") (Diagonal)
Aspect Ratio: 16:10 (Native) / 4:3
Throw Distance: 0.9m-11.6m (35"-456")
Throw Ratio: 1.5:1-1.8:1
Lamp type: 190 watt
Brightness: 2,000 Lumens
Lamp life ( Normal / Eco / Dynamic Eco ): 2000 / 3000 (hours)
NOISE LEVEL
Normal: 36dB
Eco-mode: 30dB
OTHER
Customizable star tup screen and remote control buttons, eco mode, auto on/off, security (security password, transition detector, Kensington lock)
