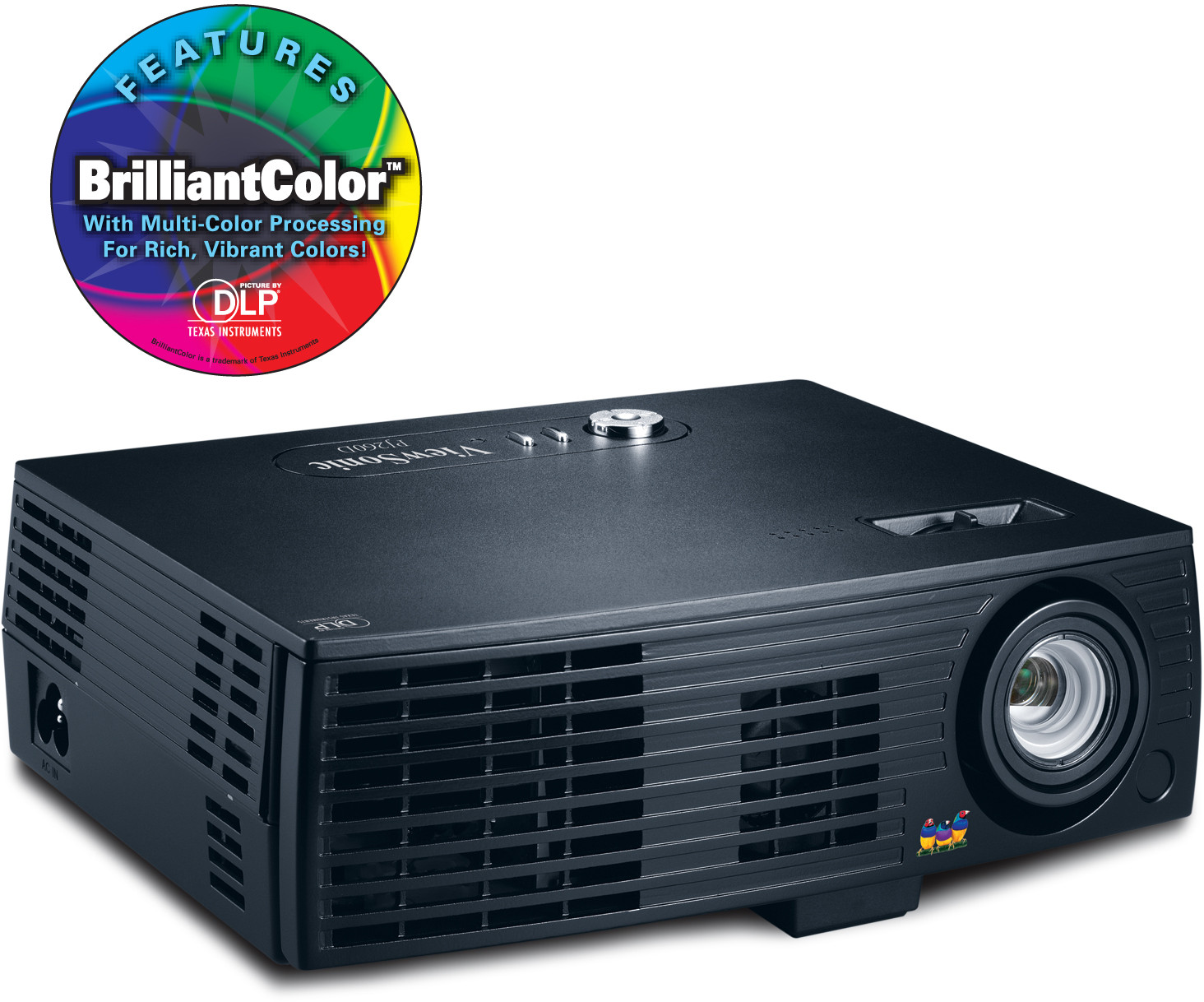

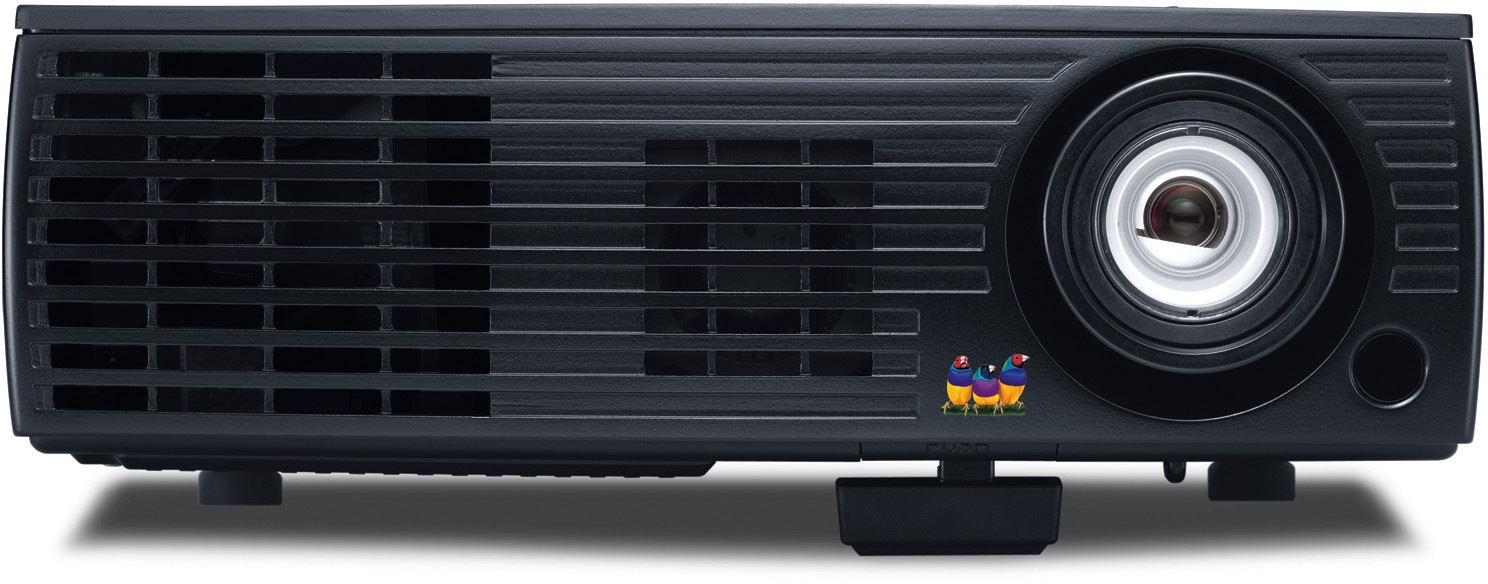

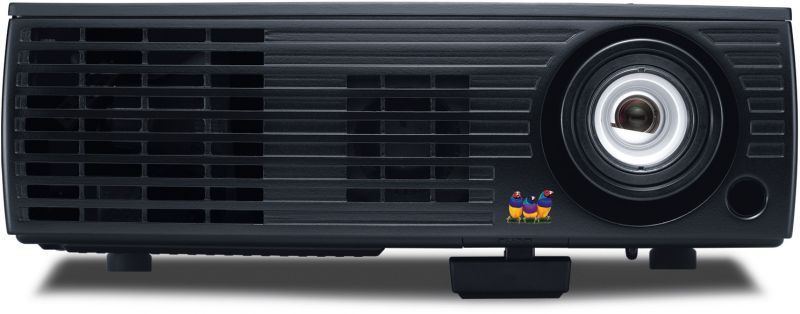

PJ260D

ULTRA-PORTABLE XGA DLP PROJECTOR WITH BRILLIANTCOLOR™ TECHNOLOGY

Sales Enquiry

GALLERY

Ultra lightweight

ViewSonic’s PJ260D projector is a lightweight DLP powerhouse that delivers top-of-the-line performance. This model offers 2000 lumens and up to 2500:1 contrast ratio to display crisp and precise digital images. Weighing just 1.3kg, this dynamo is a great choice for the road warrior, or any other user who desires an ultra light projector without sacrificing brightness. The native 1024 x 768 XGA resolution, keystone correction and zoom lens ensure that you’ll get the best possible image in virtually any setting. While supporting up to 1080i HD signals the PJ260D comes with a suite of valuable soft features like password protection, extended vertical keystone correction, customisable start-up screens and preset colour correction modes. This makes the PJ260D not only one of the brightest projectors in its weight class but also a pretty versatile projector for diverse applications.

SPECIFICATIONS

COMPATIBILITY
PC: Analogue: VGA up to SXGA (scaled), 1024 x 768 @ 60Hz preferred
Mac®: Analogue: up to SXGA (scaled), 1024 x 768 @ 60Hz preferred
DIMENSIONS
Physical (WxHxD): 210 x 65 x 165
W x H x D mm: 300 x 180 x 250
REGULATIONS
CE, CB, GOST-R, Hygienic, GS, UL/cUL, FCC-B, CCC, SASO,UKrSEPRO, WEEE, RoHS

PACKAGE CONTENTS
DLP Projector, 1.8m power cables (Europe [Schuko]/UK), VGA cable, remote control, batteries, lens cap, soft carrying case, Quick Start Guide (multi-language), ViewSonic Wizard CD (User guide) (multi-language)
AUDIO
Speaker: 1 x 2 watt
INPUT SIGNAL
Frequency: Fh: 15–100kHz;
Fv: 43–120Hz
Video: RGB analogue, NTSC M, NTSC 4.43, PAL (B, G, H, I, M, N, 60), SECAM (B, D, G, K, K1, L), SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i)

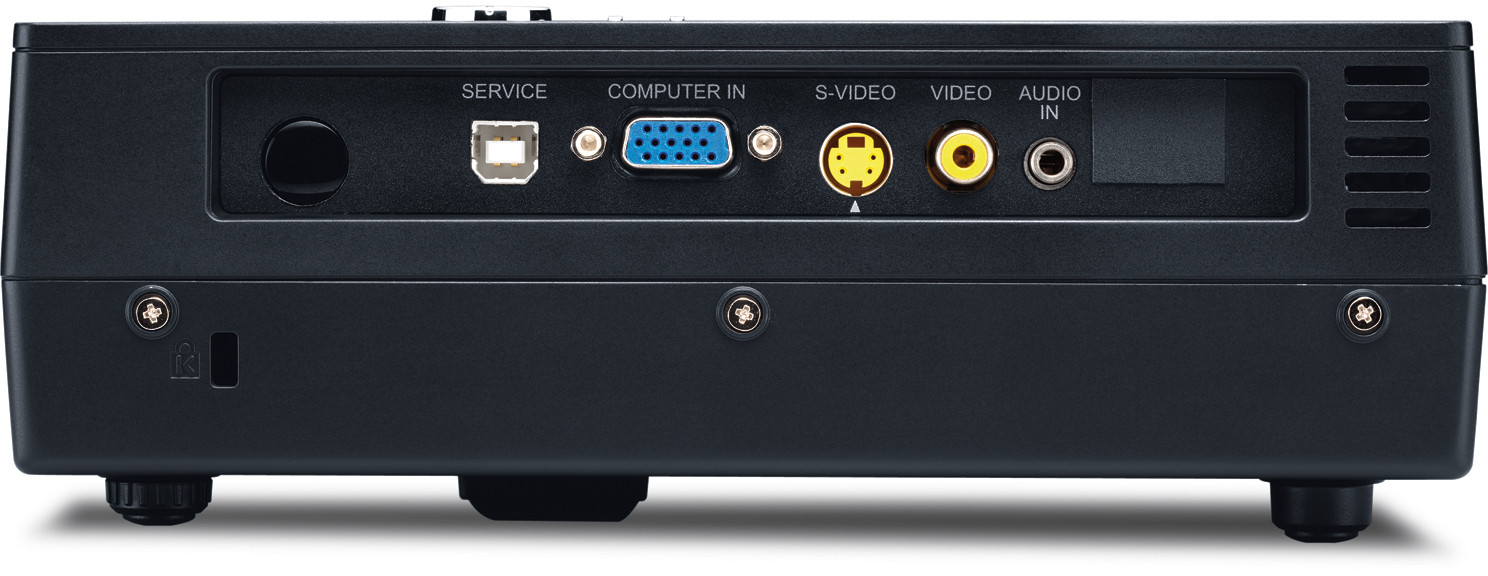

CONNECTOR
Power: 3-pin AC plug (CEE22)
Composite Video Input: 1 x RCA jack
USB: 1 x USB Typ B (for service only)
Audio: 1 x 3.5mm stereo mini jack
S-Video: 1 x 4-pin mini-DIN
PC-VGA: 1 x 15-pin mini D-sub
POWER
Voltage: AC 90–240V, 50/60Hz (auto switch)
Consumption: 225W (max), <8W in Standby
CONTROLS
Basic: Stand-by, menu, input, keystone, resync
OSD: Picture Menu (brightness, contrast, colour temperature [3 defaults, user RGB], keystone correction, aspect ratio, image [PC, movie, sRGB, user], white intensity, gamma), Computer Image Menu (H/V position, H size, fine tune), Video Image Menu (colour, sharpness, tint), Audio Menu (volume, mute), Setting Menu (OSD position, projection [front, rear, ceiling front, ceiling rear], signal type [video, PC], lamp timer, lamp timer reset, auto off, auto source detection, Eco mode, fan speed, OSD timeout), Option Menu (blank screen, start-up screen, screen capture, password), Language Menu (English, French, German, Italian, Japanese, Portuguese, Russian, Spanish, Simplified Chinese, Traditional Chinese), factory default reset
OPERATING CONDITIONS
Temperature: 0°C–40°C
Humidity: 10%–80% (non condensation)
WEIGHT
Net: 1.3kg
Gross: 3.8kg
DISPLAY
Contrast Ratio : Up to 2500:1 (max.)
Display size: 40”–300” (1.02m–7.62m) (Diagonal)
Aspect Ratio: 4:3 (native), 16:9
Throw Distance: 1.6m–12.0m
Throw Ratio: 1.9–2.27:1
Lamp type: 200W, 2000 hours (Eco mode 3000 hours²)
Brightness: 2000 ANSI lumens
NOISE LEVEL
Normal: 35dB (typ.)
Eco-mode: 32dB (typ.)
OTHER
Brilliant Color Technology, 5-segment colour wheel, unplug and go, customizable start-up screen, +/- 40 degree vertical keystone correction, progressive scan, 3:2 pull down, black/green board colour correction presets, Eco mode
DLP
Type: 0.55” DDR XGA DMD DLP
Resolution: 1024 x 768 XGA native, (1280 x 1024 SXGA compressed)
Lens: Manual zoom, manual focus
Digital Keystone: 80° vertical (± 40º)
Zoom Factor: 1.17 (F = 2.5–2.74/f = 22.0mm–25.5mm)
